1545-2-060: DescriptionBoard Connector, 60 Contact(s), 4 Row(s), Male, Straight, 0.075 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size210KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric Compare View All

1545-2-060 Overview

Board Connector, 60 Contact(s), 4 Row(s), Male, Straight, 0.075 inch Pitch, Solder Terminal, Locking, Receptacle

1545-2-060 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.303 inch
subject depth	0.276 inch
body length	1.747 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact point gender	MALE
contact mode	STAGGERED
Contact resistance	30 mΩ
Contact style	IDC
Dielectric withstand voltage	250VAC V
Insulation resistance	1000000000 Ω
Manufacturer's serial number	1545
Plug contact pitch	0.075 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.094 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	60
Base Number Matches	1

Preview

Download Datasheet

View All

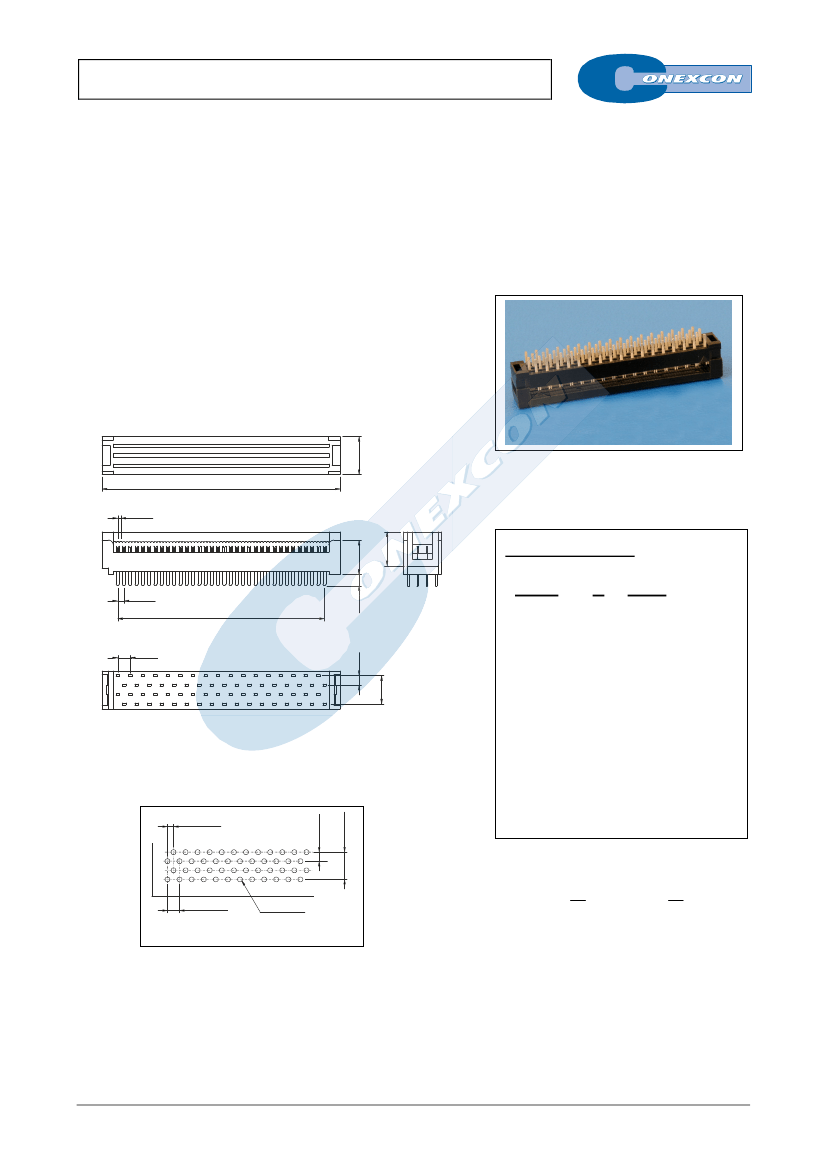

FLAT CBLE IDC DIP PLUG

1545 SERIES.

1.90 x 2.54 mm. (0.075 x 0.100”) pitch. 4 Rows

General Features

Electrical Features



Available in 10, 14, 16, 20, 26, 30, 34, 40, 50, 60, 68, 80

and 100 circuits

Allows to solder the flat cable to the PCB

Use flat cable 0.635 mm pitch 9063 series

4 rows in PCB 1.90 x 2.54 mm.



Voltage rating: < 250V

Current rating: < 1 A

Contact resistance: < 30 mΩ

Dielectric withstanding Voltage: 250 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Insulator: PBT, glass reinforced, rated UL 94V-0

Terminal: Phosphor bronze

Operating temperature. -40ºC to +105ºC

RoHS compliant

Dimension Information

0.635

.025

7.0

.276

7.70

.303

7.0

.276

Ordering Information:

.050

2.40

.094

1.27

1545 -

T- XXX

2.54

.100

1.90

.075

1. Connector Series

5.70

.224

2. (T) Contact Plating



T =

Tin plated

T =

Gold flash over nickel

Recommended Finish

T =

15µ” gold over nickel

T =

30µ” gold over nickel

3. (XX) Number of circuits

1.90±0.05

1.27±0.05

.050±.002

.075±.002

.224±.002

5.70±0.05



Available in 10 through 100 circuits

Dimensions:

(In mm.)

2.54±0.05

.100±.002

ø1.02±0.1

.040±.004







1.27











(XX) = Number of circuits







1.27



 

6. 2 8





RECOMMENDED HOLE PATTERN

A-XX

FULL LINE CATALOGUE

1545-2-060 Related Products

	1545-2-060	1545-2-068	1545-6-100	1545-2-080	1545-6-010	1545-5-034	1545-5-016	1545-3-016
Description	Board Connector, 60 Contact(s), 4 Row(s), Male, Straight, 0.075 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 68 Contact(s), 4 Row(s), Male, Straight, 0.075 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 100 Contact(s), 4 Row(s), Male, Straight, 0.075 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 80 Contact(s), 4 Row(s), Male, Straight, 0.075 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 10 Contact(s), 4 Row(s), Male, Straight, 0.075 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 34 Contact(s), 4 Row(s), Male, Straight, 0.075 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 16 Contact(s), 4 Row(s), Male, Straight, 0.075 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 16 Contact(s), 4 Row(s), Male, Straight, 0.075 inch Pitch, Solder Terminal, Locking, Receptacle
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
body width	0.303 inch	0.303 inch	0.303 inch	0.303 inch	0.303 inch	0.303 inch	0.303 inch	0.303 inch
subject depth	0.276 inch	0.276 inch	0.276 inch	0.276 inch	0.276 inch	0.276 inch	0.276 inch	0.276 inch
body length	1.747 inch	1.947 inch	2.747 inch	2.247 inch	0.497 inch	1.097 inch	0.647 inch	0.647 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN	SN	AU ON NI	SN	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ
Contact style	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC
Dielectric withstand voltage	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Manufacturer's serial number	1545	1545	1545	1545	1545	1545	1545	1545
Plug contact pitch	0.075 inch	0.075 inch	0.075 inch	0.075 inch	0.075 inch	0.075 inch	0.075 inch	0.075 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	4	4	4	4	4	4	4	4
Number of rows loaded	4	4	4	4	4	4	4	4
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	1.905 mm	1.905 mm	1.905 mm	1.905 mm	1.905 mm	1.905 mm	1.905 mm	1.905 mm
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.094 inch	0.094 inch	0.094 inch	0.094 inch	0.094 inch	0.094 inch	0.094 inch	0.094 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	60	68	100	80	10	34	16	16
Maker	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group	Conexcon Group	-	Conexcon Group	Conexcon Group
Base Number Matches	1	1	1	1	1	1	1	-
Plating thickness	-	-	30u inch	-	30u inch	15u inch	15u inch	FLASH inch
