5BT-125/250-5-N/N

Description
Tunable BPF, 5 Section(s) Min, 5 Section(s) Max, 125MHz Min, 250MHz Max,
CategoryAnalog mixed-signal IC    filter
File Size158KB，1 Pages
ManufacturerK&L Microwave Inc
Download Datasheet Parametric View All

5BT-125/250-5-N/N Overview

Tunable BPF, 5 Section(s) Min, 5 Section(s) Max, 125MHz Min, 250MHz Max,

5BT-125/250-5-N/N Parametric

Parameter NameAttribute value
MakerK&L Microwave Inc
Reach Compliance Codecompliant
3dB bandwidth5%
average input power50 W
filter typeTUNABLE BPF
high70 mm
input connectorN FEMALE
Input/output impedance50 OHM
Maximum insertion loss1.3 dB
length249 mm
Installation typePANEL MOUNT
Number of partitions-max5
Number of partitions - minimum5
Output connectorN FEMALE
physical sizeL249.0XB137.0XH70.0 (mm)/L9.803XB5.394XH2.756 (inch)
tuning controlKNOB CONTROL
maximum tuning frequency250 MHz
minimum tuning frequency125 MHz
voltage standing wave ratio1.5
width137 mm
Base Number Matches1

Preview

Download Datasheet
•
Available From Stock
N

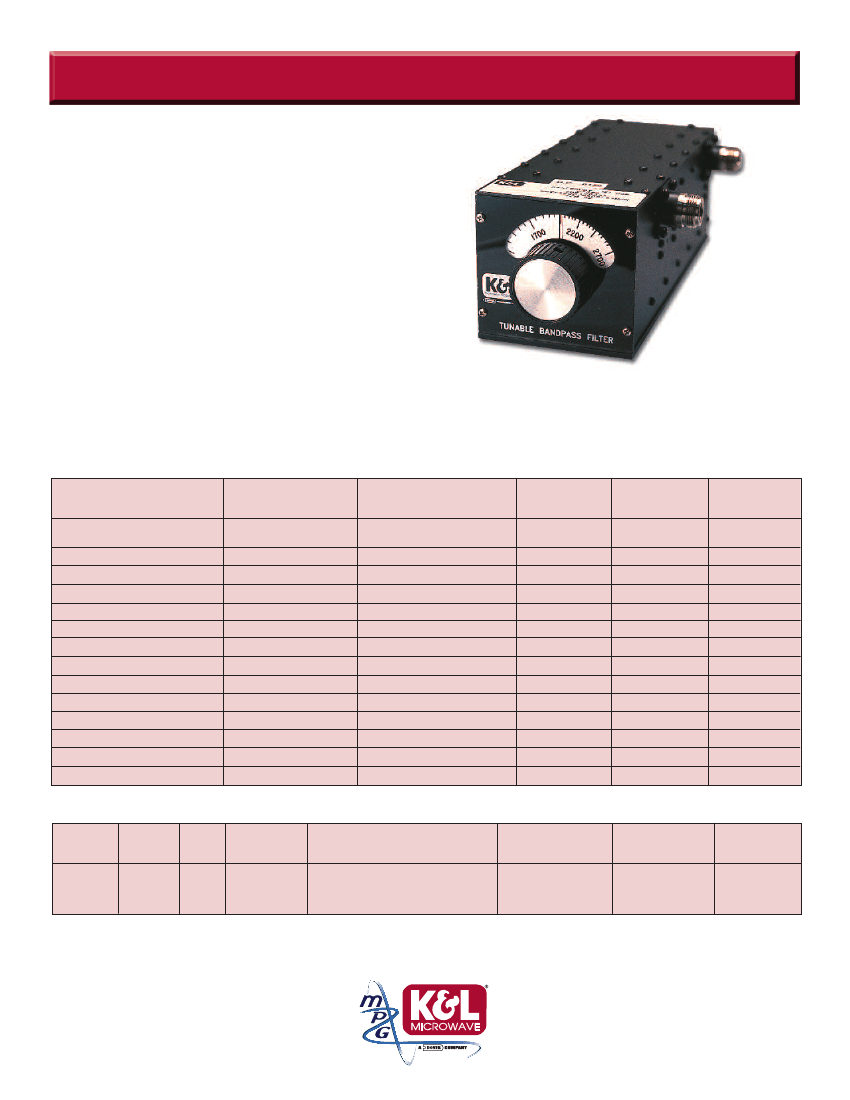

Features:
Tunable Bandpass Filters — BT Series
•
Manual Frequency Selection
•
Direct-readout Center Frequency Dial
•
Digitally Controlled Versions Available
•
5 Section, Chebyshev Filter Response
•
•
•
•
N
Applications:
N
Specifications:
K&L Model
ATE Labs
Wireless Communications
CATV Test Verification
Surveillance
Frequency Range
(MHz)
24-48
30-76
48-95
63-125
95-190
125-250
190-375
250-500
375-750
500-1000
750-1500
1000-2000
1200-2600
1500-3000
Insertion Loss
at ƒ
o
1.3
1.3
1.3
1.3
1.3
1.3
1.3
1.0
1.0
1.0
1.0
1.0
1.0
1.0
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
Max
Max
Max
Max
Max
Max
Max
Max
Max
Max
Max
Max
Max
Max
Length
Inch/mm
9.80/249
9.80/249
9.80/249
9.80/249
9.80/249
9.80/249
9.80/249
9.80/249
9.80/249
9.80/249
9.80/249
7.38/187
7.38/187
7.38/187
Width
Inch/mm
5.38/137
5.38/137
9.80/249
5.38/137
5.38/137
5.38/137
5.38/137
5.38/137
5.38/137
5.38/137
5.38/137
2.88/73
2.88/73
2.88/73
Height
Inch/mm
2.75/50
2.75/50
2.75/50
2.75/50
2.75/50
2.75/50
2.75/50
2.75/50
2.75/50
2.75/50
2.75/50
2.75/50
2.75/50
2.75/50
5BT-24/48-5-N/N
5BT-30/76-5-N/N
5BT-48/95-5-N/N
5BT-63/125-5-N/N
5BT-95/190-5-N/N
5BT-125/250-5-N/N
5BT-190/375-5-N/N
5BT-250/500-5-N/N
5BT-375/750-5-N/N
5BT-500/1000-5-N/N
5BT-750/1500-5-N/N
5BT-1000/2000-5-N/N
5BT-1200/2600-5-N/N
5BT-1500/3000-5-N/N
Type
5 Section
Power Handling Dial Accuracy
RF
Shape Factor
Nominal VSWR Impedance
(at ƒ
o
)
Connector
30 dB to 3 dB / 50 dB to 3 dB
3 dB BW
(at ƒ
o
)
5%
1.5:1
50 Ohms
2.2:1 / 3.5:1
50 Watts CW
+/- 1%
Type N
Custom configurations and ruggedized versions also available. Contact the factory for custom requirements.
Phone: 410-749-2424 • FAX: 443-260-2268
Email: sales@klmicrowave.com
www.klmicrowave.com
www.klfilterwizard.com
2250 Northwood Drive
Salisbury, MD 21804
