5962F9860301VXX datasheet, PDF

Datasheet> All Categories > logic> logic> 5962F9860301VXX

5962F9860301VXX: DescriptionHEX 1-INPUT INVERT GATE, CDFP14; Categorylogic logic; File Size51KB，2 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962F9860301VXX Overview

HEX 1-INPUT INVERT GATE, CDFP14

5962F9860301VXX Parametric

Parameter Name	Attribute value
Parts packaging code	DFP
package instruction	DFP,
Contacts	14
Reach Compliance Code	unknown
series	AC
JESD-30 code	R-CDFP-F14
Logic integrated circuit type	INVERTER
Number of functions	6
Number of entries	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
propagation delay (tpd)	15 ns
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class V
Maximum seat height	2.92 mm
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
total dose	300k Rad(Si) V
width	6.285 mm
Base Number Matches	1

Preview

Download Datasheet

View All

ACS04MS

Data Sheet

November 1998

File Number

4541

Radiation Hardened Hex Inverter

The Radiation Hardened ACS04MS is a Hex Inverter. This

device simply inverts the level present on each input. All

inputs are buffered and the outputs are designed for

balanced propagation delay and transition times.

The ACS04MS is fabricated on a CMOS Silicon on Sapphire

(SOS) process, which provides an immunity to Single Event

Latch-up and the capability of highly reliable performance in

any radiation environment. These devices offer signiﬁcant

power reduction and faster performance when compared to

ALSTTL types.

Speciﬁcations for Rad Hard QML devices are controlled

by the Defense Supply Center in Columbus (DSCC). The

SMD numbers listed below must be used when ordering.

Detailed Electrical Speciﬁcations for the ACS04MS are

contained in SMD 5962-98603. A “hot-link” is provided

on our homepage with instructions for downloading.

www.intersil.com/data/sm/index.asp

Features

• QML Qualiﬁed Per MIL-PRF-38535 Requirements

• 1.25 Micron Radiation Hardened SOS CMOS

• Radiation Environment

- Latch-Up Free Under Any Conditions

- Total Dose. . . . . . . . . . . . . . . . . . . . . . 3 x 10

RAD(Si)

- SEU Immunity . . . . . . . . . . . . <1 x 10

-10

Errors/Bit/Day

- SEU LET Threshold . . . . . . . . . . . >100MeV/(mg/cm

)

• Input Logic Levels. . . . V

= (0.3)(V

), V

= (0.7)(V

)

• Output Current . . . . . . . . . . . . . . . . . . . . . . . .

±8mA

(Min)

• Quiescent Supply Current . . . . . . . . . . . . . . 100µA (Max)

• Propagation Delay . . . . . . . . . . . . . . . . . . . . . . 15ns (Max)

Applications

• High Speed Control Circuits

• Sensor Monitoring

• Low Power Designs

Ordering Information

ORDERING NUMBER

5962F9860301VCC

ACS04D/SAMPLE-03

5962F9860301VXC

ACS04K/SAMPLE-03

5962F9860301V9A

INTERNAL MKT. NUMBER

ACS04DMSR-03

ACS04D/SAMPLE-03

ACS04KMSR-03

ACS04K/SAMPLE-03

ACS04HMSR-03

TEMP. RANGE (

-55 to 125

PACKAGE

14 Ld SBDIP

14 Ld Flatpack

Die

DESIGNATOR

CDIP2-T14

CDFP4-F14

N/A

Pinouts

ACS04MS

(SBDIP)

TOP VIEW

A1 1

Y1 2

A2 3

Y2 4

A3 5

Y3 6

GND 7

14 V

13 A6

12 Y6

11 A5

10 Y5

9 A4

8 Y4

ACS04MS

(FLATPACK)

TOP VIEW

GND

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

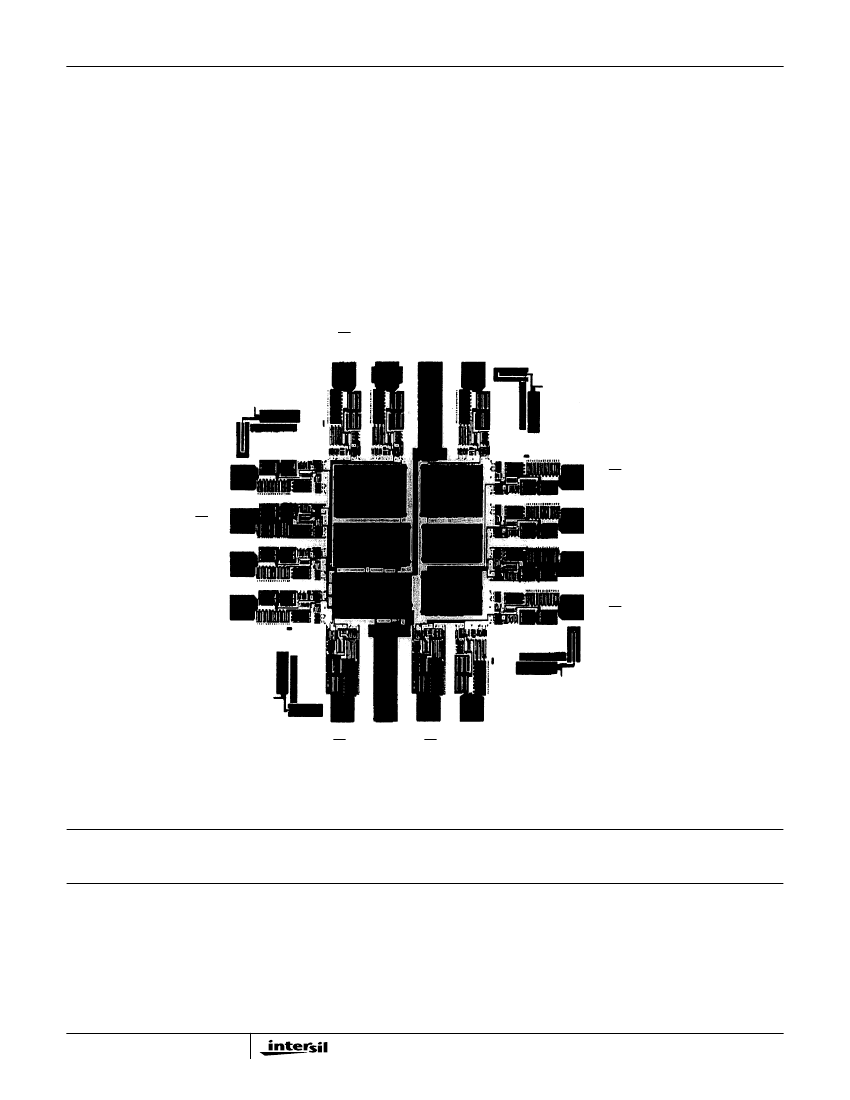

5962F9860301VXX Related Products

	5962F9860301VXX	5962F9860301V9X	5962F9860301VCX
Description	HEX 1-INPUT INVERT GATE, CDFP14	HEX 1-INPUT INVERT GATE, UUC14	HEX 1-INPUT INVERT GATE, CDIP14
package instruction	DFP,	DIE,	DIP,
Reach Compliance Code	unknown	unknown	unknown
JESD-30 code	R-CDFP-F14	X-XUUC-N14	R-CDIP-T14
Logic integrated circuit type	INVERTER	INVERTER	INVERTER
Number of functions	6	6	6
Number of entries	1	1	1
Number of terminals	14	14	14
Package body material	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DIE	DIP
Package shape	RECTANGULAR	UNSPECIFIED	RECTANGULAR
Package form	FLATPACK	UNCASED CHIP	IN-LINE
propagation delay (tpd)	15 ns	15 ns	15 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	NO
technology	CMOS	CMOS	CMOS
Terminal form	FLAT	NO LEAD	THROUGH-HOLE
Terminal location	DUAL	UPPER	DUAL
total dose	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V
Base Number Matches	1	1	1
Parts packaging code	DFP	-	DIP
Contacts	14	-	14
series	AC	-	AC
Maximum operating temperature	125 °C	-	125 °C
Minimum operating temperature	-55 °C	-	-55 °C
Filter level	MIL-PRF-38535 Class V	-	MIL-PRF-38535 Class V
Maximum seat height	2.92 mm	-	5.08 mm
Temperature level	MILITARY	-	MILITARY
Terminal pitch	1.27 mm	-	2.54 mm
width	6.285 mm	-	7.62 mm
