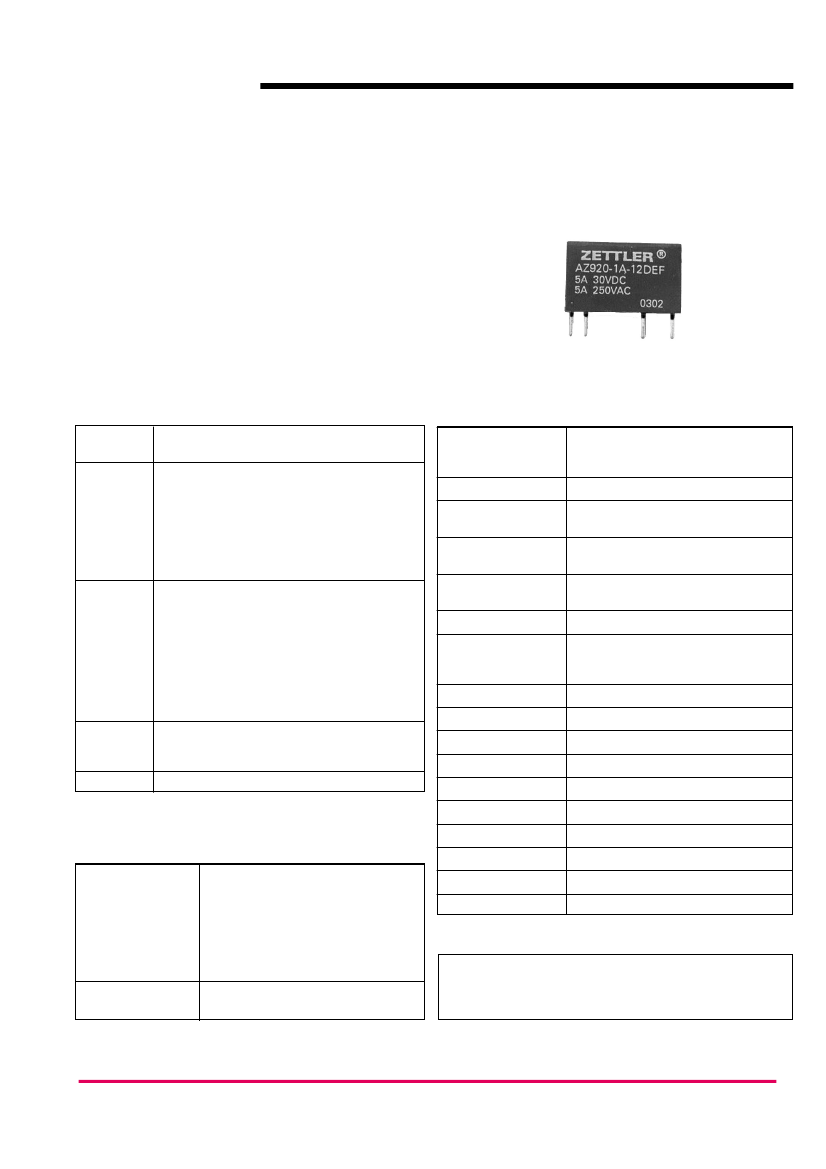

AZ920
ULTRA-SENSITIVE
SUBMINIATURE RELAY
FEATURES
•
Extremely small footprint utilizing only 0.16 square inch
of PCB area
•
Thin vertical profile only 0.2" wide
•
Slim SIP package
•
1 Form A contact with up to 5 Amp switching capability
•
High sensitivity, 58 mW pickup
•
Dielectric strength 2500 Vrms contact to coil
•
Epoxy sealed
•
UL, CUR file E43203
• TÜV file R50018790
CONTACTS
Arrangement
Ratings
SPST (1 Form A)
Single button contact or bifurcated
Resistive load:
Max. switched power: 150 W or 1250 VA
Max. switched current: 5 A
Max. switched voltage: 150* VDC or 250 VAC
*
Note: If switching voltage is greater than 30 VDC,
special precautions must be taken.
Please contact the factory.
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Operate Time (typical)
Release Time (typical)
Minimum operations
20 million operations
1 X 10
5
at 5 A, 30 VDC or 250 VAC
6 ms at nominal coil voltage
3 ms at nominal coil voltage
(with no coil suppression)
Dielectric Strength
1000 Vrms between open contacts
(at sea level for 1 min.)
2500 Vrms contact to coil
Insulation
Resistance
Dropout
Ambient Temperature
Operating
Storage
Vibration
Shock
Enclosure
Terminals
Max. Solder Temp.
Max. Solder Time
1000 megohms min. at 20°C, 500 VDC,
50% RH
Greater than 10% of nominal coil voltage
At nominal coil voltage
-40°C (-40°F) to 85°C (185°F)
-40°C (-40°F) to 105°C (221°F)
0.062" (1.5 mm) DA at 10–55 Hz
15 g
P.B.T. polyester
Tinned copper alloy, P.C.
270°C (518°F)
5 seconds
80°C (176°F)
30 seconds
3 grams
100 per plastic tube / 1000 per carton box
Rated Load
UL, CUR
5 A at 30 VDC or 250 VAC
General Use, 100k cycles [1]
5 A at 30 VDC or 250 VAC
Resistive, 100k cycles [1]
3 A at 30 VDC or 250 VAC
General Use, 75k cycles[2]
3 A at 30 VDC or 250 VAC
Resistive, 75k cycles [2]
[1] Single button contacts
[2] Bifurcated contacts
TÜV
Material
Silver nickel (single button or bifurcated contacts),
or silver tin oxide (single button contacts),
gold plating available
< 50 milliohms initially
Resistance
COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
at nominal coil voltage
Max. Solvent Temp.
Max. Immersion Time
Weight
58 mW (5-18 V coils)
88 mW (24 V coil)
1.3 W at 20°C (68°F) ambient
12°C (22°F) 5-18 V coils
17°C (31°F) 24 V coil
Max. 130°C (266°F) Class B
Max. 155°C (311°F) Class F
Packing unit in pcs
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
Temperature
ZETTLER
electronics GmbH
Tel. +49 89 800 97 0
Fax +49 89 800 97 200
office@ZETTLERelectronics.com
www.ZETTLERelectronics.com
2004-06-02
Junkersstrasse 3, D-82178 Puchheim, Germany
