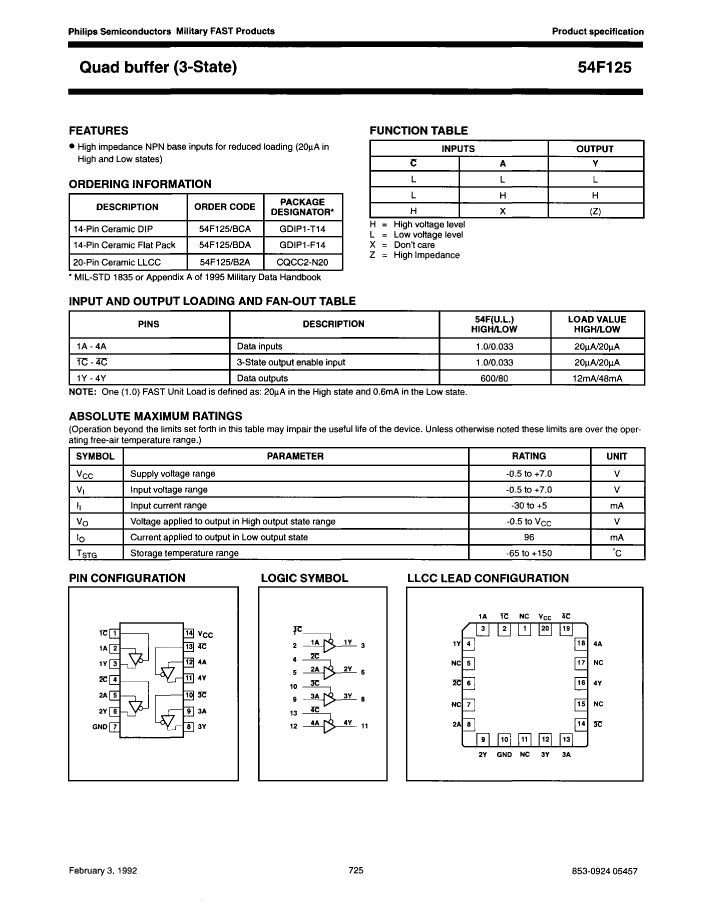

IC F/FAST SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, CDIP14, Bus Driver/Transceiver

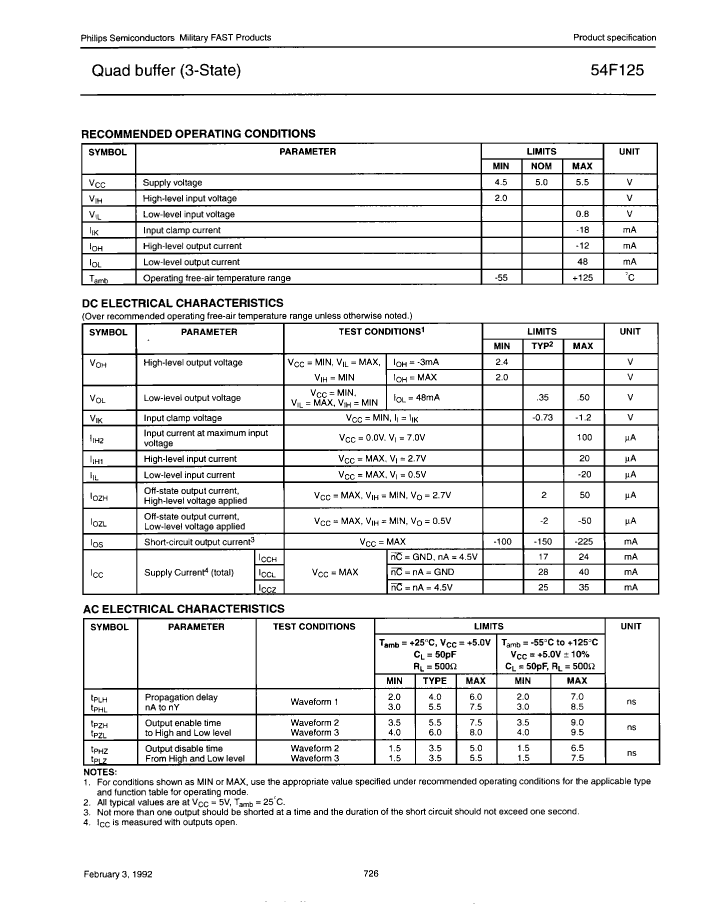

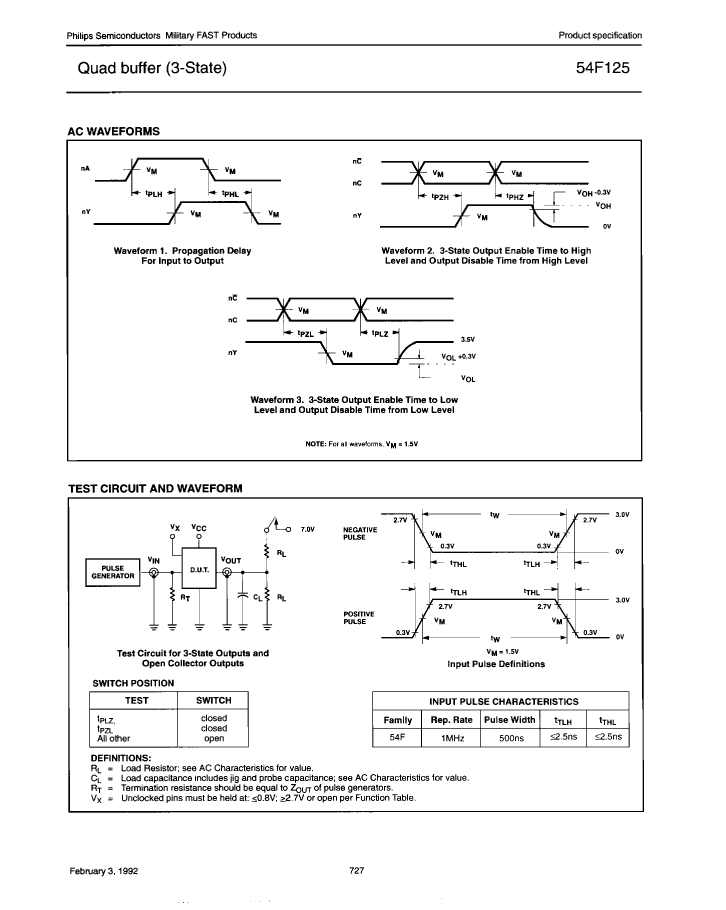

| Parameter Name | Attribute value |
| Maker | NXP |
| Reach Compliance Code | unknown |
| series | F/FAST |
| JESD-30 code | R-GDIP-T14 |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | BUS DRIVER |
| Number of digits | 1 |
| Number of functions | 4 |
| Number of ports | 2 |
| Number of terminals | 14 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Maximum supply current (ICC) | 40 mA |
| propagation delay (tpd) | 8.5 ns |
| Certification status | Not Qualified |
| Maximum seat height | 5.08 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| width | 7.62 mm |
| Base Number Matches | 1 |
| 54F125/BCA | N54F125/BDA | 54F125/B2A | N54F125/B2A | 54F125/BDA | |
|---|---|---|---|---|---|
| Description | IC F/FAST SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, CDIP14, Bus Driver/Transceiver | IC F/FAST SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, CDFP14, CERAMIC, FP-14, Bus Driver/Transceiver | IC F/FAST SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, CQCC20, CERAMIC, LLCC-20, Bus Driver/Transceiver | IC F/FAST SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, CQCC20, CERAMIC, LLCC-20, Bus Driver/Transceiver | IC F/FAST SERIES, QUAD 1-BIT DRIVER, TRUE OUTPUT, CDFP14, CERAMIC, FP-14, Bus Driver/Transceiver |
| Reach Compliance Code | unknown | unknow | unknown | unknown | unknown |
| series | F/FAST | F/FAST | F/FAST | F/FAST | F/FAST |
| JESD-30 code | R-GDIP-T14 | R-CDFP-F14 | S-CQCC-N20 | S-CQCC-N20 | R-CDFP-F14 |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER | BUS DRIVER |
| Number of digits | 1 | 1 | 1 | 1 | 1 |
| Number of functions | 4 | 4 | 4 | 4 | 4 |
| Number of ports | 2 | 2 | 2 | 2 | 2 |
| Number of terminals | 14 | 14 | 20 | 20 | 14 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | TRUE | TRUE | TRUE | TRUE | TRUE |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP | DFP | QCCN | QCCN | DFP |
| Package shape | RECTANGULAR | RECTANGULAR | SQUARE | SQUARE | RECTANGULAR |
| Package form | IN-LINE | FLATPACK | CHIP CARRIER | CHIP CARRIER | FLATPACK |
| Maximum supply current (ICC) | 40 mA | 40 mA | 40 mA | 40 mA | 40 mA |
| propagation delay (tpd) | 8.5 ns | 8.5 ns | 8.5 ns | 8.5 ns | 8.5 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 5.08 mm | 2.159 mm | 1.905 mm | 1.905 mm | 2.159 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | YES | YES | YES | YES |
| technology | TTL | TTL | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal form | THROUGH-HOLE | FLAT | NO LEAD | NO LEAD | FLAT |
| Terminal pitch | 2.54 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | QUAD | QUAD | DUAL |
| width | 7.62 mm | 6.2865 mm | 8.89 mm | 8.89 mm | 6.2865 mm |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 |
| Parts packaging code | - | DFP | QLCC | QLCC | DFP |
| package instruction | - | DFP, | QCCN, | QCCN, | DFP, |
| Contacts | - | 14 | 20 | 20 | 14 |
