5962-8981002KPX datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 5962-8981002KPX

5962-8981002KPX: Description1 CHANNEL LOGIC OUTPUT OPTOCOUPLER, HERMETIC SEALED, CERAMIC, DIP-8; CategoryLED optoelectronic/LED photoelectric; File Size1MB，12 Pages; ManufacturerAVAGO; Websitehttp://www.avagotech.com/

Download Datasheet Parametric View All

5962-8981002KPX Overview

1 CHANNEL LOGIC OUTPUT OPTOCOUPLER, HERMETIC SEALED, CERAMIC, DIP-8

5962-8981002KPX Parametric

Parameter Name	Attribute value
Maker	AVAGO
package instruction	HERMETIC SEALED, CERAMIC, DIP-8
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	OPEN COLLECTOR, HIGH RELIABILITY
Configuration	COMPLEX
Maximum forward current	0.01 A
Maximum insulation voltage	1500 V
Number of components	1
Maximum on-state current	0.04 A
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	LOGIC IC OUTPUT OPTOCOUPLER
Minimum supply voltage	2 V
Base Number Matches	1

Preview

Download Datasheet

View All

Hermetically Sealed, Low I

, Wide V

High Gain Optocouplers

Data Sheet

6N140A,* HCPL-675X, 83024, HCPL-570X, HCPL-177K, 5962-89810,

HCPL-573X, HCPL-673X, 5962-89785, 5962-98002

*See matrix for available extensions.

Description

These units are single, dual, and quad channel, hermeti-

cally sealed optocouplers. The products are capable of

operation and storage over the full military temperature

range and can be purchased as either standard product or

with full MIL-PRF-38534 Class Level H or K testing or from

the appropriate DSCC Drawing. All devices are manufac-

tured and tested on a MIL-PRF-38534 certified line and are

included in the DSCC Qualified Manufacturers List QML-

38534 for Hybrid Microcircuits.

Each channel contains a GaAsP light emitting diode which

is optically coupled to an integrated high gain photon

detector. The high gain output stage features an open

collector output providing both lower saturation voltage

and higher signaling speed than possible with conven-

tional photo-Darlington optocouplers. The shallow depth

and small junctions offered by the IC process provides

better radiation immunity than conventional photo tran-

sistor optocouplers.

The supply voltage can be operated as low as 2.0 V without

adversely affecting the parametric performance.

These devices have a 300% minimum CTR at an input

current of only 0.5 mA making them ideal for use in low

input current applications such as MOS, CMOS, low power

logic interfaces or line receivers. Compatibility with high

voltage CMOS logic systems is assured by specifying I

CCH

and I

at 18 Volts.

Features

•

Dual marked with device part number and DSCC

drawing number

•

Manufactured and tested on a MIL-PRF-38534 Certified

Line

•

QML-38534, Class H and K

•

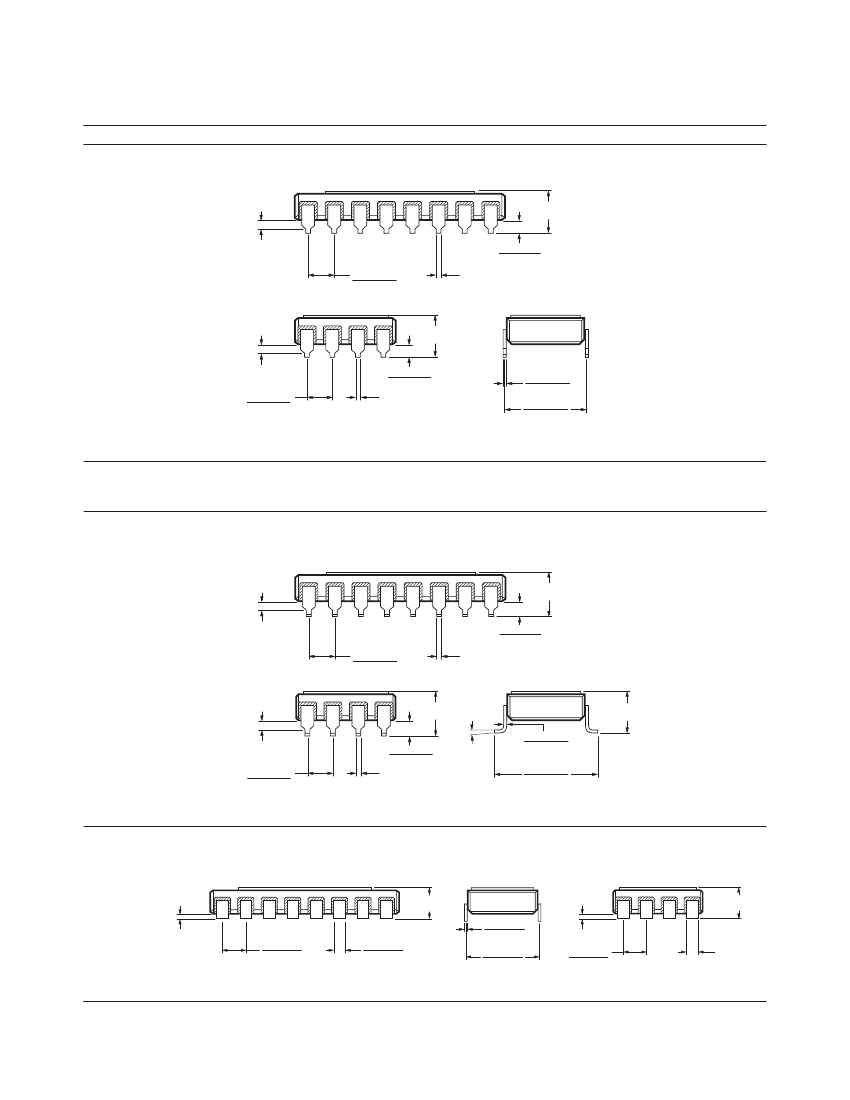

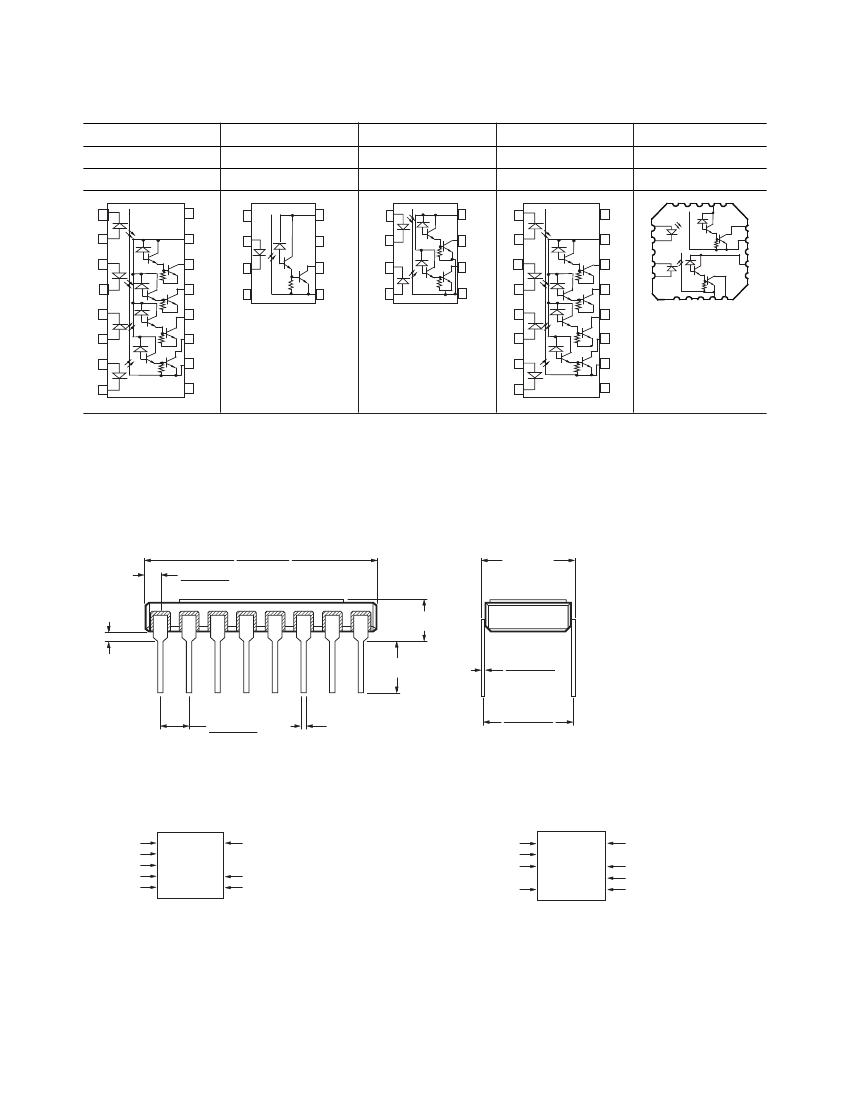

Five hermetically sealed package configurations

•

Performance guaranteed over full military temperature

range: -55°C to +125°C

•

Low input current requirement: 0.5 mA

•

High current transfer ratio: 1500% typical @ I

= 0.5 mA

•

Low output saturation voltage: 0.11 V typical

•

1500 Vdc withstand test voltage

•

High radiation immunity

•

6N138/9, HCPL-2730/31 function compatibility

•

Reliability data

Applications

•

Military and aerospace

High reliability systems

Telephone ring detection

Microprocessor system interface

Transportation, medical, and life critical systems

Isolated input line receiver

EIA RS-232-C line receiver

Voltage level shifting

Isolated input line receiver

Isolated output line driver

Logic ground isolation

Harsh industrial environments

Current loop receiver

System test equipment isolation

Process control input/output isolation

The connection of a 0.1

F bypass capacitor between V

and GND is recommended.

CAUTION:

It is advised that normal static precautions be taken in handling and assembly

of this component to prevent damage and/or degradation which may be induced by ESD.
