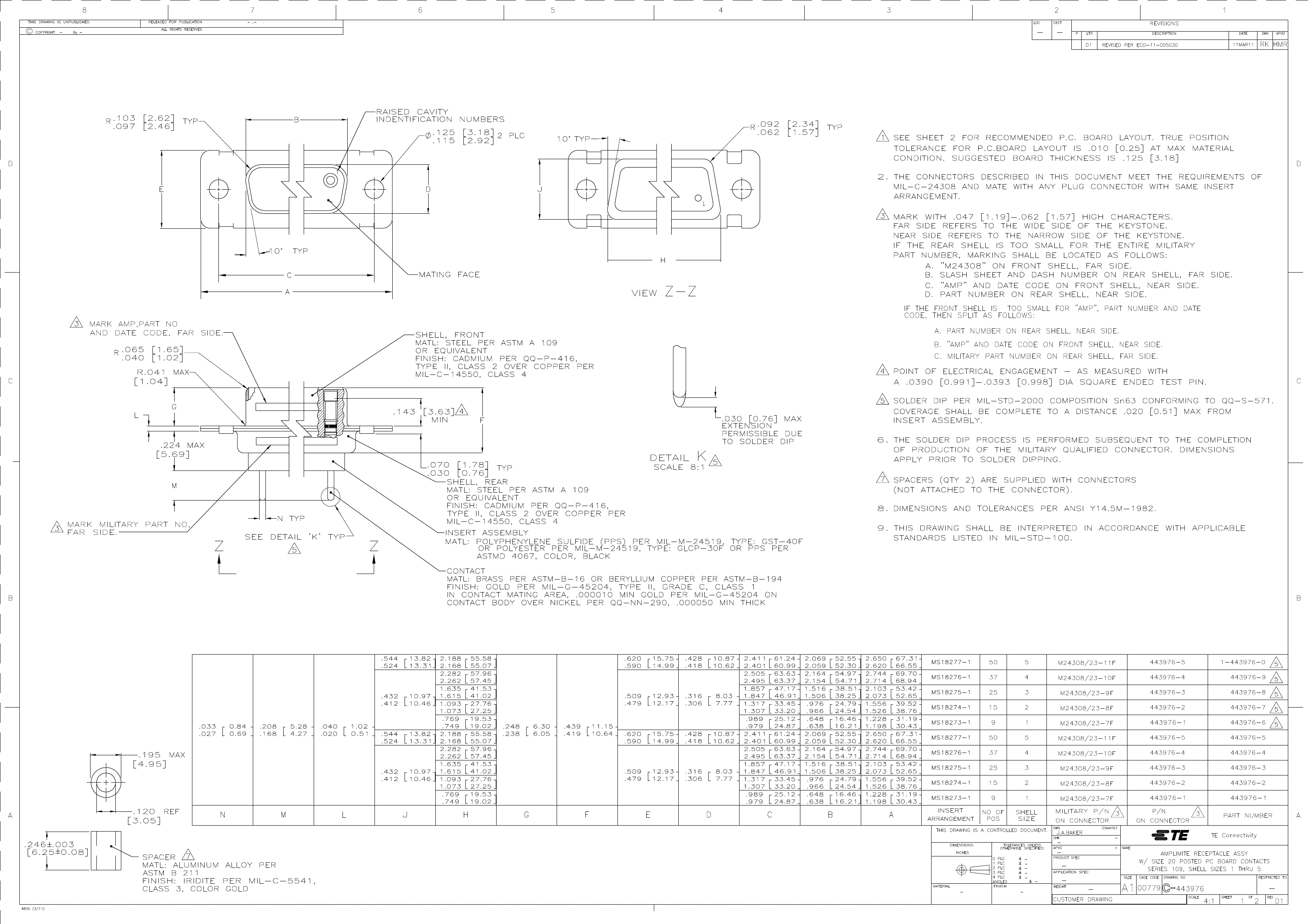

M24308/23-7F |
M24308/23-8F |
M24308/23-10F |
M24308/23-11F |
M24308/23-9F |
| Description |
9 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE |
15 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE |
37 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE |
50 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE |
25 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE |
| Is it Rohs certified? |
incompatible |
incompatible |
incompatible |
incompatible |
incompatible |
| Reach Compliance Code |
unknown |
not_compliant |
unknown |
unknown |
unknown |
| Other features |
AMPLIMITE, STANDARD: MIL-C-24308 |
AMPLIMITE, STANDARD: MIL-C-24308 |
AMPLIMITE, STANDARD: MIL-C-24308 |
AMPLIMITE, STANDARD: MIL-C-24308 |
AMPLIMITE, STANDARD: MIL-C-24308 |
| Body/casing type |
RECEPTACLE |
RECEPTACLE |
RECEPTACLE |
RECEPTACLE |
RECEPTACLE |
| Connector type |
D SUBMINIATURE CONNECTOR |
D SUBMINIATURE CONNECTOR |
D SUBMINIATURE CONNECTOR |
D SUBMINIATURE CONNECTOR |
D SUBMINIATURE CONNECTOR |
| Contact point gender |
FEMALE |
FEMALE |
FEMALE |
FEMALE |
FEMALE |
| Contact style |
RND PIN-SKT |
RND PIN-SKT |
RND PIN-SKT |
RND PIN-SKT |
RND PIN-SKT |
| empty shell |
YES |
YES |
NO |
YES |
NO |
| Filter function |
NO |
NO |
NO |
NO |
NO |
| Plug information |
MULTIPLE MATING PARTS AVAILABLE |
MULTIPLE MATING PARTS AVAILABLE |
MULTIPLE MATING PARTS AVAILABLE |
MULTIPLE MATING PARTS AVAILABLE |
MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts |
NO |
NO |
NO |
NO |
NO |
| Installation method |
STRAIGHT |
STRAIGHT |
STRAIGHT |
STRAIGHT |
STRAIGHT |
| Installation type |
BOARD |
BOARD |
BOARD AND PANEL |
BOARD |
BOARD AND PANEL |
| Number of connectors |
ONE |
ONE |
ONE |
ONE |
ONE |
| Options |
GENERAL PURPOSE |
GENERAL PURPOSE |
GENERAL PURPOSE |
GENERAL PURPOSE |
GENERAL PURPOSE |
| Shell surface |
CADMIUM |
CADMIUM |
CADMIUM |
CADMIUM |
CADMIUM |
| Shell material |
STEEL |
STEEL |
STEEL |
STEEL |
STEEL |
| Housing size |
1/E |
2/A |
4/C |
5/D |
3/B |
| Terminal length |
0.188 inch |
0.188 inch |
0.208 inch |
0.188 inch |
0.208 inch |
| Terminal pitch |
2.77 mm |
2.77 mm |
2.77 mm |
2.77 mm |
2.77 mm |
| Termination type |
SOLDER |
SOLDER |
SOLDER |
SOLDER |
SOLDER |
| Total number of contacts |
9 |
15 |
37 |
50 |
25 |
| Objectid |
1873937605 |
1873937606 |
- |
1873937559 |
- |
| Samacsys Description |
D-Sub MIL Spec Connectors ASSY RCPT POSTED1091 |
D-Sub Mil Spec Connectors ASM RCPT POSTED109 2 |
- |
- |
D-Sub MIL Spec Connectors PCB RECEPT 25P VERT |
| Samacsys Manufacturer |
TE Connectivity |
TE Connectivity |
- |
TE Connectivity |
- |
| Samacsys Modified On |
2023-03-07 16:10:32 |
2023-03-07 16:10:32 |
- |
2023-04-24 09:18:19 |
- |
| YTEOL |
8.5 |
8.18 |
- |
8.5 |
- |
| Contact to complete cooperation |
NOT SPECIFIED |
NOT SPECIFIED |
- |
NOT SPECIFIED |
- |
| Contact material |
NOT SPECIFIED |
NOT SPECIFIED |
- |
NOT SPECIFIED |
- |
| DIN compliance |
NO |
NO |
- |
NO |
- |
| Electromagnetic interference shielding |
NO |
NO |
- |
NO |
- |
| IEC compliance |
NO |
NO |
- |
NO |
- |
| MIL compliance |
NO |
NO |
- |
NO |
- |
| Power Connector Ratings |
5A |
5A |
- |
5A |
- |
| Number of ports |
1 |
1 |
- |
1 |
- |
| Maximum operating temperature |
125 °C |
125 °C |
- |
125 °C |
125 °C |
| Minimum operating temperature |
-55 °C |
-55 °C |
- |
-55 °C |
-50 °C |
| Panel mounting |
NO |
NO |
- |
NO |
- |
| Plating thickness |
10u inch |
50u inch |
- |
10u inch |
- |
| Rated current (signal) |
5 A |
5 A |
- |
5 A |
- |
| body width |
- |
0.509 inch |
0.59 inch |
- |
0.59 inch |
| subject depth |
- |
0.224 inch |
0.264 inch |
- |
0.264 inch |
| body length |
- |
1.556 inch |
2.744 inch |
- |
2.103 inch |
| contact mode |
- |
STAGGERED |
STAGGERED |
- |
STAGGERED |
| Installation option 1 |
- |
LOCKING |
HOLE .115-.125 |
- |
HOLE .115-.125 |

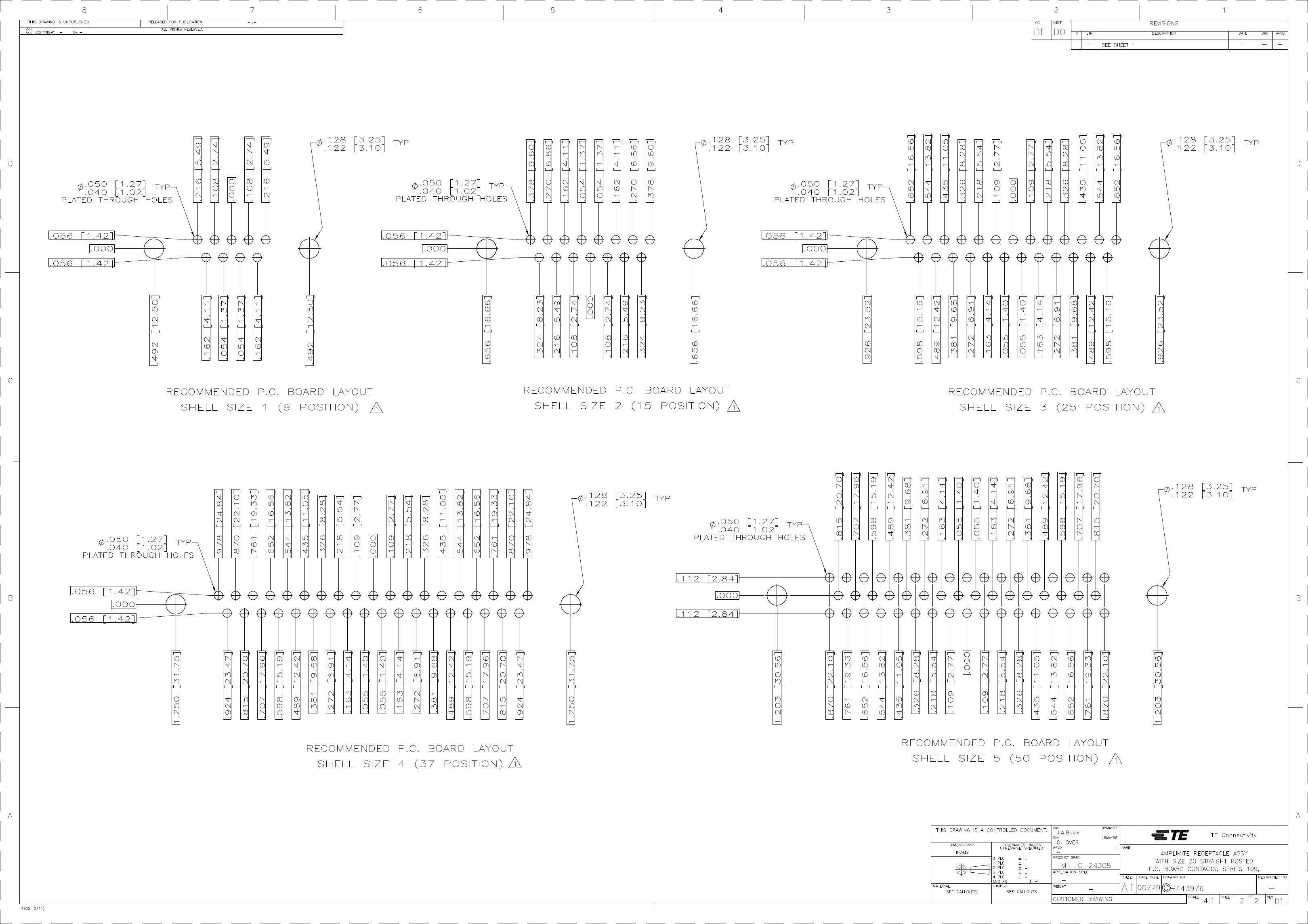

| PCB row number |
- |
2 |
2 |
- |
2 |
| PCB contact pattern |
- |
STAGGERED |
STAGGERED |
- |
STAGGERED |
| PCB contact row spacing |
- |
2.8448 mm |
2.84 mm |
- |
2.84 mm |
