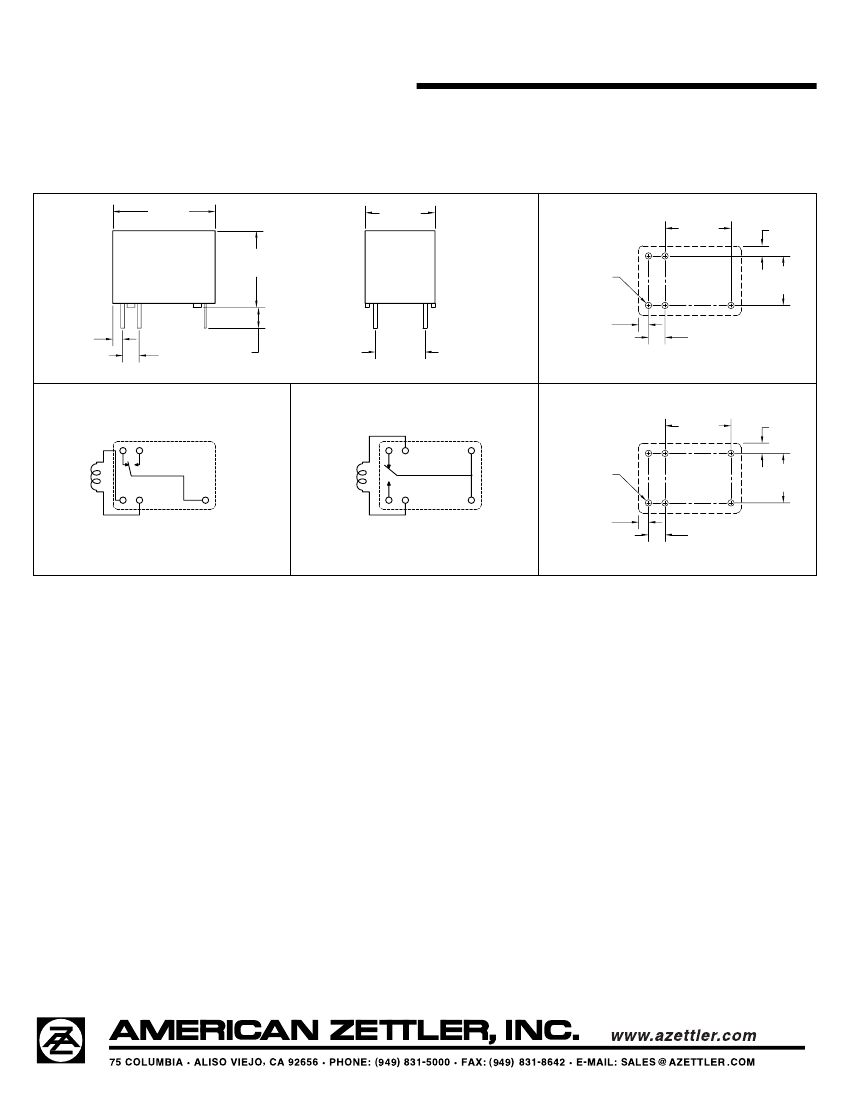

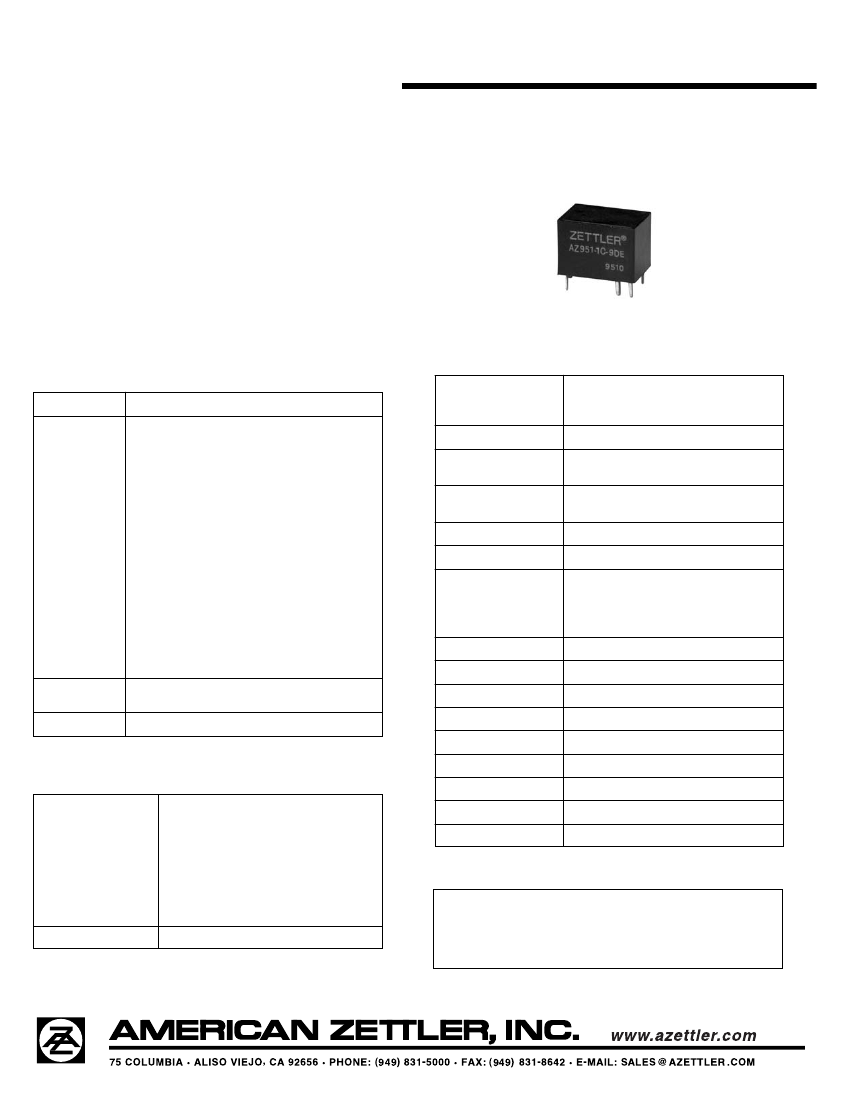

AZ951/AZ952

SUBMINIATURE

POWER RELAY

FEATURES

•

Subminiature size for high density packaging

Coil sensitivity to 116 mW

Extremely low cost

Coils to 24 VDC

Epoxy sealed for automatic wave soldering

1 Amp, 3 Amp & 5 Amp contacts

Life expectancy to 10 million operations

UL, CUR file E43203

GENERAL DATA

CONTACTS

Arrangement

Ratings

Light Duty

SPDT (1 Form C)

Resistive load:

Max. switched power: 30 W or 125 VA

Max. switched current: 1 A

Max. switched voltage: 150 VDC or 300 VAC

UL Rating: 1 A at 30 VDC

1 A at 125 VAC

Max. switched power: 90 W or 375 VA

Max. switched current: 3 A

Max. switched voltage: 150 VDC or 300 VAC

UL Rating: 3 A at 30 VDC

3 A at 125 VAC

Max. switched power: 150 W or 625 VA

Max. switched current: 5 A

Max. switched voltage: 150 VDC or 300 VAC

UL Rating: 5 A at 30 VDC

5 A at 125 VAC

270 VA, 120 VAC Pilot Duty

N.O. 30k cycles, N.C. 6k cycles

Light and Medium Duty: Silver, gold plated

Heavy Duty: Silver nickel gold plated

< 100 milliohms initially

Life Expectancy

Mechanical

Electrical

Operate Time (typical)

Release Time (typical)

Minimum operations

1 x 10

at 3 A 120 VAC Res.

5 ms at nominal coil voltage

1 ms at nominal coil voltage

(with no coil suppressions)

Medium Duty

Dielectric Strength

1250 Vrms coil to contact

(at sea level for 1 min.)

750 Vrms between open contacts

Insulation Resistance

Dropout

Ambient Temperature

Operating

Storage

Vibration

Shock

Enclosure

Terminals

Max. Solder Temp.

Max. Solder Time

100 megohms min. at 20°C, 500 VDC

Greater than 10% of nominal coil voltage

At nominal coil voltage

Standard: -25°C (-13°F) to 55°C (131°F)

Sensitive: -25°C (-13°F) to 75°C (167°F)

Both: -25°C (-13°F) to 105°C (221°F)

0.062" DA at 10–55Hz

15 g

P.B.T. polyester

Tinned copper alloy

270°C (518°F)

5 seconds

80°C (176°F)

30 seconds

3.5 grams

Heavy Duty

Material

Resistance

COIL

Power

At Pickup Voltage

(typical)

Max Continuous

Dissipation

Temperature Rise

Standard Coil: 253 mW

Sensitive coil: 116 mW

0.8 W at 20°C (68°F) ambient

0.6 W at 40°C (104°F) ambient

At nominal coil voltage:

Standard: 54°C (97°F)

Sensitive: 30°C (54°F)

105°C (221°F)

Max. Solvent Temp.

Max. Immersion Time

Weight

NOTES

1. All values at 20°C (68°F).

2. Relay may pull in with less than “Must Operate” value.

3. Other coil resistances and sensitivities available upon request.

4. Specifications subject to change without notice.

Max. Temperature

5/25/05W
