Part Number

Search

BY239L-200

Description
10A, 200V, SILICON, RECTIFIER DIODE, TO-220AC
CategoryDiscrete semiconductor    diode
File Size38KB,2 Pages
ManufacturerSTMicroelectronics
Websitehttp://www.st.com/
Environmental Compliance

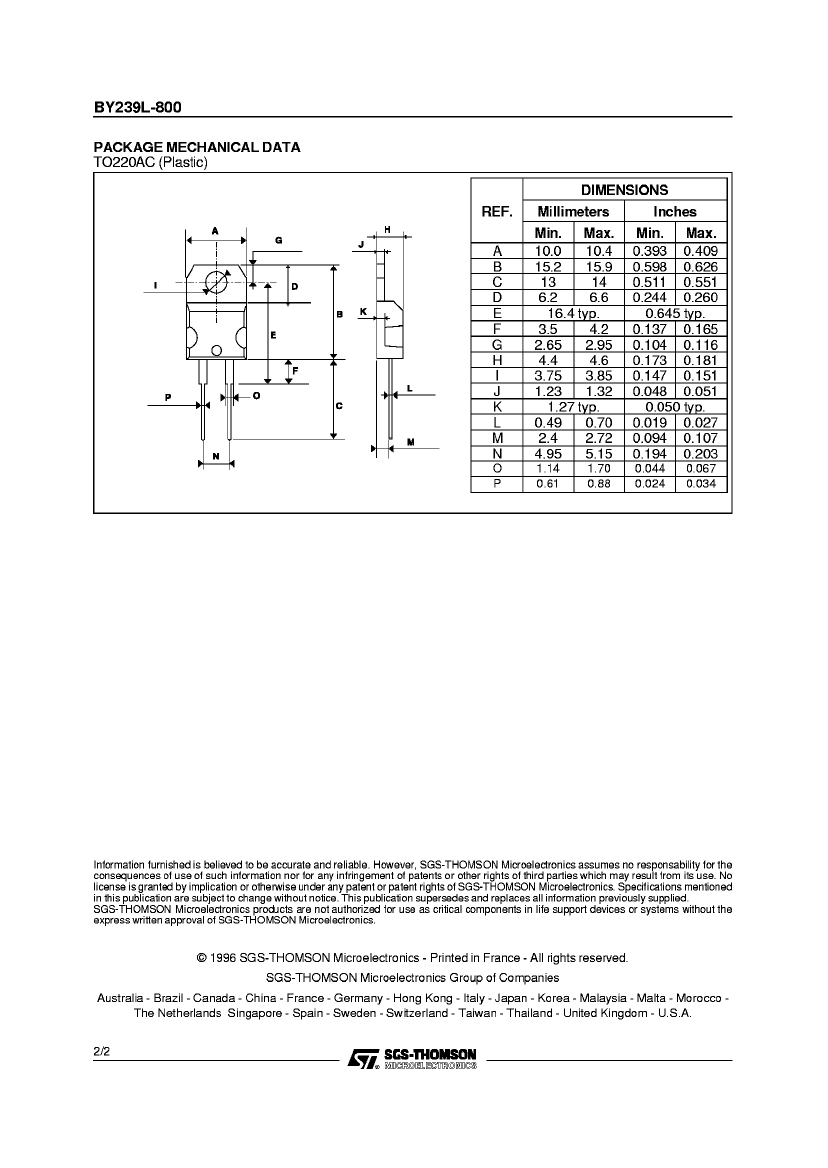

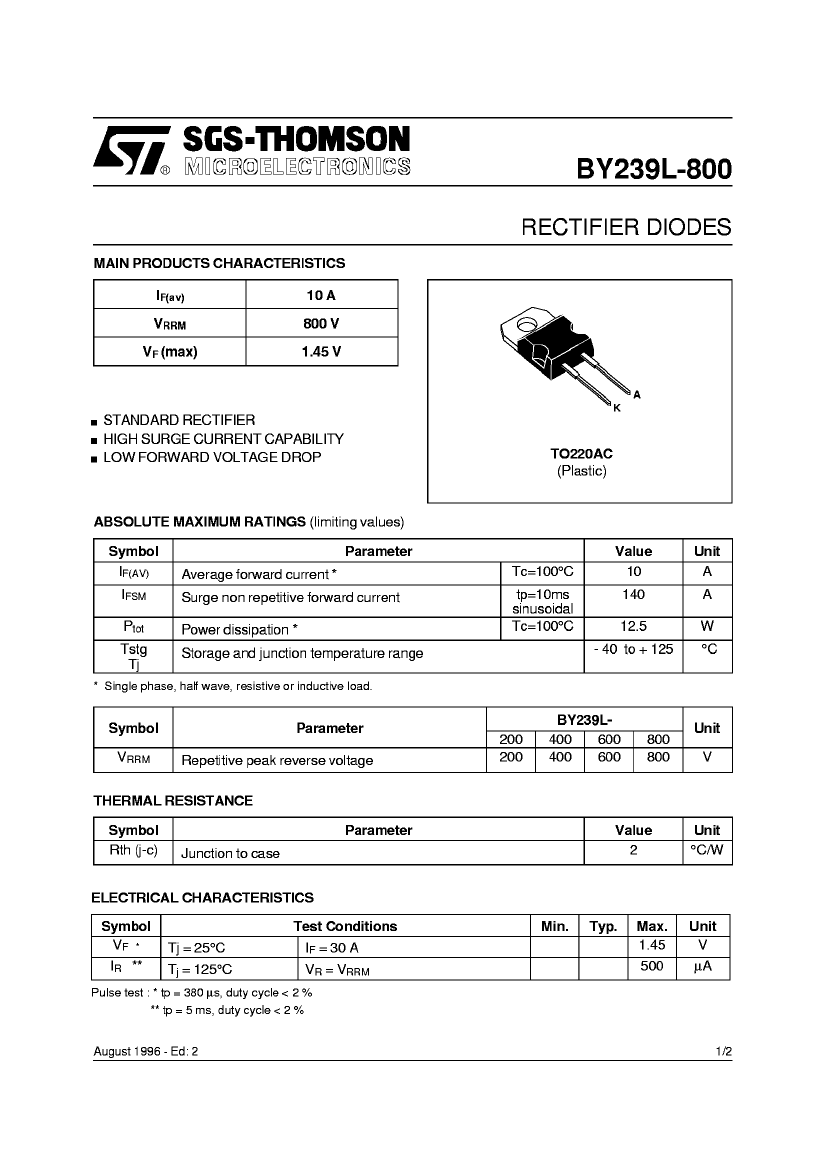

Download Datasheet Parametric Compare View All

BY239L-200 Overview

10A, 200V, SILICON, RECTIFIER DIODE, TO-220AC

BY239L-200 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerSTMicroelectronics
Reach Compliance Codenot_compliant
ECCN codeEAR99
applicationGENERAL PURPOSE
Shell connectionCATHODE
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)1.45 V
JEDEC-95 codeTO-220AC
JESD-30 codeR-PSFM-T2
JESD-609 codee3
Maximum non-repetitive peak forward current140 A
Number of components1
Phase1
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Maximum output current10 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Maximum power dissipation12.5 W
Certification statusNot Qualified
Maximum repetitive peak reverse voltage200 V
Maximum reverse current500 µA
surface mountNO
Terminal surfaceMatte Tin (Sn)
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Base Number Matches1

BY239L-200 Related Products

BY239L-200 BY239L-400 BY239L-600
Description 10A, 200V, SILICON, RECTIFIER DIODE, TO-220AC 10A, 400V, SILICON, RECTIFIER DIODE, TO-220AC 10A, 600V, SILICON, RECTIFIER DIODE, TO-220AC
Is it Rohs certified? conform to conform to conform to
Reach Compliance Code not_compliant not_compliant not_compliant
ECCN code EAR99 EAR99 EAR99
application GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Shell connection CATHODE CATHODE CATHODE
Configuration SINGLE SINGLE SINGLE
Diode component materials SILICON SILICON SILICON
Diode type RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE
Maximum forward voltage (VF) 1.45 V 1.45 V 1.45 V
JEDEC-95 code TO-220AC TO-220AC TO-220AC
JESD-30 code R-PSFM-T2 R-PSFM-T2 R-PSFM-T2
JESD-609 code e3 e3 e3
Maximum non-repetitive peak forward current 140 A 140 A 140 A
Number of components 1 1 1
Phase 1 1 1
Number of terminals 2 2 2
Maximum operating temperature 125 °C 125 °C 125 °C
Minimum operating temperature -40 °C -40 °C -40 °C
Maximum output current 10 A 10 A 10 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR
Package form FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT
Maximum power dissipation 12.5 W 12.5 W 12.5 W
Certification status Not Qualified Not Qualified Not Qualified
Maximum repetitive peak reverse voltage 200 V 400 V 600 V
Maximum reverse current 500 µA 500 µA 500 µA
surface mount NO NO NO
Terminal surface Matte Tin (Sn) Matte Tin (Sn) Matte Tin (Sn)
Terminal form THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE
Terminal location SINGLE SINGLE SINGLE
Maker STMicroelectronics - STMicroelectronics
Base Number Matches 1 1 -
