52370-3611 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 52370-3611

52370-3611: DescriptionTelecom and Datacom Connector, 36 Contact(s), Male, Plug; CategoryThe connector The connector; File Size135KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

52370-3611 Overview

Telecom and Datacom Connector, 36 Contact(s), Male, Plug

52370-3611 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	unknown
Other features	LATCHED, SHIELDED
Body/casing type	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Manufacturer's serial number	52370
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Shell surface	NICKEL
Shell material	STEEL
Total number of contacts	36
Base Number Matches	1

Preview

Download Datasheet

View All

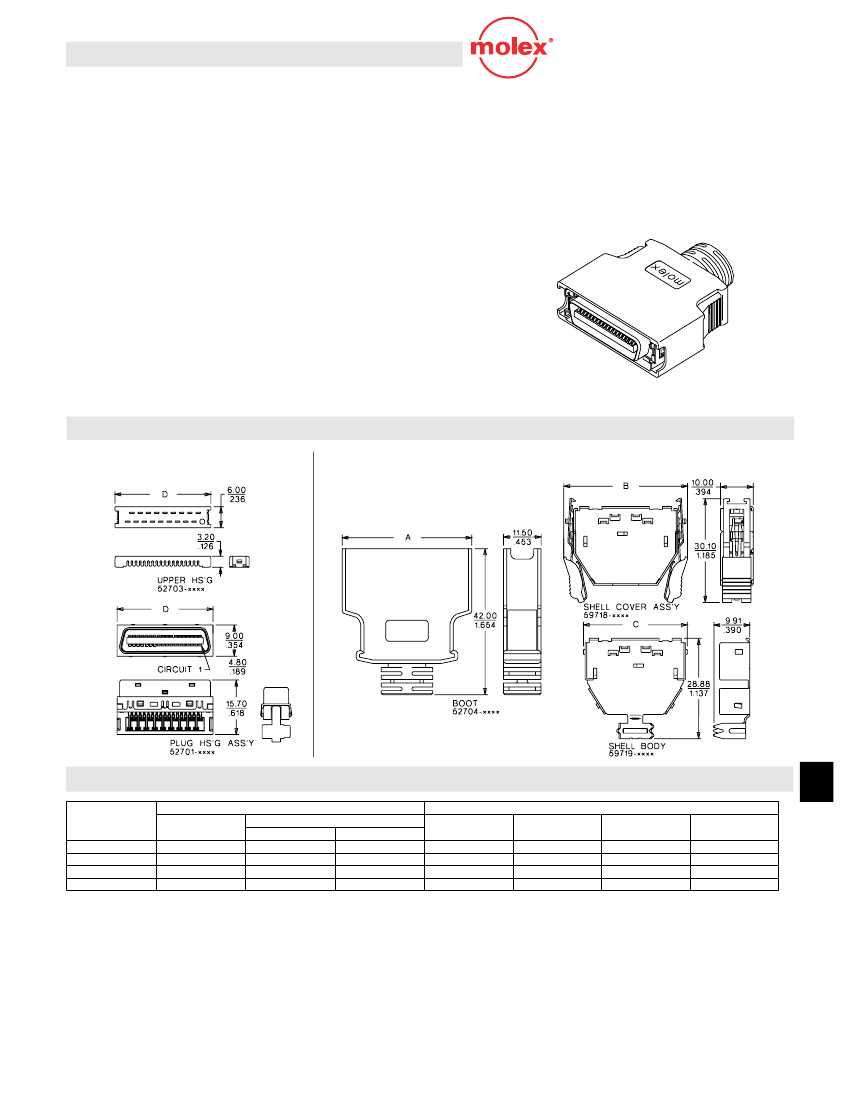

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Sizes 20, 26, 36 and 50 circuits

Meets IEEE 1284 standard (36 circuits only)

Mating and unmating made easy by the 1-touch lock

Fully shielded for EMI/RFI protection

Spring latch provides secure connection and easy

plug removal

User-friendly leaf-style contact design

Reference Information

Packaging: Tray

Tooling Information: See end of section

Mates With: 52311, 52871, 52515, 52986 and 52822

Designed In: Millimeters

Electrical

Voltage: 250V

Current: 1.0A

Contact Resistance: 50m

Ω

max.

Dielectric Withstanding Voltage: 500V AC/1 min.

Insulation Resistance: 500 M

Ω

min.

Physical

Housing: Glass-ﬁlled PBT

Shell Cover: Steel, Tin/Lead over Nickel plating

Boot: ABS

Contact: Phosphor Bronze

Plating: Gold over Nickel in contact area;

Tin/Lead over Nickel in IDT area

Temperature: -55 to +85

1.27mm (.050") Pitch

Wire-to-Board

Shielded Plug

52316/52370

Dual Row, IDT

52316

Plug Assembly

52370

Shell kit

ORDERING INFORMATION AND DIMENSIONS

Order No.

Circuits

Plug Assembly

52316-2011

52316-2611

52316-3611

52316-5011

Shell Kit

Ivory Color

52370-2010

52370-2610

52370-3610

52370-5010

Black Color

52370-2011

52370-2611

52370-3611

52370-5011

29.60

33.41

39.76

48.65

(1.165)

(1.315)

1.565)

(1.915)

27.76

31.57

37.92

46.81

(1.093)

(1.243)

(1.493)

(1.843)

21.62

25.43

31.78

40.67

Dimension

(.851)

(1.001)

(1.251)

(1.601)

19.18

22.99

29.34

38.23

(.755)

(.905)

(1.155)

(1.505)

Note: 36 circuit header and plug conform to IEEE 1284C standard

990

Q-95

I/O Connectors
