NOTES: UNLESS OTHERWISE SPECIFIED
1. FOR GENERAL SERIES SPECIFICATIONS, SEE SD36-0000.
2. MATERIAL SPECIFICATIONS:
CENTER AND OUTER CONTACTS: COPPER ALLOY
SPRING: MUSIC WIRE PER ASTM A228
INSULATOR: TEFLON PER ASTM D1710
C-RING: SPRING STEEL
REAR CONTACT AND ALL OTHER METAL PARTS: BRASS PER ASTM B16.
3. FINISH SPECIFICATIONS:
CONTACTS: .000030 MIN GOLD PER ASTM B488 OVER .000080 MIN NICKEL
PER AMS-QQ-N-290 (RoHS)
BODIES: .000015 MIN GOLD PER ASTM B488 OVER .000080 MIN NICKEL
PER AMS-QQ-N-290 (RoHS)
ALL OTHER METAL PARTS: .000005 MIN GOLD PER ASTM B488 OVER
.000080 MIN NICKEL PER AMS-QQ-N-290 (RoHS)
4. FERRULE AND REAR CONTACT SHIPPED LOOSE.
5. FOR USE WITH RD-316 DOUBLE BRAID CABLE OR EQUIVALENT.
6. FOR CABLING PROCEDURES, USE CAP 9-11 WITH TRIMMING DIMENSIONS SHOWN.
7. CRIMP FERRULE USING .151 HEX DIE.
8. ELECTRICAL SPECIFICATIONS:
FREQUENCY RANGE: DC-12 GHz
VSWR: 1.15+.02F (GHz)
.082 2.08
.750 19.05
.852 21.64
(.457 11.61 ) TO TIP OF CABLE
INNER CONDUCTOR AFTER ASSEMBLY
REV
DESCRIPTION
BY
APPD
DATE
PSM
02/20/07
WPM
A
EWR07-2516
.378 9.60
.200 5.08
.250
±.015
6.35
±.38
.372
±.002
9.45
±.05
.300 7.62
.562 14.27
.024 .61
.142 3.61
REAR CONTACT
FERRULE
.179 4.55
.069 1.75
2X 3-48 UNC-2B THREAD
.004
.377
- .001
9.58
- .03
.004
M
+.002
+.05
M
A
A
.220 5.59
.100 2.54
.200 5.08
A
2X
.062 1.57
.102 2.59
CATALOG P/N: 361-994-0631H
.281
7.14
PER ASME Y14.5M-1994
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN INCHES [MM]
TOLERANCES:
DECIMAL: .XX [X.X] ± .01 [0.3]
.XXX [X.XX] ± .005 [0.13]
.XXXX [X.XXX] ± .XXXX
ANGLES: ± 2°
SCALE: 6:1
.025 .64 GAP
TO CONTACT
RECOMMENDED CABLE TRIM
W
inches
er
E
lec
ronics
.562
14.27
Winchester Electronics Corporation
62 Barnes Industrial Road North
Wallingford, Connecticut 06492
RECOMMENDED MOUNTING HOLE
SCALE: 4:1
CUSTOMER
DRAWING
DRAWN
PSM
APPROVED
WPM
DATE
02/20/07
DATE
02/20/07
APPROVED
DCam
APPROVED
M.AYUB
DATE
02/20/07
DATE
02/20/07

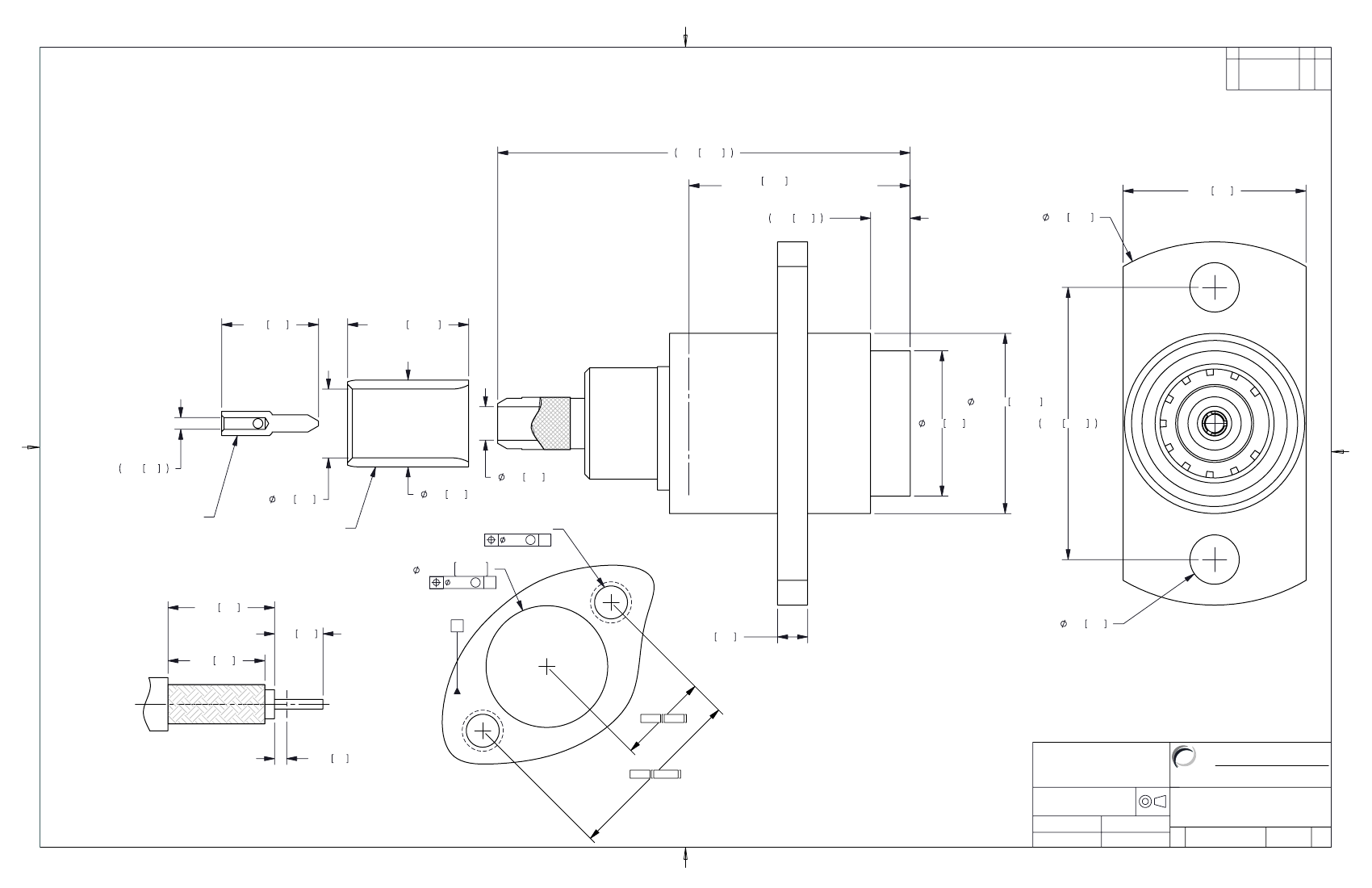

BMA 2-HOLE FLANGE MOUNT
FLOATING RECEPTACLE
B
SD361-994-0631H
SHT
1
OF
1 A
REV
