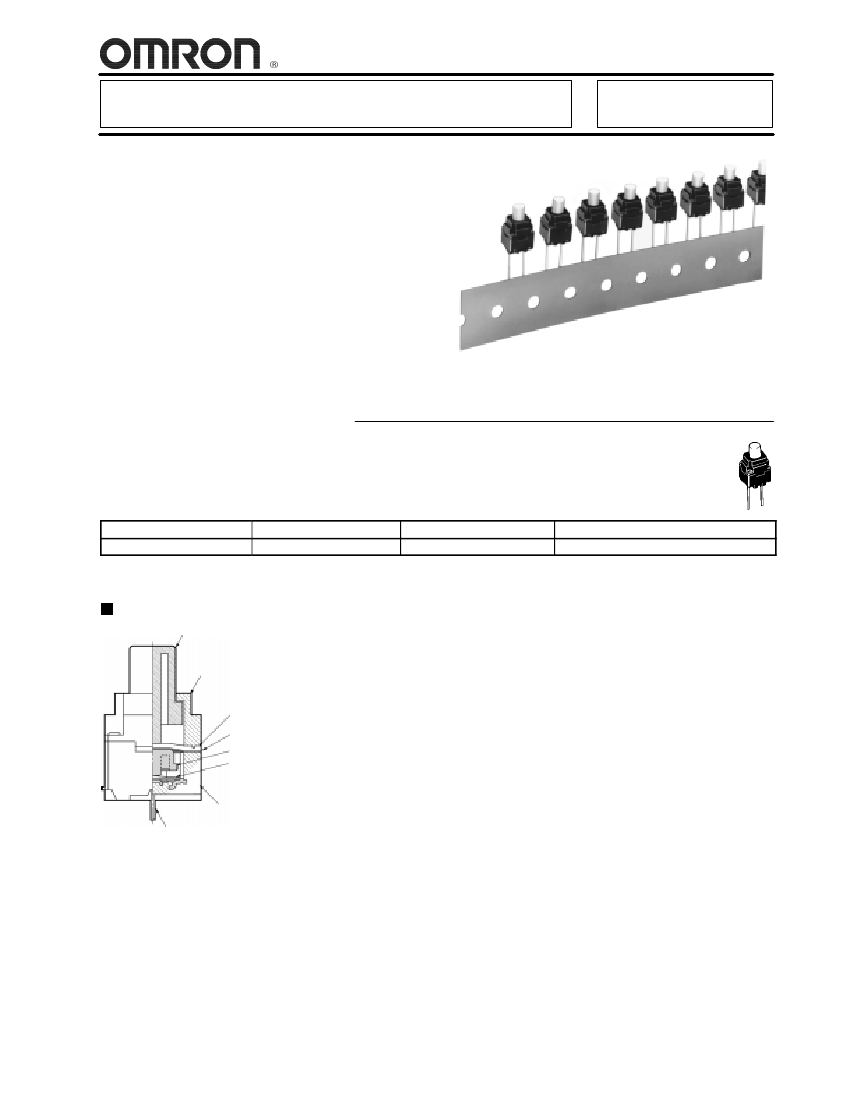

B3WN
B3WN
Characteristics
Switching capacity
Insulation voltage
Contact configuration
Contact material
Contact resistance
Insulation resistance
Dielectric strength
Bounce time
Vibration resistance
Shock resistance
Life expectancy
Ambient temperature
Ambient humidity
Weight
Operating
Operating
50 mA, 12 VDC (resistive load)
30 VDC
SPST-NO
Silver plating
100 mΩ max. (initial value) (rated: 1 mA, 5 VDC)
100 MΩ min. (at 100 VDC)
250 VAC, 50/60Hz for 1 min
10 ms max.
Malfunction: 10 to 55 Hz, 1.5-mm double amplitude
Destruction: 784 m/s
2
min. {approx. 80G min.}
Malfunction: 100 m/s
2
min. {approx. 10G min.}
100,000 operations min.
--25°C to 85°C (--13°F to 185°F) with no icing
35% to 85%
Approx. 0.7 g
CHARACTERISTIC DATA
Operating force (gf)
Stroke S (mm)
OPERATING CHARACTERISTICS
B3WN-6002
Operating force (OF)
Releasing force (RF)
Pretravel (PT)
200±70 gf
50 gf min.
0.3
--0.1
mm
+0.2
B3WN
B3WN

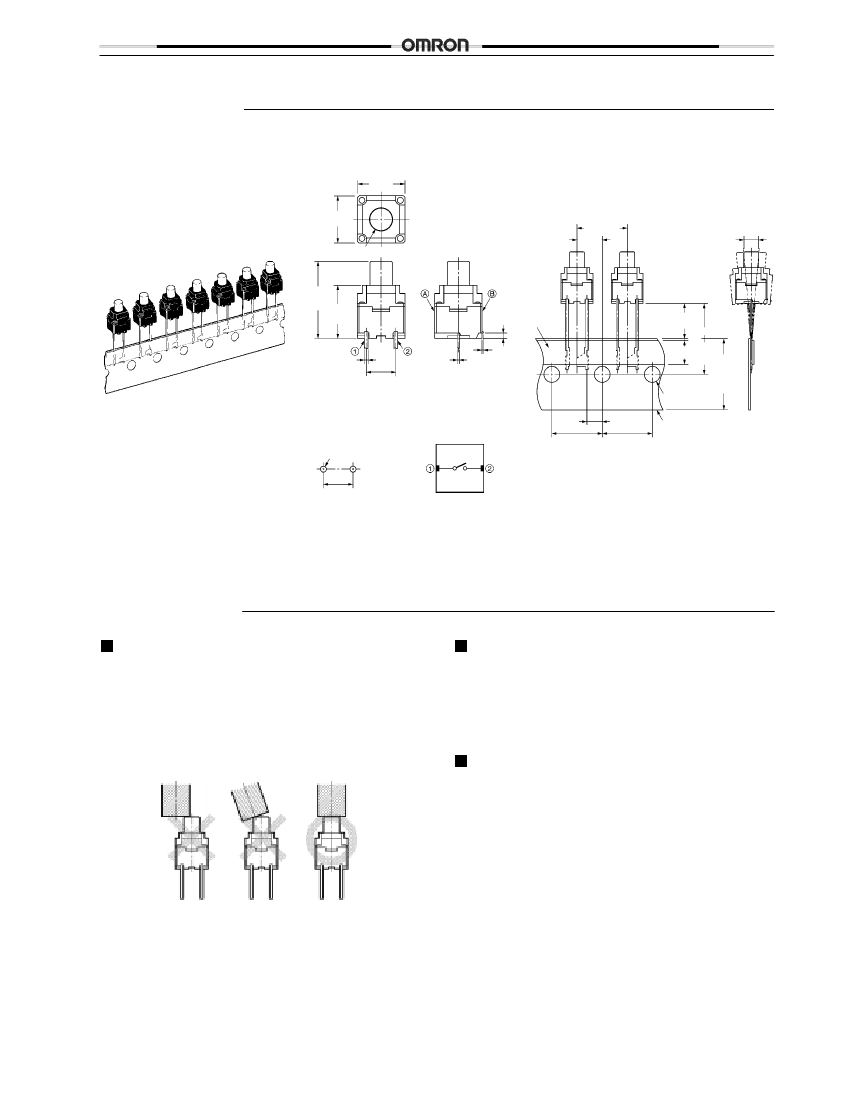

Dimensions
Unit: mm (inch)
B3WN-6002
8±0.2
(0.31±0.008)
8±0.2
(0.31±0.008)
3.8
(0.15) dia.
Recommended mounting
holes and internal connection
(PCB thickness t=1.6 mm)
6.35±1.0
(0.25±0.04)
12.7±1.0
(0.50±0.04)
0.2
(0.008)
max.
13±0.2
(0.51±0.008)
9
(0.35)
0.9
(0.04)
Fixed tape
0.9
(0.04)
0.5
(0.02)
max.
0.6
(0.02)
5±0.2
(0.20±0.008)
0.3
(0.01)
0.2
(0.008)
max.
0.6
18
+1
0
(0.02)
(0.71
+0.04
)
0
18
+1
--0.5
(0.71
+0.04
)
--0.02
PCB Pad
Terminal Arrangement/
(Top View)
Internal Connection
(One-side PCB t=1.6) (Top View)
Two, 1
+0.1
dia.
0
4±0.3 dia.
(0.16±0.01 dia.)
3.85±0.5
(0.15±0.02)
12.7±0.3
12.7±0.3
(0.50±0.01) (0.50±0.01)
Master tape
5±0.1
(0.20±0.004)
Note: 1. In accordance with EIAJ RC-1008, unless otherwise specified.
2. Switch fixing direction (A and B) on the tape may change.
Precautions
OPERATION
Do not repeatedly operate the Switch with high force, apply
additional force to the pushbutton once it has stopped moving, or
operate the Switch with excessive force, otherwise the disc
spring of the Switch may deform and the Switch may malfunction.
Be sure to set the Switch so that the pushbutton will be pressed
straight. A decrease in the life of the Switch may result if the
pushbutton is pressed off-center or from an acute angle.
PCB
The Switch is designed for a 1.6-mm-thick, single-sided PCB as
a standard PCB. The Switch may not be mounted to any other
type of PCB, such as a double-sided, through-hole PCB, or any
other one that is different in thickness. Furthermore, the Switch
may not operate properly or withstand the soldering heat if it is
mounted to such a PCB. Be sure to test the PCB before use.
SOLDERING
The Switch can be soldered automatically or manually.
The automatic soldering of the Switch on a 1.6-mm-thick,
single-sided PCB must be completed within five seconds at a
soldering temperature of 260°C maximum.
The manual soldering of the Switch on a 1.6-mm-thick,
single-sided PCB must be completed within three seconds at a
soldering iron tip temperature of 350°C maximum.
When using a multi-layer PCB, test the PCB in advance because
the Switch mounted to the PCB may be deformed by heat if the
pattern or land design is improper.
Soldering may be repeated only once at a minimum interval of
five minutes if the Switch is not soldered properly.
Make sure that no flux will rise on the mounting surface of the PCB.
B3WN
B3WN
PACKAGE
B3WN Switches are packed on tape as shown below.
B3WN Switches on tape
OTHER PRECAUTIONS
When using the Switch in a very humid environment or where
condensation may occur: mount switch first, then completely
cover the terminals with coating in order to prevent current
leakage from terminals.
Do not use coating materials that contain toluene or xylene.
Package
Stored zigzag
350
326
53
Do not press strongly, vibrate, or drop the package, otherwise the
terminals of the Switches may deform.
Pull out the tape slowly. Make sure that the tape is not entangled
while pulling it out, otherwise the terminals of the Switches may
deform.
Do not store the package in locations with high temperature or
high humidity. Use the Switches as soon as possible. The
package made of paper is not tightly sealed. Storing the package
in locations with high temperature or high humidity for a long time
may result in the discoloration of the Switch terminals.
NOTE: DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters to inches divide by 25.4.
Omron Europe B.V. EMA-ISD, tel:+31 23 5681390, fax:+31 23 5681397, http://www.eu.omron.com/ema
Cat. No. A112-E3-1
12/98
Specifications subject to change without notice.
Printed in U.S.A.
