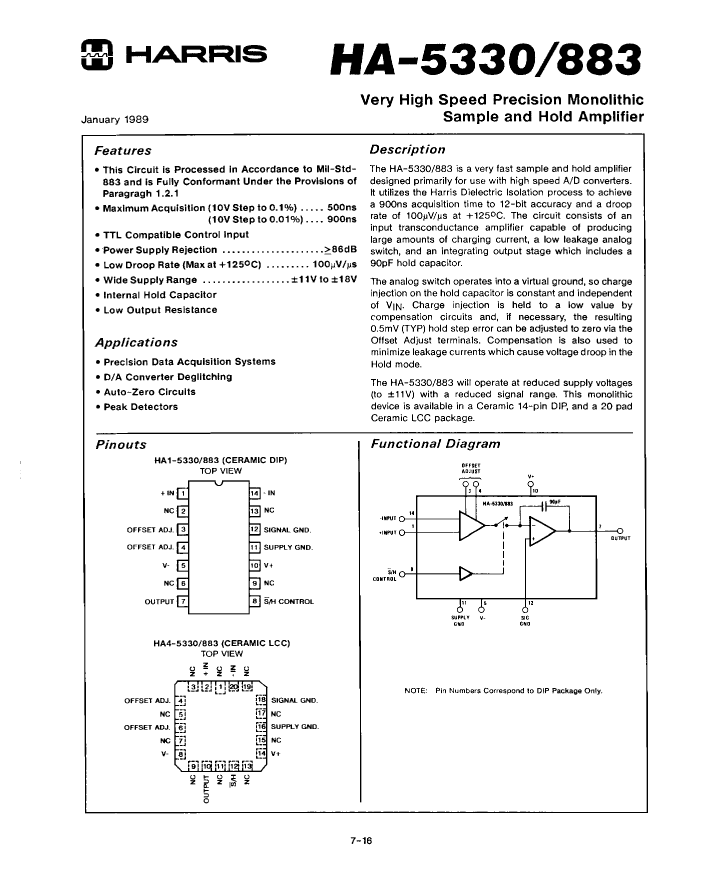

5962-8767701CA amplifier basic information:
5962-8767701CA is a SAMPLE AND HOLD CIRCUIT. Commonly used packaging methods are,
5962-8767701CA amplifier core information:
The minimum operating temperature of the 5962-8767701CA is -55 °C and the maximum operating temperature is 125 °C.
The maximum slew rate of the 5962-8767701CA given by the manufacturer is 22 mA.
The nominal supply voltage of 5962-8767701CA is 15 V, and its corresponding nominal negative supply voltage is -15 V.
Related dimensions of 5962-8767701CA:
5962-8767701CA has 14 terminals. Its terminal position type is: DUAL.
5962-8767701CA amplifier additional information:
Its temperature grade is: MILITARY. The corresponding JESD-30 code is: R-GDIP-T14. The corresponding JESD-609 code is: e0. The materials of the 5962-8767701CA package are mostly CERAMIC and GLASS-SEALED. The package shape is RECTANGULAR.
The 5962-8767701CA package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE.
5962-8767701CA amplifier basic information:
5962-8767701CA is a SAMPLE AND HOLD CIRCUIT. Commonly used packaging methods are,
5962-8767701CA amplifier core information:
The minimum operating temperature of the 5962-8767701CA is -55 °C and the maximum operating temperature is 125 °C.
The maximum slew rate of the 5962-8767701CA given by the manufacturer is 22 mA.
The nominal supply voltage of 5962-8767701CA is 15 V, and its corresponding nominal negative supply voltage is -15 V.
Related dimensions of 5962-8767701CA:
5962-8767701CA has 14 terminals. Its terminal position type is: DUAL.
5962-8767701CA amplifier additional information:
Its temperature grade is: MILITARY. The corresponding JESD-30 code is: R-GDIP-T14. The corresponding JESD-609 code is: e0. The materials of the 5962-8767701CA package are mostly CERAMIC and GLASS-SEALED. The package shape is RECTANGULAR.
The 5962-8767701CA package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE.

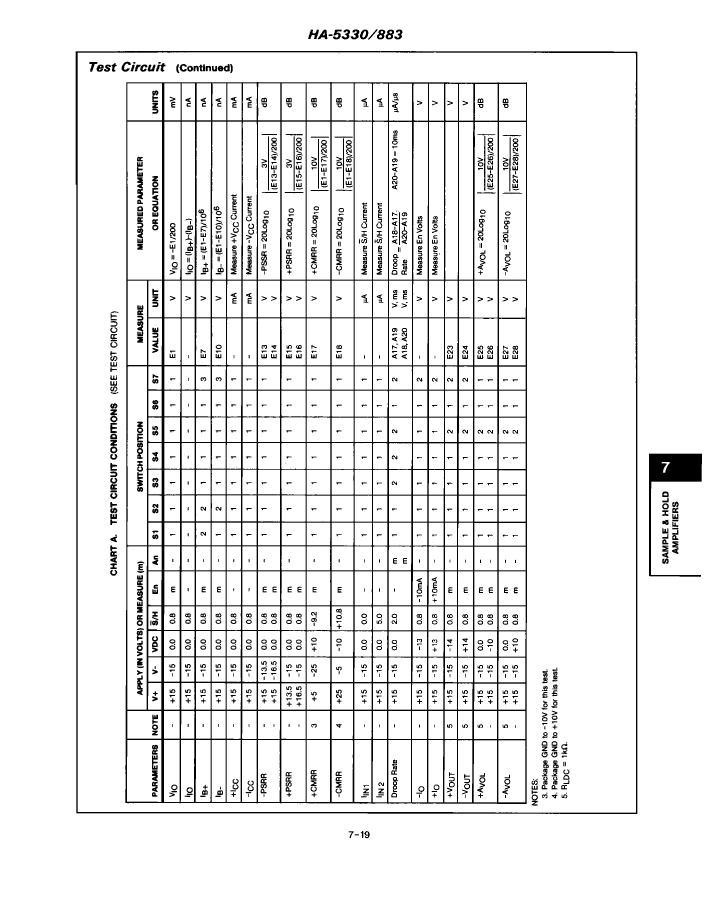

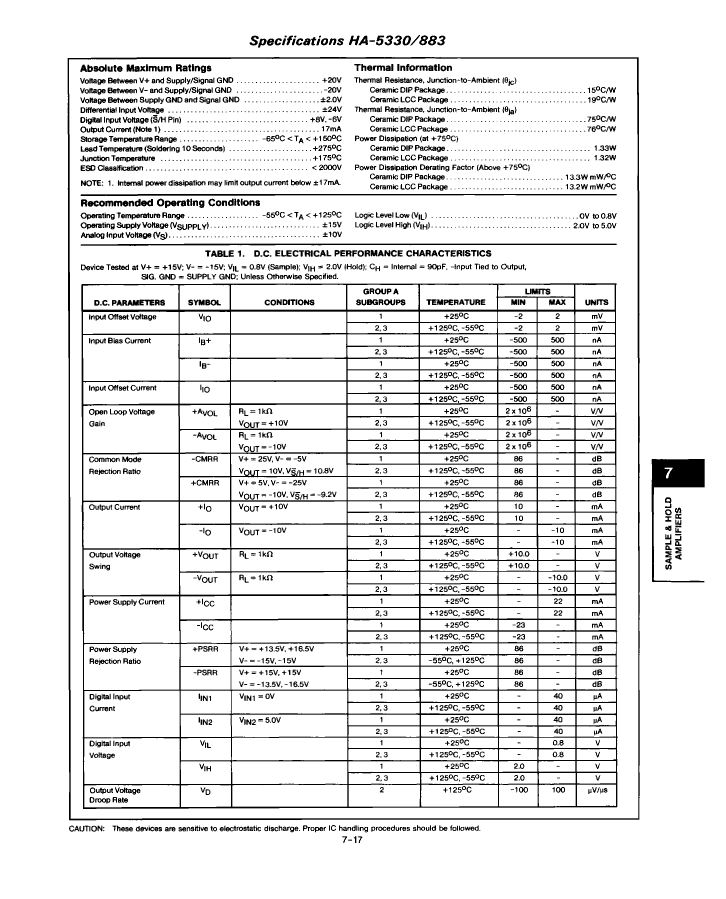

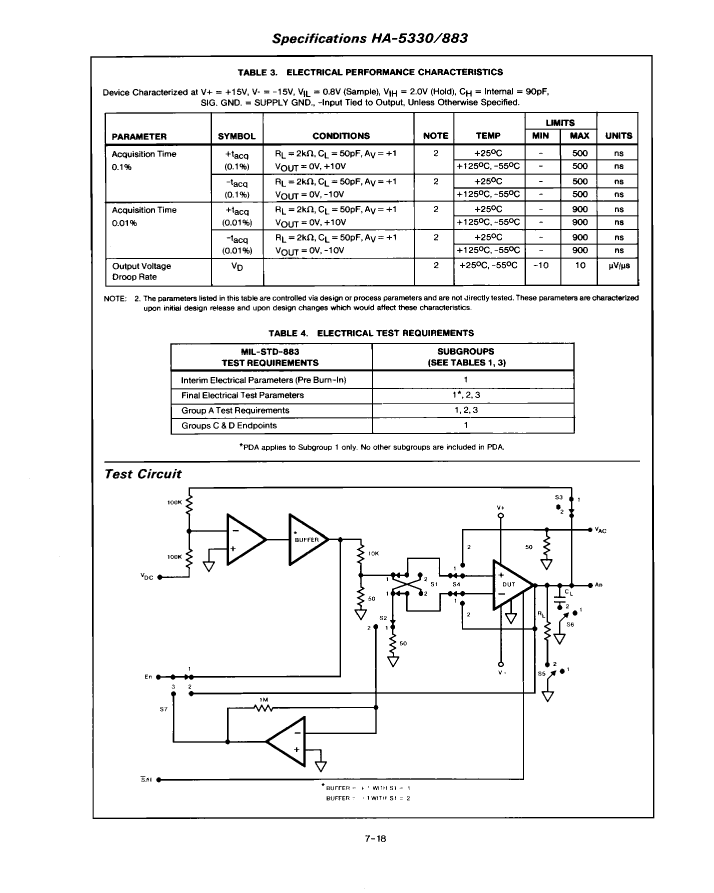

| Parameter Name | Attribute value |
| Maker | Harris |
| package instruction | , |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Maximum acquisition time | 0.9 µs |
| Amplifier type | SAMPLE AND HOLD CIRCUIT |
| Maximum analog input voltage | 10 V |
| Minimum analog input voltage | -10 V |
| maximum rate of descent | 10 V/s |
| JESD-30 code | R-GDIP-T14 |
| JESD-609 code | e0 |
| Negative supply voltage upper limit | -20 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of functions | 1 |
| Number of terminals | 14 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Certification status | Not Qualified |
| Sample and hold/Track and hold | SAMPLE |
| Maximum slew rate | 22 mA |
| Supply voltage upper limit | 20 V |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | MILITARY |
| Terminal surface | TIN LEAD |
| Terminal form | THROUGH-HOLE |
| Terminal location | DUAL |
| Base Number Matches | 1 |
| 5962-8767701CA | 5962-87677012A | 5962-87677012X | HA4-5330/883 | HA1-5330/883 | |
|---|---|---|---|---|---|
| Description | Sample and Hold Circuit, 1 Func, Sample, BIPolar, CDIP14 | Sample and Hold Circuit, 1 Func, Sample, CQCC20, CERAMIC, QCC-20 | Sample and Hold Circuit, 1 Func, Sample, CQCC20, CERAMIC, QCC-20 | Sample and Hold Circuit, 1 Func, Sample, BIPolar, CQCC20 | Sample and Hold Circuit, 1 Func, Sample, BIPolar, CDIP14 |
| package instruction | , | QCCN, | QCCN, | QCCN, LCC20,.35SQ | DIP, DIP14,.3 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Maximum acquisition time | 0.9 µs | 0.7 µs | 0.7 µs | 0.9 µs | 0.9 µs |
| Amplifier type | SAMPLE AND HOLD CIRCUIT | SAMPLE AND HOLD CIRCUIT | SAMPLE AND HOLD CIRCUIT | SAMPLE AND HOLD CIRCUIT | SAMPLE AND HOLD CIRCUIT |
| maximum rate of descent | 10 V/s | 10 V/s | 10 V/s | 10 V/s | 10 V/s |
| JESD-30 code | R-GDIP-T14 | S-CQCC-N20 | S-CQCC-N20 | S-CQCC-N20 | R-GDIP-T14 |
| Negative supply voltage upper limit | -20 V | -20 V | -20 V | -20 V | -20 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V | -15 V | -15 V | -15 V |
| Number of functions | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 14 | 20 | 20 | 20 | 14 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED |
| Package shape | RECTANGULAR | SQUARE | SQUARE | SQUARE | RECTANGULAR |
| Package form | IN-LINE | CHIP CARRIER | CHIP CARRIER | CHIP CARRIER | IN-LINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Sample and hold/Track and hold | SAMPLE | SAMPLE | SAMPLE | SAMPLE | SAMPLE |
| Supply voltage upper limit | 20 V | 20 V | 20 V | 20 V | 20 V |
| Nominal supply voltage (Vsup) | 15 V | 15 V | 15 V | 15 V | 15 V |
| surface mount | NO | YES | YES | YES | NO |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal form | THROUGH-HOLE | NO LEAD | NO LEAD | NO LEAD | THROUGH-HOLE |
| Terminal location | DUAL | QUAD | QUAD | QUAD | DUAL |
| Maker | Harris | Harris | - | Harris | Harris |
| Maximum analog input voltage | 10 V | 10 V | 10 V | - | 10 V |
| Minimum analog input voltage | -10 V | -10 V | -10 V | - | -10 V |
| JESD-609 code | e0 | e0 | - | e0 | e0 |
| Maximum slew rate | 22 mA | - | - | 23 mA | 22 mA |
| technology | BIPOLAR | - | - | BIPOLAR | BIPOLAR |
| Terminal surface | TIN LEAD | TIN LEAD | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Base Number Matches | 1 | 1 | 1 | - | - |
| encapsulated code | - | QCCN | QCCN | QCCN | DIP |
