54F675AL1M datasheet, PDF - EEWORLD Datasheet

54F675AL1M: DescriptionSerial In Parallel Out, F/FAST Series, 16-Bit, Right Direction, True Output, TTL, CQCC28, CERAMIC, LCC-28; Categorylogic logic; File Size95KB，4 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

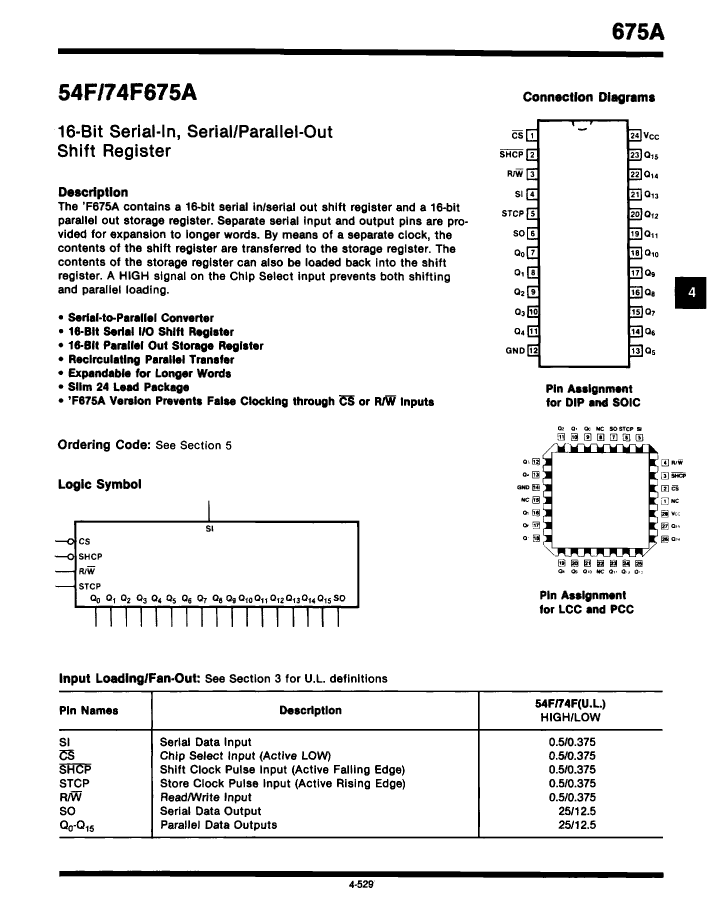

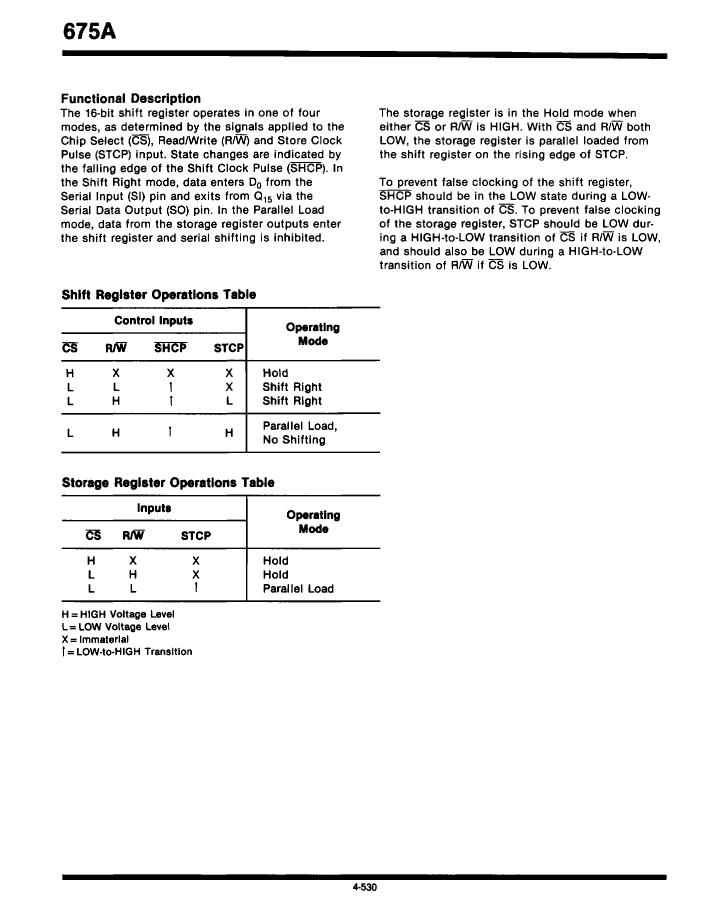

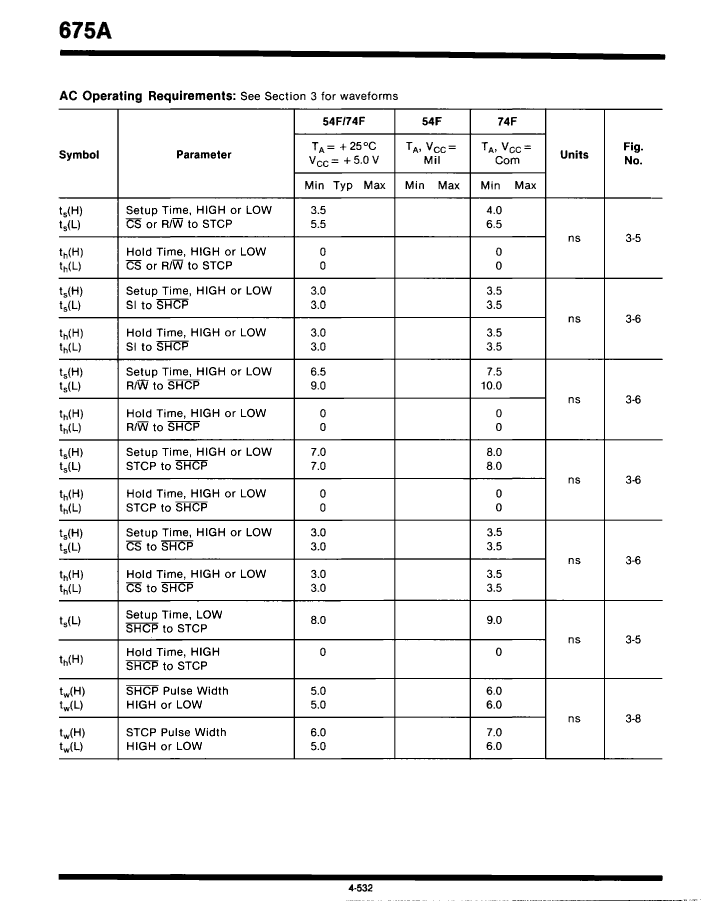

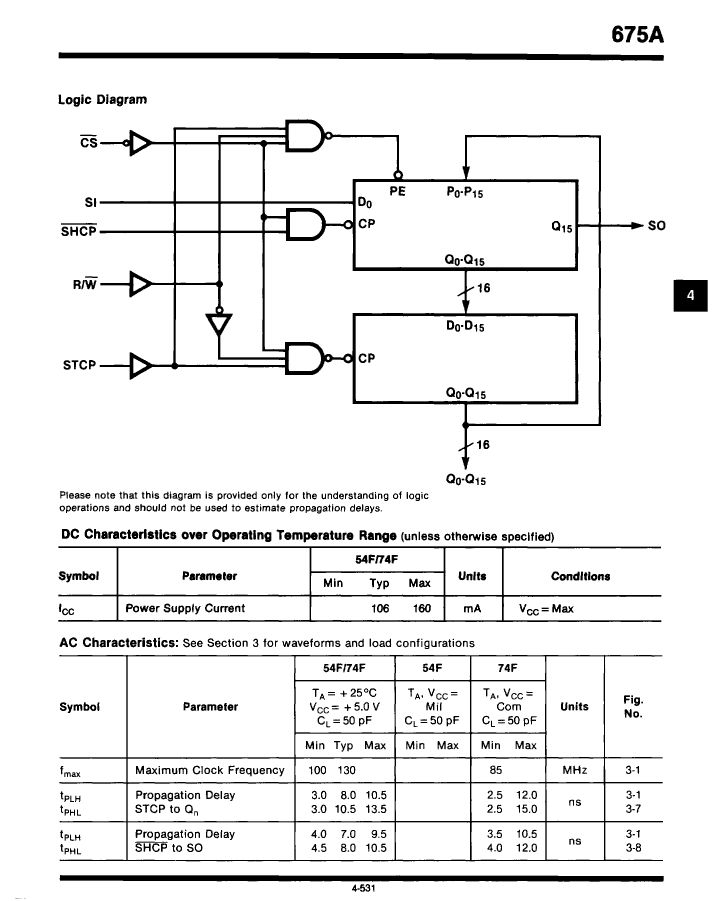

54F675AL1M Overview

Serial In Parallel Out, F/FAST Series, 16-Bit, Right Direction, True Output, TTL, CQCC28, CERAMIC, LCC-28

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
Parts packaging code	QLCC
package instruction	CERAMIC, LCC-28
Contacts	28
Reach Compliance Code	unknown
Other features	PARALLEL OUTPUT IS REGISTERED; READ/WRITE CONTROL; HOLD MODE
Counting direction	RIGHT
series	F/FAST
JESD-30 code	S-CQCC-N28
JESD-609 code	e0
length	11.43 mm
Logic integrated circuit type	SERIAL IN PARALLEL OUT
Number of digits	16
Number of functions	1
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC28,.45SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
propagation delay (tpd)	10.5 ns
Certification status	Not Qualified
Maximum seat height	2.54 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	NEGATIVE EDGE
width	11.43 mm
minfmax	130 MHz
Base Number Matches	1
