5962-9224001MRX datasheet, PDF

Datasheet> All Categories > logic> logic> 5962-9224001MRX

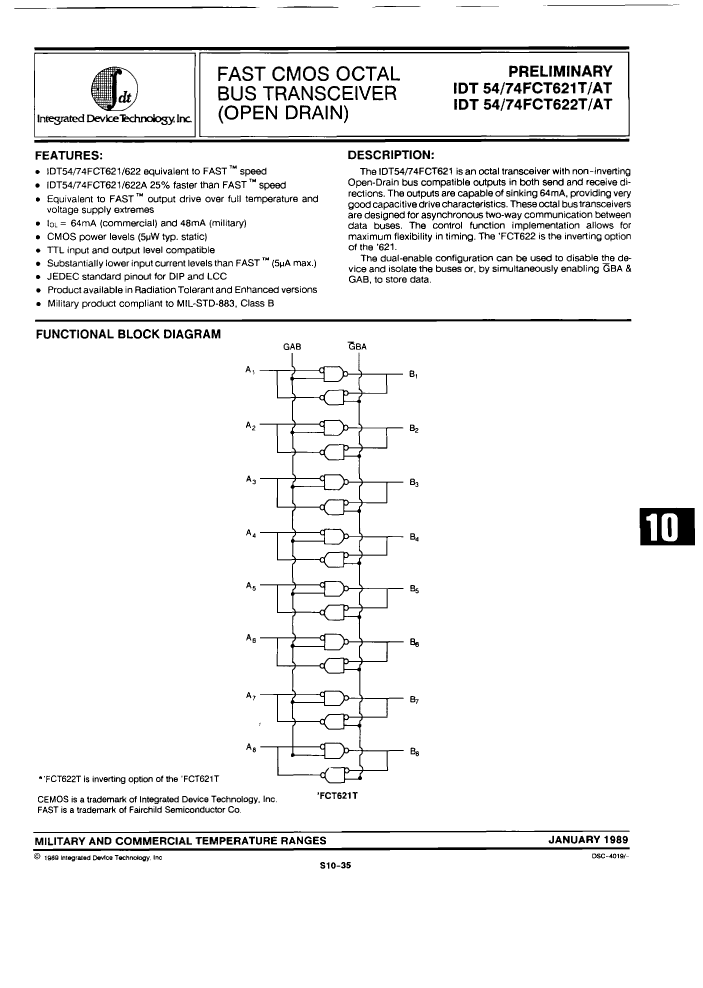

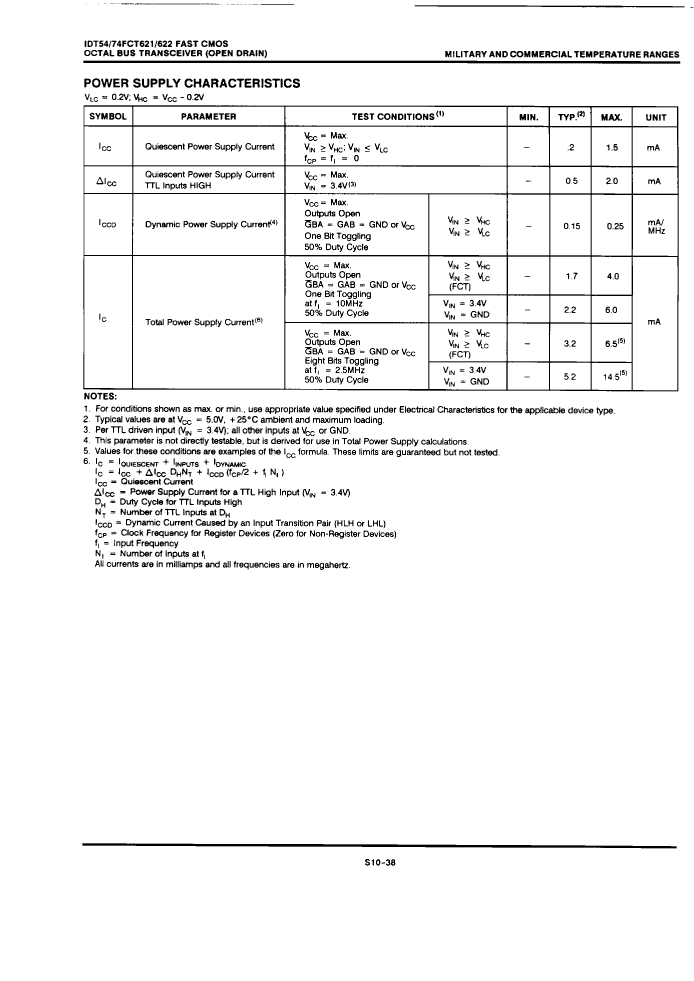

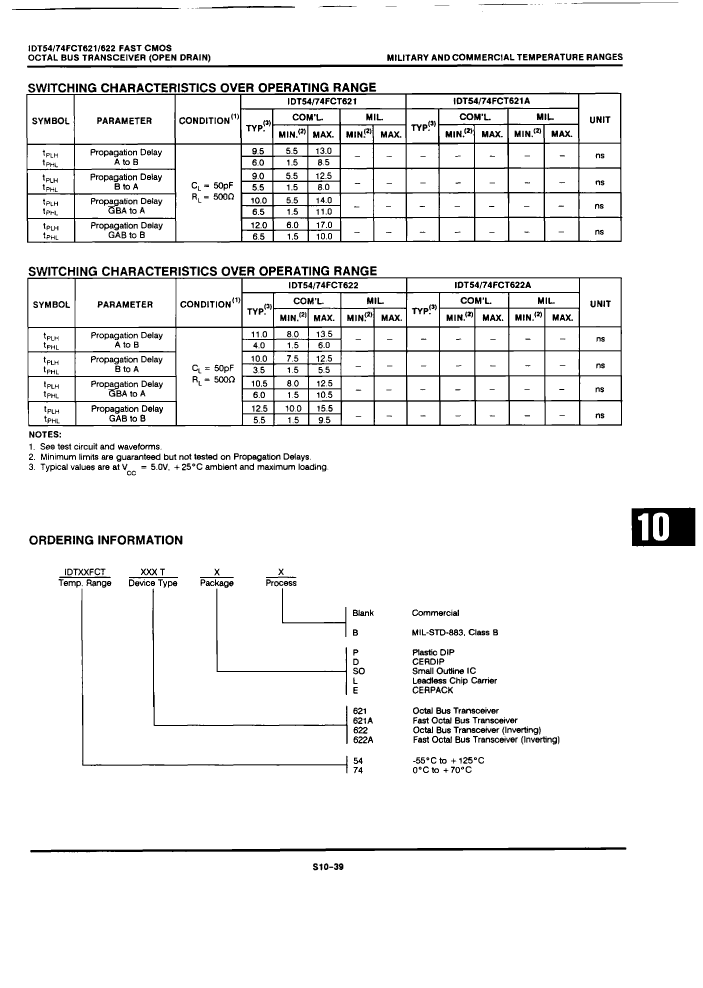

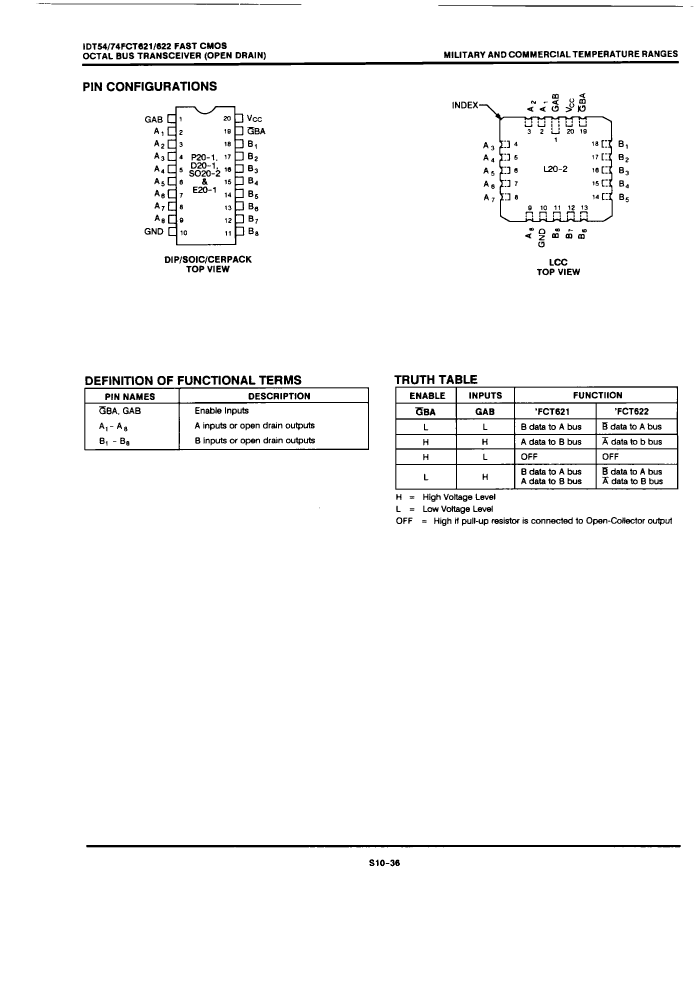

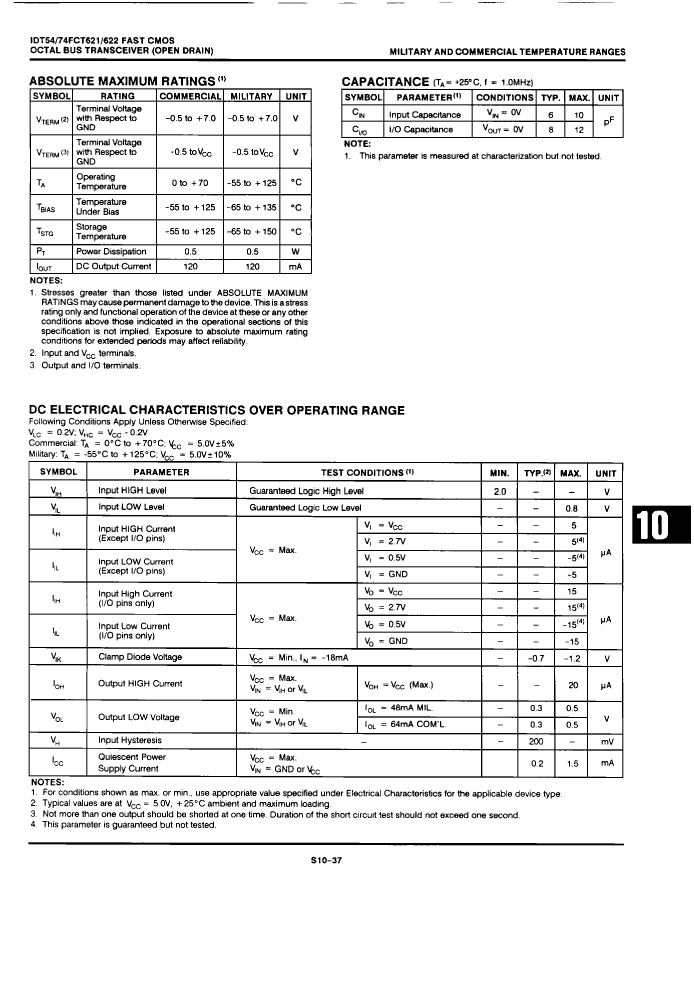

5962-9224001MRX: DescriptionBus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, 0.300 INCH, CERDIP-20; Categorylogic logic; File Size137KB，5 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

5962-9224001MRX Overview

Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, 0.300 INCH, CERDIP-20

5962-9224001MRX Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	20
Reach Compliance Code	unknown
Other features	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
series	FCT
JESD-609 code	e0
length	25.3365 mm
Logic integrated circuit type	BUS TRANSCEIVER
Number of digits	8
Number of functions	1
Number of ports	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-DRAIN
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package form	IN-LINE
propagation delay (tpd)	9.5 ns
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

5962-9224001MRX Related Products

	5962-9224001MRX	5962-9224001MSX	5962-9224002MSX	5962-9224001M2X	5962-9224002MRX	5962-9224002M2X
Description	Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, 0.300 INCH, CERDIP-20	Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CERPACK-20	Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CERPACK-20	Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, LCC-20	Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, 0.300 INCH, CERDIP-20	Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, LCC-20
Parts packaging code	DIP	DFP	DFP	QLCC	DIP	QLCC
package instruction	DIP,	DFP,	DFP,	QCCN,	DIP,	QCCN,
Contacts	20	20	20	20	20	20
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Other features	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION	WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION
series	FCT	FCT	FCT	FCT	FCT	FCT
JESD-609 code	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER
Number of digits	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DFP	DFP	QCCN	DIP	QCCN
Package form	IN-LINE	FLATPACK	FLATPACK	CHIP CARRIER	IN-LINE	CHIP CARRIER
propagation delay (tpd)	9.5 ns	9.5 ns	7.6 ns	9.5 ns	7.6 ns	7.6 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883	MIL-STD-883
Maximum seat height	5.08 mm	2.3368 mm	2.3368 mm	2.54 mm	5.08 mm	2.54 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	FLAT	FLAT	NO LEAD	THROUGH-HOLE	NO LEAD
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	QUAD	DUAL	QUAD
width	7.62 mm	6.9215 mm	6.9215 mm	8.89 mm	7.62 mm	8.89 mm
Base Number Matches	1	1	1	1	1	1
length	25.3365 mm	-	-	8.89 mm	25.3365 mm	8.89 mm
