400-MSP4-R1-BLK-M1-R-E datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> 400-MSP4-R1-BLK-M1-R-E

400-MSP4-R1-BLK-M1-R-E: DescriptionRocker Switch, SPDT, Momentary, 0.02A, 20VDC, Solder Terminal, Rocker Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size694KB，5 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet Parametric View All

400-MSP4-R1-BLK-M1-R-E Overview

Rocker Switch, SPDT, Momentary, 0.02A, 20VDC, Solder Terminal, Rocker Actuator, Panel Mount

400-MSP4-R1-BLK-M1-R-E Parametric

Parameter Name	Attribute value
Maker	E-Switch
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator type	ROCKER
body width	5.08 mm
body height	8.43 mm
Body length or diameter	8.13 mm
Contact (AC) maximum rated R load	.02A@20VAC
Maximum contact current (AC)	0.02 A
Maximum contact current (DC)	0.02 A
Contact (DC) maximum rated R load	.02A@20VDC
Maximum contact voltage (AC)	20 V
Maximum contact voltage (DC)	20 V
Electrical life	30000 Cycle(s)
JESD-609 code	e4
Manufacturer's serial number	400
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
seal	EPOXY TERMINAL SEALED
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	ROCKER SWITCH
Terminal surface	GOLD
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

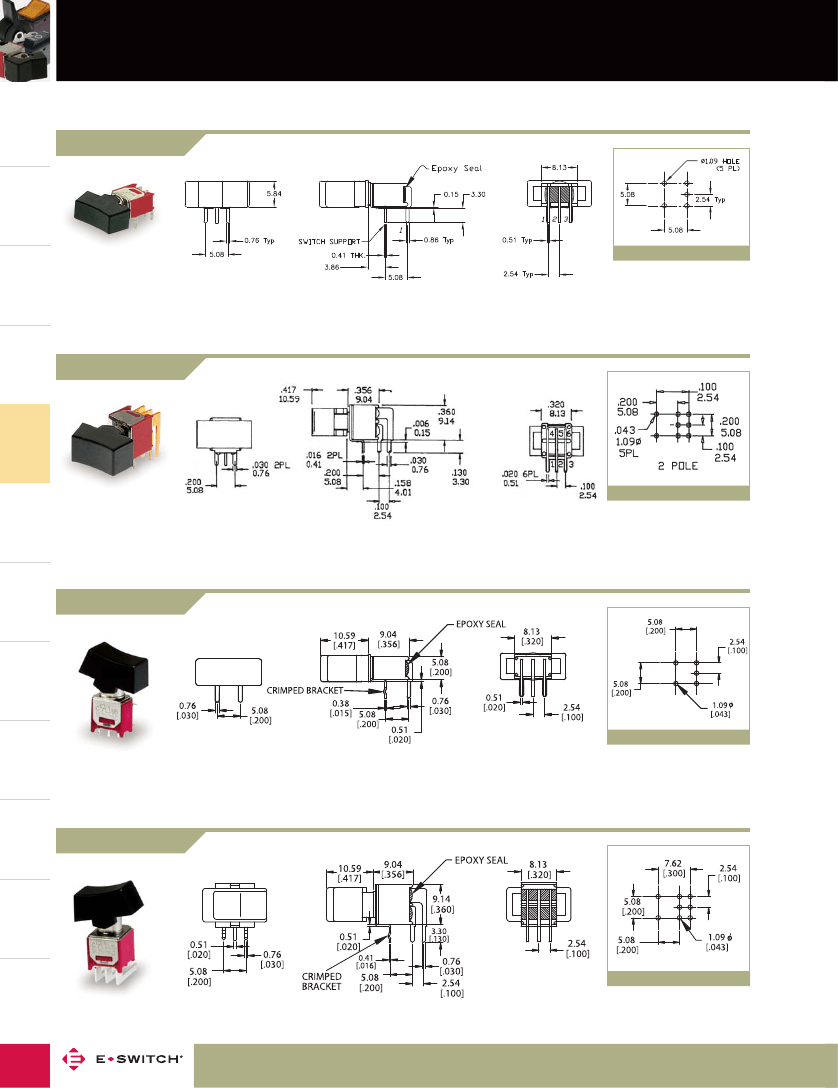

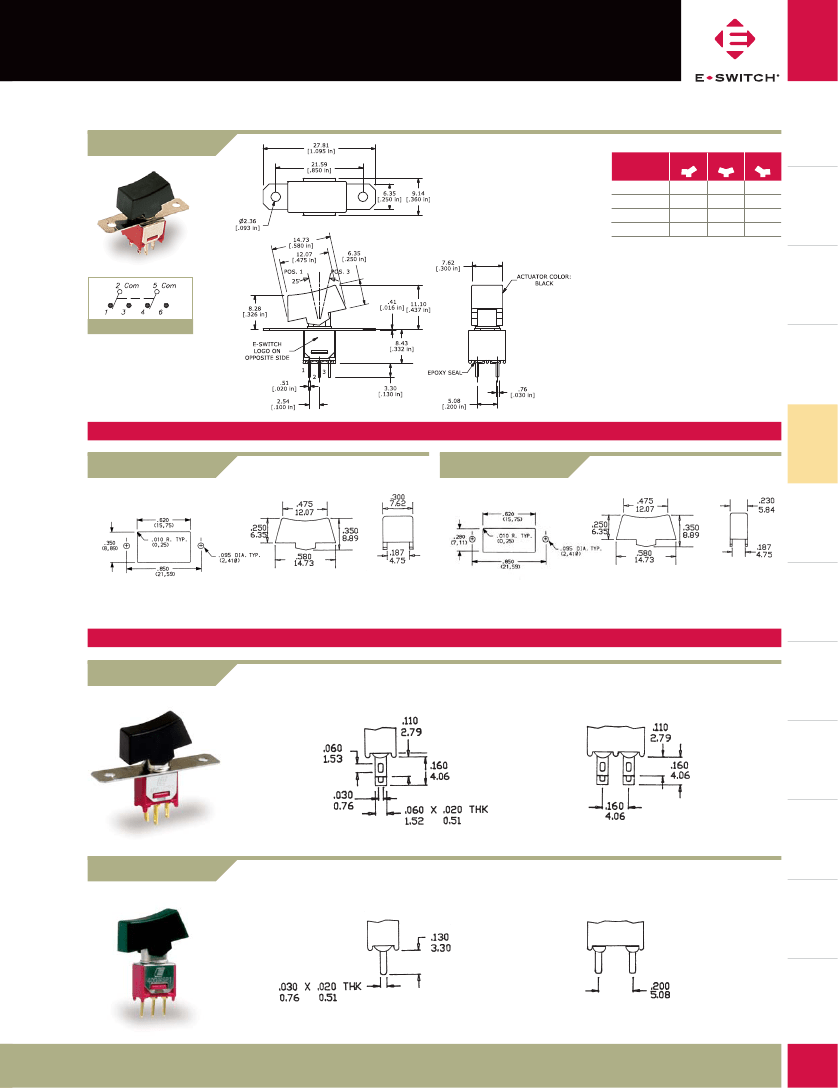

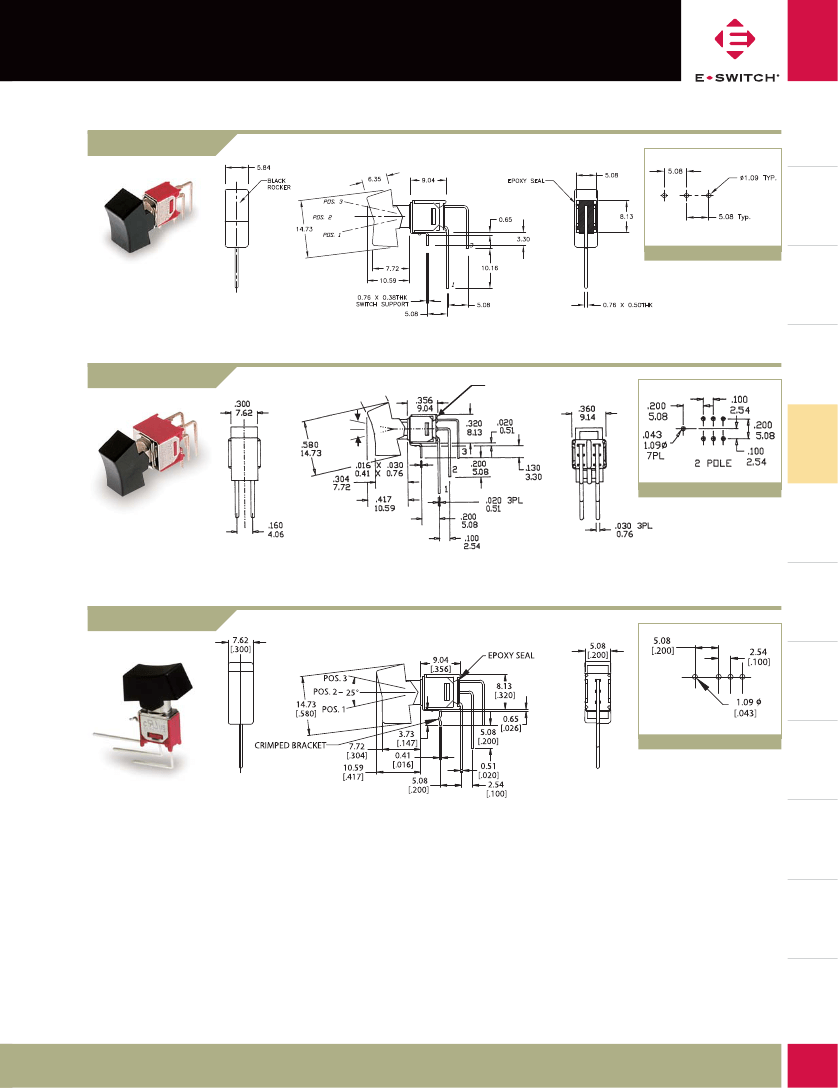

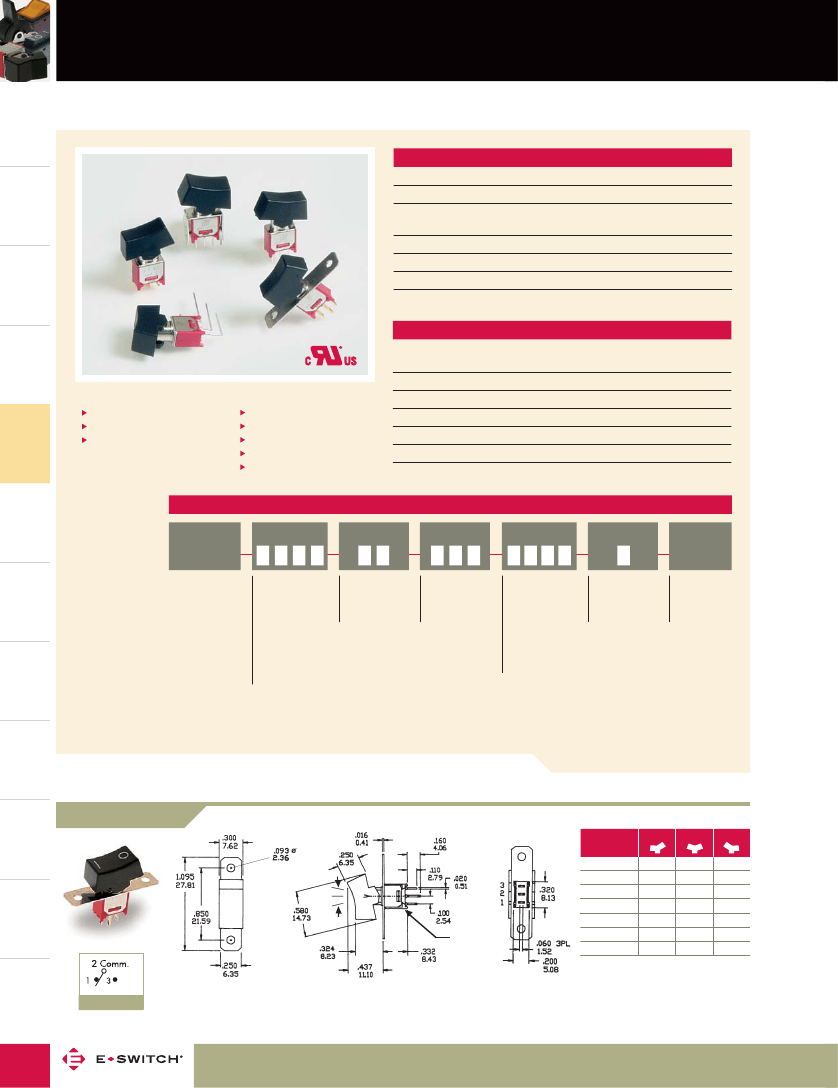

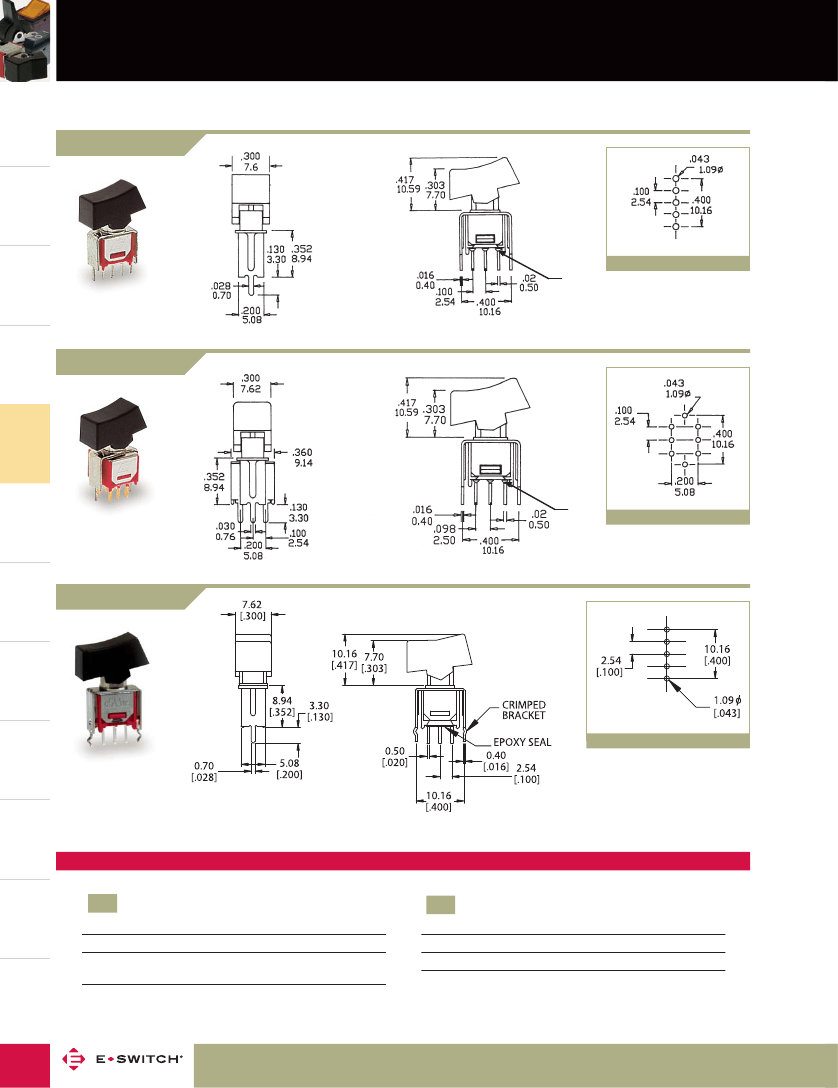

SERIES 400 SWITCHES

TACT

SWITCHES

ROCKER SWITCHES - SUB-MINIATURE

SPECIFICATIONS

NAVIGATION

SWITCHES

Contact Rating:

Life Expectancy:

Contact Resistance:

Insulation Resistance:

See contact material options

30,000 make-and-break cycles at full load

20 mΩ max. typical initial @ 2-4 VDC

100 mA for silver and gold plated contacts

1,000 MΩ min

1,000 V RMS @ sea level

PUSHBUTTON

SWITCHES

Dielectric Strength:

Operating Temperature: -30° C to 85° C

MATERIALS

TOGGLE

SWITCHES

Case:

Rocker:

Diallyl phthalate (DAP) or glass filled nylon,

flame retardant, heat stabilized (UL 94-V0)

Nylon

Brass, nickel plated

Stainless steel

Silver or gold plated copper alloy

FEATURES & BENEFITS

ROCKER

SWITCHES

Variety of switching functions

Sub-miniature

Multiple actuator options

APPLICATIONS/MARKETS

Telecommunications

Instrumentation

Test equipment

Networking

Computer peripherals

Bushing:

Housing:

Contacts / Terminals:

Terminal/Switch Support: Brass, or steel tin plated

▲

SLIDE

SWITCHES

HOW TO ORDER

SERIES

MODEL NO.

ACTUATOR

COLOR

TERMINATION

CONTACT

MATERIAL

SEAL

400

SNAP-ACTION

SWITCHES

MSP1

MSP2

MSP3

MSP4

MSP5

MSP6***

MDP1

MDP2

MDP3

R1*

R6**

BLK =Black

WHT=White

RED =Red

M61

M71

VS2

VS21

Q = Silver

R = Gold

E = Epoxy

Sealed at

Base of

Terminal

DIP

SWITCHES

* Std. all models except SPDT with

M6 + M61 terminations.

** Std. on SPDT models with

M6 + M61 terminations.

*** Not available with M6 terminations.

Specifications subject to change without notice.

▲

Example Ordering Number

400_ MSP1_ R6_ BLK_ M6_ R_ E

KEYLOCK

SWITCHES

ROTARY

SWITCHES

SPDT

POS 1

Model No.

MSP-1

MSP-2

MSP-3

MSP-4

MSP-5

MSP-6

Term. Comm.

(ON)

OFF

2-3

POS 2

NONE

OFF

NONE

OPEN

POS 3

(ON)

2-1

POS 3

DETECTOR

SWITCHES

POS 2

POS 1

25˚

Epoxy

Seal

( ) = Momentary

CAP

OPTIONS

SCHEMATIC

152

Phone: 800-867-2717

Fax: 763-531-8235
