2086-6000-00-13

Description
Diode,
CategoryDiscrete semiconductor    diode
File Size79KB,2 Pages
ManufacturerMACOM
Websitehttp://www.macom.com
Download Datasheet Parametric Compare View All

2086-6000-00-13 Overview

Diode,

2086-6000-00-13 Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
ECCN codeEAR99
Maximum operating frequency15 GHz
Minimum operating frequency1 GHz
Maximum operating temperature125 °C
Minimum tangent signal sensitivity-52 dBm
Base Number Matches1

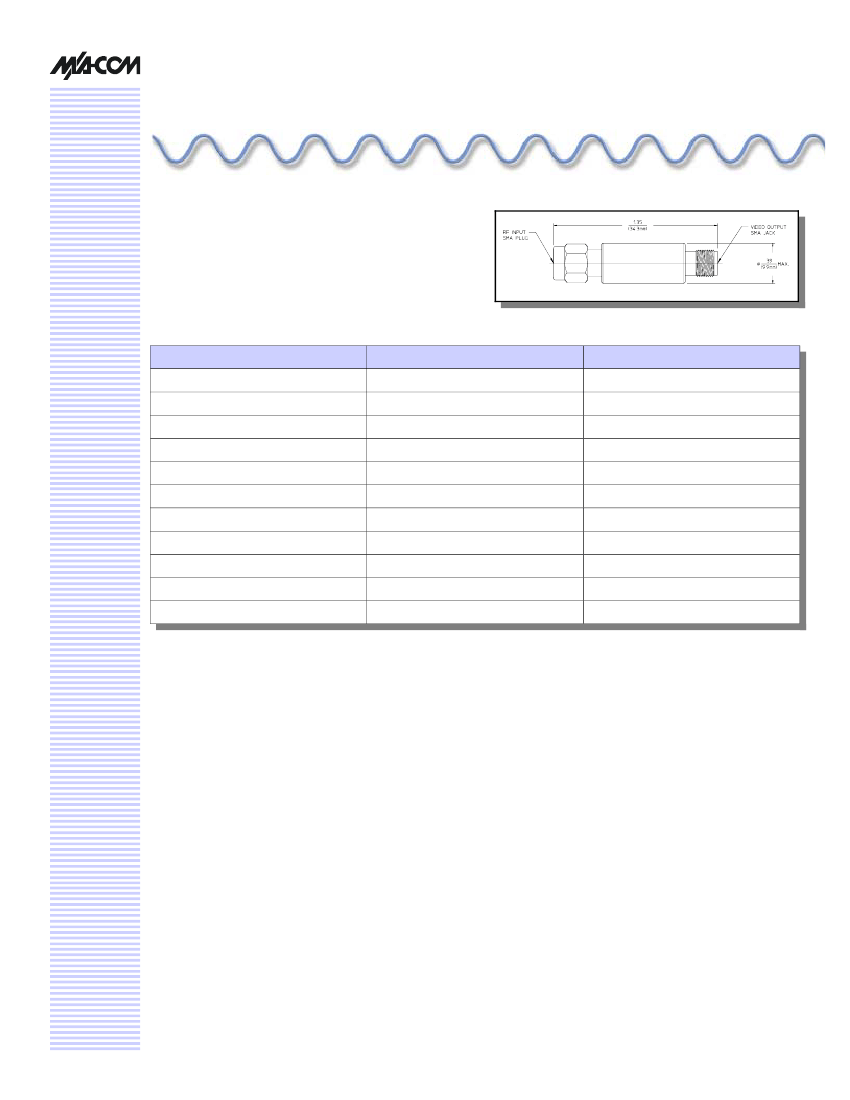

Biased & Zero Biased Schottky
Detectors
V 3.00
2086 Series
Features
!
High Output Sensitivity
!
Flat Frequency Response
!
Burnout Rating:
100 mW for 2086-6000-00
Outline Drawing
200 mW for 2086-6010-00
!
No Bias Required on 2086-6000-00

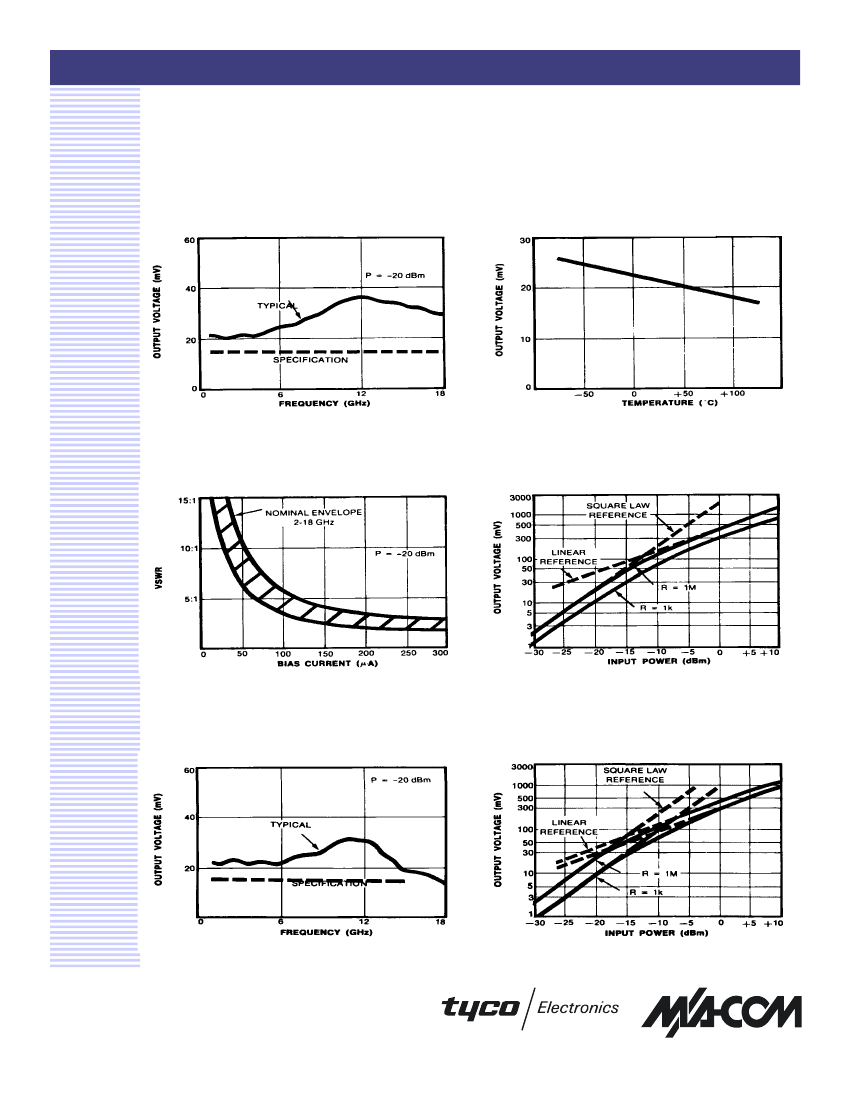

Specifications
Part Number
Frequency Range
Flatness 1
Open Circuit Voltage Sensitivity 1
Tangential Sensitivity 2
Output Capacitance
Video Resistance 1
Output Polarity
Bias Current
Temperature Range
Temperature Stability
Maximum Power
1.
2.
3.
4.
2086-6000-00
1.0 - 15.0 GHz
± 1.25 dB Max.
1500 mV/mW Min.
-52 dBm Min.
12 pF Typ.
1200 Ohms Typ.
Negative
4
-50°C to +125°C
100 mW CW
2086-6010-00
1.0 - 18.0 GHz
± 1.25 dB Max.
1500 mV/mW Min.
-52 dBm Min.
12 pF Typ.
700 Ohms Typ.
Negative
4
50 µA Nom.
-65°C to +125°C
± 2.0 dB
200 mW CW
For RF power levels below –20 dBm, and with an open circuit load.
With video amplifier of 1 MHz bandwidth and 2 dB noise figure.
Finish is passivated stainless steel.
For Positive output change suffix to -13.

2086-6000-00-13 Related Products

2086-6000-00-13 2086-6010-00
Description Diode, Linear Detector, 1000MHz Min, 18000MHz Max, 23dBm Input Power-Max,
Reach Compliance Code compliant compliant
Maximum operating frequency 15 GHz 18000 MHz
Minimum operating frequency 1 GHz 1000 MHz
Maximum operating temperature 125 °C 125 °C
Base Number Matches 1 1
