5-569331-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5-569331-1

5-569331-1: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,15 CONTACTS,PIN,0.031 PITCH,BLACK; CategoryThe connector The connector; File Size228KB，8 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

5-569331-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-569331-1	-	-	View	Buy Now

5-569331-1 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,15 CONTACTS,PIN,0.031 PITCH,BLACK

5-569331-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	8 weeks
Other features	NONE
Board mount options	EDGE MOUNT
subject depth	0.346 inch
body length	0.787 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU-PD-NI ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	10000 Cycles
maximum insertion force	.57546 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED NYLON
Manufacturer's serial number	5-569331
Plug contact pitch	0.031 inch
Installation method	RIGHT ANGLE
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
polarization key	RIGHT
Rated current (signal)	0.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	0.7874 mm
Total number of contacts	15
Evacuation force-minimum value	.0973 N
Base Number Matches	1

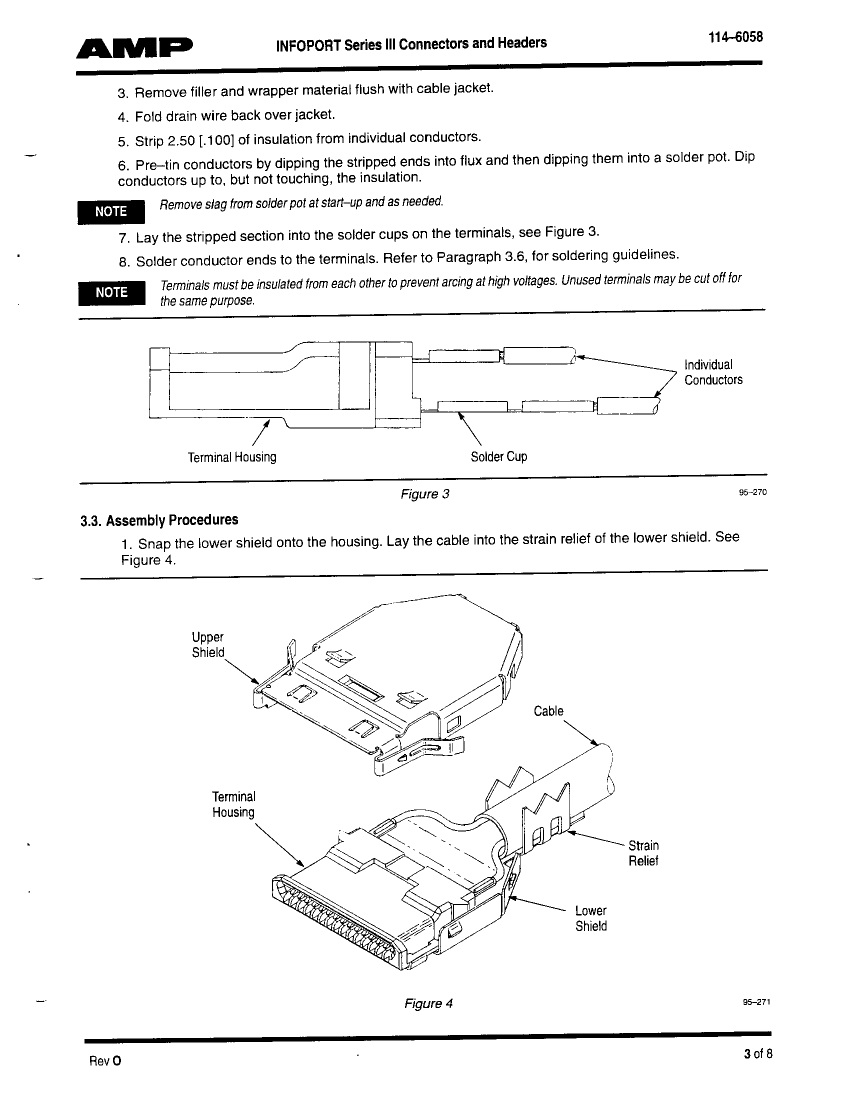

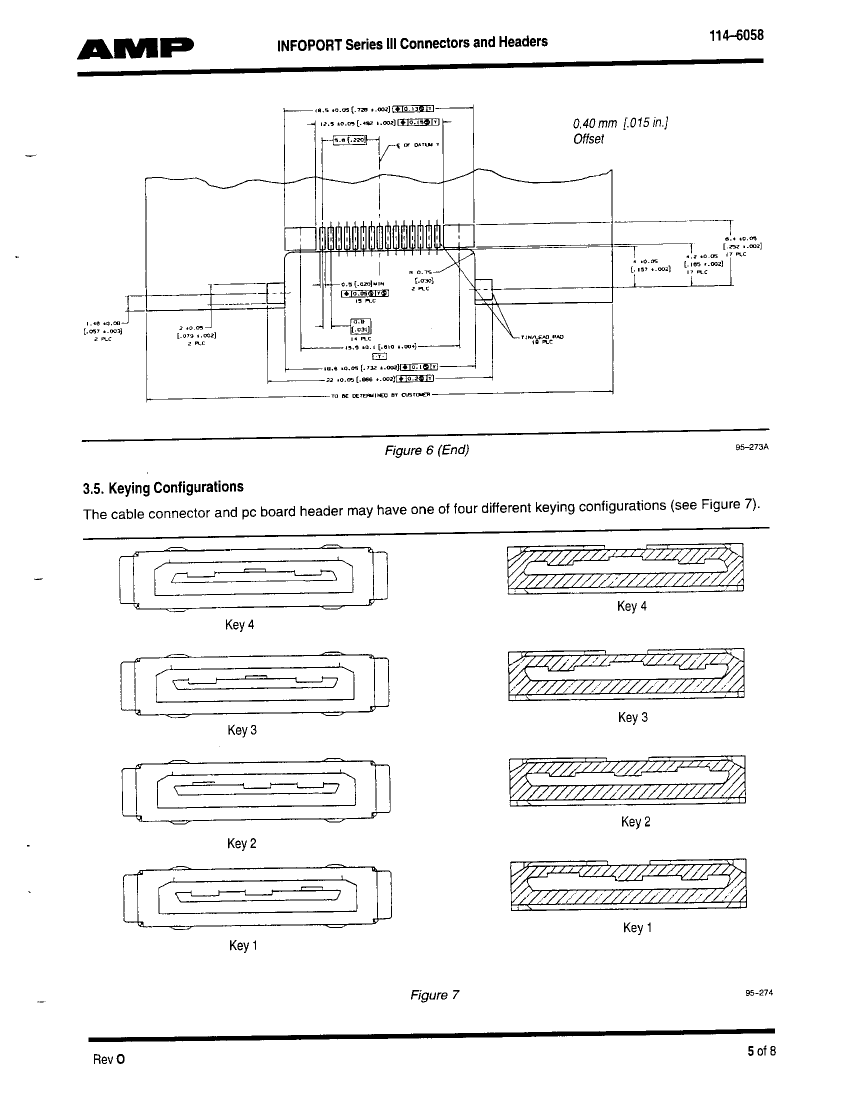

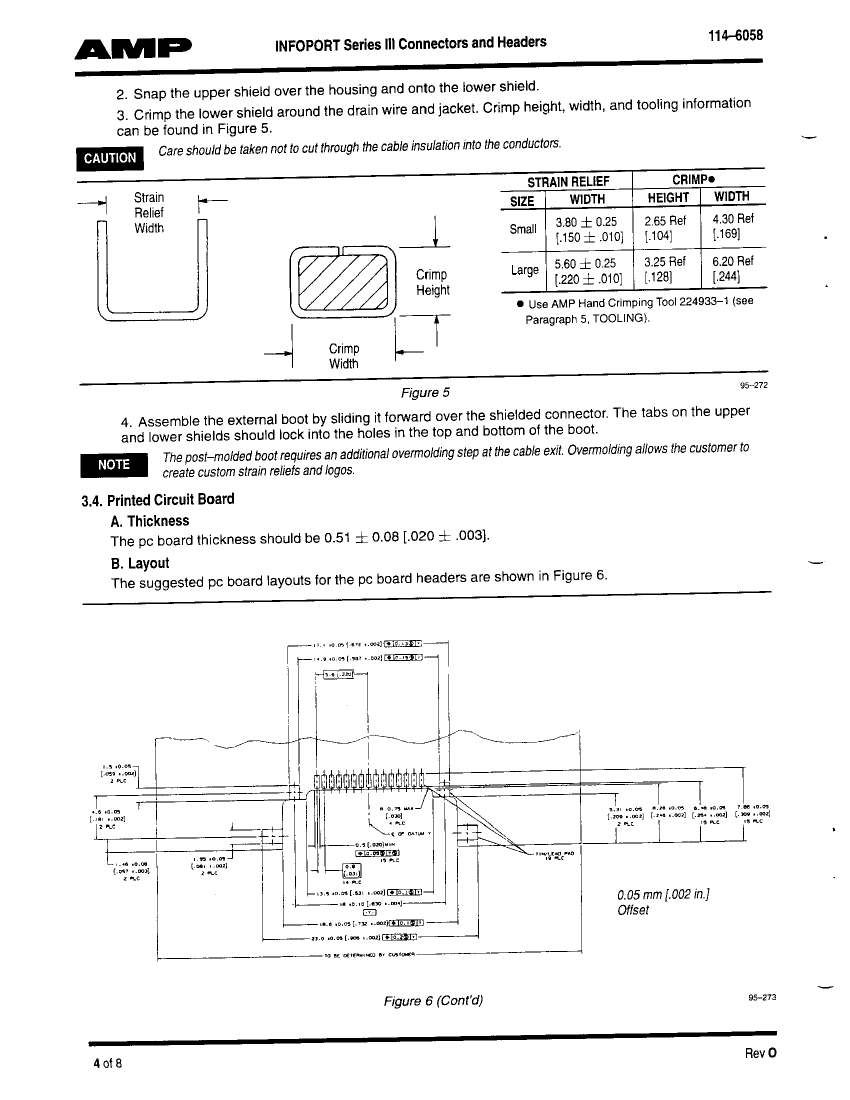

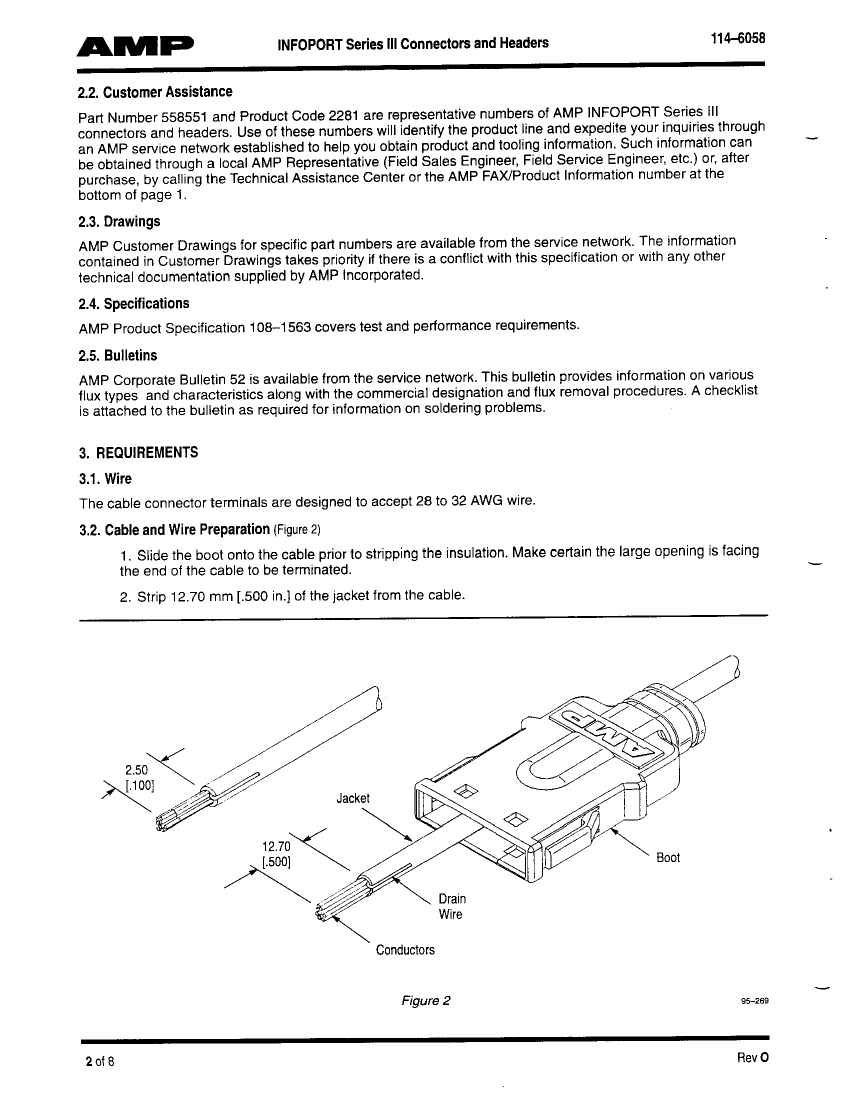

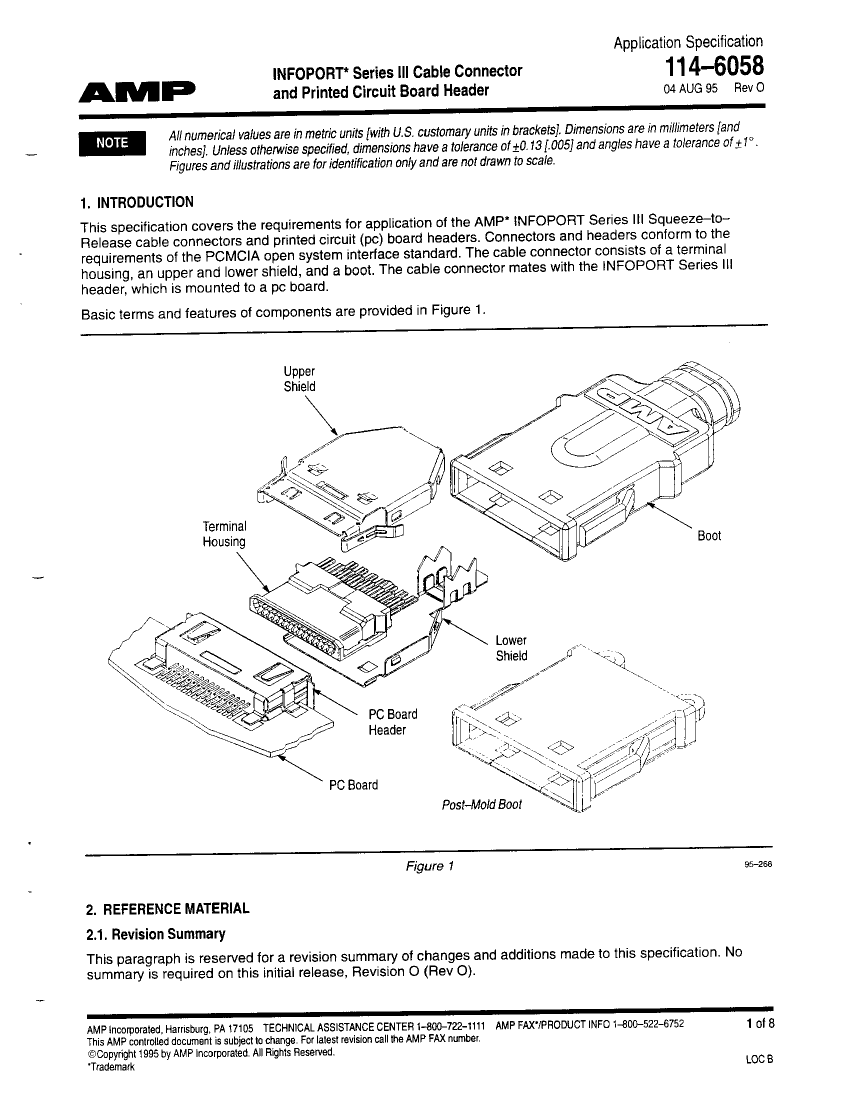

Preview

Download Datasheet

View All

5-569331-1 Related Products

	5-569331-1	558666-5	5-569331-4	5-569331-3
Description	HEADER CONNECTOR,PCB MNT,RECEPT,15 CONTACTS,PIN,0.031 PITCH,BLACK	15 CONTACT(S), FEMALE, PCMCIA CONNECTOR	HEADER CONNECTOR,PCB MNT,RECEPT,15 CONTACTS,PIN,0.031 PITCH,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,15 CONTACTS,PIN,0.031 PITCH,BLACK
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	compliant	unknown	unknown
Other features	NONE	POLARIZED	NONE	NONE
subject depth	0.346 inch	0.36 inch	0.346 inch	0.346 inch
body length	0.787 inch	0.567 inch	0.787 inch	0.787 inch
Body/casing type	RECEPTACLE	PLUG	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	PCMCIA CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU-PD-NI ON NI	NOT SPECIFIED	AU-PD-NI ON NI	AU-PD-NI ON NI
Contact point gender	MALE	FEMALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	NOT SPECIFIED	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	40 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	BELLOWED TYPE	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V
Durability	10000 Cycles	10000 Cycles	10000 Cycles	10000 Cycles
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON
Manufacturer's serial number	5-569331	558666	5-569331	5-569331
Plug contact pitch	0.031 inch	0.031 inch	0.031 inch	0.031 inch
Number of rows loaded	1	1	1	1
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C
Plating thickness	10u inch	10u inch	10u inch	10u inch
polarization key	RIGHT	POLARIZED HOUSING	CENTER	CENTER
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Total number of contacts	15	15	15	15
Base Number Matches	1	1	1	1
Board mount options	EDGE MOUNT	-	EDGE MOUNT	EDGE MOUNT
maximum insertion force	.57546 N	-	.57546 N	.57546 N
Installation method	RIGHT ANGLE	-	RIGHT ANGLE	RIGHT ANGLE
Number of connectors	ONE	-	ONE	ONE
PCB row number	1	-	1	1
PCB contact pattern	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Terminal pitch	0.7874 mm	-	0.7874 mm	0.7874 mm
Evacuation force-minimum value	.0973 N	-	.0973 N	.0973 N
