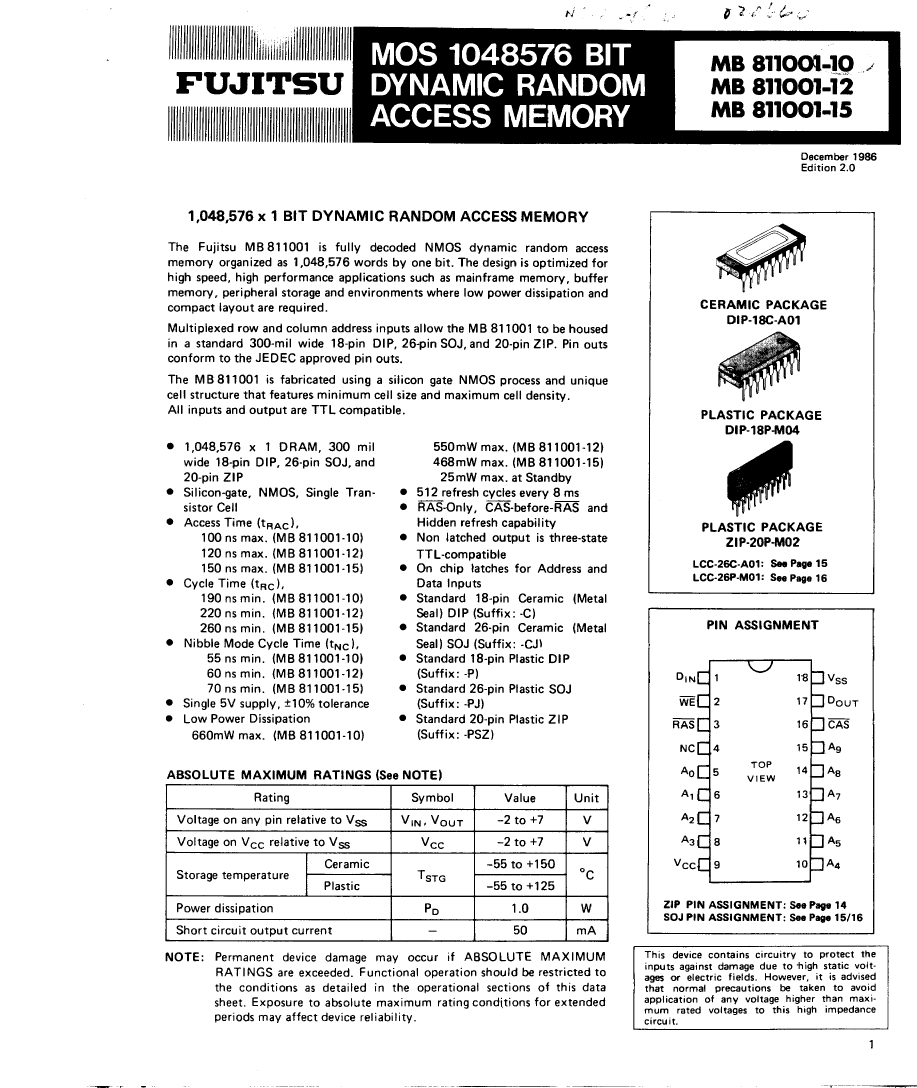

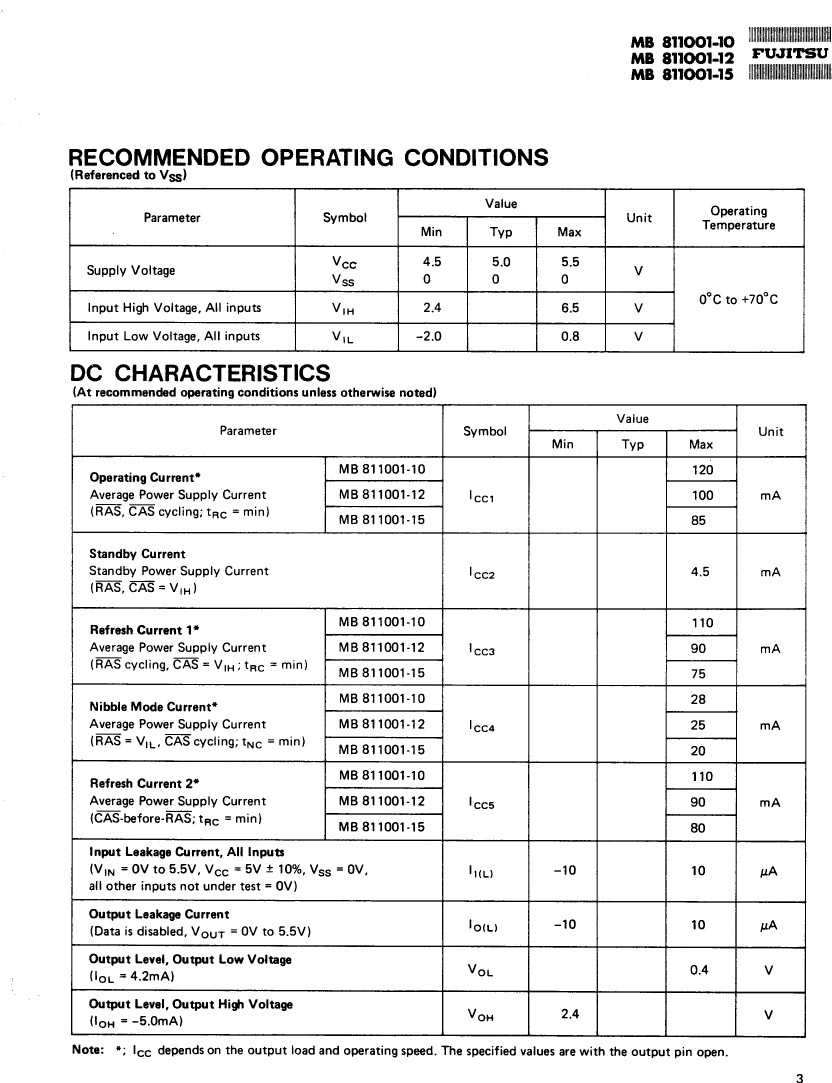

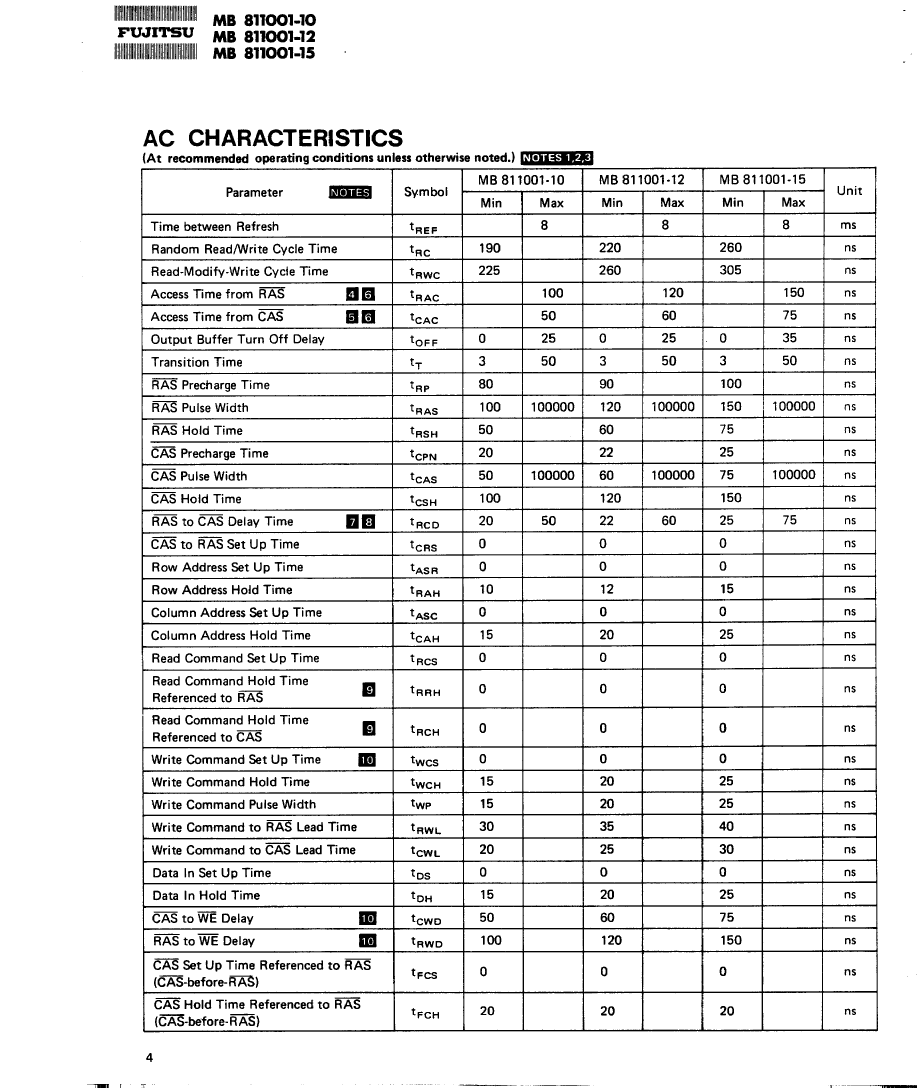

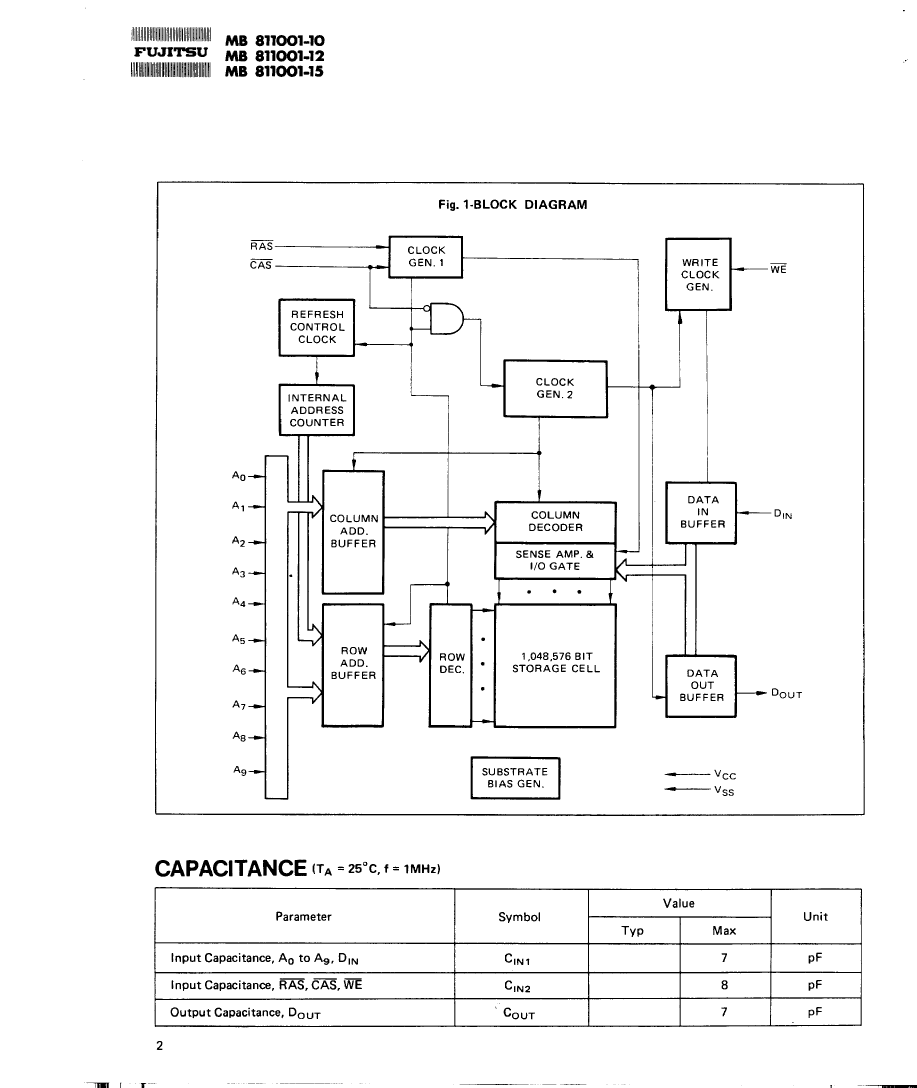

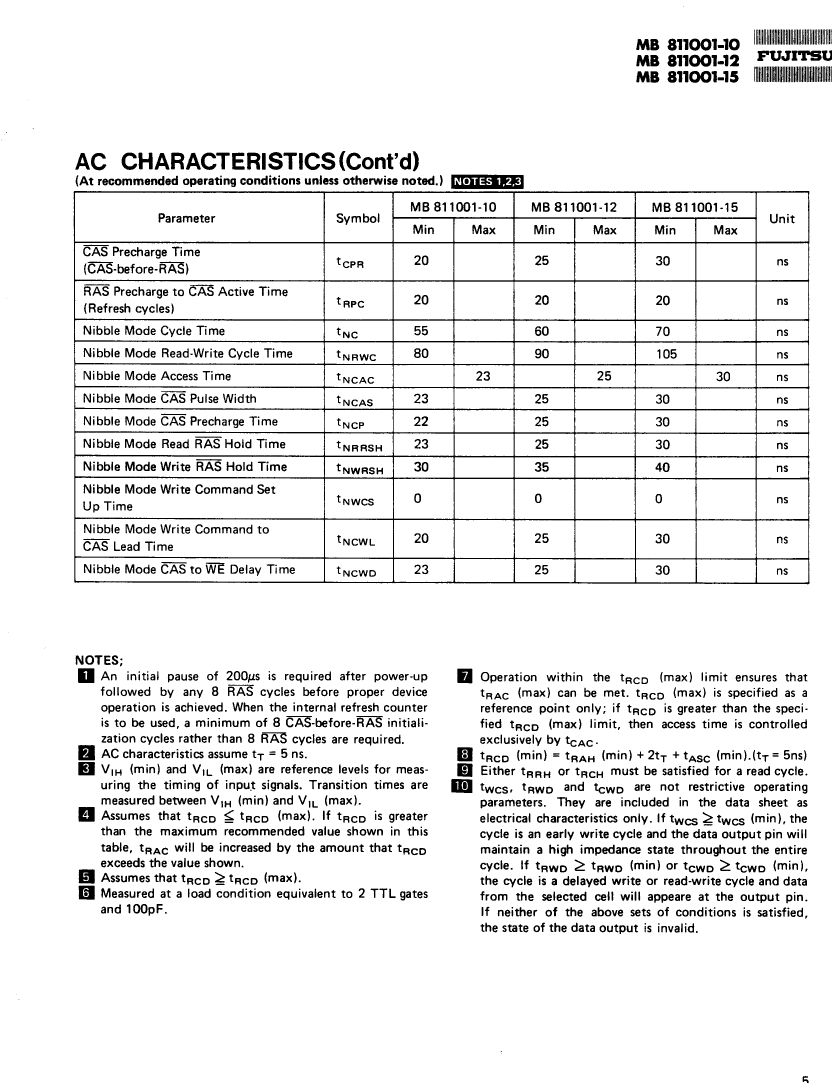

MB811001-15PSZ

Description
Nibble Mode DRAM, 1MX1, 150ns, MOS, PZIP20
Categorystorage    storage
File Size1MB，16 Pages
ManufacturerFUJITSU
Websitehttp://edevice.fujitsu.com/fmd/en/index.html
Download Datasheet Parametric Compare View All

MB811001-15PSZ Overview

Nibble Mode DRAM, 1MX1, 150ns, MOS, PZIP20

MB811001-15PSZ Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerFUJITSU
package instructionZIP, ZIP20,.1
Reach Compliance Codeunknown
Maximum access time150 ns
I/O typeSEPARATE
JESD-30 codeR-PZIP-T20
JESD-609 codee0
memory density1048576 bit
Memory IC TypeNIBBLE MODE DRAM
memory width1
Number of terminals20
word count1048576 words
character code1000000
Maximum operating temperature70 °C
Minimum operating temperature
organize1MX1
Output characteristics3-STATE
Package body materialPLASTIC/EPOXY
encapsulated codeZIP
Encapsulate equivalent codeZIP20,.1
Package shapeRECTANGULAR
Package formIN-LINE
power supply5 V
Certification statusNot Qualified
refresh cycle512
Maximum slew rate0.085 mA
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyMOS
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch1.27 mm
Terminal locationZIG-ZAG
Base Number Matches1
