NMC0603X5R334M10TRPLPF datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> NMC0603X5R334M10TRPLPF

NMC0603X5R334M10TRPLPF: DescriptionCeramic Capacitor, Multilayer, Ceramic, 10V, 20% +Tol, 20% -Tol, X5R, 15% TC, 0.33uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size53KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

NMC0603X5R334M10TRPLPF Overview

Ceramic Capacitor, Multilayer, Ceramic, 10V, 20% +Tol, 20% -Tol, X5R, 15% TC, 0.33uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT

NMC0603X5R334M10TRPLPF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Nichicon
package instruction	CHIP, ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.33 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
JESD-609 code	e3
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, EMBOSSED PLASTIC
positive tolerance	20%
Rated (DC) voltage (URdc)	10 V
size code	0603
surface mount	YES
Temperature characteristic code	X5R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Base Number Matches	1

Preview

Download Datasheet

View All

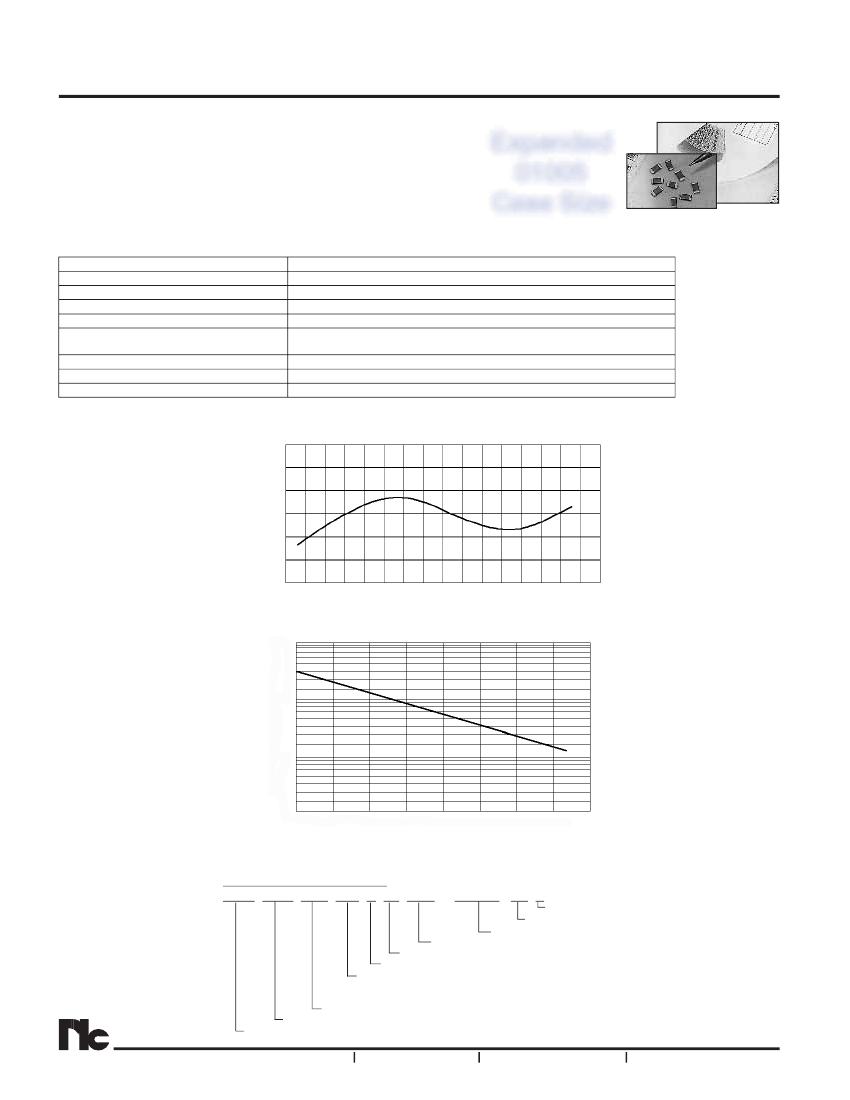

Multilayer Ceramic Chip Capacitors

FEATURES

• CLASS II DIELECTRIC, TEMPERATURE STABLE

• EXCELLENT FREQUENCY CHARACTERISTICS, NON-LINEAR

CAPACITANCE CHANGE

• NICKEL BARRIER TERMINATIONS AND EXCELLENT

MECHANICAL STRENGTH

CHARACTERISTICS

Capacitance Range

Capacitance Tolerance

Operating Temperature Range

Temperature Characteristics

Rated Voltages

Dissipation Factor

insulation Resistance

Dielectric Withstanding Voltage

Test Conditions (EIA-198-2E)

NMC Series X5R

Expanded

01005

Case Size

100pF ~ 0.82μF (see high CV datasheet for higher capacitance values)

±10% (K), ±20% (M)

-55°C ~ +85°C

±15%Δ max. over temperature range (with 0 Vdc applied)

6.3Vdc, 16Vdc & 25Vdc (see NMC-H Series for higher voltages)

3.5% max. (25Vdc) 5% max. (16Vdc), 7.5% (10Vdc), 10% (6.3Vdc)

@ 1.0Vrms and 1KHz, +25°C

10,000Megohms min. or 500Megohm/μF min. whichever is less @ +25°C

250% of Rated Voltage for 5 ±1 seconds, 50mA maximum current

1KHz, 1.0V ±0.2Vrms

Typical X5R Temperature Coefﬁcient

20%

10%

%Δ°C

-10%

-20%

-50 -40 -30 -20 -10 0 10 20 30 40 50 60 70 80 90

Insulation Resistance (Ohm - Farads)

Insulation Resistance vs. Temperature

10,000

1,000

100

+20

+30

+40

+50

+60

+70

+80

Temperature °C

PART NUMBER SYSTEM

NMC 0805 X5R 102 K 50 TRP or TRPLP 3K F

RoHS Compliant

Optional Reel Qty (3K=3,000pcs)

Tape & Reel (Embossed Plastic Carrier)

Tape & Reel (Punched carrier)

Voltage (Vdc)

Capacitance Tolerance Code (see chart)

Capacitance Code, expressed in pF, ﬁrst 2 digits are

signiﬁcant, 3rd digit is no. of zeros, “R” indicates

decimal for under 10pF

Temperature Characteristic

Size Code (see chart)

Series

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com

Recommended Resources
