CDP68HCL05C8BE

Description
Microcontroller, 8-Bit, MROM, 6805 CPU, 4.2MHz, CMOS, PDIP40
CategoryThe embedded processor and controller    Microcontrollers and processors
File Size2MB,51 Pages
ManufacturerHarris
Websitehttp://www.harris.com/
Download Datasheet Parametric View All

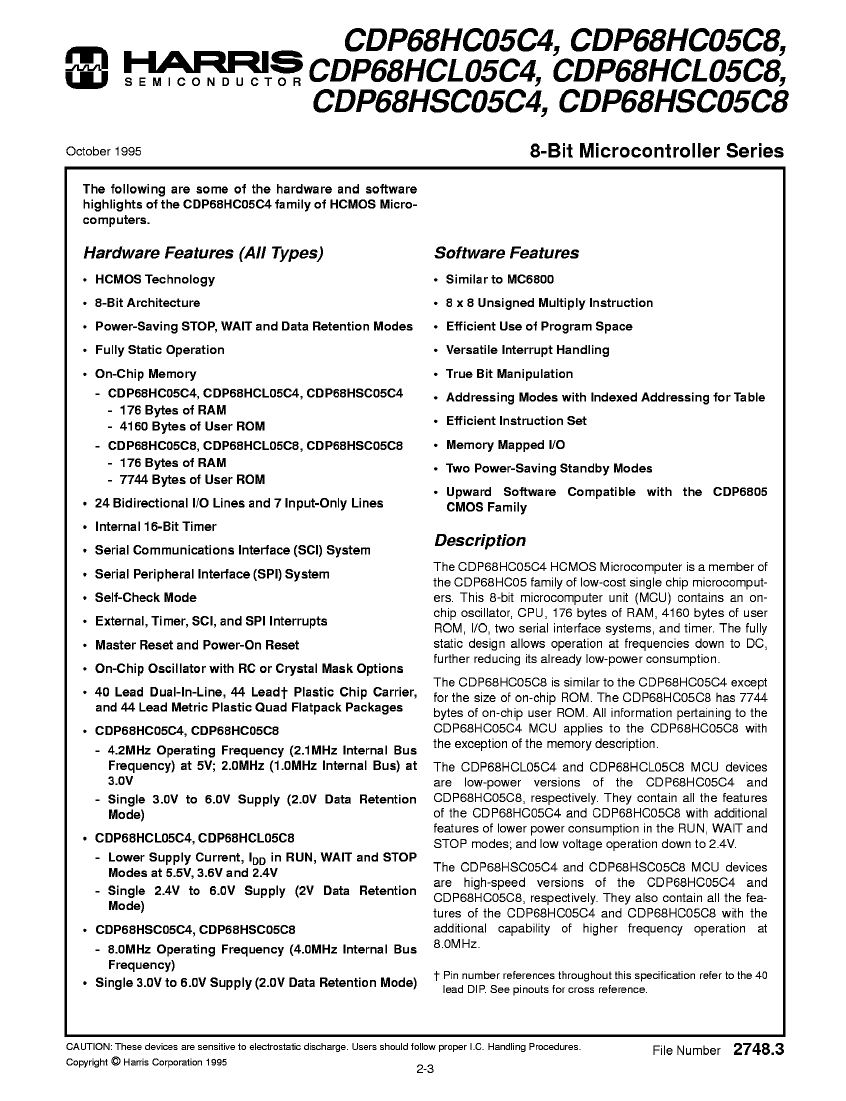

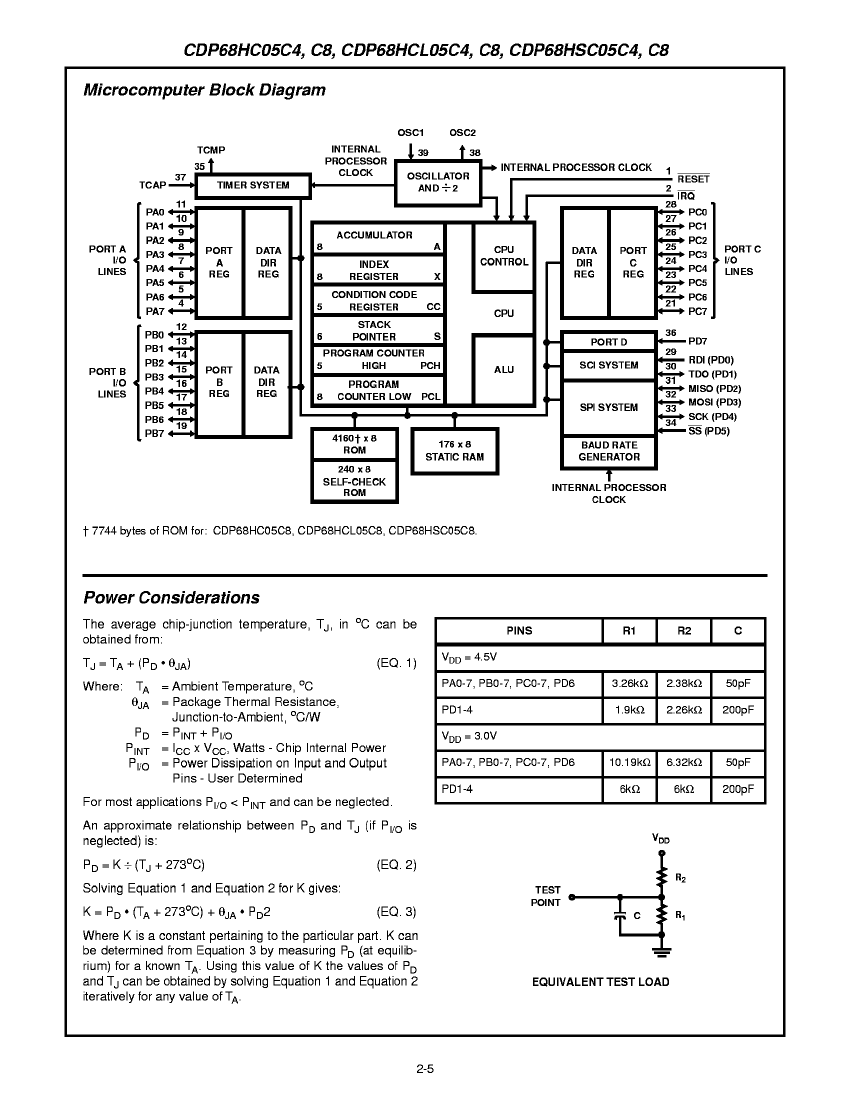

CDP68HCL05C8BE Overview

Microcontroller, 8-Bit, MROM, 6805 CPU, 4.2MHz, CMOS, PDIP40

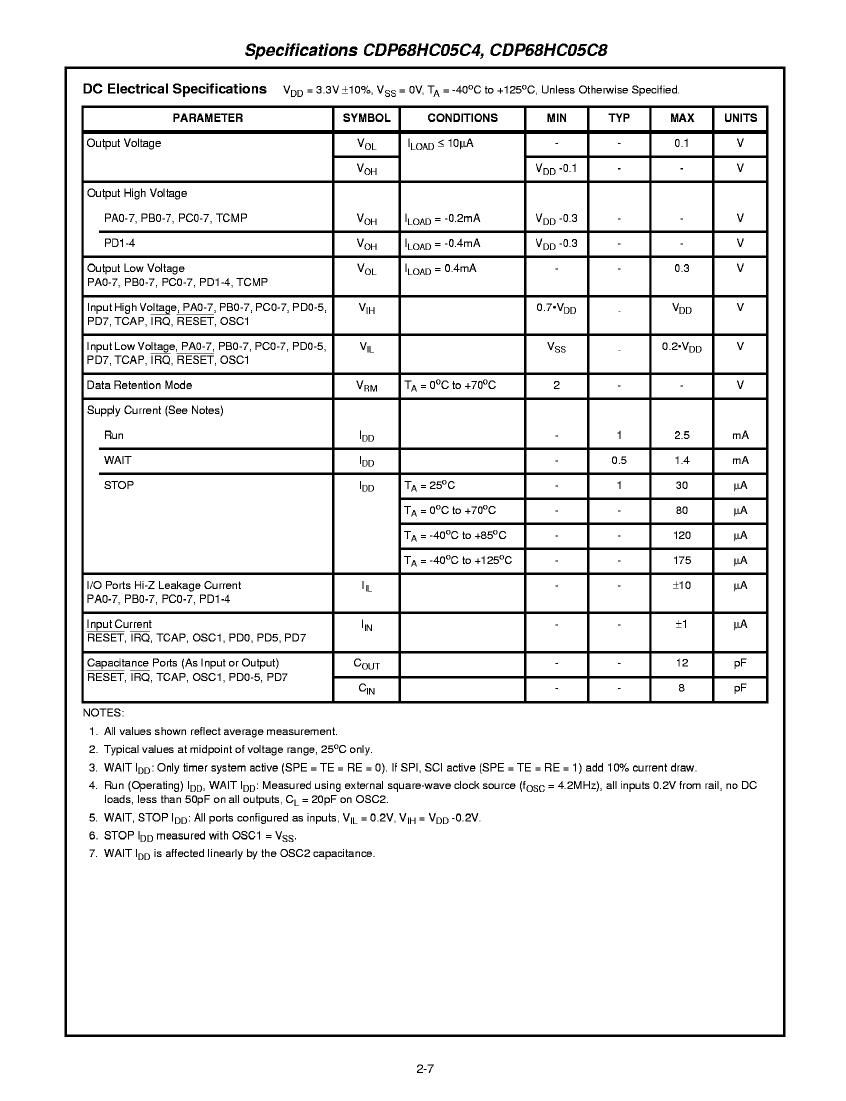

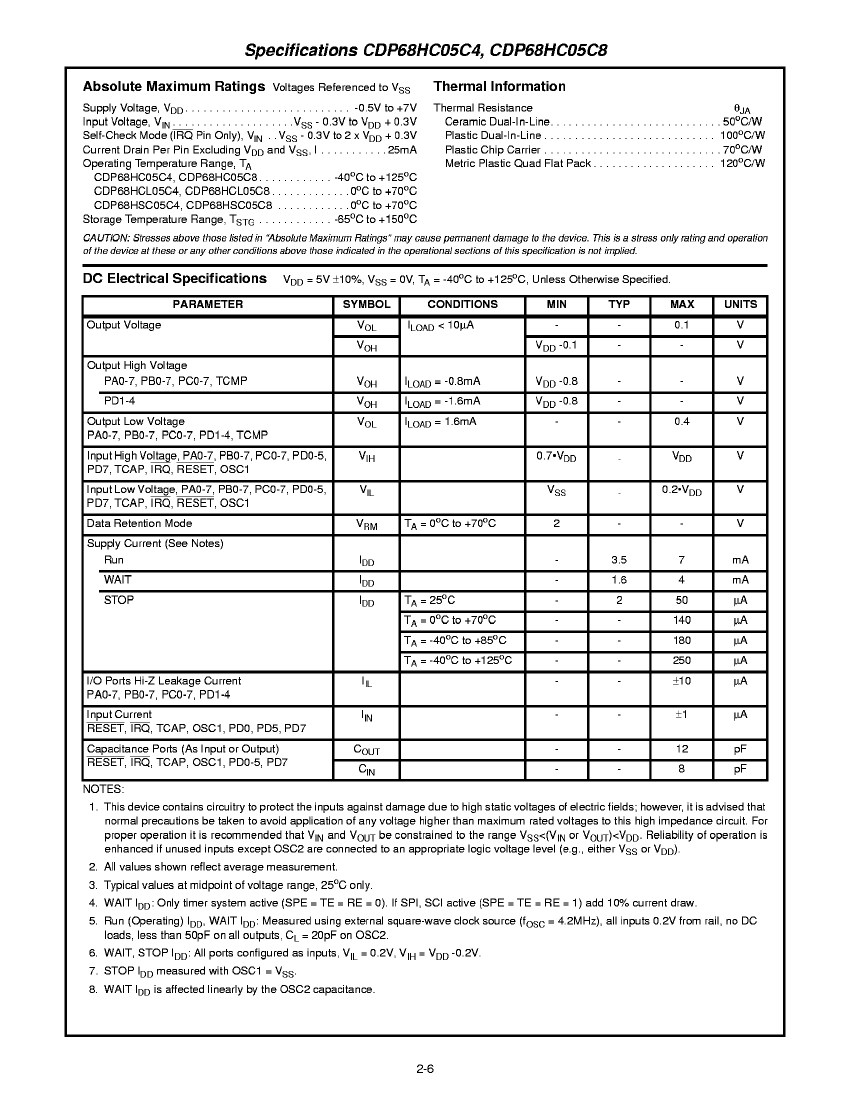

CDP68HCL05C8BE Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerHarris
package instructionDIP, DIP40,.6
Reach Compliance Codeunknown
Has ADCNO
Address bus width
bit size8
CPU series6805
maximum clock frequency4.2 MHz
DAC channelNO
DMA channelNO
External data bus width

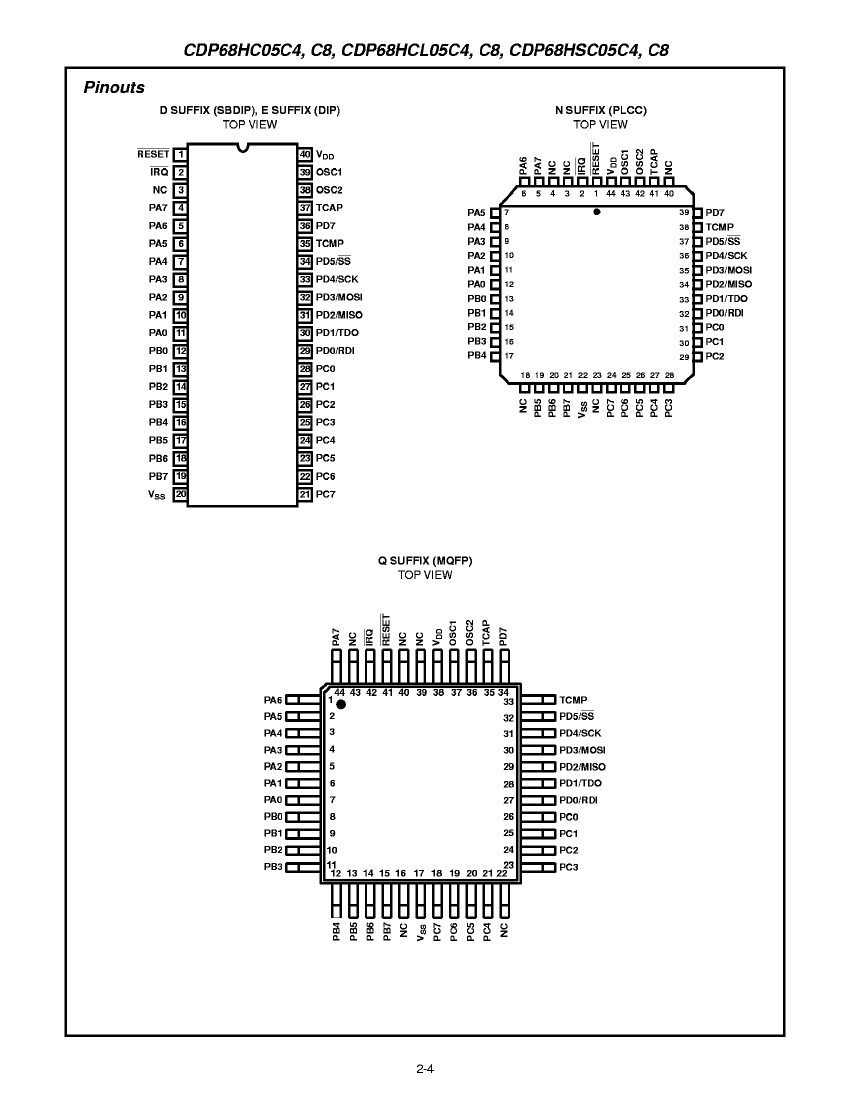

JESD-30 codeR-PDIP-T40
JESD-609 codee0
Number of I/O lines31
Number of terminals40
Maximum operating temperature70 °C
Minimum operating temperature
PWM channelNO
Package body materialPLASTIC/EPOXY
encapsulated codeDIP
Encapsulate equivalent codeDIP40,.6
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply2/5 V
Certification statusNot Qualified
RAM (bytes)176
rom(word)7744
ROM programmabilityMROM
speed4.2 MHz
Maximum slew rate4.25 mA
Maximum supply voltage5.5 V
Minimum supply voltage4.5 V
Nominal supply voltage5 V
surface mountNO
technologyCMOS
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
uPs/uCs/peripheral integrated circuit typeMICROCONTROLLER
Base Number Matches1
