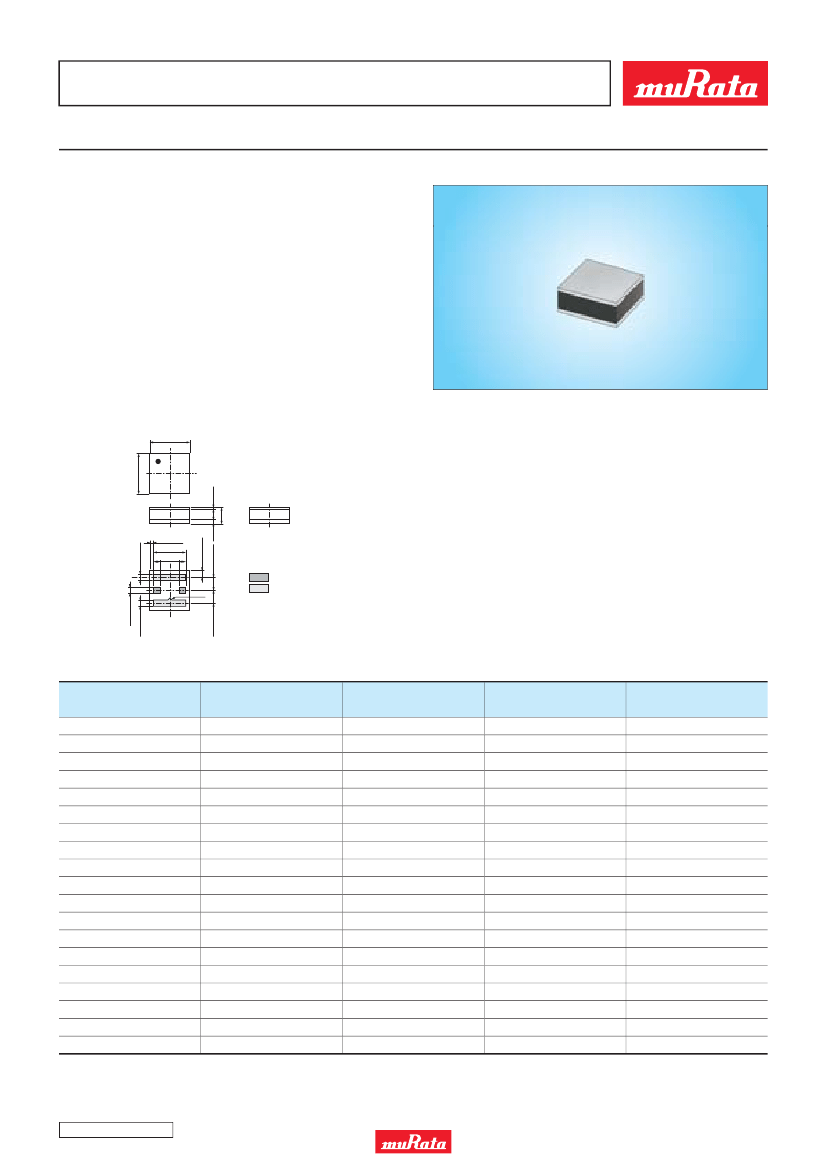

Isolators
CEG23 Series
c
Features
Small size: 2.0×2.0×1.0mm
Low Insertion Loss, High Isolation
Compliance with RoHS Directive
c
Applications
Mobile Phone
CEG23
c
Dimensions
2.00±0.15
2.00±0.15
1
2
3
4
(0.11)
0.36±0.15
0.2±0.15
1.6±0.1
0.32±0.1
3
2
0.32±0.10
1
0.32±0.10
0.64±0.10 (0.2)
0.32±0.10
1.0 max.
: I/O Terminal
: GND Terminal
4
R0.1
0.64±0.10
2: INPUT
4: OUTPUT
1, 3: GROUND
(in mm)
c
Standard Specifications
Part Number
CEG231G44CCB101
CEG231G73DCB100
CEG231G74DCB100
CEG231G76CCB100
CEG231G88DCB100
CEG231G88DCB101
CEG231G95DCB100
CEG231G95ECB100
CEG232G01BCB100
CEG232G35DCB100
CEG232G53DCB100
CEG232G59CCB100
CEG23707MCCB000
CEG23787MDCB000
CEG23832MDCB000
CEG23836MDCB000
CEG23847MDCB000
CEG23897MDCB000
CEG23911MDCB000
Fo
(MHz)
1445.4
1732.5
1747.5
1767.4
1880
1882.5
1950
1952.5
2017.5
2350
2535
2595
707
787
832
836.5
847
897.5
911.5
IL at BW
(max.)
(dB)
0.68
0.65
0.7
0.65
0.65
0.65
0.65
0.8
0.69
0.65
0.63
0.63
0.76
0.65
0.65
0.65
0.63
0.68
0.65
Isolation
(min.)
(dB)
10
10
8
10
10
10
10
6
10
7
8
8
9.5
10
9.4
10
9.5
9
10
Rating Power
(max.)
(W)
1.2
1.2
1.2
1.2
1.2
1.2
1.2
1.2
1.2
1.2
1.2
1.2
1.2
1.2
1.2
1.2
1.2
1.2
1.2
Cat.No.O32E-1
1
!Note
• This PDF catalog is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice.
Please check with our sales representatives or product engineers before ordering.
• This PDF catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
O32E.pdf
Dec.3,2012

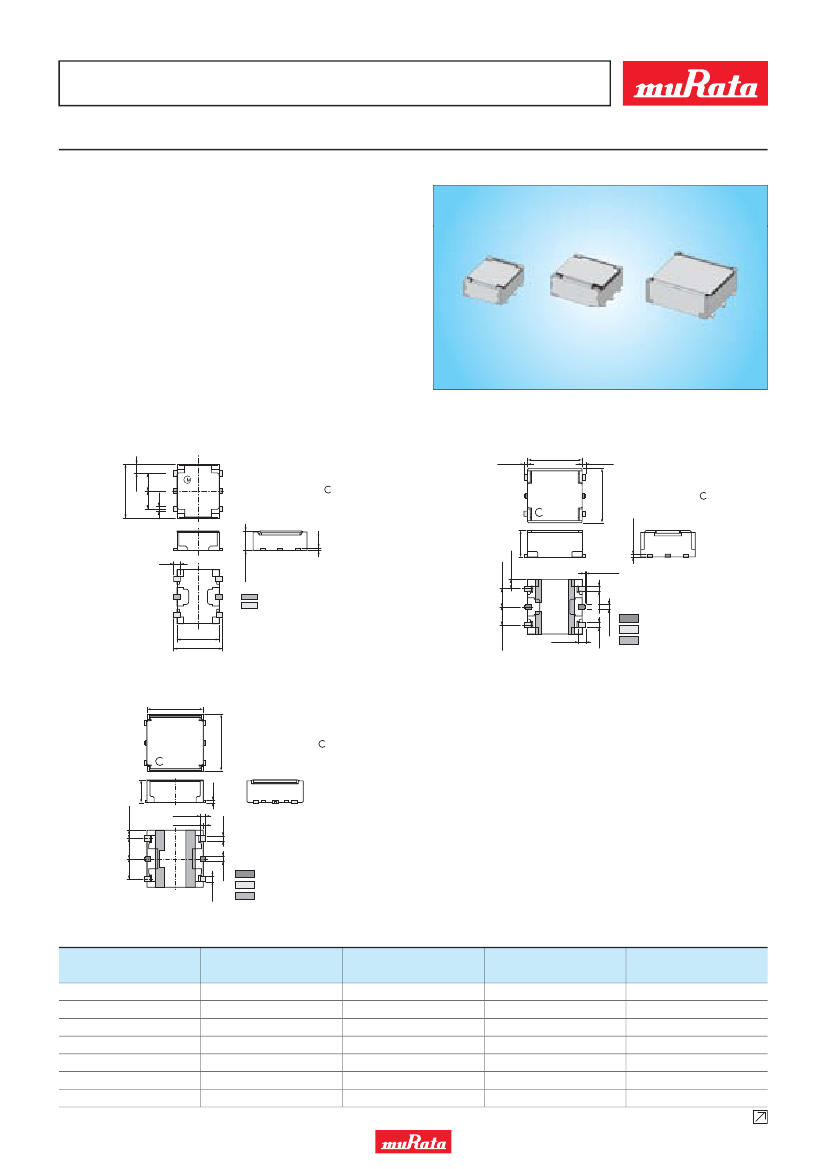

Isolators
CES Series
c
Features
CES20: 3.2×2.5×1.2mm
CES30: 3.2×3.2×1.6mm
CES40: 4.0×4.0×1.7mm
Low Insertion Loss, High Isolation
Compliance with RoHS Directive
c
Applications
Base Station
CES20
CES30
CES40
c
Dimensions
CES20 Series
2: OUT
5: IN
1, 3, 4, 6: GROUND
MANUFACTURER'S MARK
is placed on input pin side.
M
CES30 Series
0.2±0.1
4
5
6
1.05±0.1
0.55±0.1
1.6 max.
0.11
3.2±0.1
0.2±0.1
3
2
3.2
1.05 1.05
3.2
0.55
4
0.3
5
6
3
2
1
2: OUT
5: IN
1, 3, 4, 6: GROUND
M
MANUFACTURER'S MARK
is placed on input pin side.
0.15±0.05
M
1
0.4
6
5
4
2.5
2.9
1
2
3
1.2 max.
0.05±0.05
1
2
3
0.4±0.1
0.3±0.1
0.3±0.1
0.3±0.1
TOLERANCES UNLESS
OTHERWISE
SPECIFIED: ±0.2
I/O Terminal
GND Terminal
Solder Resist
(in mm)
6
5
4
I/O Terminal
GND Terminal
(in mm)
CES40 Series
4.0±0.1
4
5
6
1.6±0.1
M
3
2
1
0.15
4.0
2: OUT
5: IN
1, 3, 4, 6: GROUND
MANUFACTURER'S MARK
is placed on input pin side.
M
1.4±0.1 1.4±0.1 0.6±0.1
6
5
4
1
2
3
0.4±0.1
0.4±0.1
0.4±0.1
0.2±0.1
0.4±0.1
TOLERANCES UNLESS
OTHERWISE SPECIFIED: ±0.2
I/O Terminal
GND Terminal
Solder Resist
(in mm)
c
Standard Specifications
Part Number
CES201G90CCB000
CES202G35DCB000
CES202G45DCB000
CES202G53DCB000
CES202G59CCB000
CES202G59ECB000
CES301G74DCB000
Fo
(MHz)
1900
2350
2450
2535
2595
2592.5
1747.5
IL at BW
(max.)
(dB)
0.6
0.77
0.77
0.67
0.7
0.9
0.74
Isolation
(min.)
(dB)
13.5
8.5
9
10.5
8
6
10.5
Rating Power
(max.)
(W)
5
5
5
5
5
5
5
Continued on the following page.
1.05±0.1
TOLERANCES UNLESS
OTHERWISE SPECIFIED: ±0.2
2
!Note
• This PDF catalog is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice.
Please check with our sales representatives or product engineers before ordering.
• This PDF catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
O32E.pdf
Dec.3,2012
Continued from the preceding page.
Part Number
CES301G76CCB000
CES301G84DCB000
CES301G88DCB000
CES301G90CCB000
CES301G95DCB000
CES301G95ECB000
CES301G96DCB000
CES302G14DCB000
CES40836MDCB000
CES40881MDCB000
CES40897MDCB000
CES40906MDCB000
CES40942MDCB000
Fo
(MHz)
1765
1842.5
1880
1900
1950
1952.5
1960
2140
836.5
881.5
897.5
906
942.5
IL at BW
(max.)
(dB)
0.7
0.68
0.64
0.62
0.6
0.82
0.6
0.62
0.75
0.73
0.75
0.78
0.85
Isolation
(min.)
(dB)
12
11
13
14.5
13
9
13
13
10.5
10
10
10
10
Rating Power
(max.)
(W)
5
5
5
5
5
5
5
5
5
5
5
5
5
c
Part Numbering
Isolators
(Part Number)
qProduct
ID
Product ID
CE
wSeries
Code
G23
S20
S30
S40
eNominal
Center Frequency
Expressed by four-digits alphanumerics. If the unit is "MHz", it is
expressed by three figures plus "M". If the unit is "GHz", a decimal
point is expressed by capital letter "G".
Series
2.0g2.0g1.0mm
3.2g2.5g1.2mm
3.2g3.2g1.6mm
4.0g4.0g1.7mm
Isolators
tPackaging
Code
RA1
RAB
RB2
RB4
RB5
Packaging
1000 pcs. /Reel (CES20,
CEG23)
500 pcs. /Reel (CES30,
CES40)
2000 pcs. /Reel (CES30,
CES40)
4000 pcs. /Reel (CES20)
5000 pcs. /Reel (CEG23)
CE G23 1G95
q
w
e
DCB100 RA1
r
t
rIndividual
Specification Code
Expressed by three letters and three figures.
3
!Note
• This PDF catalog is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice.
Please check with our sales representatives or product engineers before ordering.
• This PDF catalog has only typical specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
O32E.pdf
Dec.3,2012
EU RoHS Compliant
All the products in this catalog comply with EU RoHS.
EU RoHS is "the European Directive 2011/65/EU on the Restriction of the Use
of Certain Hazardous Substances in Electrical and Electronic Equipment."
For more details, please refer to our website 'Murata's Approach for EU RoHS'
