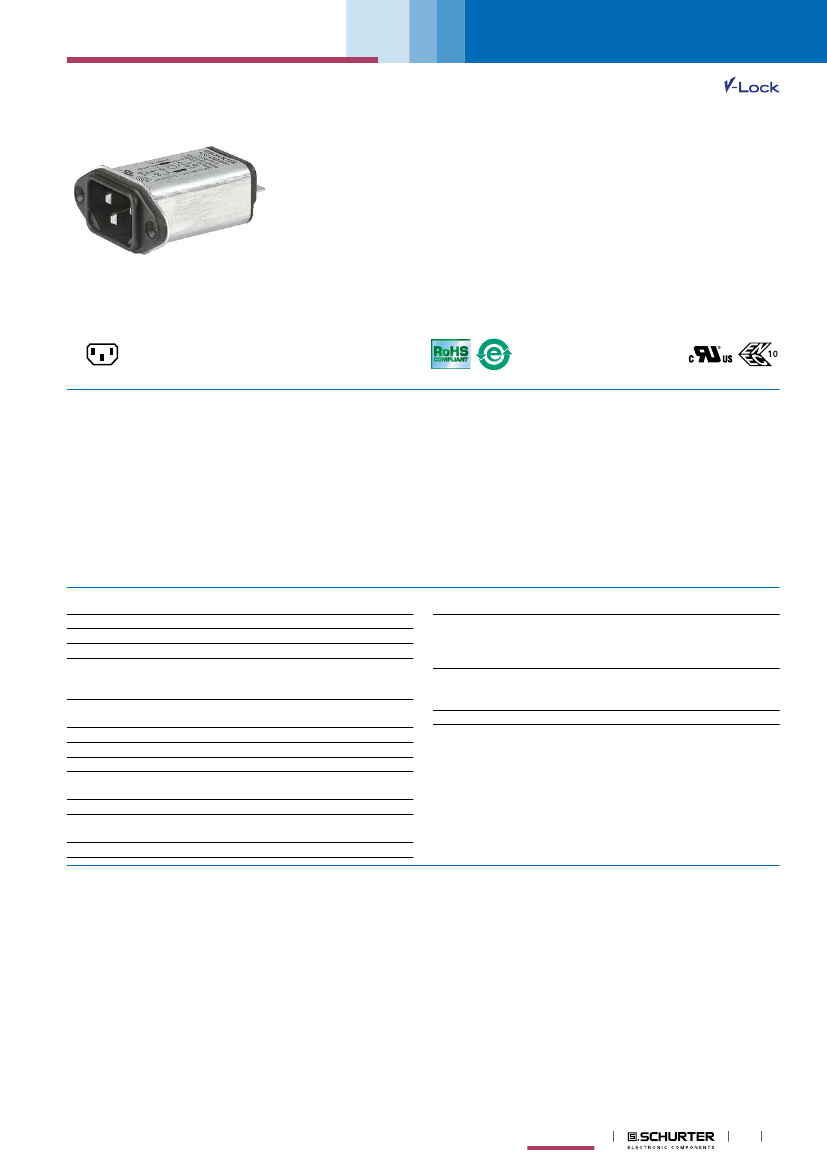

Power Entry Modules with Line Filter
www.schurter.com/PG06
IEC Appliance Inlet C14 with Filter, Increased Dielectric Strength
KFX
C14
70° C
Description
- Panel Mount:
Screw-on mounting from front side
- 2 Functions:
Appliance Inlet Protection class I, Line-filter in standard version
- Quick connect terminals 6.3 x 0.8 mm
Characteristics
- Compact design with optimal shielding
- All single elements are already wired
- Universal line filter for standard applications
With enhanced surge withstand voltage
- Suitable for use in equipment according to IEC/UL 60950
Approvals
Weblinks
- VDE Certificate Number: 40004665 (FGX)
- UL File Number: E72928 (FGX)
pdf-datasheet, html-datasheet, General Product Information, Approvals,
CE declaration of conformity, RoHS, CHINA-RoHS, Mating Connectors,
e-Shop, SCHURTER-Stock-Check, Distributor-Stock-Check, CAD-
Drawings, Accessories, Detailed request for product
Newly available variants corresponding to V-Lock mating cordset. The connector is equipped with a notch intended for use with the latching cordset.
The cord latching system prevents against accidental removal of the cordset.

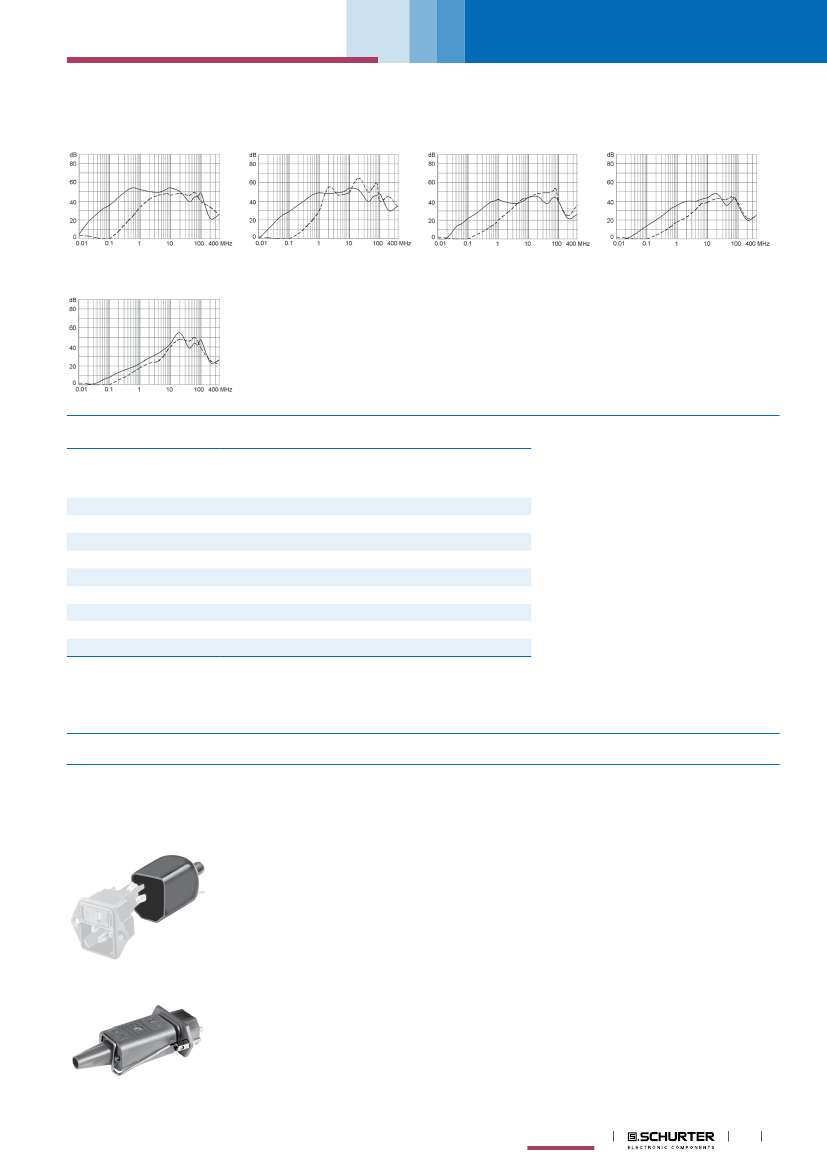

Technical Data
Ratings IEC
Ratings UL/CSA
Leakage Current
Dielectric Strength
1 - 10 A @ Ta 40 °C / 250 VAC; 50 Hz
1 - 10 A @ Ta 40 °C / 125 VAC; 60 Hz
standard < 0.5 mA (250 V / 60 Hz)
> 1.7 kVDC between L-N
> 2.7 kVDC between L/N-PE
Test voltage (2 sec)
> 4 kV between L-N (CX1)
> 5 kV between L/N-PE
-25 °C to 85 °C
25/085/21 acc. to IEC 60068-1
from front side IP 40 acc. to IEC 60529
Suitable for appliances with protection
class I acc. to IEC 61140
Quick connect terminals 6.3 x 0.8 mm
Screw: max 8 mm
Mounting screw torque max 0.5 Nm
Thermoplastic, black, UL 94V-0
Appliance-Inlet/-Outlet
C14 acc. to IEC 60320,
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C,
10 A, Protection Class I
Standard Version, IEC 60939, UL 1283,
CSA C22.2 no. 8
Technical Details
> 3'100'000 h acc. to MIL-HB-217 F
Line Filter
Impulse Withstand Voltage
Allowable Operation Temp.
Climatic Category
Degree of Protection
Protection Class
Terminal
Panel Thickness s
Material: Housing
MTBF
Connectors
1
KFX
Mating Outlets/Connectors
Category / Description
Power Entry Modules with Line Filter
www.schurter.com/PG06

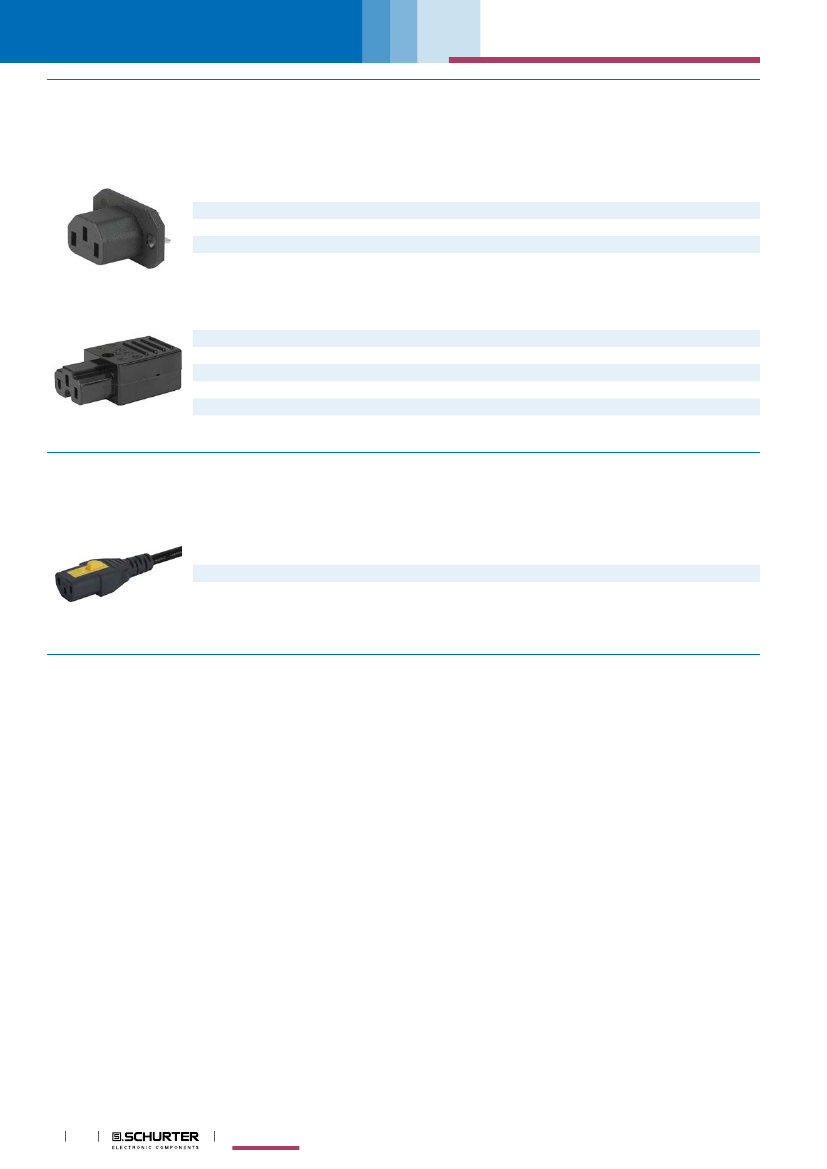

Appliance Outlet Overview complete
IEC Appliance Outlet F, Screw-on Mounting, Front Side, Solder Terminal
IEC Appliance Outlet F, Snap-in Mounting, Front Side, Solder or Quick-connect Terminal
IEC Appliance Outlet F or H, Screw-on Mounting, Front Side, Solder, PCB or Quick-connect Terminal
Appliance Outlet further types to KFX
4787
4788
5091
Connector Overview complete
IEC Connector C15A, Rewireable, Straight
IEC Connector C15A, Rewireable, Straight
IEC Connector C15A, Rewireable, Angled
IEC Connector C13, Rewireable, Angled
IEC Connector C13, Rewireable, Straight
Connector further types to KFX
0102
0102-G
0112
4012
4022
...
Passende Dosen verriegelt
Power Cord Overview complete
Overview Power Supply Cord with IEC Connector C13, V-Lock, straight
Power Cord further types to KFX
VAC13KS
4
Connectors
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments.
Information furnished is believed to be accurate and reliable. However, users should independently evaluate
the suitability and test each product selected for their own applications.
26.04.2014
