32-2098UL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 32-2098UL

32-2098UL: DescriptionTelecom and Datacom Connector, 8 Contact(s), Male, IDC Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size55KB，1 Pages; ManufacturerVertiv

Download Datasheet Parametric View All

32-2098UL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	32-2098UL	-	-	View	Buy Now

32-2098UL Overview

Telecom and Datacom Connector, 8 Contact(s), Male, IDC Terminal, Plug, ROHS COMPLIANT

32-2098UL Parametric

Parameter Name	Attribute value
Maker	Vertiv
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Other features	SHIELDED
Body/casing type	PLUG
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL (100)
Contact completed and terminated	GOLD (50) OVER NICKEL (100)
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYCARBONATE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	32-2098UL
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	POLYCARBONATE
Termination type	IDC
Total number of contacts	8
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

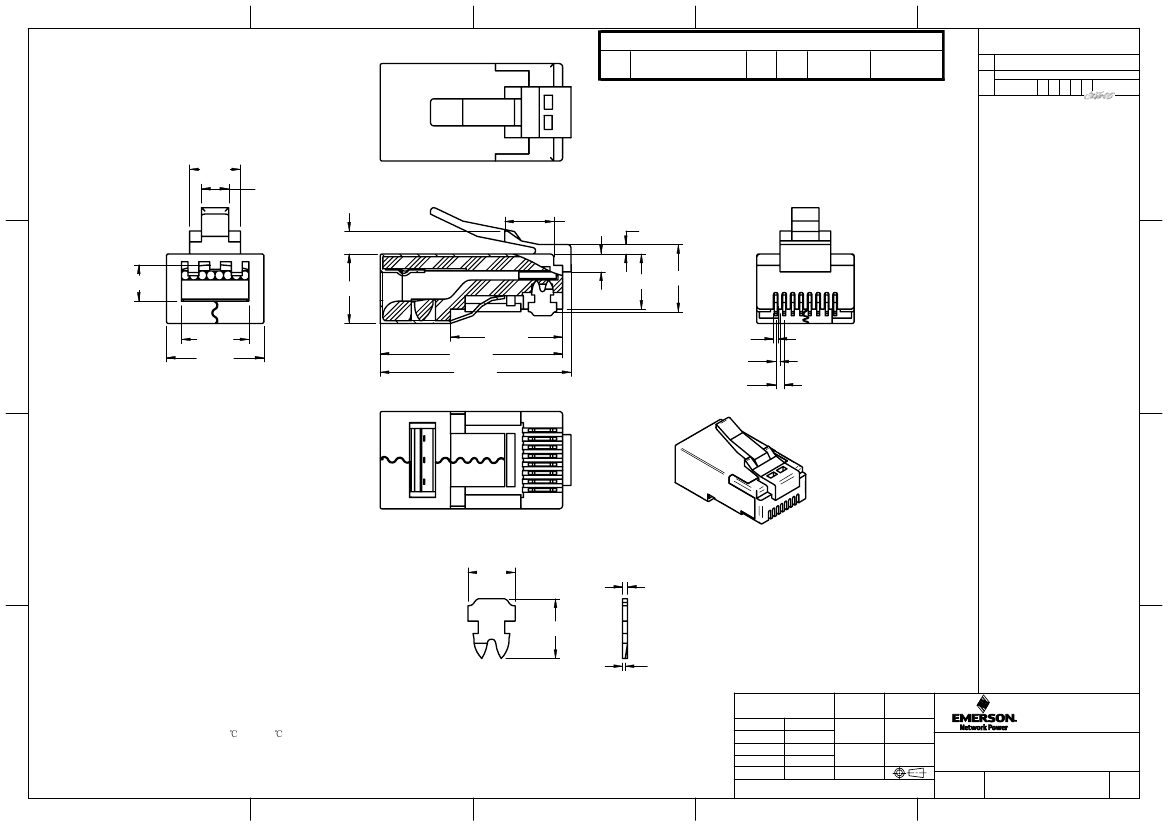

32-2098UL

REVISIONS

CONTROLLED DOCUMENT

32-2098UL

May8,09

DRAWING NO.

P/N

Rev

Rel'd Date

OFFICIAL RELEASE

04-24-09

Thomas Chow

2009.05.04

14:44:11

+08'00'

6.10

3.15

.12

5.89 ±.12

2.77

2.00

.05

4.37

1.15 ±.07

7.92

6.60 7.47

8.18

11.68

13.51

21.46

22.48

0.56 ±.05

0.51 ±.05

1.02 ±.05

NOTES:

1. ELECTRICAL SPECIFICATIONS

INSULATION RESISTANCE: 1000 MEGOHOMS

WITHSTAND VOLTAGE: 1000V,AC/ MINUTE

2. MECHANICAL SPECIFICATIONS

CONTACT MATERIAL: PHOSPHOR BRONZE 0.3MM THICKNESS

CONTACT PLATING: 50 MICRO-INCH GOLD PLATE OVER 100

MICRO-INCH NICKEL PLATING

HOUSING MATERIAL: POLYCARBNATE

DURABILITY: 1000 CYCLES MIN

UL FLAMABILY RATING: 94-V0

3. ENVIRONMENTAL SPECIFICATIONS

TEMPERATURE RANGE: -40

TO +70

3.40

0.36

4.30 ±0.05

0.20

THIS DRAWING TO BE INTERPRETED

PER ANSI Y 14.5M - 1994

CONTACT

COMPANY CONFIDEN

TIAL

TOLERANCE UNLESS

OTHERWISE SPECIFIED

DECIMALS

X.X

X.XX

ANGLES

+ 0.5

+ 0.15

+ 0.10

+ 0.5°

DRAWN BY

DATE

04-24-09

CHECKED BY DATE

TERRY.W

Connectivity

Solutions

TITLE

4. FOR FLAT OVAL OR ROUND CABLE

5. FOR SOLID OR STRANDED WIRE APPLICATIONS

TERRY.W

04-24-09

APPROVED BY DATE

RJ45 MOD PLUG SHIELDED,SOLID,U

DRAWING NO.

SIZE

THOMAS

U/M:

04-24-09

THIS DRAWING WAS PRODUCED BY COMPUTER,

DO NOT SCALE DRAWING OR UPDATE MANUALLY.

SHEET

1 OF 1

32-2098UL
