BB804G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BB804G

BB804G: DescriptionDIODE VHF BAND, 45.75 pF, 18 V, SILICON, VARIABLE CAPACITANCE DIODE, PLASTIC, SST3, 3 PIN, Variable Capacitance Diode; CategoryDiscrete semiconductor diode; File Size90KB，4 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BB804G Overview

DIODE VHF BAND, 45.75 pF, 18 V, SILICON, VARIABLE CAPACITANCE DIODE, PLASTIC, SST3, 3 PIN, Variable Capacitance Diode

BB804G Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	R-PDSO-G3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Minimum breakdown voltage	18 V
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode Capacitance Tolerance	1.64%
Minimum diode capacitance ratio	1.65
Nominal diode capacitance	45.75 pF
Diode component materials	SILICON
Diode type	VARIABLE CAPACITANCE DIODE
frequency band	VERY HIGH FREQUENCY
JESD-30 code	R-PDSO-G3
Number of components	2
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

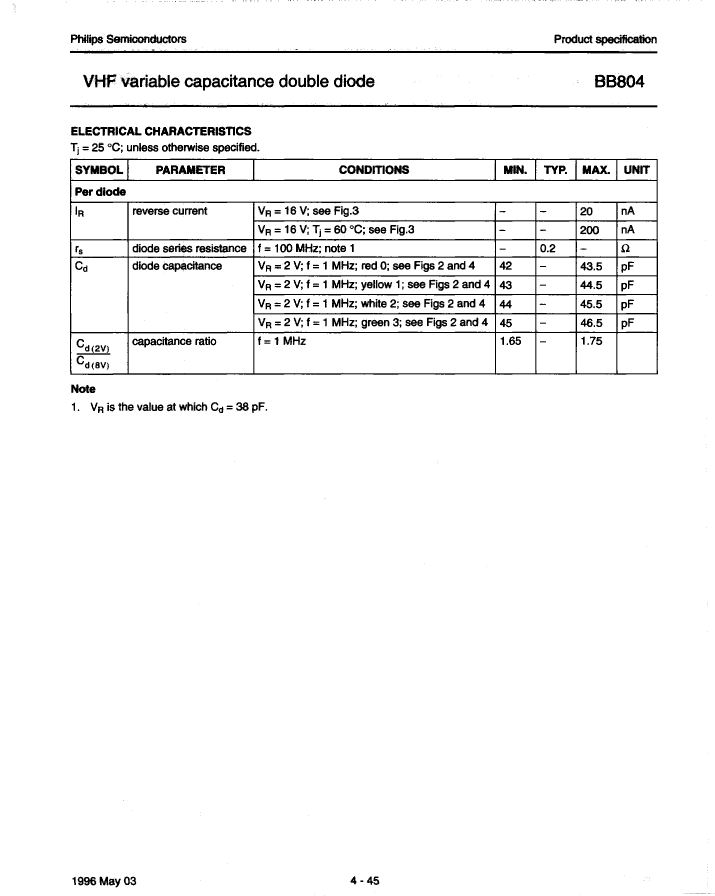

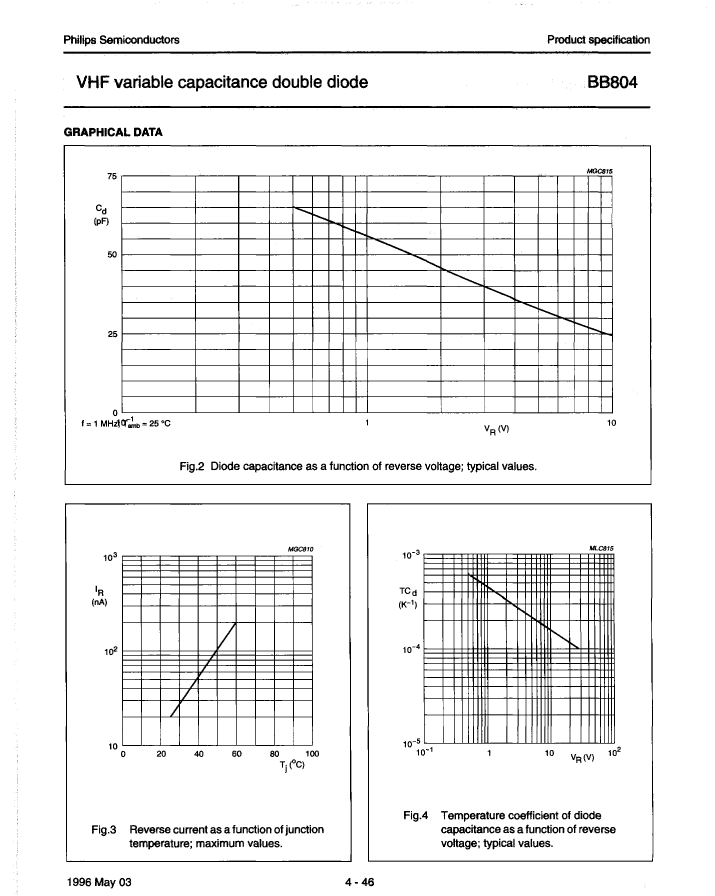

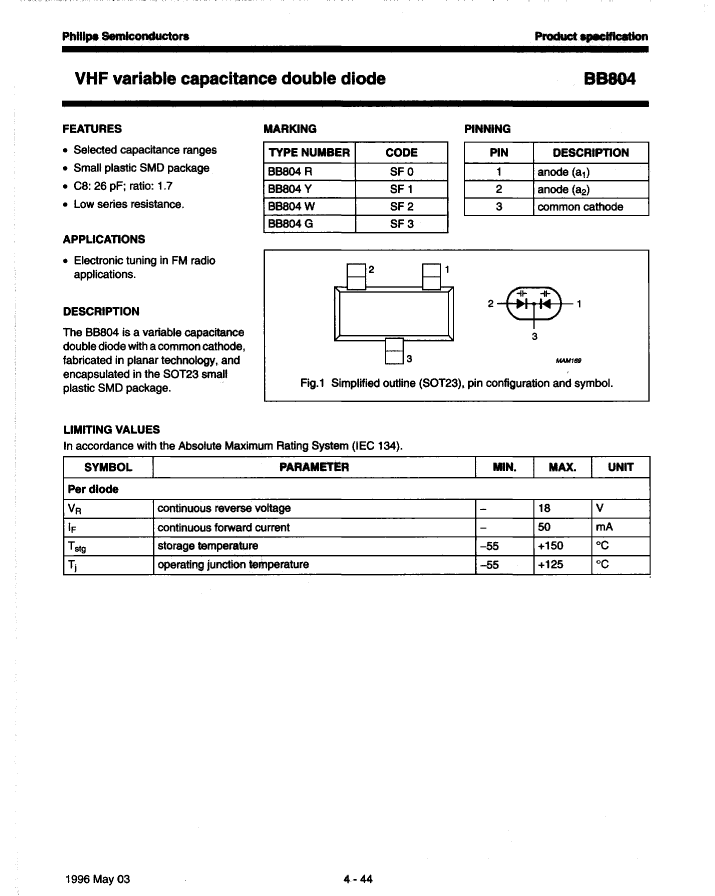

Preview

Download Datasheet

View All

BB804G Related Products

	BB804G	BB804Y	BB804R	934019540215	BB804WT/R
Description	DIODE VHF BAND, 45.75 pF, 18 V, SILICON, VARIABLE CAPACITANCE DIODE, PLASTIC, SST3, 3 PIN, Variable Capacitance Diode	DIODE VHF BAND, 43.75 pF, 18 V, SILICON, VARIABLE CAPACITANCE DIODE, PLASTIC, SST3, 3 PIN, Variable Capacitance Diode	DIODE VHF BAND, 42.75 pF, 18 V, SILICON, VARIABLE CAPACITANCE DIODE, PLASTIC, SST3, 3 PIN, Variable Capacitance Diode	DIODE VHF BAND, 44.75 pF, 18 V, SILICON, VARIABLE CAPACITANCE DIODE, PLASTIC, SST3, 3 PIN, Variable Capacitance Diode	DIODE VHF BAND, 44.75 pF, 18 V, SILICON, VARIABLE CAPACITANCE DIODE, PLASTIC, SST3, 3 PIN, Variable Capacitance Diode
Maker	NXP	NXP	NXP	NXP	NXP
package instruction	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Contacts	3	3	3	3	3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Minimum breakdown voltage	18 V	18 V	18 V	18 V	18 V
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode Capacitance Tolerance	1.64%	1.71%	1.75%	1.68%	1.68%
Minimum diode capacitance ratio	1.65	1.65	1.65	1.65	1.65
Nominal diode capacitance	45.75 pF	43.75 pF	42.75 pF	44.75 pF	44.75 pF
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE	VARIABLE CAPACITANCE DIODE
frequency band	VERY HIGH FREQUENCY	VERY HIGH FREQUENCY	VERY HIGH FREQUENCY	VERY HIGH FREQUENCY	VERY HIGH FREQUENCY
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Number of components	2	2	2	2	2
Number of terminals	3	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Base Number Matches	1	1	1	-	-
