5962-8853701GX: Description5962-8853701GX amplifier basic information: 5962-8853701GX is an OPERATIONAL AMPLIFIER. The commonly used packaging method is TO-99, 5962-8853701GX amplifier core information: The minimum operating temperature of 5962-8853701GX is -40 °C and the maximum operating temperature is 85 °C. Its maximum average bias current is 0.08 µA How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of 5962-8853701GX is 17 V/us. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the 5962-8853701GX gain becomes 0.707 times the low-frequency gain is 63000 kHz. The nominal supply voltage of 5962-8853701GX is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of 5962-8853701GX is 100 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).) Related dimensions of 5962-8853701GX: 5962-8853701GX has 8 terminals. Its terminal position type is: BOTTOM. Total pins: 8 5962-8853701GX amplifier additional information: Its temperature grade is: INDUSTRIAL. The corresponding JESD-30 code is: O-MBCY-W8. The packaging code of 5962-8853701GX is: TO-99. The material of 5962-8853701GX packaging is mostly METAL. And its package shape is ROUND. 5962-8853701GX package pin formats are: CYLINDRICAL. Its terminal form is: WIRE.; CategoryAnalog mixed-signal IC Amplifier circuit; File Size393KB，14 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/; Alternative parts：5962-8853701GX

Download Datasheet Parametric View All

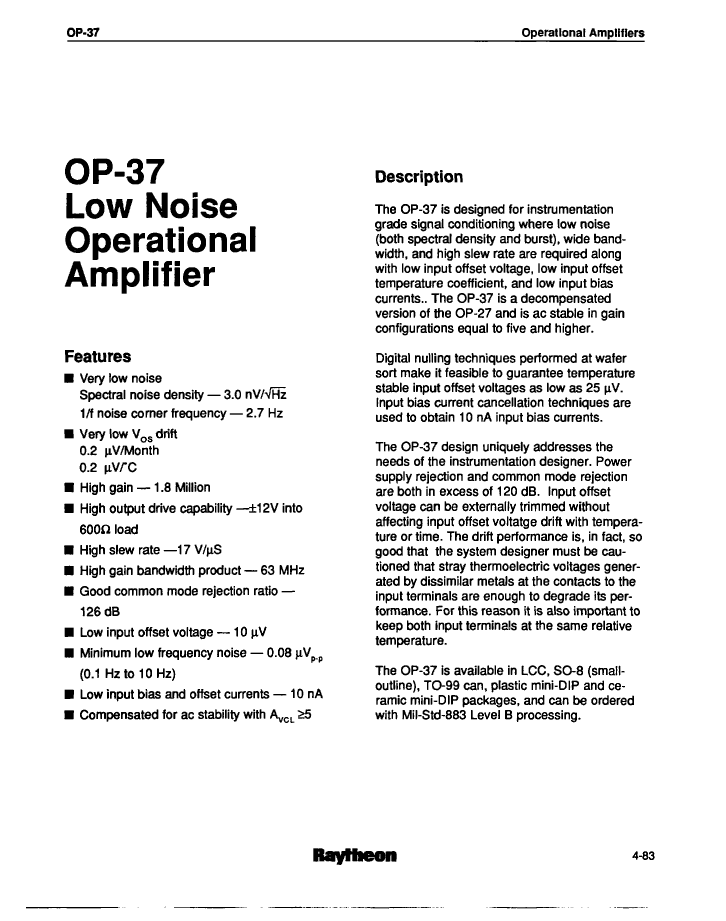

5962-8853701GX Overview

5962-8853701GX amplifier basic information:

5962-8853701GX is an OPERATIONAL AMPLIFIER. The commonly used packaging method is TO-99,

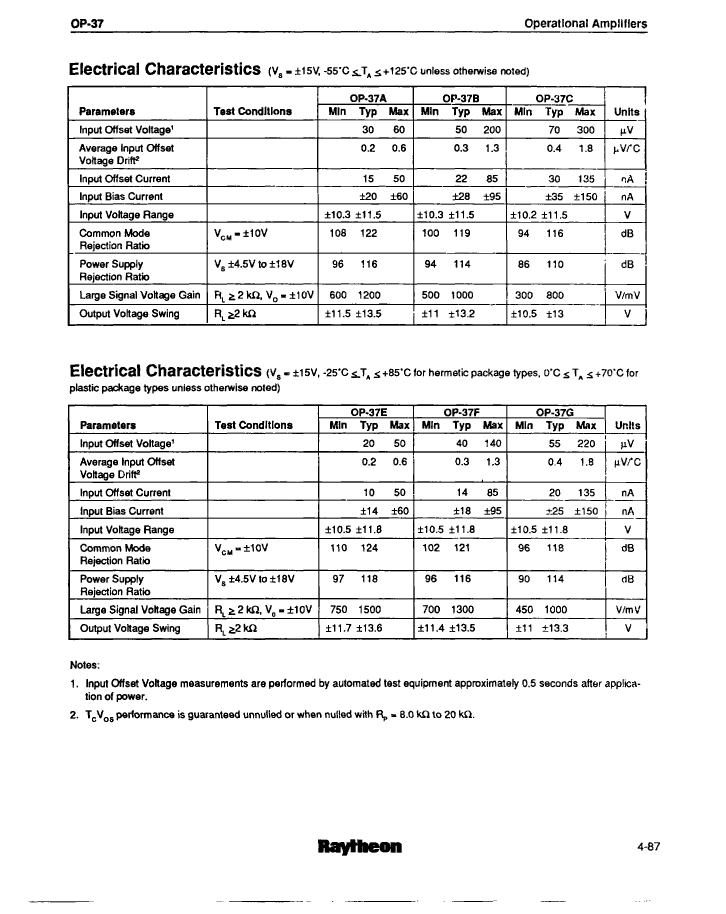

5962-8853701GX amplifier core information:

The minimum operating temperature of 5962-8853701GX is -40 °C and the maximum operating temperature is 85 °C. Its maximum average bias current is 0.08 µA

How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of 5962-8853701GX is 17 V/us. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the 5962-8853701GX gain becomes 0.707 times the low-frequency gain is 63000 kHz.

The nominal supply voltage of 5962-8853701GX is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of 5962-8853701GX is 100 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

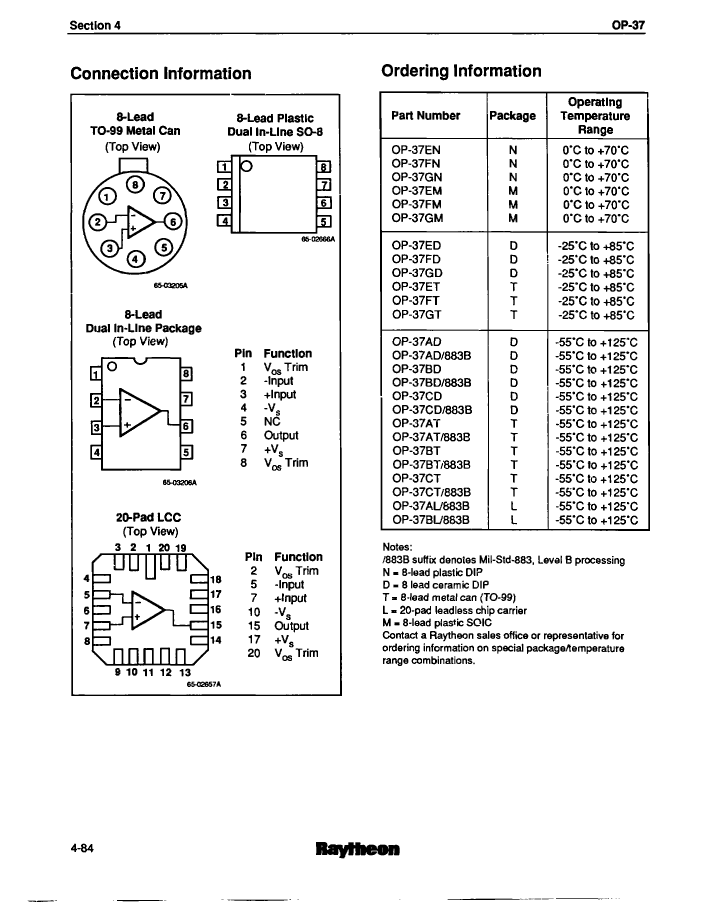

Related dimensions of 5962-8853701GX:

5962-8853701GX has 8 terminals. Its terminal position type is: BOTTOM. Total pins: 8

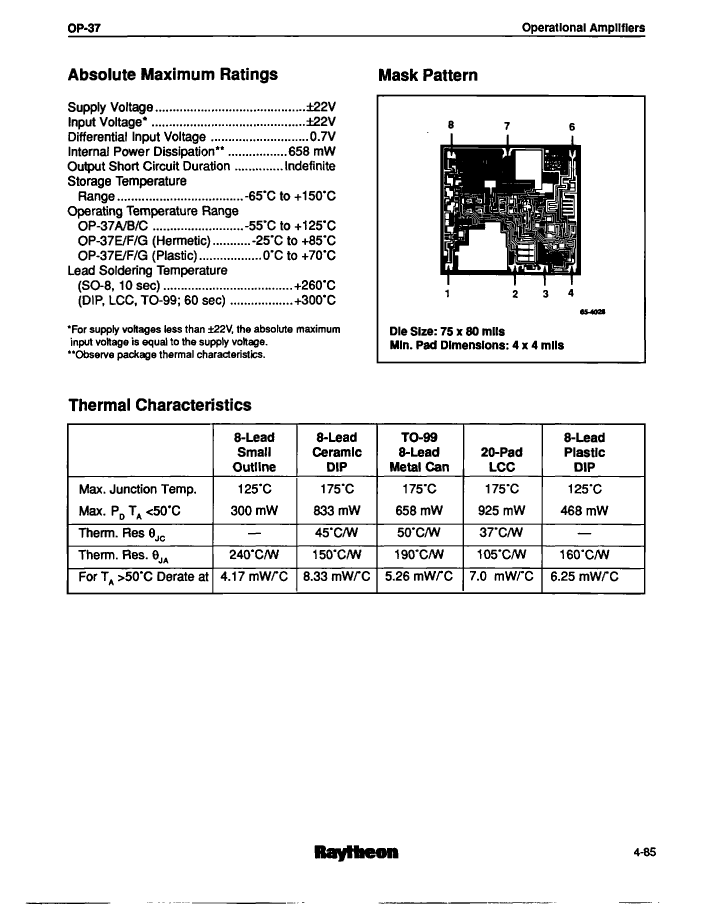

5962-8853701GX amplifier additional information:

Its temperature grade is: INDUSTRIAL. The corresponding JESD-30 code is: O-MBCY-W8. The packaging code of 5962-8853701GX is: TO-99. The material of 5962-8853701GX packaging is mostly METAL. And its package shape is ROUND.

5962-8853701GX package pin formats are: CYLINDRICAL. Its terminal form is: WIRE.

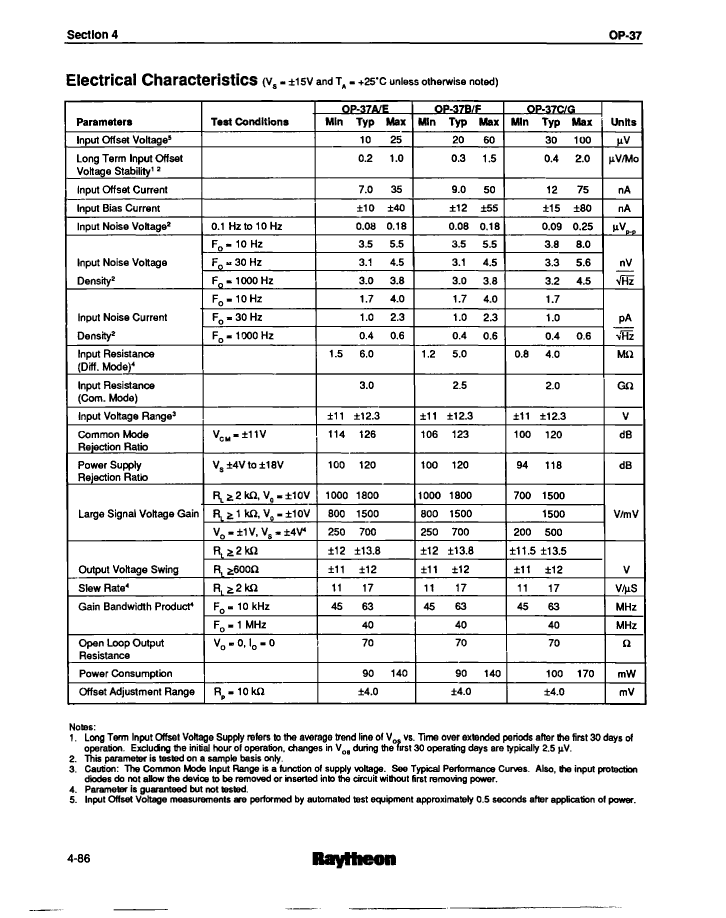

5962-8853701GX Parametric

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	TO-99
package instruction	TO-99,
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.08 µA
Nominal Common Mode Rejection Ratio	120 dB
Maximum input offset voltage	100 µV
JESD-30 code	O-MBCY-W8
Negative supply voltage upper limit	-22 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	METAL
encapsulated code	TO-99
Package shape	ROUND
Package form	CYLINDRICAL
Certification status	Not Qualified
Filter level	MIL-STD-883
Nominal slew rate	17 V/us
Supply voltage upper limit	22 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal form	WIRE
Terminal location	BOTTOM
Nominal Uniform Gain Bandwidth	63000 kHz
Base Number Matches	1
