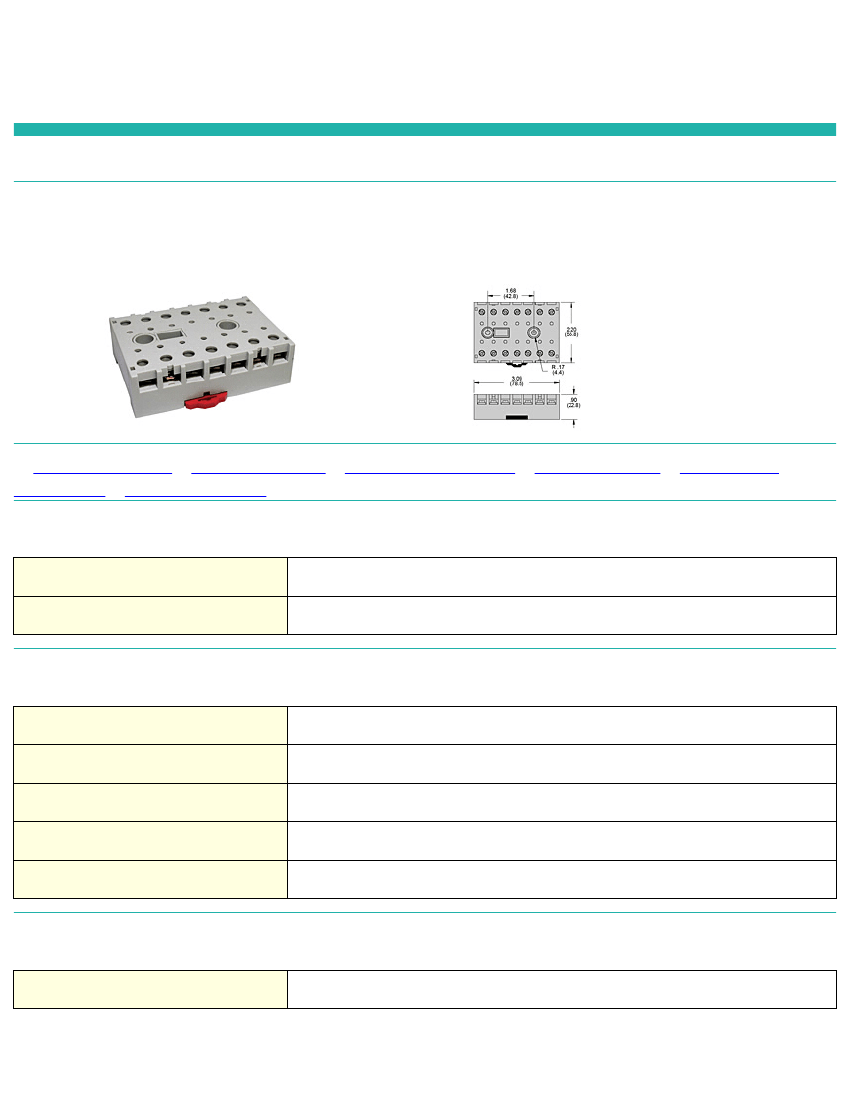

Item # 33377D, Industrial 12 & 14 Pin Socket
Mating Sockets
These industrial style sockets offer front-connected wiring on one level with screw terminals accessible and numbered for ease in installation, wiring and checkout.
Sockets are polarized. The mating relay has a locking clip that snaps into the socket, eliminating any need for external holding devices.
·
SPECIFICATIONS
·
CONSTRUCTION
·
ELECTRICAL RATING
·
TEMPERATURE
·
DIELECTRIC
STRENGTH
·
MISCELLANEOUS
SPECIFICATIONS
Style
14 Pin socket DIN / panel mount, with fingersafe non-removable screw terminals and clamping plates
Weight
129 g
CONSTRUCTION
Protection Category (finger safe)
IP20 IEC (D Series)
Internal Metal Tracks
Copper alloy, zinc plated
Screws Terminals
Steel, zinc plated
Screw Style and Size
Combination Head - M3.5x0.06x6.35MM
Screw Terminals Torque Maximum
9 lb-in, 1.01 Nm
ELECTRICAL RATING
Nominal Voltage Rating
600 V
9/28/2012 | Page 1 of 2
Nominal Current Rating
10 A
TEMPERATURE
Operating
-40 to 80 ºC
DIELECTRIC STRENGTH
Output to Adjacent Output Terminals
2000
Output to Input Terminals
2000 Vrms
Terminals to Rail Chassis
2000 Vrms
MISCELLANEOUS
Chassis Mount Screw Torque
8- 10lb, 0.90 Nm
Flammability Rating
94V-0
Wire Size
20 -12 AWG, 0.5 - 3mm
Body Color
Light grey
Din Locking Clip Color
Red
