S4VB204001L15

Description

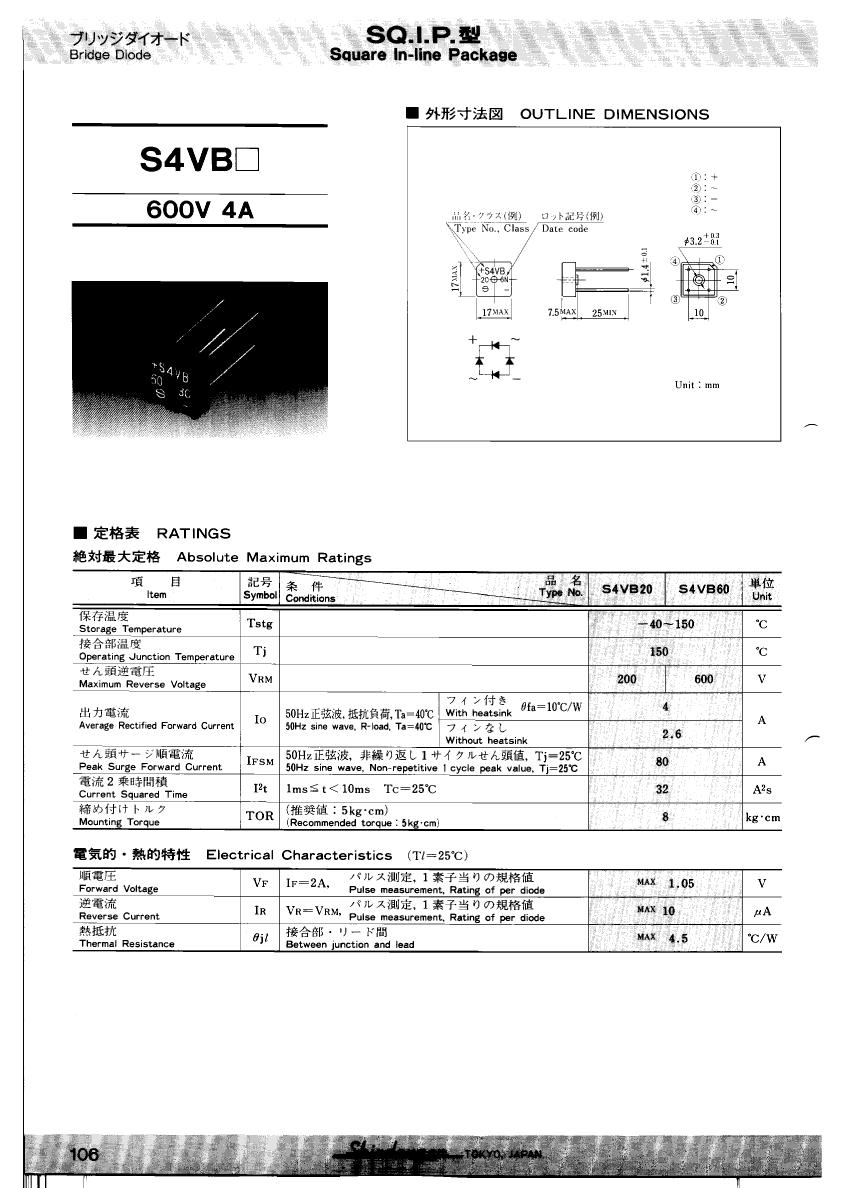

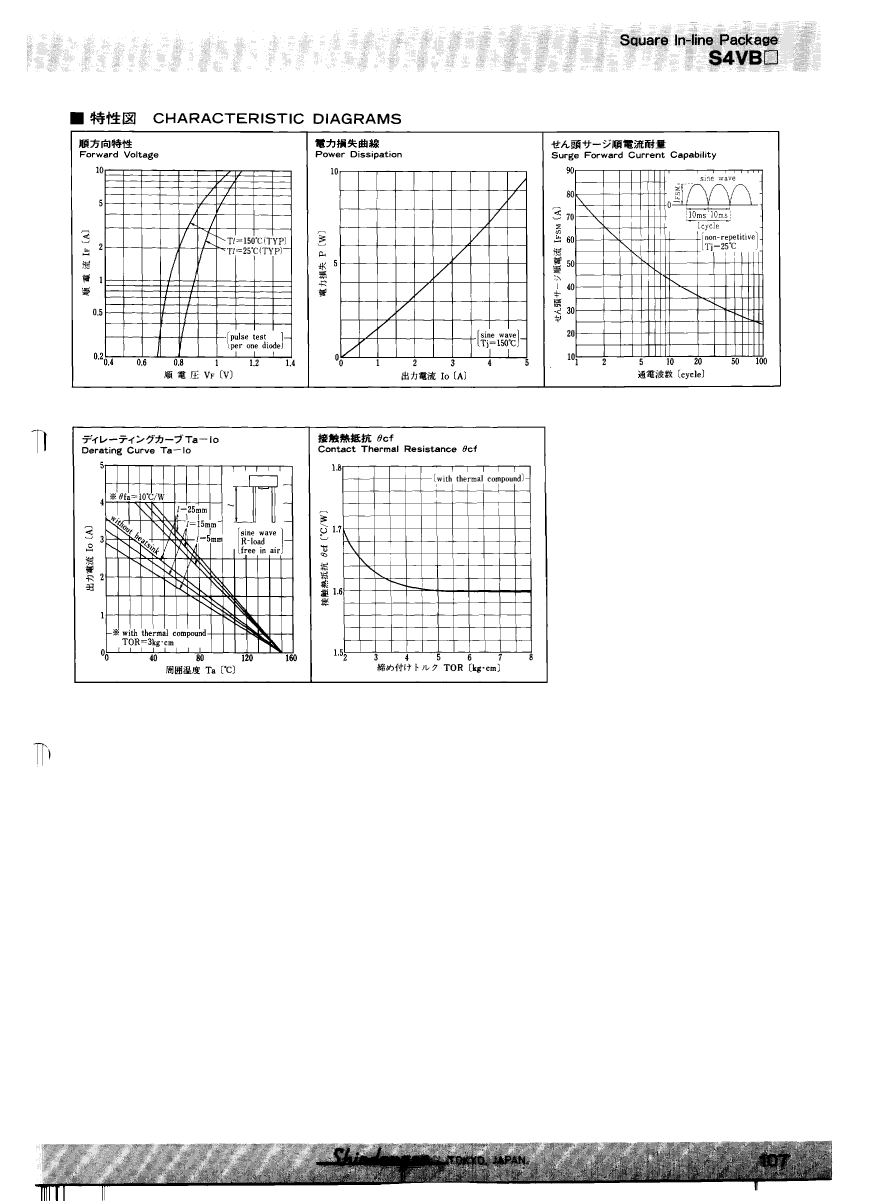

Bridge Rectifier Diode, 1 Phase, 2.6A, Silicon,
CategoryDiscrete semiconductor    diode
File Size331KB,2 Pages
ManufacturerSHINDENGEN
Websitehttps://www.shindengen.com
Download Datasheet Parametric View All

S4VB204001L15 Overview

Bridge Rectifier Diode, 1 Phase, 2.6A, Silicon,

S4VB204001L15 Parametric

Parameter NameAttribute value
MakerSHINDENGEN
package instructionS-PUFM-W4
Reach Compliance Codeunknown
Minimum breakdown voltage200 V
Shell connectionISOLATED
ConfigurationBRIDGE, 4 ELEMENTS
Diode component materialsSILICON
Diode typeBRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)1.05 V
JESD-30 codeS-PUFM-W4
Maximum non-repetitive peak forward current80 A
Number of components4
Phase1
Number of terminals4
Maximum operating temperature150 °C
Maximum output current2.6 A
Package body materialPLASTIC/EPOXY
Package shapeSQUARE
Package formFLANGE MOUNT
Certification statusNot Qualified
Maximum reverse current10 µA
surface mountNO
Terminal formWIRE
Terminal locationUPPER
Base Number Matches1
