300-SP1-R1M1QE datasheet, PDF - EEWORLD Datasheet

300-SP1-R1M1QE: DescriptionRocker Switch, SPDT, On-on, 3 PCB Hole Cnt, Quick Connect Terminal, Rocker Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size26KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet Parametric View All

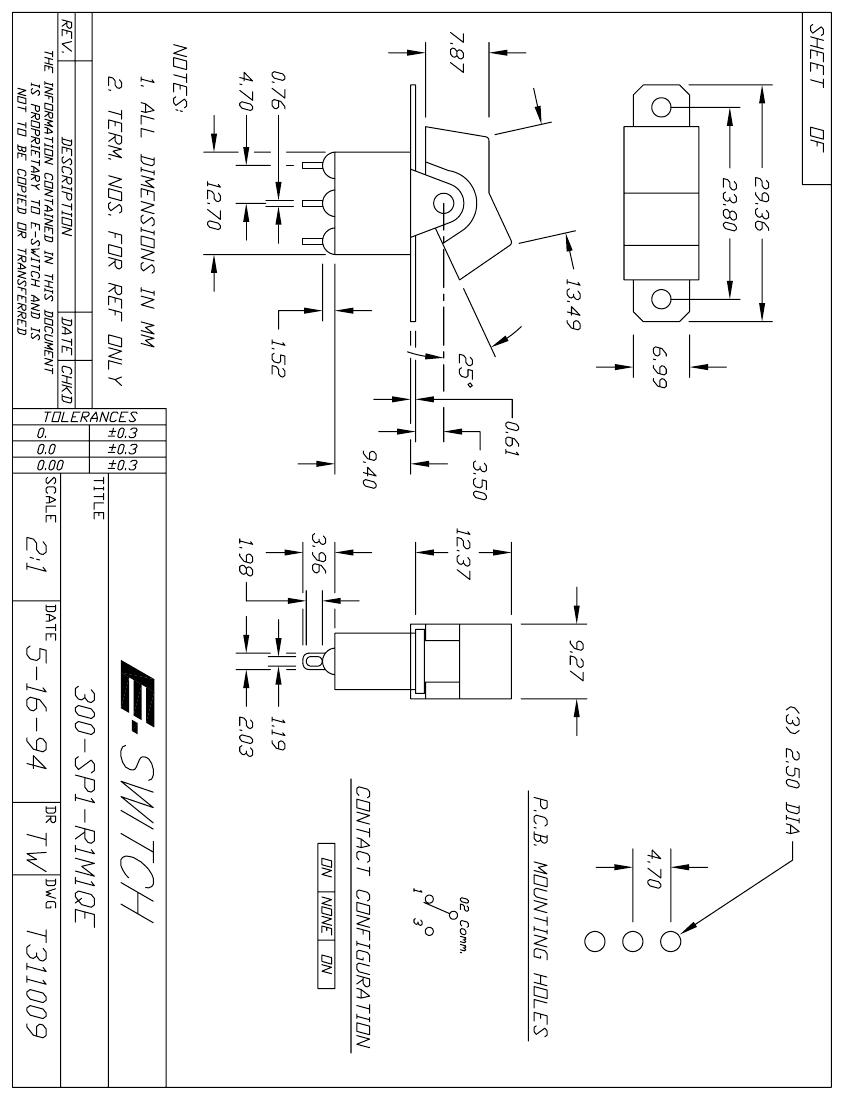

300-SP1-R1M1QE Overview

Rocker Switch, SPDT, On-on, 3 PCB Hole Cnt, Quick Connect Terminal, Rocker Actuator, Panel Mount

Parameter Name	Attribute value
Maker	E-Switch
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle	25 deg
Actuator length	0.487 inch
Actuator type	ROCKER
body height	9.398 mm
Body length or diameter	12.7 mm
center contact material	COPPER ALLOY
Center contact plating	SILVER
Contact function	ON-ON
Contact resistance	0.01 mΩ
Dielectric withstand voltage	1000VRMS V
Electrical life	40000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	SILVER
Insulation resistance	1000000000 Ω
Manufacturer's serial number	300-SP1-R1M1QE
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
PCB hole count	3
seal	EPOXY
surface mount	NO
switch function	SPDT
Switch type	ROCKER SWITCH
Terminal length	0.096 inch
Terminal material	COPPER ALLOY
Termination type	QUICK CONNECT
Base Number Matches	1
