935205950118 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 935205950118

935205950118: DescriptionIC LVC/LCX/Z SERIES, TRIPLE 3-INPUT NOR GATE, PDSO14, 5.30 MM, PLASTIC, SOT-337-1, SSOP-14, Gate; Categorylogic logic; File Size380KB，10 Pages; ManufacturerNXP; Websitehttps://www.nxp.com; Environmental Compliance

Download Datasheet Parametric Compare View All

935205950118 Overview

IC LVC/LCX/Z SERIES, TRIPLE 3-INPUT NOR GATE, PDSO14, 5.30 MM, PLASTIC, SOT-337-1, SSOP-14, Gate

935205950118 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	NXP
Parts packaging code	SSOP
package instruction	5.30 MM, PLASTIC, SOT-337-1, SSOP-14
Contacts	14
Reach Compliance Code	unknown
series	LVC/LCX/Z
JESD-30 code	R-PDSO-G14
JESD-609 code	e4
length	6.2 mm
Logic integrated circuit type	NOR GATE
Humidity sensitivity level	1
Number of functions	3
Number of entries	3
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
propagation delay (tpd)	7 ns
Certification status	Not Qualified
Maximum seat height	2 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	1.2 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	NICKEL PALLADIUM GOLD
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
width	5.3 mm
Base Number Matches	1

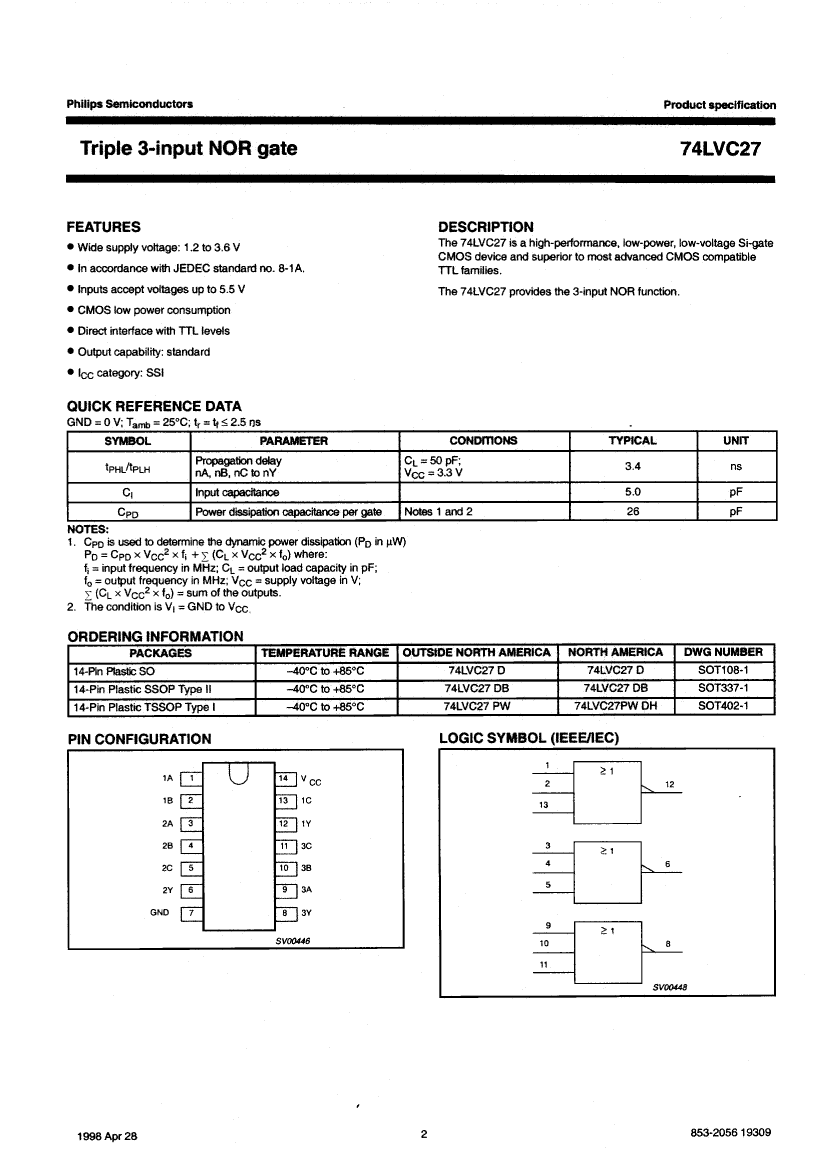

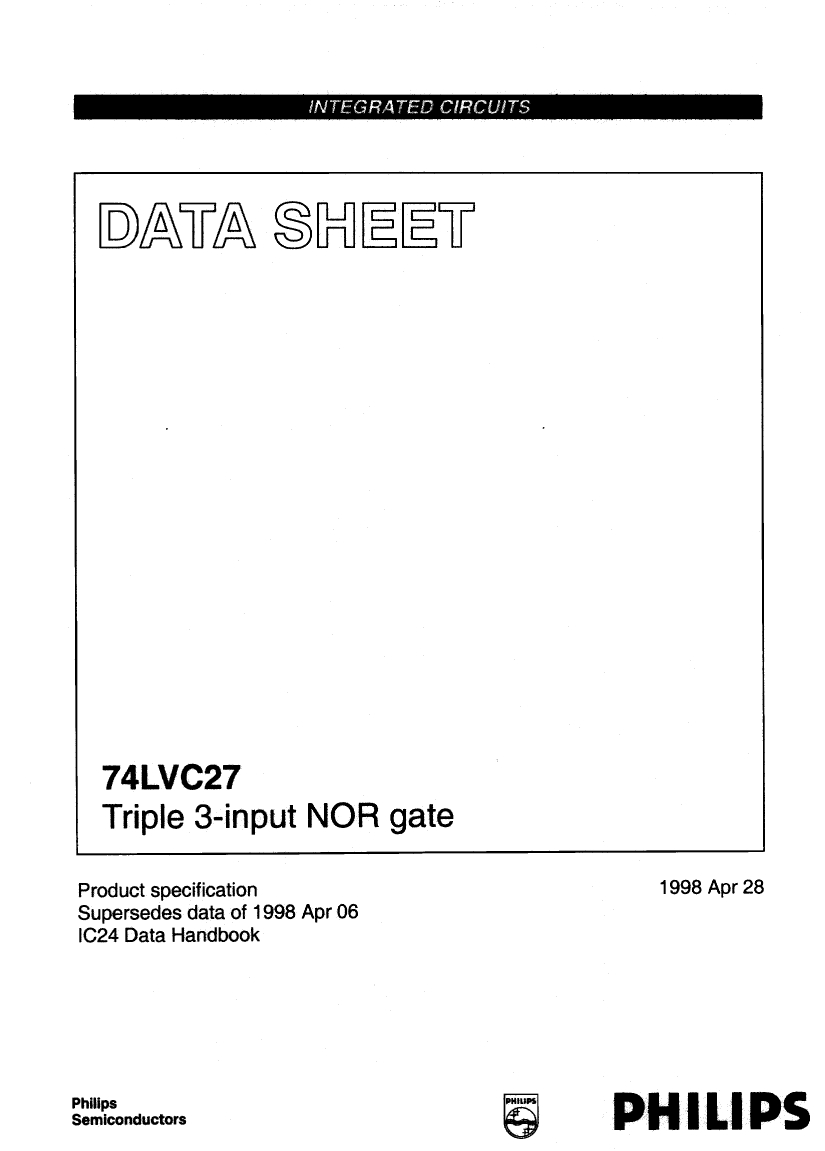

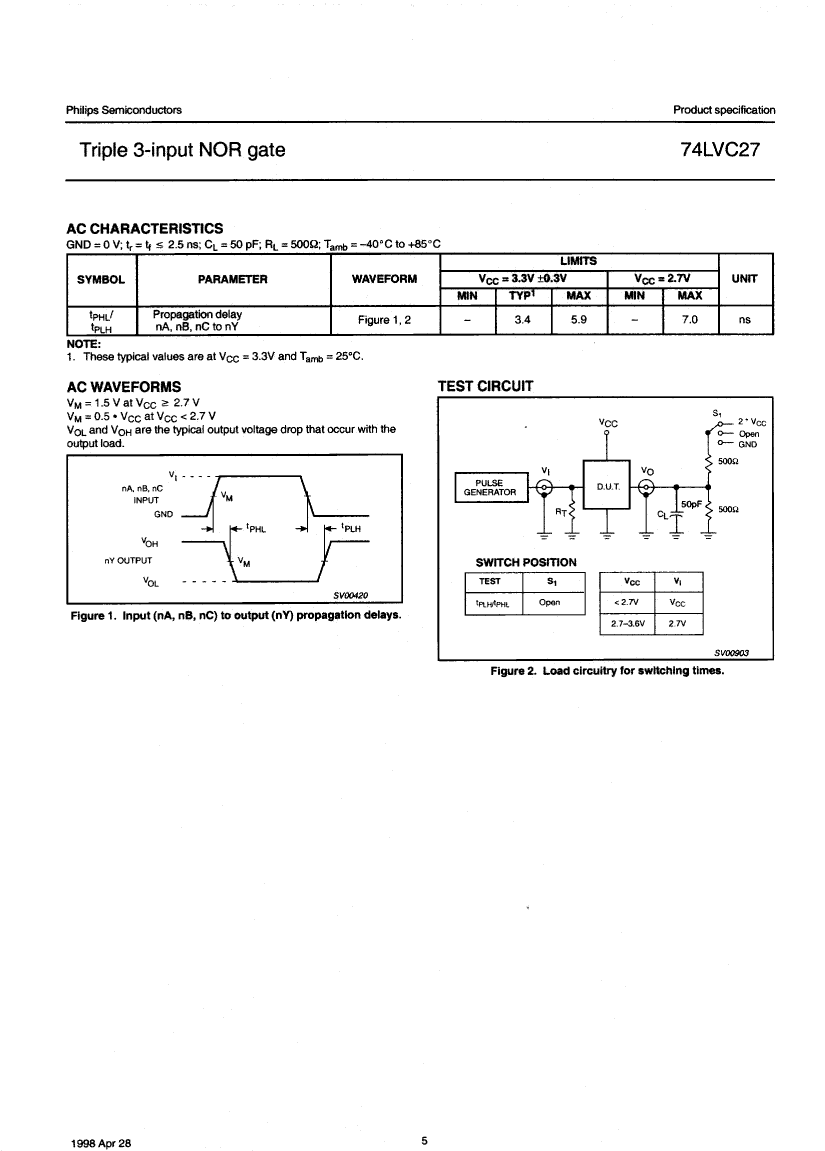

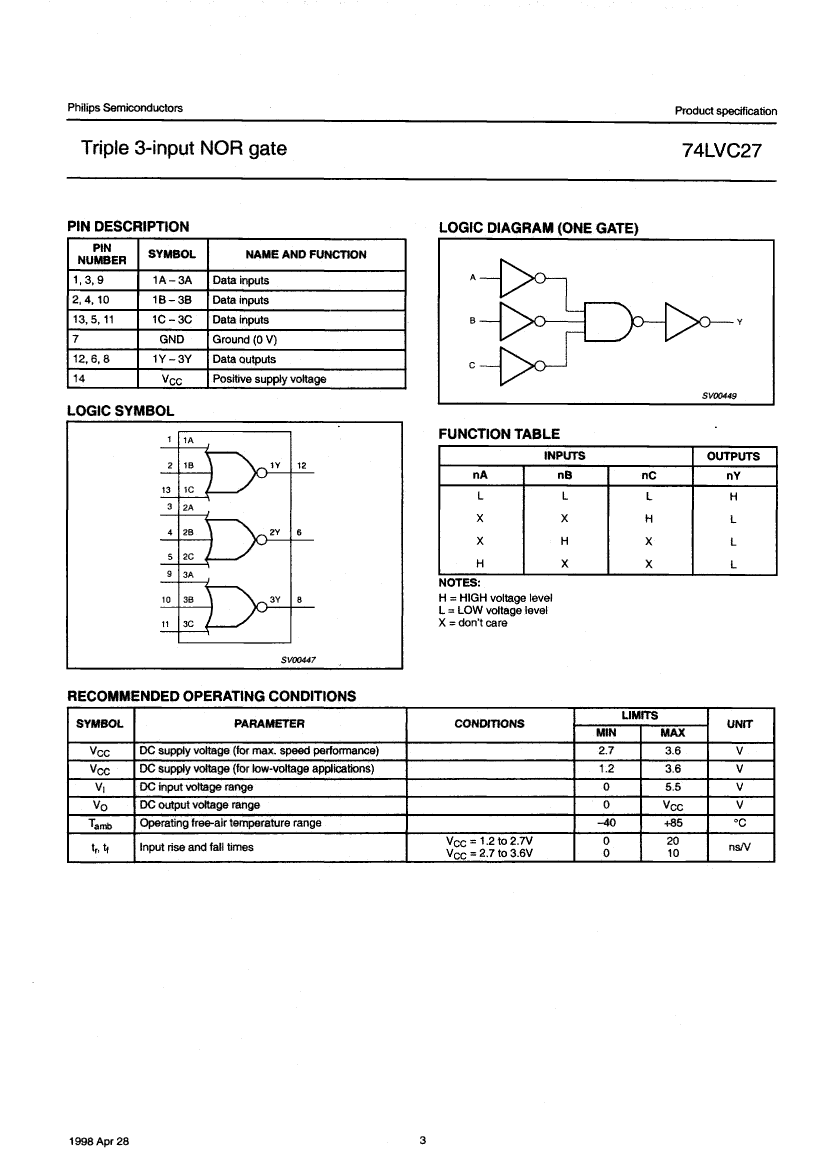

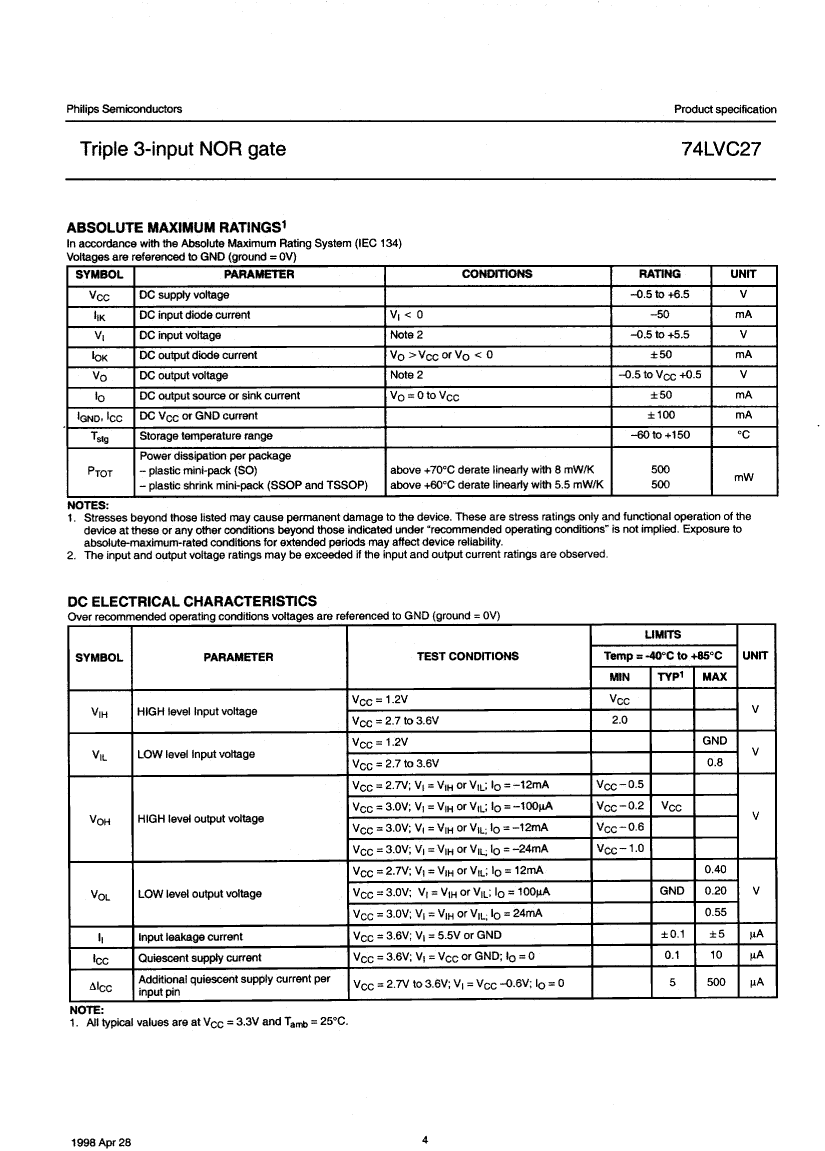

Preview

Download Datasheet

View All

935205950118 Related Products

	935205950118	935205940112	935205960118	935205960112	935205950112	935205940118
Description	IC LVC/LCX/Z SERIES, TRIPLE 3-INPUT NOR GATE, PDSO14, 5.30 MM, PLASTIC, SOT-337-1, SSOP-14, Gate	LVC/LCX/Z SERIES, TRIPLE 3-INPUT NOR GATE, PDSO14, 3.90 MM, PLASTIC, SOT-108-1, SO-14	IC LVC/LCX/Z SERIES, TRIPLE 3-INPUT NOR GATE, PDSO14, 4.40 MM, PLASTIC, SOT-42-1, TSSOP-14, Gate	IC LVC/LCX/Z SERIES, TRIPLE 3-INPUT NOR GATE, PDSO14, 4.40 MM, PLASTIC, SOT-42-1, TSSOP-14, Gate	IC LVC/LCX/Z SERIES, TRIPLE 3-INPUT NOR GATE, PDSO14, 5.30 MM, PLASTIC, SOT-337-1, SSOP-14, Gate	LVC/LCX/Z SERIES, TRIPLE 3-INPUT NOR GATE, PDSO14, 3.90 MM, PLASTIC, SOT-108-1, SO-14
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	NXP	NXP	NXP	NXP	NXP	NXP
Parts packaging code	SSOP	SOIC	TSSOP	TSSOP	SSOP	SOIC
package instruction	5.30 MM, PLASTIC, SOT-337-1, SSOP-14	3.90 MM, PLASTIC, SOT-108-1, SO-14	4.40 MM, PLASTIC, SOT-42-1, TSSOP-14	4.40 MM, PLASTIC, SOT-42-1, TSSOP-14	5.30 MM, PLASTIC, SOT-337-1, SSOP-14	3.90 MM, PLASTIC, SOT-108-1, SO-14
Contacts	14	14	14	14	14	14
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
series	LVC/LCX/Z	LVC/LCX/Z	LVC/LCX/Z	LVC/LCX/Z	LVC/LCX/Z	LVC/LCX/Z
JESD-30 code	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14	R-PDSO-G14
JESD-609 code	e4	e4	e4	e4	e4	e4
length	6.2 mm	8.65 mm	5 mm	5 mm	6.2 mm	8.65 mm
Logic integrated circuit type	NOR GATE	NOR GATE	NOR GATE	NOR GATE	NOR GATE	NOR GATE
Humidity sensitivity level	1	1	1	1	1	1
Number of functions	3	3	3	3	3	3
Number of entries	3	3	3	3	3	3
Number of terminals	14	14	14	14	14	14
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SOP	TSSOP	TSSOP	SSOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260
propagation delay (tpd)	7 ns	7 ns	7 ns	7 ns	7 ns	7 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2 mm	1.75 mm	1.1 mm	1.1 mm	2 mm	1.75 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	NICKEL PALLADIUM GOLD	NICKEL PALLADIUM GOLD	NICKEL PALLADIUM GOLD	NICKEL PALLADIUM GOLD	NICKEL PALLADIUM GOLD	NICKEL PALLADIUM GOLD
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	1.27 mm	0.65 mm	0.65 mm	0.65 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	40	40	40	40	40	40
width	5.3 mm	3.9 mm	4.4 mm	4.4 mm	5.3 mm	3.9 mm
Base Number Matches	1	1	1	1	1	1
