52515-3611 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 52515-3611

52515-3611: DescriptionTelecom and Datacom Connector, 36 Contact(s), Female, Right Angle, Surface Mount Terminal, M2.6, Receptacle; CategoryThe connector The connector; File Size63KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

52515-3611 Overview

Telecom and Datacom Connector, 36 Contact(s), Female, Right Angle, Surface Mount Terminal, M2.6, Receptacle

52515-3611 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	EMI SHIELDED, LATCHED
body width	0.394 inch
subject depth	0.458 inch
body length	1.712 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	35 mΩ
Contact style	CENTRONIC
DIN compliance	NO
Dielectric withstand voltage	500VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Manufacturer's serial number	52515
Plug contact pitch	0.05 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	M2.6
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	30u inch
Rated current (signal)	1 A
reliability	COMMERCIAL
Shell material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Terminal length	0.125 inch
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	36
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Sizes 14, 20 and 36 circuits

Meets IEEE 1284 standard (36 circuits only)

1-piece metal shell with fork lock offers direct

electrical grounding

User-friendly leaf-style contact design

Fully shielded for EMI/RFI protection

Reference Information

Packaging: Tray

Mates With:

52316

Designed In: Millimeters

Electrical

Voltage: 250V

Current: 1.0A

Contact Resistance: 35m

Ω

max.

Dielectric Withstanding Voltage: 500V AC/1 min.

Insulation Resistance: 5000 M

Ω

min.

Physical

Housing/Guide Plate:

14 circuit—Glass-ﬁlled LCP, UL 94V-0

20 and 36 circuit—Glass-ﬁlled PBT, UL 94V-0

Shield Cover: Steel

Latch Receiver:

14 circuit—Stainless Steel

20 and 36 circuit—Steel

Contact: Phosphor Bronze

Plating: Gold over Nickel in contact area;

Tin/Lead over Nickel in solder tail area

Operating Temperature: -55 to +125

1.27mm (.050") Pitch

Wire-to-Board

Shielded Receptacle

52515

Right Angle

Dual Row

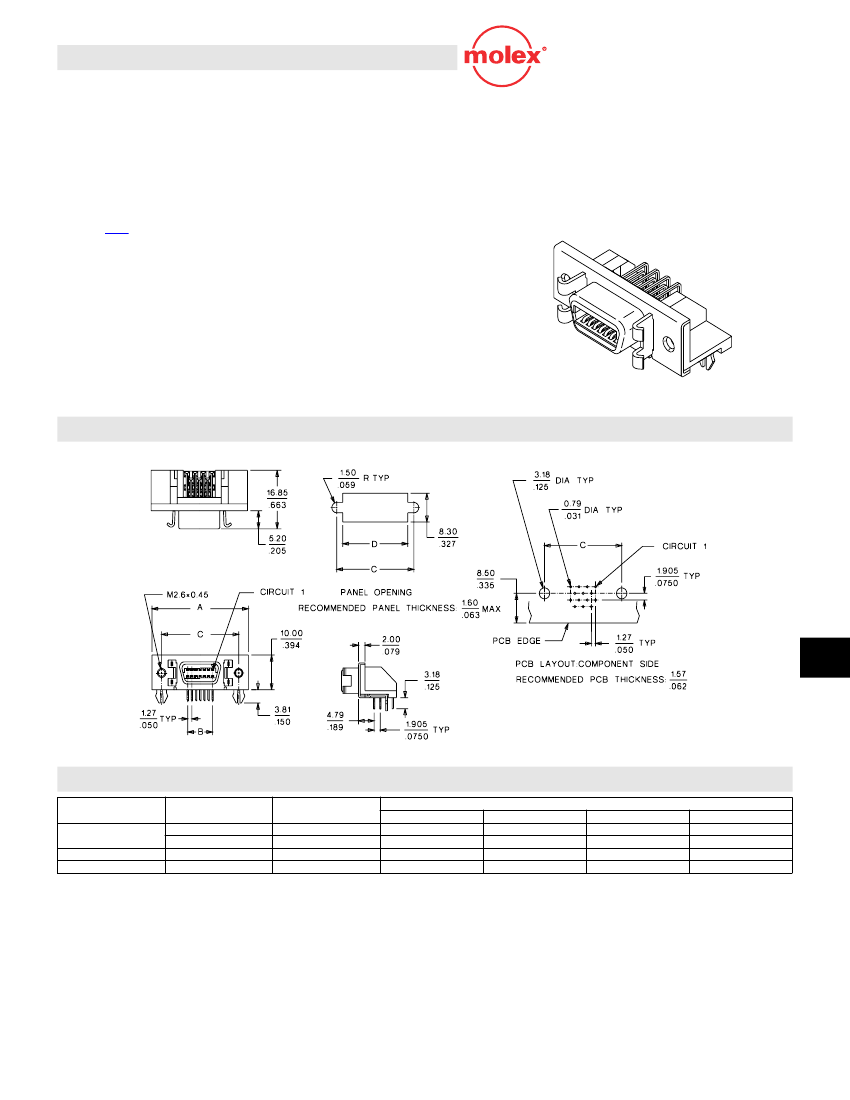

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

Circuits

Order No.

52515-1411

52515-1410

52515-2011

52515-3611

Housing Color

Black

White

Black

29.54

33.35

43.51

Dimension

(1.163)

(1.313)

(1.713)

7.62

11.43

21.59

(.300)

(.450)

(.850)

23.64

27.45

37.61

(.931)

(1.081)

(1.481)

19.90

24.04

34.20

(.783)

(.946)

(1.346)

Note: 36 circuit header and plug conform to IEEE 1284C standard

MX01

N-153

I/O Connectors

52515-3611 Related Products

	52515-3611	52515-1411	52515-2011
Description	Telecom and Datacom Connector, 36 Contact(s), Female, Right Angle, Surface Mount Terminal, M2.6, Receptacle	Telecom and Datacom Connector, 14 Contact(s), Female, Right Angle, Surface Mount Terminal, M2.6, Receptacle	Telecom and Datacom Connector, 20 Contact(s), Female, Right Angle, Surface Mount Terminal, M2.6, Receptacle
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Other features	EMI SHIELDED, LATCHED	EMI SHIELDED, LATCHED	EMI SHIELDED, LATCHED
body width	0.394 inch	0.394 inch	0.394 inch
subject depth	0.458 inch	0.458 inch	0.458 inch
body length	1.712 inch	1.162 inch	1.312 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	35 mΩ	35 mΩ	35 mΩ
Contact style	CENTRONIC	CENTRONIC	CENTRONIC
DIN compliance	NO	NO	NO
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V
empty shell	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE	LIQUID CRYSTAL POLYMER	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO	NO	NO
Manufacturer's serial number	52515	52515	52515
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO
Installation option 1	M2.6	M2.6	M2.6
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
PCB row number	4	4	4
Number of rows loaded	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	1.905 mm	1.905 mm	1.905 mm
Plating thickness	30u inch	30u inch	30u inch
Rated current (signal)	1 A	1 A	1 A
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Terminal length	0.125 inch	0.125 inch	0.125 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	36	14	20
UL Flammability Code	94V-0	94V-0	94V-0
