186NQ200/R-1
Technical Data
Data Sheet N1176, Rev. A
186NQ200/R-1 SCHOTTKY RECTIFIER
Features
150℃ T
J
operation
Unique high power, Half-Pak module
Replaces three parallel DO-5’S
Easier to mount and lower profile than DO-5’S
High purity, high temperature epoxy encapsulation
for enhanced
mechanical strength and moisture resistance
Low forward voltage drop
High frequency operation
Guard ring for enhanced ruggedness and long term reliability
This is a Pb − Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request

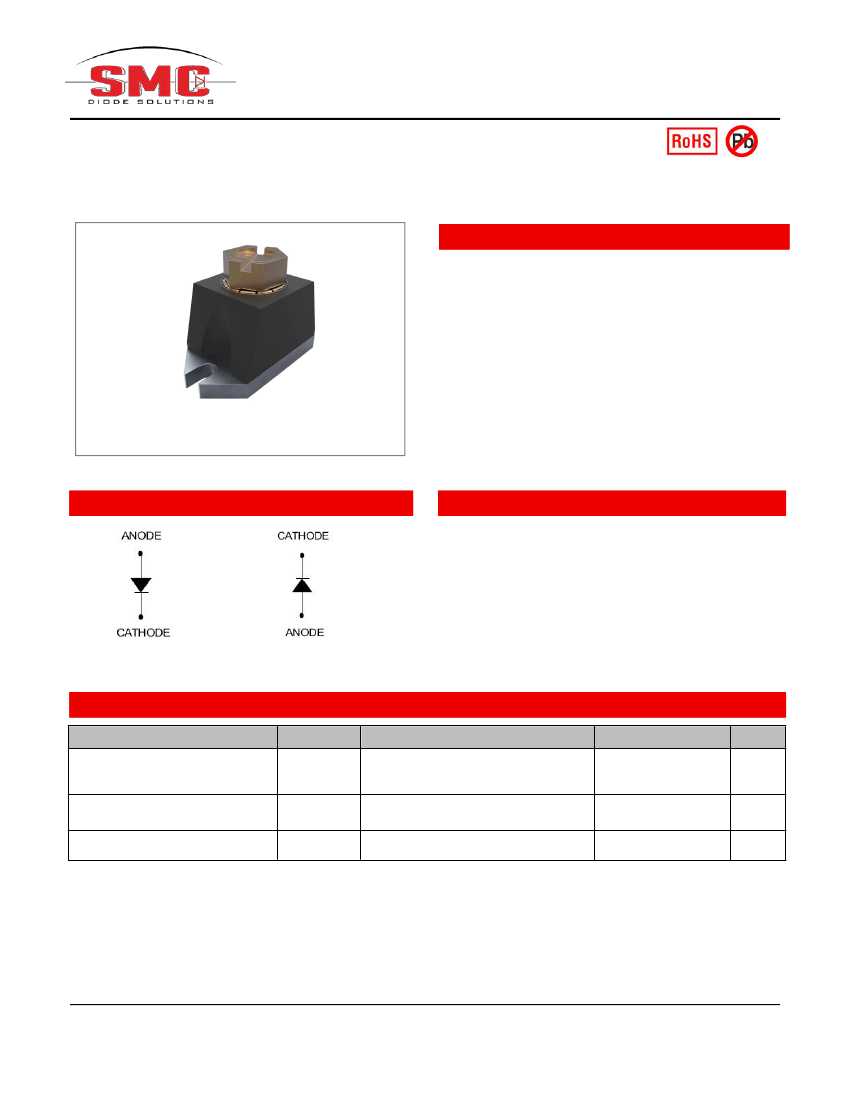

PRM1-1(HALF PAK Module)
Circuit Diagram
Applications
Switching power supply
Converters
Free-Wheeling diodes
Reverse battery protection
186NQ200-1
186NQ200R-1
Maximum Ratings:
Characteristics
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Forward Current
Peak One Cycle Non-Repetitive
Surge Current
Symbol
V
RRM
V
RWM
V
R
I
F(AV)
I
FSM
Condition
-
50% duty cycle @T
C
=110°C,
rectangular wave form
8.3 ms, half Sine pulse
Max.
200
180
3000
Units
V
A
A
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
186NQ200/R-1
Technical Data
Data Sheet N1176, Rev. A
Electrical Characteristics:
Characteristics
Forward Voltage Drop*
Reverse Current*
Junction Capacitance
Voltage Rate of Change
* Pulse width < 300 µs, duty cycle < 2%
Symbol
V
F1
V
F2
I
R1
I
R2
C
T
dv/dt
Condition
@ 180A, Pulse, T
J
= 25
C
@ 180A, Pulse, T
J
= 125
C
@V
R
= rated V
R
T
J
= 25
C
@V
R
= rated V
R
T
J
= 125
C
@V
R
= 5V, T
C
= 25
C
f
SIG
= 1MHz
-
Typ.
0.88
0.75
0.001
4
2300
-
Max.
1.12
0.79
4.5
65
2700
10,000
Units
V
V
mA
mA
pF
V/s
Thermal-Mechanical Specifications:
Characteristics
Junction Temperature
Storage Temperature
Typical Thermal Resistance
Junction to Case
Typical Thermal Resistance, case
to Heat Sink
Mounting Torque
Approximate Weight
Case Style
Symbol
T
J
T
stg
R
JC
R
cs
DC operation
Mounting surface, smooth and
greased
Non-lubricated threads
-
Condition
-
-
Specification
-55 to +175
-55 to +175
0.30
0.15
Mounting
23(min)
Torque
29(max)
Terminal
35(min)
Torque
46(max)
25.6
Units
C
C
C/W
C/W
T
M
wt
Kg-cm
g
PRM1-1
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
186NQ200/R-1
Technical Data
Data Sheet N1176, Rev. A

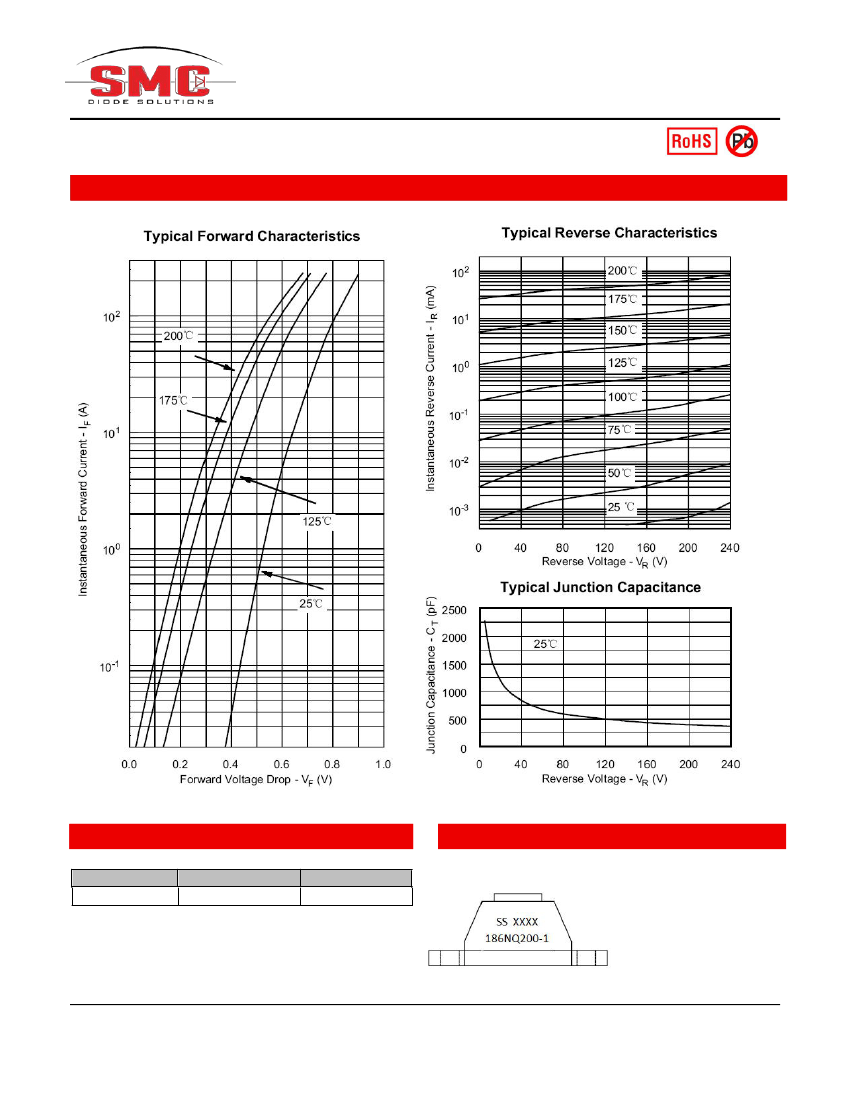

Ratings and Characteristics Curves
Ordering Information
Device
186NQ200-1
PRM1-1(Pb-Free)
Marking Diagram
27pcs/ box
Package
Shipping
Where XXXX is YYWW
1st row SS YYWW
2nd row 186NQ200-1
SS
= SS
YY
= Year
WW
= Week
Cautions：Molding
resin
Epoxy resin UL:94V-0
For information on tape and reel specifications, including part
orientation and tape sizes, please refer to our tape and reel
packaging specification.
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
186NQ200/R-1
Technical Data
Data Sheet N1176, Rev. A

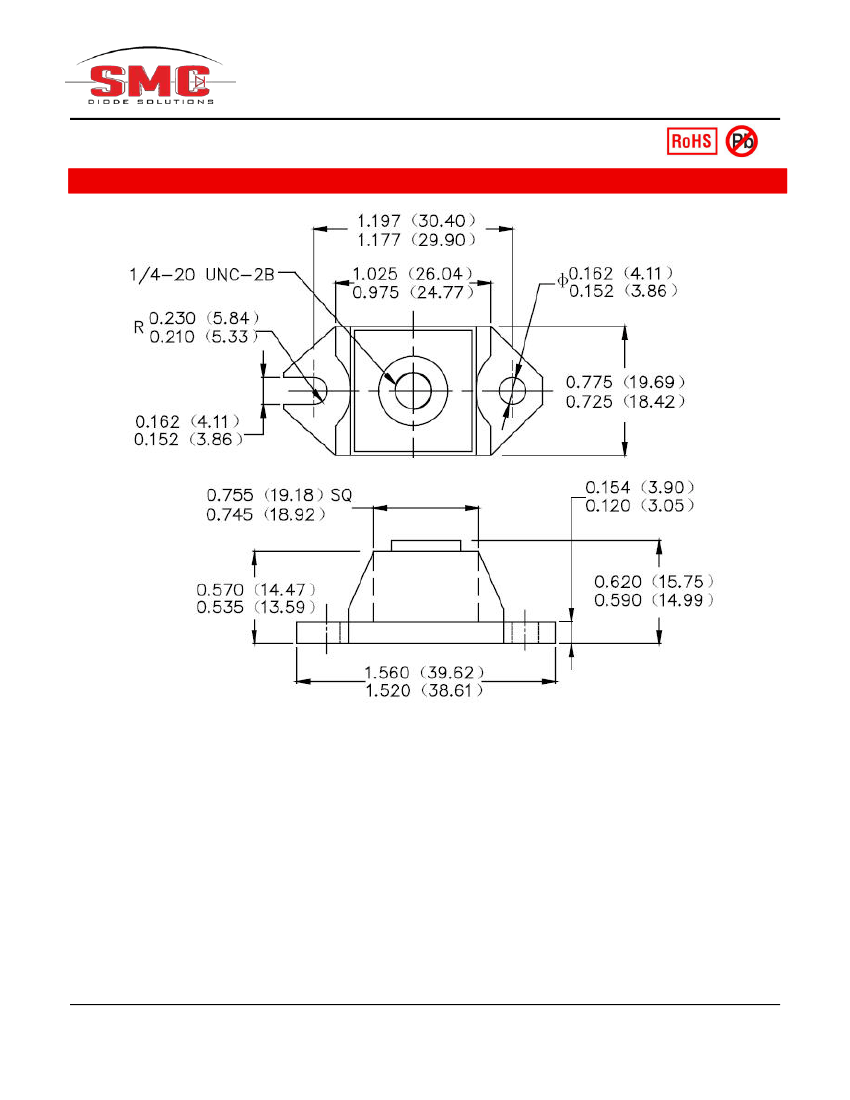

Mechanical Dimensions PRM1-1 (Inches/Millimeters)
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
186NQ200/R-1
Technical Data
Data Sheet N1176, Rev. A
