RP115L221D-TR-Y datasheet, PDF

Datasheet> All Categories > Power/power management> The power supply circuit> RP115L221D-TR-Y

RP115L221D-TR-Y: DescriptionFixed Positive LDO Regulator,; CategoryPower/power management The power supply circuit; File Size2MB，32 Pages; ManufacturerRICOH Electronic Devices Co., Ltd.

Download Datasheet Parametric View All

RP115L221D-TR-Y Overview

Fixed Positive LDO Regulator,

RP115L221D-TR-Y Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Base Number Matches	1

Preview

Download Datasheet

View All

RP115x-Y Series

Low On Resistance/ Low Voltage 1 Ch 500 mA/ 1.0 A Alternative LDO

for Industrial Applications

No.EA-413-190404

OUTLINE

The RP115x is a positive voltage regulators featuring 500 mA/ 1.0 A that provide high ripple rejection, low

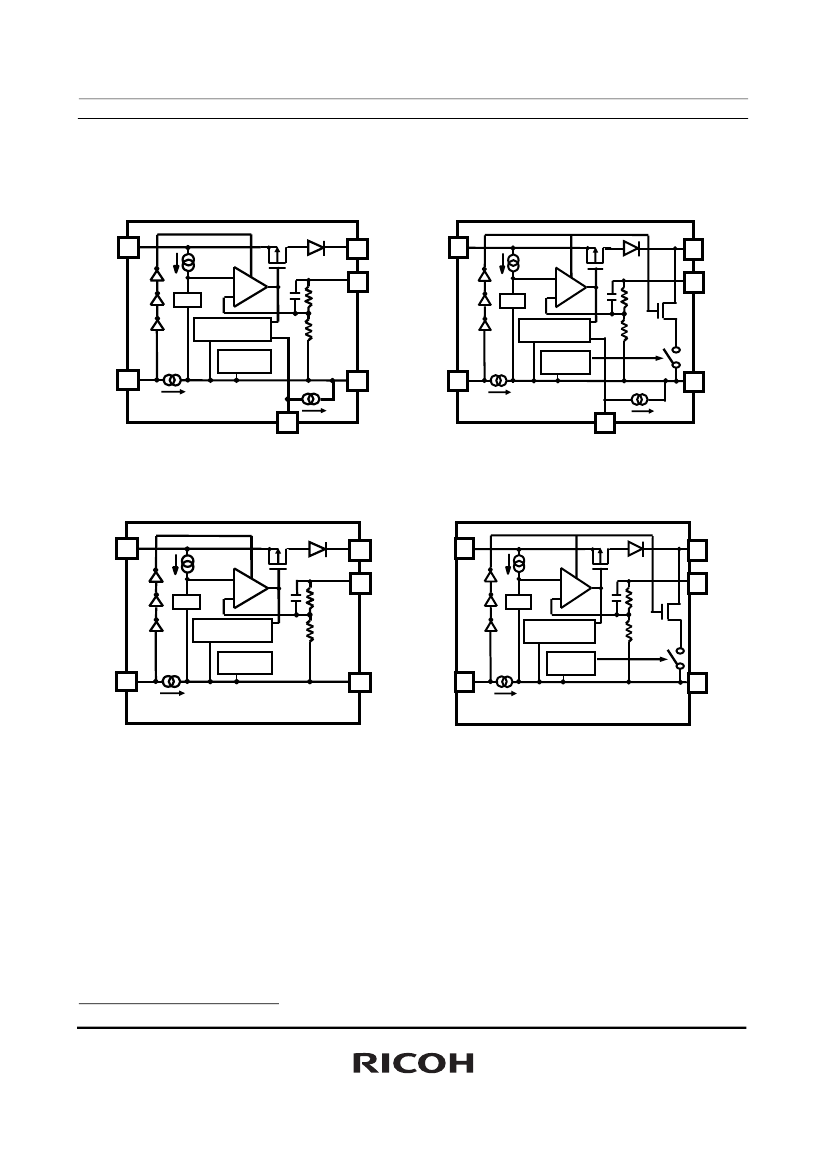

dropout voltage, high output voltage accuracy, and low supply current. Internally, the RP115x consists of a

voltage reference unit, an error amplifier, a resistor-net for output voltage setting, a current limit circuit, a

thermal shutdown circuit, and a reverse current protection circuit. The RP115x uses CMOS process for

achieving low supply current, low On Resistance for low dropout voltage (Typ. 0.195 V (DFN1216-8, I

OUT

= 1.0

A, V

SET

= 1.2 V)) and CE function for long battery life.

The RP115x is available in the DFN1216-8 package for space saving and the SOT-89-5 (Output current: 1.0

A fixed) package for higher power applications. The RP115L (DFN1216-8 package) can choose the output

current limit between 1.0 A or 500 mA by alternating the LCON pin between “High” or “Low”. The RP115H

(SOT-89-5 package) can output only 1.0 A since it does not include the LCON pin. This is a high-reliability

semiconductor device for industrial application (-Y) that has passed both the screening at high temperature

and the reliability test with extended hours.

FEATURES



Input Voltage Range (Maximum Rating) ꞏꞏꞏꞏꞏꞏ 1.4 V to 5.25 V (6.0 V)



Operating Temperature ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ −40°C to 105°C



Supply Currentꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ Typ. 110 μA



Standby Current ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ Typ. 0.5 μA



Dropout Voltage ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ Typ. 0.195 V (RP115L: I

OUT

= 1.0 A, V

SET

= 1.2 V)



Typ. 0.235 V (RP115H: I

OUT

= 1.0 A, V

SET

= 1.2 V)

Ripple Rejection ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ Typ. 80 dB (f = 1 kHz, V

SET

≤ 1.8 V)

Typ. 75 dB (f = 1 kHz, V

SET

> 1.8 V)

Output Voltage Accuracy ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ

1.0%

SET

≥ 1.75 V)

Output Voltage Temperature Coefficient ꞏꞏꞏꞏꞏꞏ Typ.

30

ppm/°C (V

SET

≥ 1.75 V)

Typ. ±100 ppm/°C (V

SET

< 1.75 V)

Line Regulation ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ Typ. 0.02%/V

Settable Output Voltage ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 0.9 V/ 1.0 V/ 1.2 V/ 1.5 V/ 1.75V/ 1.8 V/ 2.5 V/ 2.8 V/ 3.0 V/ 3.3 V/ 3.4 V

Built-in Short Current Limit Circuit ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ Typ. 60 mA (RP115L: LCON = "Low")

Built-in Peak Current Limit

Built-in Thermal Shutdown Circuit ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ Thermal Shutdown Temperature: 165°C

Built-in Constant Slope Circuit for Start-up

Built-in Inrush Current Suppression Circuit ꞏꞏꞏ Typ. 300 mA (RP115L: LCON = "Low")

Reverse Current Protection

Recommended Ceramic Capacitors ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 1.0 µF or more

Output Noise ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ 17 x V

SET

µVrms (BW = 10 Hz to 100 kHz, V

SET

< 1.75 V)

Package ꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏꞏ DFN1216-8, SOT-89-5
