54F398/B2AJC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F398/B2AJC

54F398/B2AJC: DescriptionIC,LOGIC MUX,QUAD,2-INPUT,F-TTL,LLCC,20PIN,CERAMIC; Categorylogic logic; File Size162KB，4 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54F398/B2AJC Overview

IC,LOGIC MUX,QUAD,2-INPUT,F-TTL,LLCC,20PIN,CERAMIC

54F398/B2AJC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NXP
package instruction	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown
JESD-30 code	S-XQCC-N20
JESD-609 code	e0
Logic integrated circuit type	MULTIPLEXER
Maximum Frequency@Nom-Sup	100000000 Hz
MaximumI(ol)	0.02 A
Number of functions	4
Number of entries	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Maximum supply current (ICC)	38 mA
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Base Number Matches	1

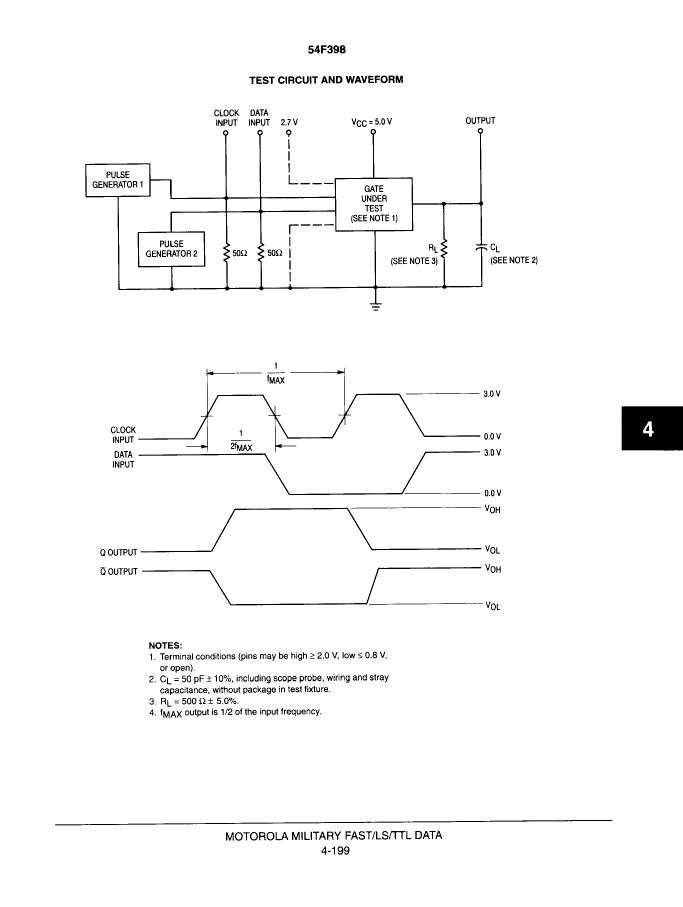

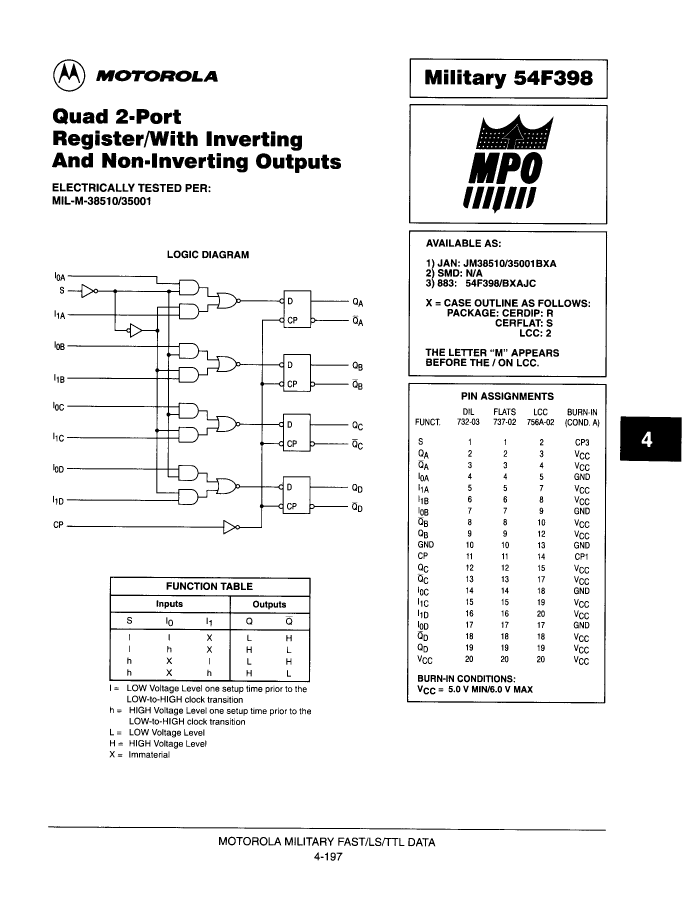

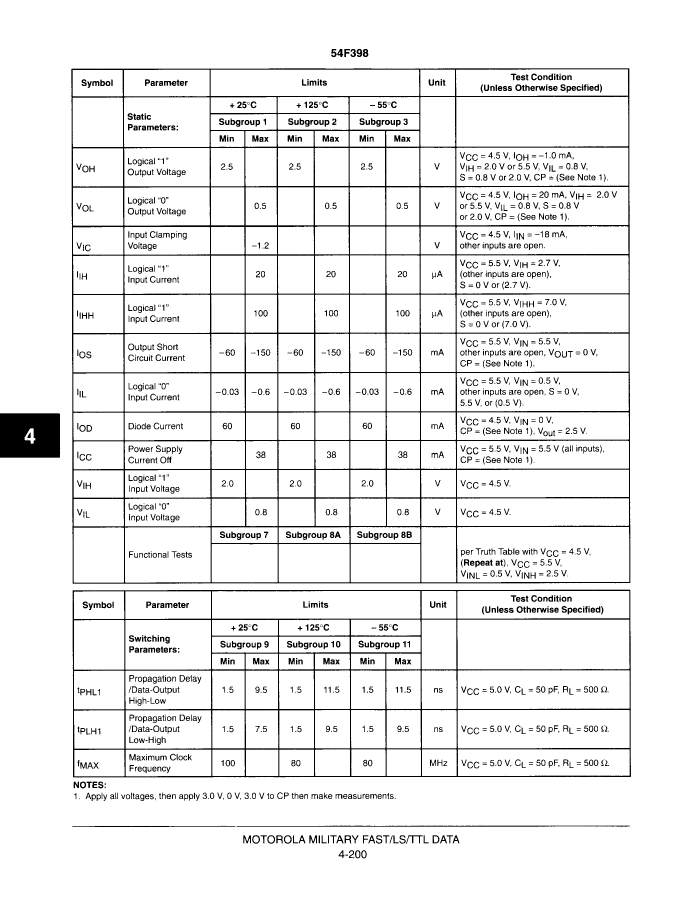

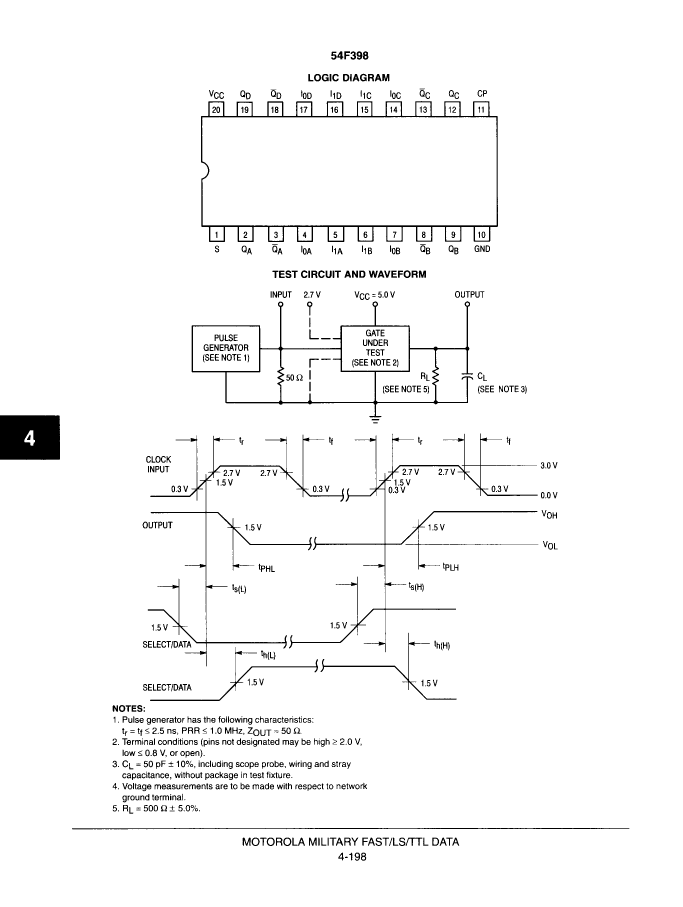

Preview

Download Datasheet

View All

54F398/B2AJC Related Products

	54F398/B2AJC	54F398/BSAJC	54F398M/B2AJC	MC74F398JD	MC74F398ND	MC74F398DWR2
Description	IC,LOGIC MUX,QUAD,2-INPUT,F-TTL,LLCC,20PIN,CERAMIC	IC,LOGIC MUX,QUAD,2-INPUT,F-TTL,FP,20PIN,CERAMIC	IC,LOGIC MUX,QUAD,2-INPUT,F-TTL,LLCC,20PIN,CERAMIC	IC,LOGIC MUX,QUAD,2-INPUT,F-TTL,DIP,20PIN,CERAMIC	IC,LOGIC MUX,QUAD,2-INPUT,F-TTL,DIP,20PIN,PLASTIC	IC,LOGIC MUX,QUAD,2-INPUT,F-TTL,SOP,20PIN,PLASTIC
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	NXP	NXP	NXP	NXP	NXP	NXP
package instruction	QCCN, LCC20,.35SQ	DFP, FL20,.3	QCCN, LCC20,.35SQ	DIP, DIP20,.3	DIP, DIP20,.3	SOP, SOP20,.4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	S-XQCC-N20	R-XDFP-F20	S-XQCC-N20	R-XDIP-T20	R-PDIP-T20	R-PDSO-G20
JESD-609 code	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
Number of functions	4	4	4	4	4	4
Number of entries	2	2	2	2	2	2
Number of terminals	20	20	20	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	70 °C	70 °C	70 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCN	DFP	QCCN	DIP	DIP	SOP
Encapsulate equivalent code	LCC20,.35SQ	FL20,.3	LCC20,.35SQ	DIP20,.3	DIP20,.3	SOP20,.4
Package shape	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	FLATPACK	CHIP CARRIER	IN-LINE	IN-LINE	SMALL OUTLINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	NO	NO	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	FLAT	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	QUAD	DUAL	DUAL	DUAL
Maximum Frequency@Nom-Sup	100000000 Hz	100000000 Hz	100000000 Hz	-	-	100000000 Hz
MaximumI(ol)	0.02 A	0.02 A	0.02 A	-	-	0.02 A
Maximum supply current (ICC)	38 mA	38 mA	38 mA	-	-	38 mA
Certification status	Not Qualified	Not Qualified	Not Qualified	-	-	Not Qualified
Base Number Matches	1	1	1	-	1	-
