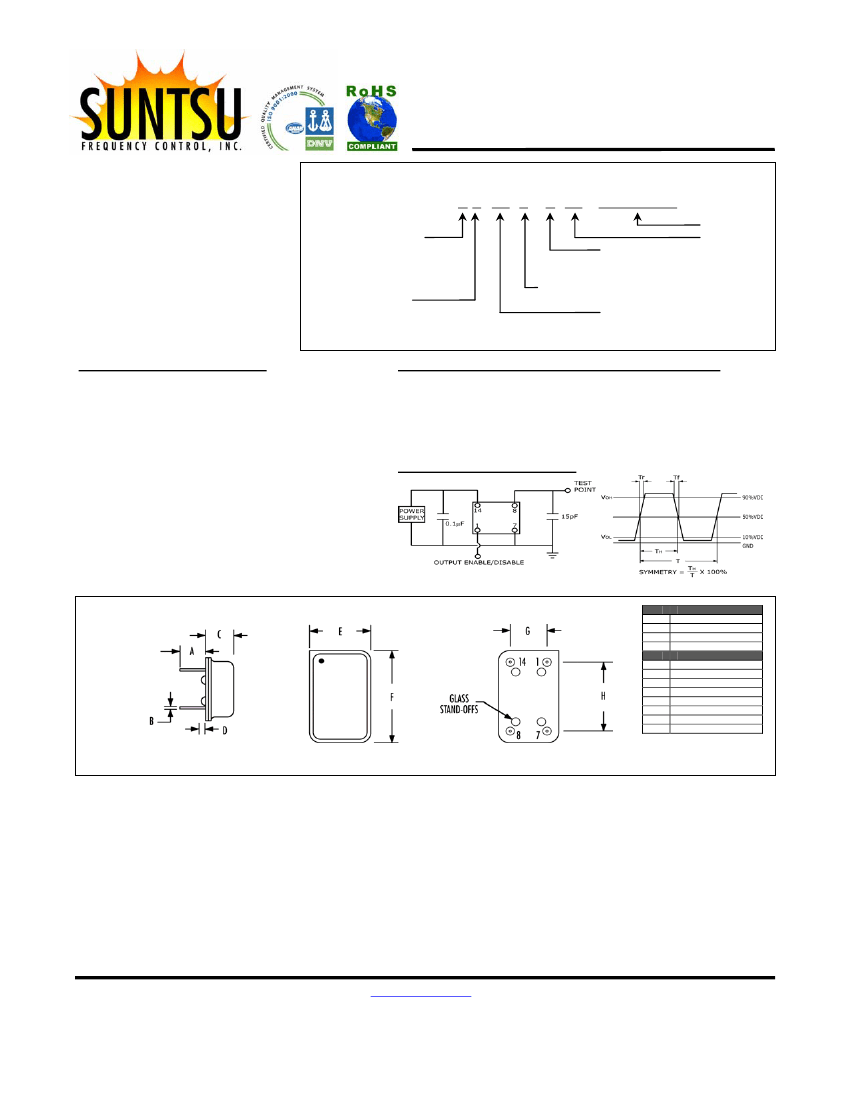

SVF SERIES

14 PIN DIP VCXO

RoHS COMPLIANT

SVF SERIES FEATURES

AVAILABLE TO ±15ppm

WIDE FREQUENCY RANGE

STANDARD FULL-SIZE PACKAGE

CMOS/TTL COMPATIBLE

RoHS COMPLAINT

3.3±0.3V OR 5±0.5V

PART NUMBERING GUIDE

SVF A 3 48 T

FREQUENCY STABILITY

A: ±100ppm

B: ±50ppm

C: ±25ppm

D: ±20ppm

E: ±15ppm

SUPPLY VOLTAGE

3: 3.3±0.3 V

5: 5.0±0.5 V

B 10 - 25.000MHz

FREQUENCY

LINEARITY

5: ±5%

PULLABILITY

10: ±10%

A: ±150ppm MIN

20: ±20%

B: ±100ppm MIN

C: ±50ppm MIN

D: ±100ppm MIN to ±200ppm MAX

DUTY CYCLE

BLANK: 40%/60%

T: 45%/55%

OPERATING TEMPERATURE RANGE

BLANK: 0°C to + 70°C

27: -20°C to + 70°C

*FOR CUSTOM PARAMETERS CONTACT YOUR SUNTSU REPRESENTATIVE.

48: -40°C to + 85°C

ELECTRICAL SPECIFICATIONS

FREQUENCY RANGE:

STORAGE TEMPERATURE:

DUTY CYCLE:

CMOS - 50% OF WAVEFORM

TTL – 1.4V

CURRENT CONSUMPTION:

5.0V

1.000MHz-35.999MHz

36.000MHz-220.000MHz

3.3V

1.000MHz-35.999MHz

36.000MHz-220.000MHz

LOAD:

CMOS:

TTL:

START-UP TIME:

RISE/FALL TIME:

VOLTAGE CONTROL:

5.0V

3.3V

1.000MHz-220.000MHz

-55°C TO 125°C

40%/60%, 45%/55%

30mA MAX

65mA MAX

20mA MAX

50mA MAX

15pF MAX

10 TTL GATES

10mS MAX

10nS MAX

2.5±2.0V

1.65±1.5V

ENVIRONMENTAL & MECHANICAL SPECIFICATIONS

DROP TEST:

VIBRATION:

HUMIDITY:

75cm ONTO 2mm STEEL PLATE (3 TIMES)

10-500 Hz, 1.5mm, 40 MINUTES (3 AXIS)

RH=85%. TEMP=65°C, 500 HOURS

TEST CIRCUIT & WAVEFORM

PRODUCT SCHEMATIC

FUNCTION

VOLTAGE CONTROL

CASE GROUND

OUTPUT

SUPPLY VOLTAGE

DIMENSIONS

5.08 MIN

0.56 MAX

5.6 MAX

0.90 MAX

13.2±0.5

20.8±0.8

7.62±0.1

15.24±0.2

NOTE: DIMENSIONS IN MILLIMETERS (mm); DRAWING NOT TO SCALE

15791 ROCKFIELD BLVD., UNIT O

IRVINE, CA 92618

WWW.SUNTSUINC.COM

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

REV. 09/20/06

TELEPHONE • 949.305.0220

FACSIMILE • 949.305.0221

Page 1 of 1
