D572-20FS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> D572-20FS

D572-20FS: DescriptionTelecom Circuit, 1-Func, LOW PROFILE, HERMETIC SEALED, MODULE-8; CategoryWireless rf/communication Telecom circuit; File Size197KB，7 Pages; ManufacturerQorvo; Websitehttps://www.qorvo.com

Download Datasheet Parametric Compare View All

D572-20FS Overview

Telecom Circuit, 1-Func, LOW PROFILE, HERMETIC SEALED, MODULE-8

D572-20FS Parametric

Parameter Name	Attribute value
Maker	Qorvo
Parts packaging code	MODULE
package instruction	,
Contacts	8
Reach Compliance Code	unknown
JESD-30 code	R-XDFO-G8
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FIBER OPTIC
Certification status	Not Qualified
surface mount	YES
Telecom integrated circuit types	TELECOM CIRCUIT
Temperature level	OTHER
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

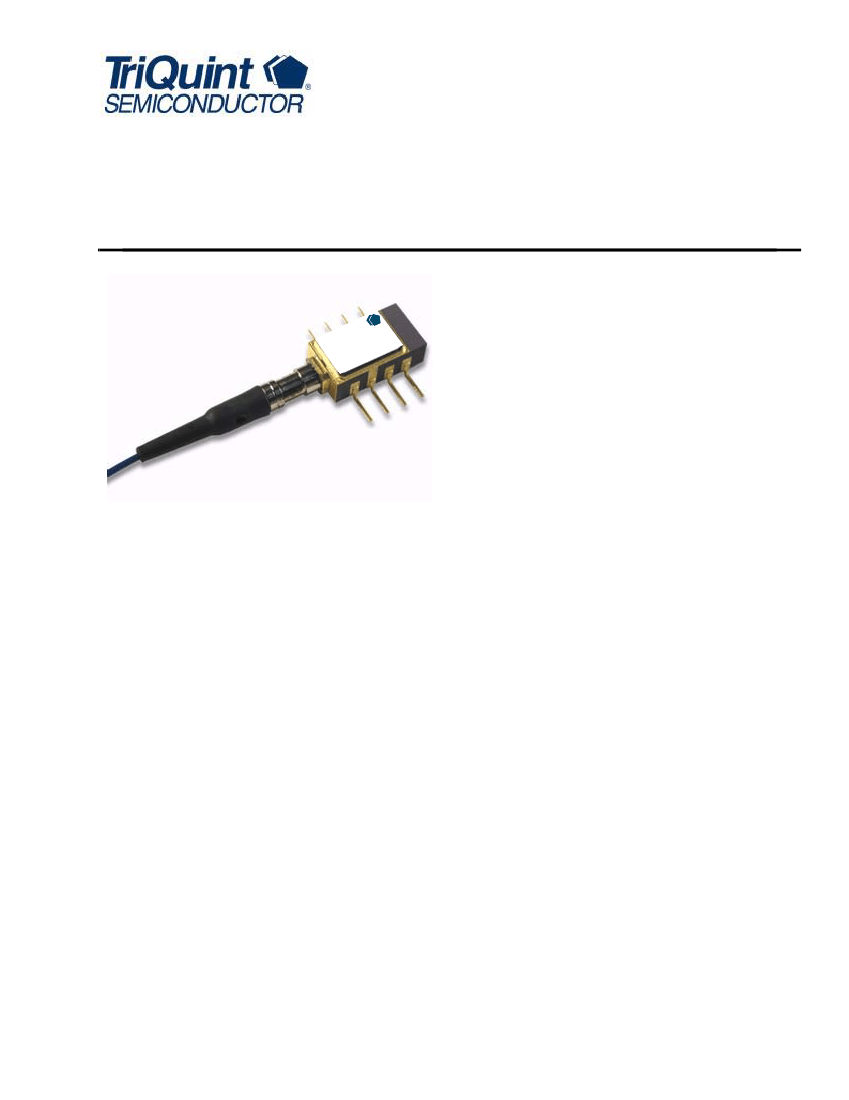

Advance Data Sheet

February 2003

TriQuint Optoelectronics

D572-Type 1.5

µm

Uncooled DFB Laser Module

for 2.5 Gb/s and High-Bandwidth Applications

Applications

int

TOR

iQu

NDUC

Type

ICO

■

SONET OC-48/STM-16 systems

Telecommunications

Secure digital data systems

odu

ser M

Benefits

■

Easily board mounted

Gull-wing leads

No additional heat sinks required

Low-cost alternative to industry-standard, 14-pin iso-

lated laser module (ILM)

Highly efficient DFB-MQW laser structure allows for

lower threshold and drive currents, and reduced

power consumption

The low-profile D572-type laser module is ideally suited for OC-

48 SONET and other high-speed digital applications

Features

■

8-pin package suitable for SONET applications

Narrow linewidth, distributed feedback, multiquan-

tum-well (DFB-MQW)1510 nm or 1550 nm laser with

single-mode fiber pigtail

Operating temperature range: –25 °C to +70 °C

(–25 °C to +85 °C versions under development)

No TEC required

High output power: typical 2.0 mW peak power cou-

pled into single-mode fiber

Hermetically sealed active components

Internal back-facet monitor

Built-in thermistor and Bias T

Ω

input impedance

Internal isolator

Telcordia Technologies

™ TA-983 qualification pro-

gram

Bandwidth > 3 GHz

Description

The D572-type uncooled laser module consists of a

laser diode coupled to a single-mode fiber pigtail. The

device is available in a standard, 8-pin configuration

(see Figure 1 and/or Table 1) and is ideal for long-

reach (SONET) and other high-speed digital applica-

tions.

The module includes a narrow linewidth (<1 nm) DFB-

MQW single-mode laser and an InGaAs PIN photo-

diode back-facet monitor in a hermetically sealed pack-

age.

This package is optimized for a 25

Ω

input impedance

and allows for dc biasing through an internal bias tee.

A thermistor has been included for feedback to board-

level bias circuitry, if needed.

■

D572-20FS Related Products

	D572-20FS	D572-20NS	D572-22AS	D572-20GS	D572-20SS	D572-20AS
Description	Telecom Circuit, 1-Func, LOW PROFILE, HERMETIC SEALED, MODULE-8	Telecom Circuit, 1-Func, LOW PROFILE, HERMETIC SEALED, MODULE-8	Telecom Circuit, 1-Func, LOW PROFILE, HERMETIC SEALED, MODULE-8	Telecom Circuit, 1-Func, LOW PROFILE, HERMETIC SEALED, MODULE-8	Telecom Circuit, 1-Func, LOW PROFILE, HERMETIC SEALED, MODULE-8	Telecom Circuit, 1-Func, LOW PROFILE, HERMETIC SEALED, MODULE-8
Maker	Qorvo	Qorvo	Qorvo	Qorvo	Qorvo	Qorvo
Parts packaging code	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE
Contacts	8	8	8	8	8	8
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-XDFO-G8	R-XDFO-G8	R-XDFO-G8	R-XDFO-G8	R-XDFO-G8	R-XDFO-G8
Number of functions	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FIBER OPTIC	FIBER OPTIC	FIBER OPTIC	FIBER OPTIC	FIBER OPTIC	FIBER OPTIC
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES
Telecom integrated circuit types	TELECOM CIRCUIT	TELECOM CIRCUIT	TELECOM CIRCUIT	TELECOM CIRCUIT	TELECOM CIRCUIT	TELECOM CIRCUIT
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
