557-107
D-Subminiature
Light-Weight Solid Banding Backshell
How To Order
Sample Part Number
Basic Part No.
Finish Symbol
Shell Size
Cable Entry Size
Jackscrew Options
Band Option
Slots
See Page 3
See Table I
See Table II
A
= Standard Hex Socket Head
C
= Standard Fillister Head
E
= Standard Extended Slotted Jackscrew
M
= Special 687-421M
P
= Special 687-421
Omit
for none
B
= Band Supplied (600-052)
Omit
for none
S
= with Slots
Omit
for none
G
F
SLOT
SEE P/N DEVELOPMENT
2 PLACES
SEE
NOTE 2
H

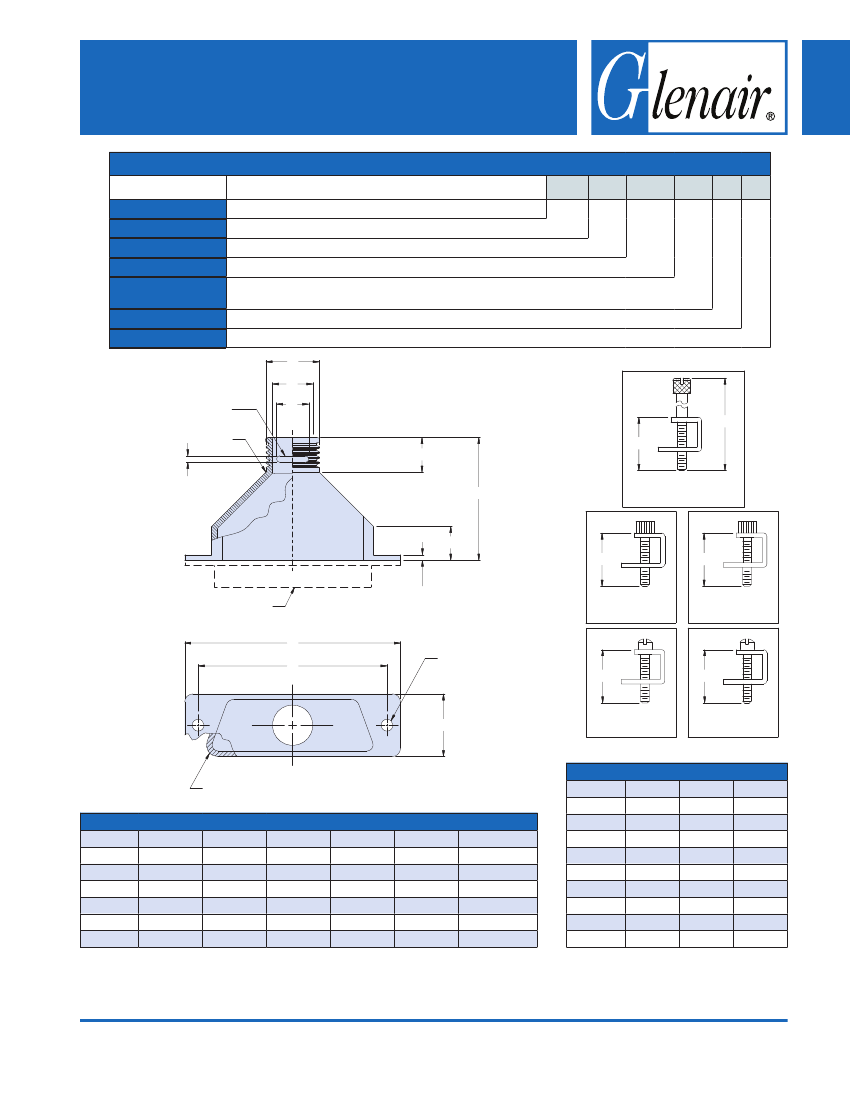

557-107
D-Subminiature Lightweight Banding Backshell
M
2
-03
C
B
S
1.08
.380
.270
.080
D
"E" OPTION
687-316
E
.270
.035
CONNECTOR SHOWN
FOR REFERENCE ONLY
A
C
.125/.115
2 PLACES
.250
"A" OPTION
687-316
"M" OPTION
.270
.250
B
"C" OPTION
687-316
"P" OPTION
Table II: Cable Entry
.125 RAD.
2 PLACES
Entry Size
01
C±.005
0.984 (25.0)
1.312 (33.3)
1.852 (47.0)
2.500 (63.5)
2.406 (61.1)
2.500 (63.5)
D
1.190 (30.2)
1.270 (32.3)
1.550 (39.4)
1.690 (42.9)
1.670 (42.4)
1.690 (42.9)
E
0.440 (11.2)
0.440 (11.2)
0.500 (12.7)
0.500 (12.7)
0.440 (11.2)
0.500 (12.7)
Max Entry Size
06
06
06
06
08
09
02
03
04
05
06
07
08
09
F
.125 (3.2)
.187 (4.7)
.265 (6.7)
.312 (7.9)
G
.205 (5.2)
.267 (6.8)
.360 (9.1)
.392 (10.0)
H
.09 (2.3)
.19 (4.8)
.22 (5.6)
.25 (6.4)
.28 (7.1)
.31 (7.9)
.31 (7.9)
.38 (9.7)
.38 (9.7)
Table I: Shell Size and Connector Interface Dimensions
Shell Size
1
2
3
4
5
6
A
1.203 (30.6)
1.531 (38.9)
2.078 (52.8)
2.718 (69.0)
2.625 (66.7)
2.718 (69.0)
B
0.500 (12.7)
0.500 (12.7)
0.500 (12.7)
0.500 (12.7)
0.609 (15.5)
0.668 (17.0)
.390 (9.9) .485 (12.3)
.415 (10.5) .510 (13.0)
.500 (12.7) .580 (14.7)
.525 (13.3)
.595 (15.1)
.620 (15.7)
.690 (17.5)
1. Metric dimensions (mm) are indicated in parentheses.
2. End Fitting may be brazed on per MIL-B-7883B, Type V, Grade B
© 2014 Glenair, Inc.
Material/Finish
Backshell - 6061-T6 Al Alloy
Retainer Clips, Jackscrews - CRES/Passivate
Rev. 8-18-14
Printed in U.S.A.
CAGE Code 06324
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-63
MIL-DTL-24308
