SC-50-P-G-C-B-30 datasheet, PDF

SC-50-P-G-C-B-30: DescriptionD Type Connector, 50 Contact(s), Male, 0.109 inch Pitch, Solder Lug Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size147KB，1 Pages; ManufacturerLapp Group; Environmental Compliance

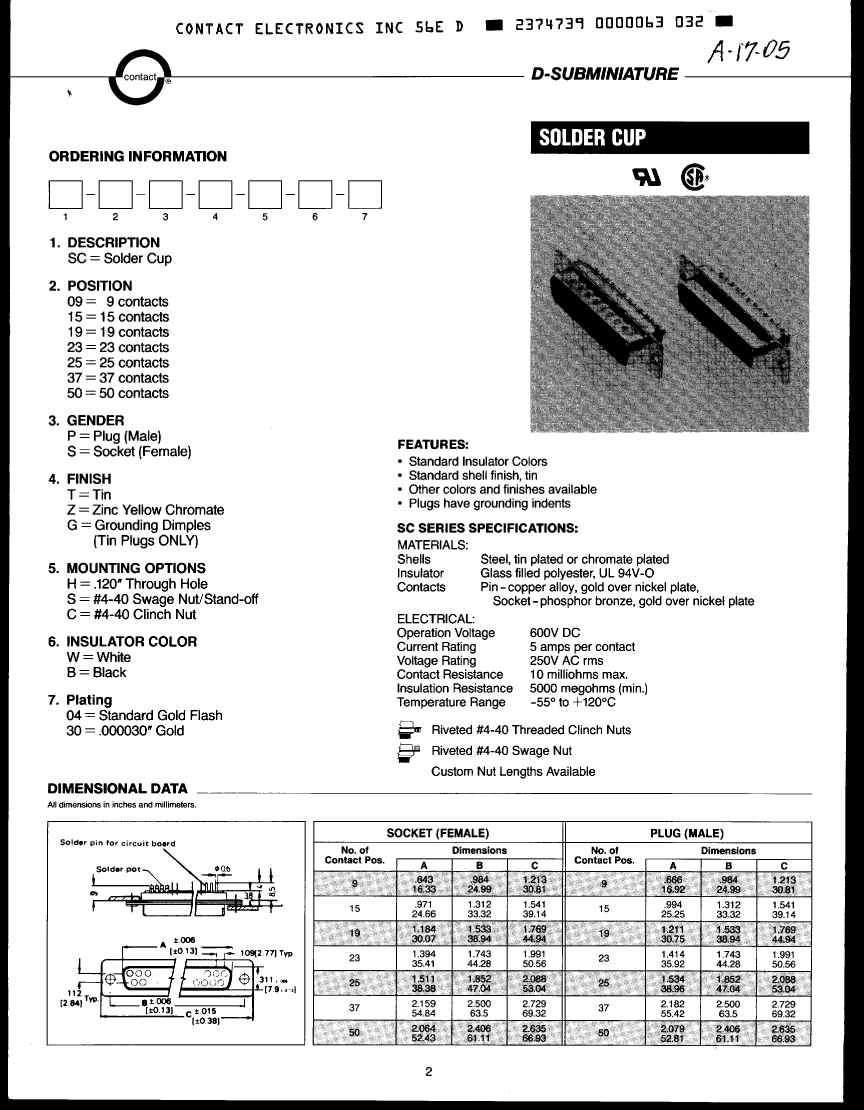

Download Datasheet Parametric View All

SC-50-P-G-C-B-30 Overview

D Type Connector, 50 Contact(s), Male, 0.109 inch Pitch, Solder Lug Terminal, #4-40, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Lapp Group
Reach Compliance Code	compliant
ECCN code	EAR99
body length	2.635 inch
Body/casing type	RECEPTACLE
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	250VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e4
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	CLINCH NUT
Installation type	PANEL
Number of rows loaded	3
Maximum operating temperature	120 °C
Minimum operating temperature	-55 °C
Plating thickness	30u inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Termination type	SOLDER LUG
Total number of contacts	50
Base Number Matches	1
