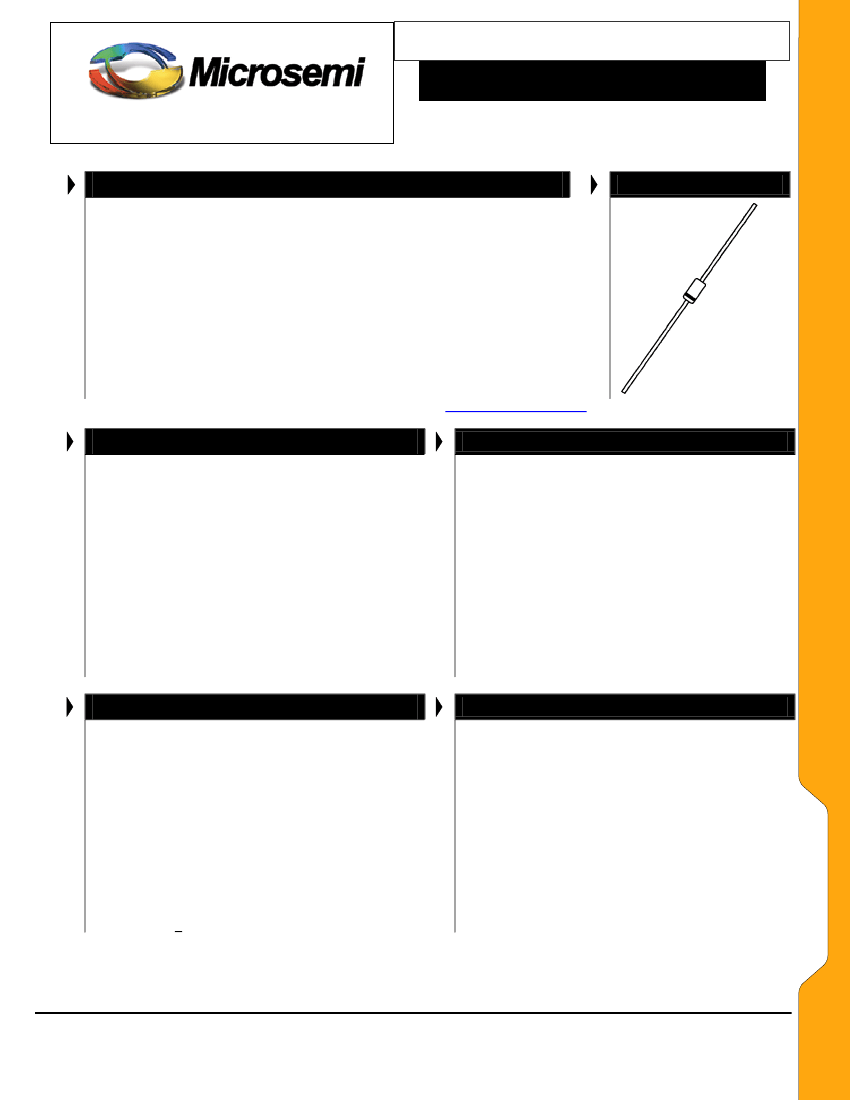

1.4KESD5.0 thru 1.4KESD170CA
AXIAL-LEAD TVS
SCOTTSDALE DIVISION
DESCRIPTION
These small axial-leaded TVS devices feature the ability to clamp
dangerous high voltage short-term transients such as produced by directed
or radiated electrostatic discharge phenomena before entering sensitive
component regions of a circuit design. They are small economical transient
voltage suppressors targeted primarily for short-term transients below a few
microseconds while still achieving significant peak-pulse-power capability
as illustrated in Figure #1.
APPEARANCE
WWW .
Microsemi
.C
OM
DO-35
(DO-204AH)
IMPORTANT:
For the most current data, consult
MICROSEMI’s
website:
http://www.microsemi.com
FEATURES
•
Excellent protection in clamping direct ESD level
transients in excess of 15,000 V per MIL-STD-750,
Method 1020 (approx. 150 ns exponential wave)
•
Absorbs ESD level transients* of 1400 Watts per
MIL-STD-750, Method 1020 (approx. 150 ns
exponential wave, or one microsecond transients up
to 400 watts. See Figure #1 and #2 for overall
transient Peak Pulse Power.
•
Clamps Transients in less than 100 picoseconds
•
Working Stand-off Voltage range of 5 V to 170 V
•
Hermetic DO-35 Package. Also available in surface
mount DO-213AA MELF package (see separate
data sheet)
APPLICATIONS / BENEFITS
•
Protects Sensitive circuits from short duration fast
rise time transients such as Electrostatic Discharge
(ESD) or Electrical Fast Transients (EFT)
•
Low inherent capacitance for high-frequency
applications (See Figure #4)
•
Flexible axial-lead mounting terminals
•
Bidirectional features available by adding a “C” or
“CA” suffix
MAXIMUM RATINGS
•
400 Watts for One Microsecond Square Wave or
1400 watts per ESD Wave form of MIL-STD-750,
method 1020.
•
See Surge Rating curve in Figures #1 and 2.
•
Operating and storage temperature –65
o
C to 175
o
C
•
THERMAL RESISTANCE: Less than 250
o
C/W
junction to lead at 0.375 inches from body.
•
DC power dissipation 500 mW at T
L
= 75
o
C at 3/8
inch (10 mm) lead length from body.
•
Derate at 2.3 W/
o
C above 25
o
C for P
PP
(1µs) and at
o
o
5 mW/ C above 100 C for dc power.
•
Forward Surge Current 50 amps for 1µs at T
L
= 25
o
C
(rise time > 100 ns).
MECHANICAL AND PACKAGING
•
CASE: Hermetically sealed axial-lead glass DO-35
(DO-204AH) package
•
TERMINALS: Leads, tin-lead plated solderable per
MIL-STD-750, method 2026
•
POLARITY: Banded end is cathode
•
WEIGHT: 0.2 grams (typical)
•
MARKING: Part number
•
TAPE & REEL option: Standard per EIA-296 (add
“TR” suffix to part number)
•
See package dimension on last page
1.4KESD5.0 – 1.4KESD170A
Copyright
2002
10-02-2003 REV A
Microsemi
Scottsdale Division
8700 E. Thomas Rd. PO Box 1390, Scottsdale, AZ 85252 USA, (480) 941-6300, Fax: (480) 947-1503
Page 1
1.4KESD5.0 thru 1.4KESD170CA
AXIAL-LEAD TVS
SCOTTSDALE DIVISION
TYPE
NUMBER*
1.4KESD54
1.4KESD54A
1.4KESD58
1.4KESD58A
1.4KESD60
1.4KESD60A
1.4KESD64
1.4KESD64A
1.4KESD70
1.4KESD70A
1.4KESD75
1.4KESD75A
1.4KESD78
1.4KESD78A
1.4KESD85
1.4KESD85A
1.4KESD90
1.4KESD90A
1.4KESD100
1.4KESD100A
1.4KESD110
1.4KESD110A
1.4KESD120
1.4KESD120A
1.4KESD130
1.4KESD130A
1.4KESD150
1.4KESD150A
1.4KESD160
1.4KESD160A
1.4KESD170
1.4KESD170A
REVERSE
STAND-OFF
VOLTAGE
V
WM
VOLTS
54
54
58
58
60
60
64
64
70
70
75
75
78
78
85
85
90
90
100
100
110
110
120
120
130
130
150
150
160
160
170
170
BREAKDOWN
VOLTAGE
V
BR
MINIMUM
V
(BR)
VOLTS
60.0
60.0
64.4
64.4
66.7
66.7
71.1
71.1
77.8
77.8
83.3
83.3
86.7
86.7
94.4
94.4
100.0
100.0
111.0
111.0
122.0
122.0
133.0
133.0
144.0
144.0
167.0
167.0
178.0
178.0
189.0
189.0
BREAKDOWN
CURRENT
I
(BR)
mA
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
MAXIMUM
STANDBY
CURRENT
I
D
@ V
WM
µA
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
MAXIMUM
CLAMPING
VOLTAGE
V
C
@ I
PP
VOLTS
120.0
113.7
128.9
122.0
133.4
126.4
142.2
134.7
155.6
147.4
166.8
158.0
173.4
164.3
188.5
178.6
199.8
189.9
222.3
210.6
243.9
213.3
266.4
252.0
288.0
273.0
333.9
316.8
356.4
337.5
378.0
358.2
PEAK
PULSE
CURRENT
I
PP
**
AMPS
3.33
3.52
3.10
3.28
3.00
3.17
2.81
2.97
2.57
2.71
2.40
2.53
2.31
2.44
2.12
2.24
2.00
2.11
1.80
1.90
1.64
1.73
1.50
1.59
1.39
1.47
1.20
1.26
1.12
1.19
1.06
1.12
WWW .
Microsemi
.C
OM
* For bidirectional, add a “C” or “CA” suffix after the part number, e.g. 1.4KESD5.0C or 1.4KESD5.0CA for the
1.4KESD5.0 or 1.4KESD5.0A part numbers respectively. Capacitance will be one-half that shown in Figure 4 at zero volts.
** At 400 watts 1µs square wave rating (See Figures 1 and 2).
OUTLINE AND CIRCUIT
P
PP
– Peak Pulse Power
1.4KESD5.0 – 1.4KESD170A
tp – Pulse Time

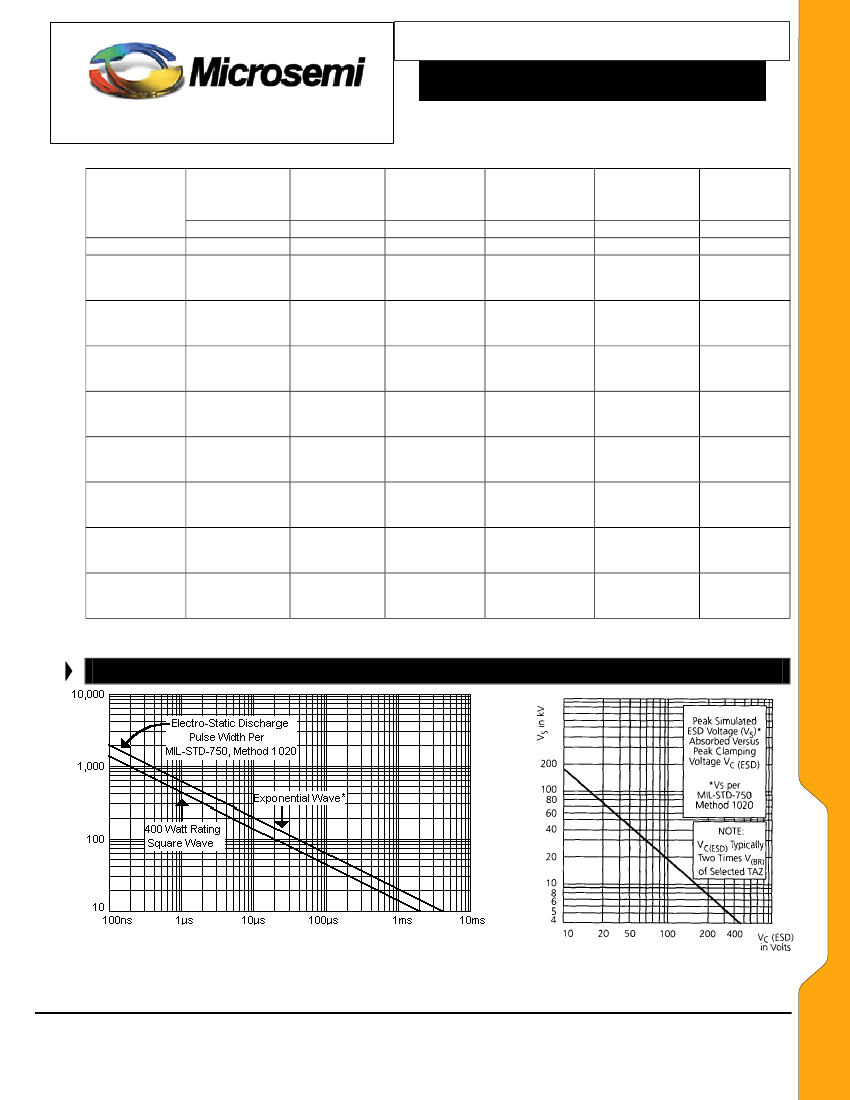

FIGURE 1
Peak Pulse Power vs. Pulse Width
(*Exponential Wave Form Pulse Width to 50% Decay of Peak.)
Copyright
2002
10-02-2003 REV A
FIGURE 3
Microsemi
Scottsdale Division
8700 E. Thomas Rd. PO Box 1390, Scottsdale, AZ 85252 USA, (480) 941-6300, Fax: (480) 947-1503
Page 3
