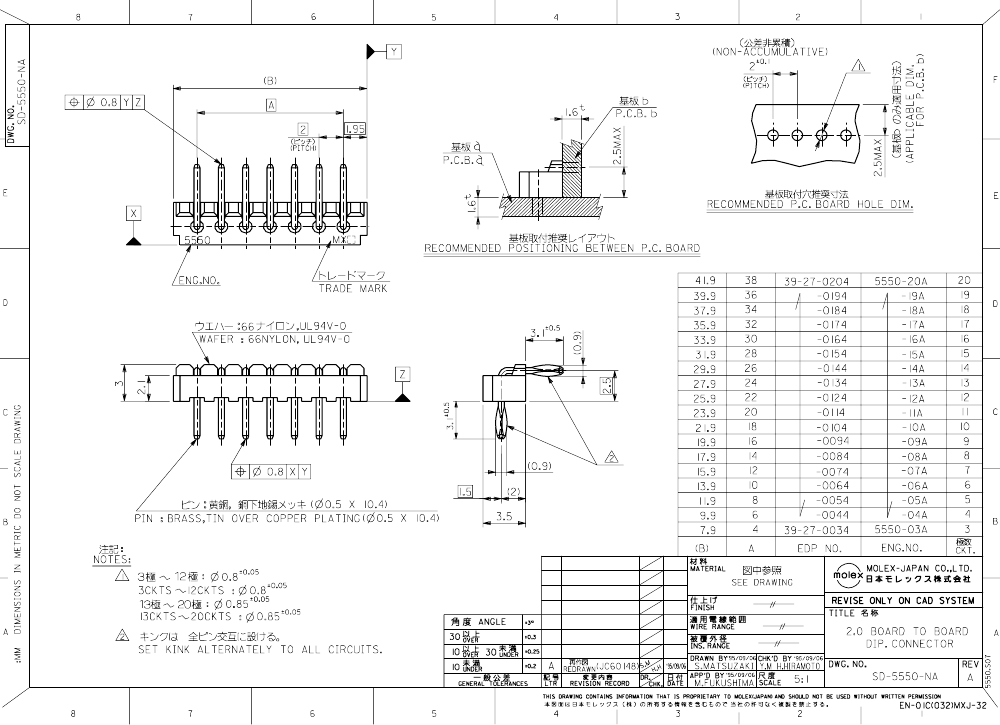

39-27-0144: DescriptionBoard Connector, 14 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size68KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

39-27-0144 Overview

Board Connector, 14 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Receptacle

39-27-0144 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.138 inch
subject depth	0.11 inch
body length	1.177 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	NYLON
MIL compliance	NO
Manufacturer's serial number	5550-NA
Plug contact pitch	0.079 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.122 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	14
UL Flammability Code	94V-0
Base Number Matches	1
