39S607-102L5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 39S607-102L5

39S607-102L5: DescriptionRF SMC Connector, 1 Contact(s), Male, Panel Mount, Cable Mount, Crimp Terminal, Locking, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size41KB，2 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric View All

39S607-102L5 Overview

RF SMC Connector, 1 Contact(s), Male, Panel Mount, Cable Mount, Crimp Terminal, Locking, Plug, ROHS COMPLIANT

39S607-102L5 Parametric

Parameter Name	Attribute value
Maker	Rosenberger
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	APPLICABLE CABLES: RG 316/U; RG 174 A/U; RG 188 A/U
subject depth	0.393 inch
Body/casing type	PLUG
Cable type	RG-316/U
Characteristic impedance	50 Ω
Connector type	RF SMC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact resistance	5 mΩ
Contact style	COAX
Coupling type	THREADED
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
Insertion loss	0.24 dB
Insulation resistance	1000000000 Ω
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	39S607-102L5
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Maximum operating frequency	6 GHz
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Panel mounting	YES
reliability	COMMERCIAL
Shell surface	GOLD OVER NICKEL
Shell material	BRASS
Terminal length	0.275 inch
Termination type	CRIMP
Total number of contacts	1
voltage standing wave ratio	1.29
Base Number Matches	1

Preview

Download Datasheet

View All

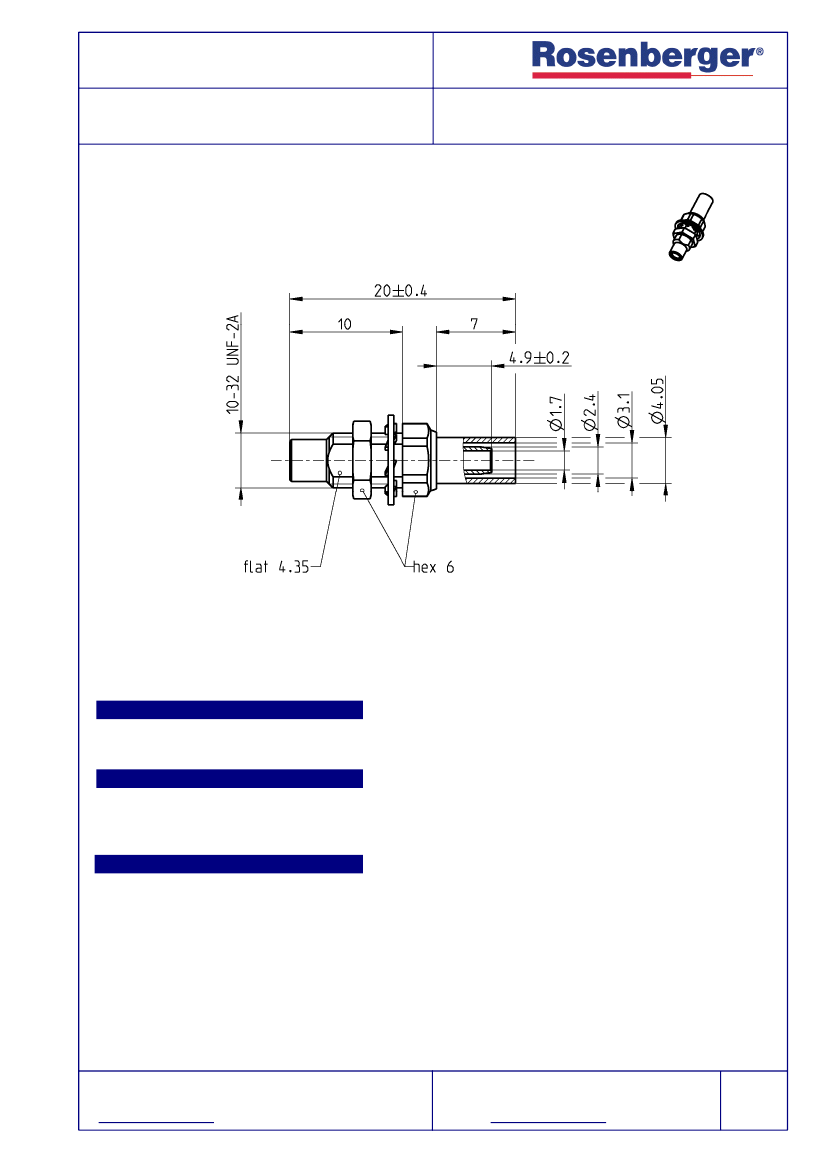

TECHNICAL DATA SHEET

SMC

BULKHEAD PLUG

39S607-102L5

All dimensions are in mm; tolerances according to ISO 2768 m-H

Interface

According to

IEC 60169-9, CECC 22140, US MIL-C-39012

Documents

Assembly instruction

Panel piercing

59 G2

B 22

Material and plating

Connector parts

Center contact

Outer contact

Body

Dielectric

Crimping ferrule

Material

Brass

PTFE

Copper

Plating

Auro Dur, gold plated

Gold, min. 0.8 µm, over nickel

Gold, 0.1 µm min.

RF_35/12.04/3.0

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel.: +49 8684 18-0

Fax: +49 8684 18-499

email: info@rosenberger.de

Page

1/2
