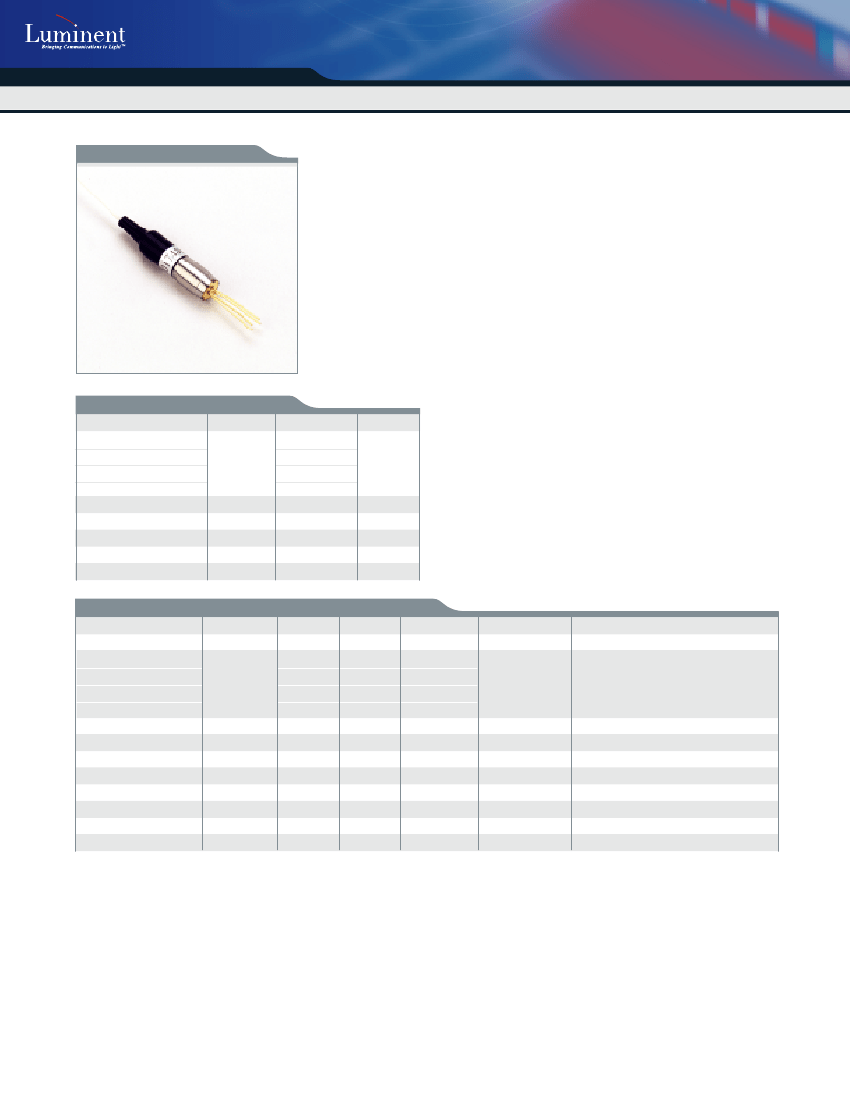

1550 nm, 2.5 Gbps MQW-DFB Laser Diode Modules
Preliminary
C-15-DFB2.5-XD-SXXXX-X
Features
• Uncooled laser diode with MQW structure
• High temperature operation without active cooling
• Hermetically sealed active component
• Built-in InGaAs monitor photodiode
• Complies with Bellcore TA-NWT-000983
• Single frequency operation with high SMSR
Application
• Designed for 2.5 Gbps high speed optical networks
Absolute Maximum Ratings (T
c
=25ºC)
Parameter
Symbol
Fiber Output Power
L
P
f
M
H
LD Reverse Voltage
V
rld
PD Reverse Voltage
PD Forward Current
Operating Temperature
Storage Temperature
V
rpd
I
fpd
T
opr
T
stg
Value
0.6
1.0
2.0
2
10
2
0 to +70
-40 to +85
Unit
mW
V
V
mA
ºC
ºC
Optical and Electrical Characteristics (T
c
= 25ºC)
Parameter
Min
Symbol
Threshold Current
-
I
th
Fiber Output Power
L
M
H
Peak Wavelength*
Side mode Suppression
Forward Voltage
Rise, Fall Time
Tracking Error
PD Monitor Current
PD Dark Current
PD Capacitance
0.2
0.5
1
1535
30
-
-
-
100
-
-
Typ
10
-
-
-
1550
35
1.2
-
-
-
-
6
Max
15
0.5
1
2
1565
-
1.5
150
±1.5
-
0.1
15
Unit
mA
Test Condition
CW
P
f
l
S
r
V
F
t
r
, t
f
DP
f
/ P
f
I
m
I
DARK
C
t
mW
nm
dB
V
ps
dB
mA
mA
pF
CW, I
th
+30 mA,
kink free
CW, P
f
= P
f
(Min), 0 to +70 ºC
CW, P
f
= P
f
(Min)
I
bias
=I
th
, 10 to 90%
APC, 0 to +70 ˚C
CW,P
f
=P
f
(Min), V
rpd
= 2V
V
rpd
= 5V
V
rpd
= 5V, f= 1MHz
(All optical data refer to a coupled 9/125
mm
SM fiber)
*Selected wavelength is available for WDM application.
1550 nm, 2.5 Gbps MQW-DFB Laser Diode Modules
Preliminary
C-15-DFB2.5-XD-SXXXX-X
2.5 Gbps DFB LD Modules-pigtailed

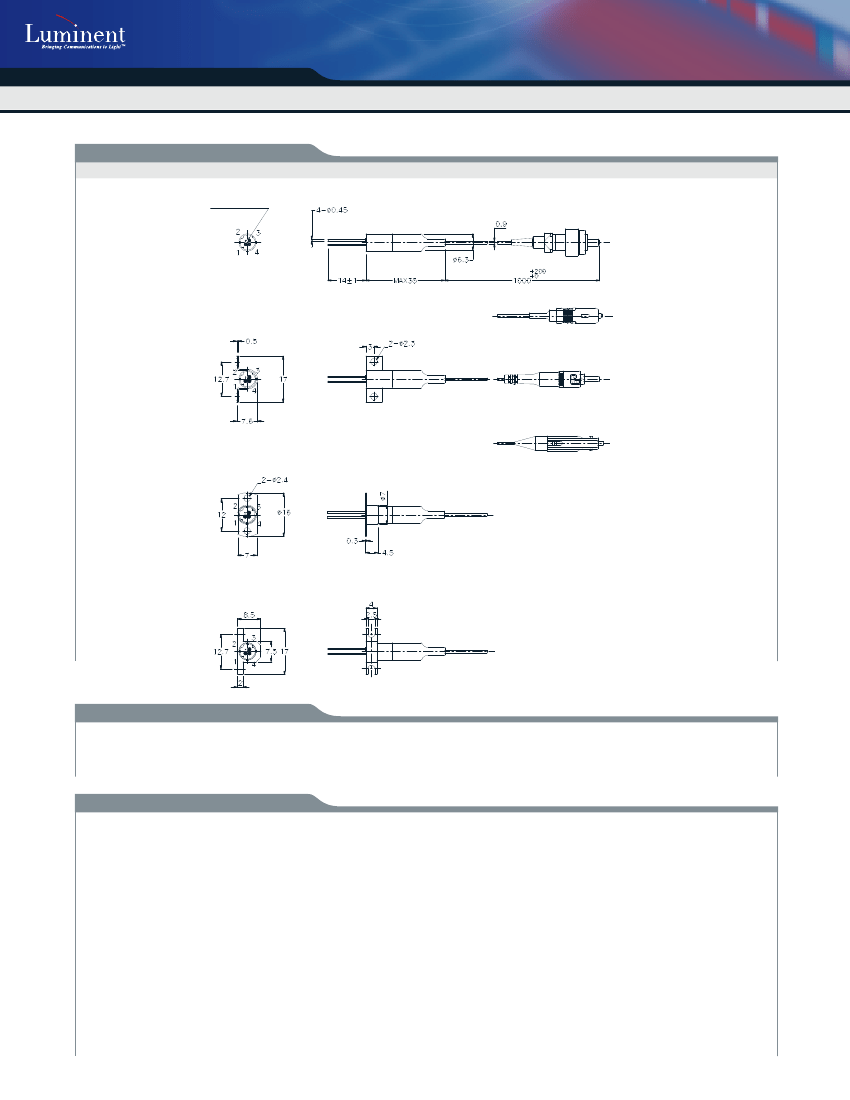

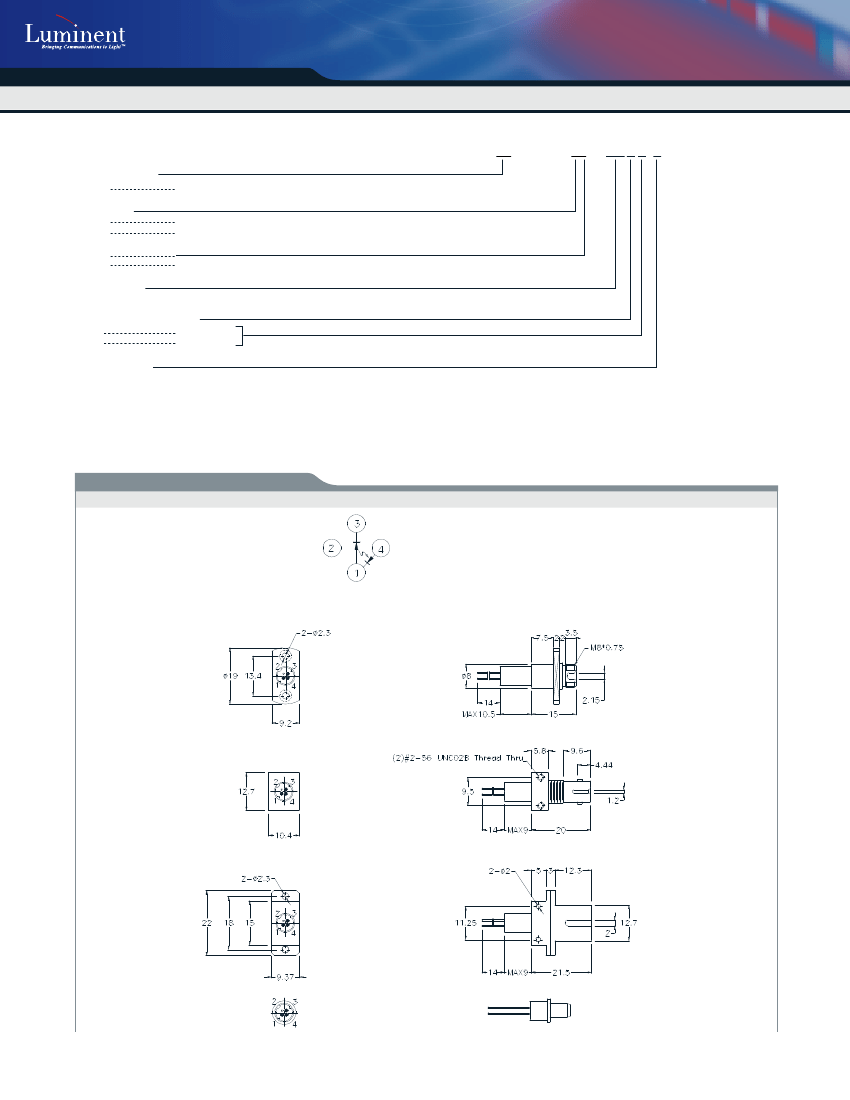

Package Dimensions
P.C.D. 2.0±0.5
Units in mm
Flange Type
"__" Flangeless
Connector Type
FC FC/PC
SC SC/PC
"O":Horizonal (Omega Housing)
ST ST/PC
MUM: UJ/PC
"V": Vertical Housing
"K": Horizontal (KX Housing)
Warnings
Handling Precautions:
This device is susceptible to damage as a result of electrostatic discharge (ESD). A static free environment is highly recommended. Follow guidelines
according to proper ESD procedures.
Laser Safety:
Radiation emitted by laser devices can be dangerous to human eyes. Avoid eye exposure to direct or indirect radiation.
