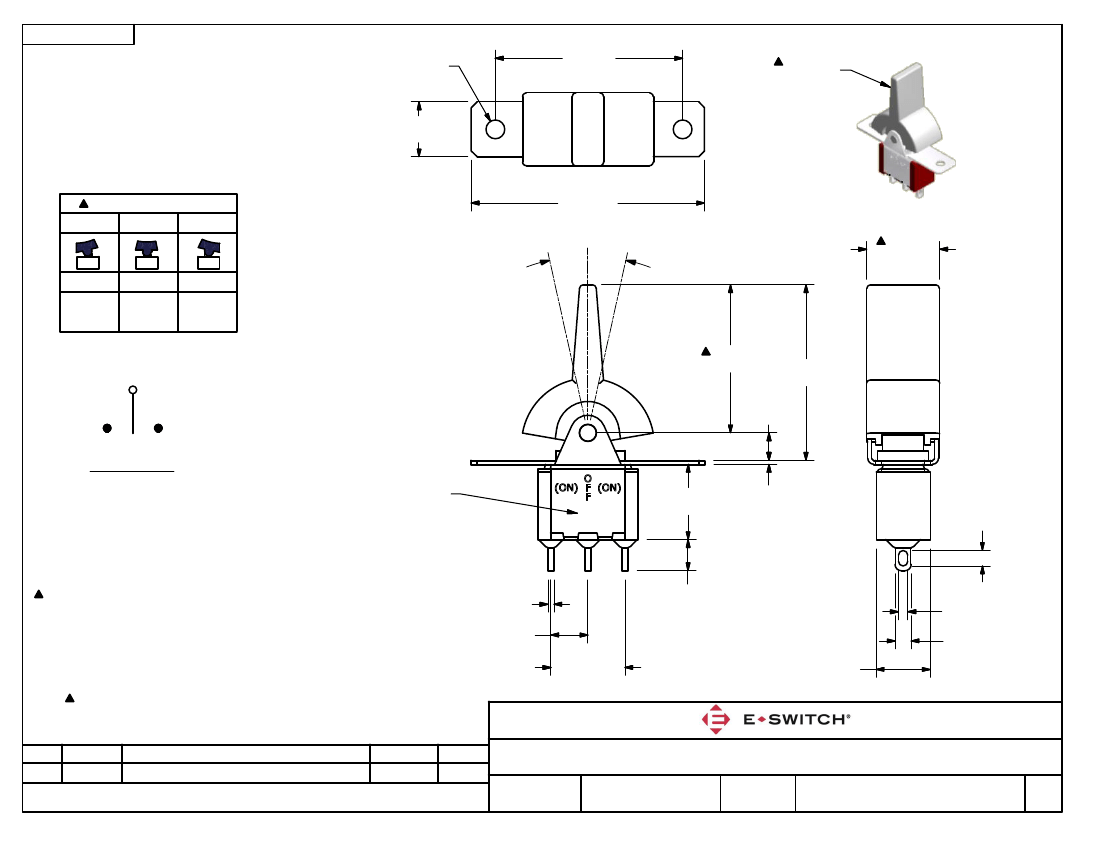

SHEET 1 OF 1
2.40
[.094 in]
23.80
[.937 in]
WHITE
ACTUATOR
6.98
[.275 in]
SWITCH FUNCTION
POS. 1
POS. 2
POS. 3
POS. 1
25
(ON)
2-3
OFF
OPEN
(ON)
2-1
29.63
[1.167 in]
POS. 2
POS. 3
9.27
[.365 in]
( ) = MOMENTARY
2
18.80
[.74 in]
22.3
[.88 in]
3.50
[.14 in]
1
3
CIRCUIT: SPDT
E-SWITCH
MARKING ON
OPPOSITE SIDE
NOTE:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X = 0.4
X.XX = 0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. PLATING MATERIAL: SILVER
5. RATING: 2 AMPS @250VAC
5 AMPS @120VAC OR 28VDC
6. ELECTRIC LIFE: 50,000 make-and-break cycles
at full load.
7. INSULATION RESISTANCE: 1,000 Mega-ohm min.
8. DIELECTRIC STRENGTH: 1,000 V RMS @sea level.
9. OPERATING TEMP.: -30 C to 85 C
10.
DENOTES CRITICAL PARAMETER.
11. 2011/65/EU (ROHS) COMPLIANT
9.56
[.38 in]
.50
[.02 in]
1.98
[.078 in]
1
.76
[.030 in]
4.70
[.185 in]
2
3
3.96
[.156 in]
3
1.19
[.047 in]
2.03
[.080 in]
9.40
[.370 in]
6.86
[.270 in]
A
REV
23182
PCR NO
RELEASED FOR PRODUCTION
DESCRIPTION
1/29/18
DATE
MW
BY
TITLE
SCALE
300SP4R2WHTM1QE (White Actuator)
DATE
DR
DWG
REV
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
2:1
1/24/2018
MW
T314070
A
