HD74LS374RP-EL datasheet, PDF - EEWORLD Datasheet

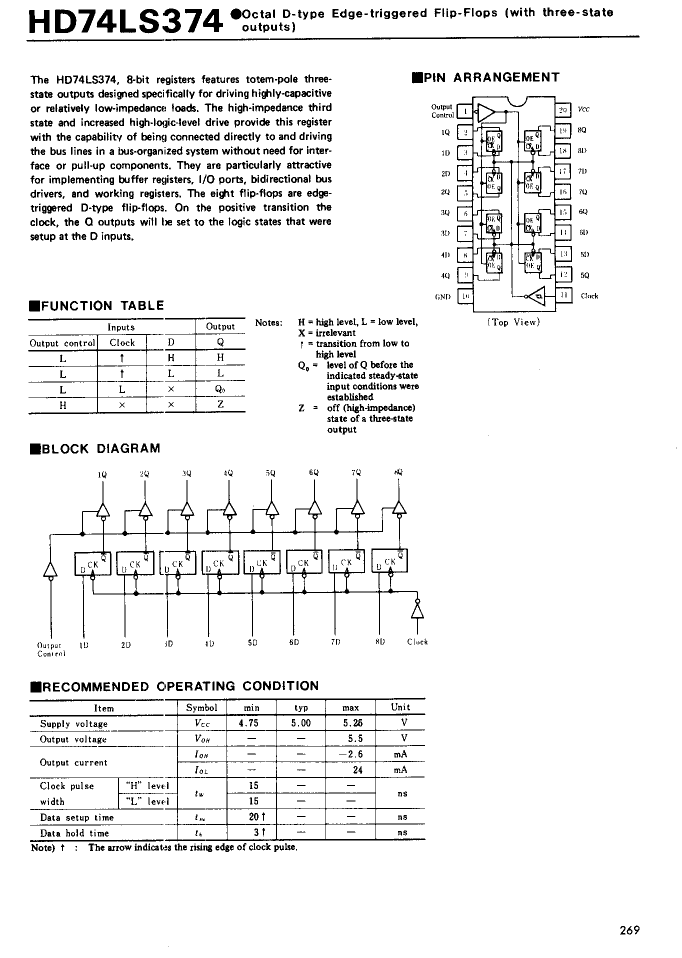

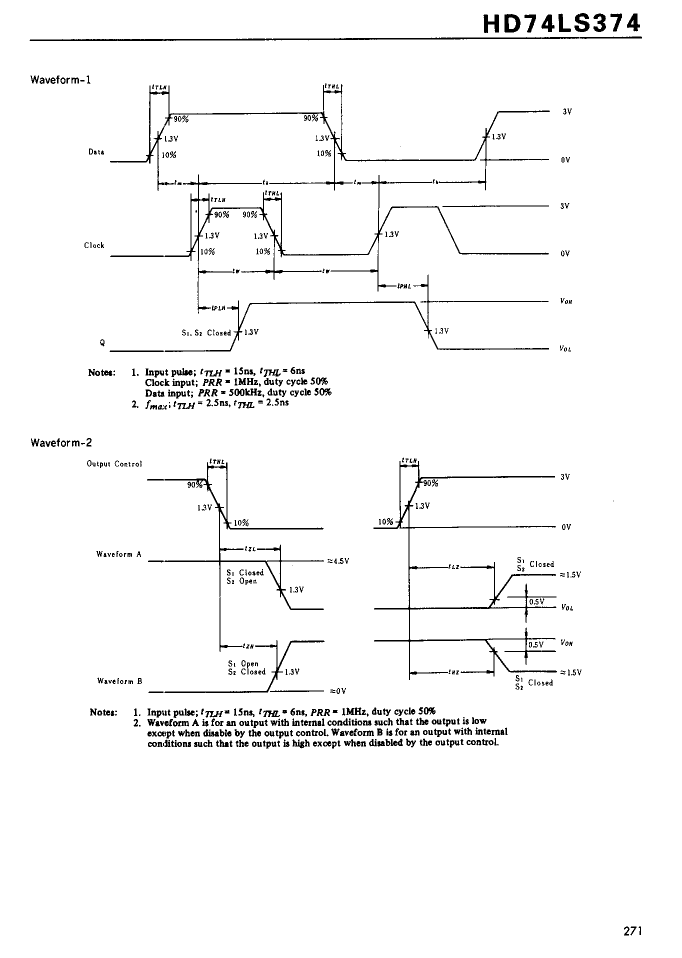

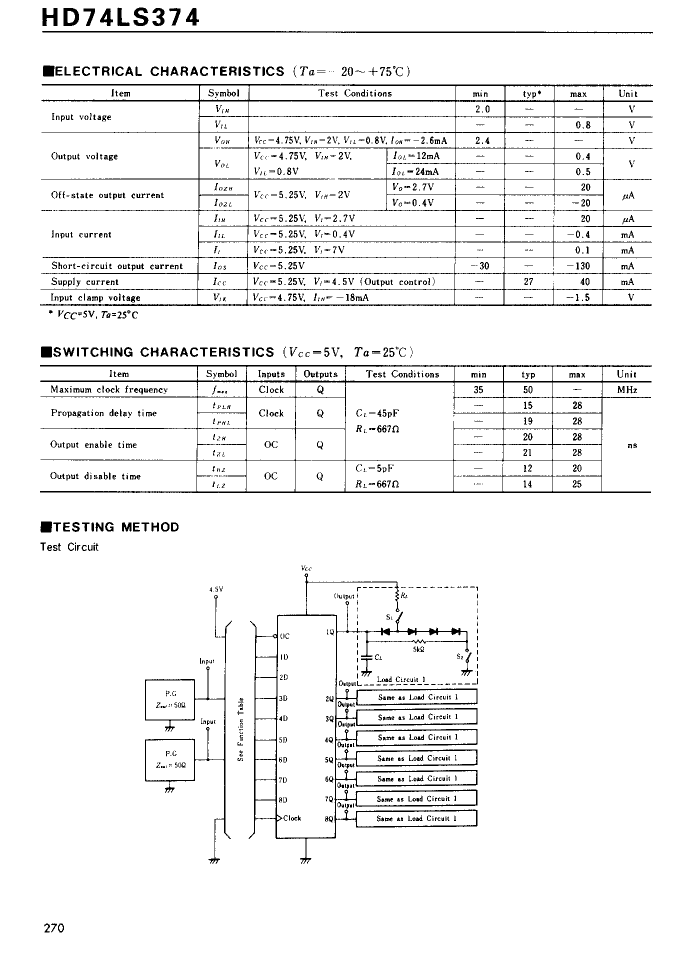

HD74LS374RP-EL: DescriptionBus Driver, LS Series, 1-Func, 8-Bit, True Output, TTL, PDSO20, FP-20DB; Categorylogic logic; File Size87KB，7 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

HD74LS374RP-EL Overview

Bus Driver, LS Series, 1-Func, 8-Bit, True Output, TTL, PDSO20, FP-20DB

Parameter Name	Attribute value
Maker	Hitachi （Renesas ）
Parts packaging code	SOIC
package instruction	SOP,
Contacts	20
Reach Compliance Code	unknown
series	LS
JESD-30 code	R-PDSO-G20
length	12.8 mm
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	28 ns
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.5 mm
Base Number Matches	1

	HD74LS374RP-EL	HD74LS374FP-EL
Description	Bus Driver, LS Series, 1-Func, 8-Bit, True Output, TTL, PDSO20, FP-20DB	Bus Driver, LS Series, 1-Func, 8-Bit, True Output, TTL, PDSO20, FP-20DA
Maker	Hitachi （Renesas ）	Hitachi （Renesas ）
Parts packaging code	SOIC	SOIC
package instruction	SOP,	SOP,
Contacts	20	20
Reach Compliance Code	unknown	unknown
series	LS	LS
JESD-30 code	R-PDSO-G20	R-PDSO-G20
length	12.8 mm	12.6 mm
Logic integrated circuit type	BUS DRIVER	BUS DRIVER
Number of digits	8	8
Number of functions	1	1
Number of ports	2	2
Number of terminals	20	20
Maximum operating temperature	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C
Output characteristics	3-STATE	3-STATE
Output polarity	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
propagation delay (tpd)	28 ns	28 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.65 mm	2.2 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	TTL	TTL
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
width	7.5 mm	5.5 mm
Base Number Matches	1	1
