84CNQ035SM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 84CNQ035SM

84CNQ035SM: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 35V V(RRM), Silicon, PLASTIC, PRM2-SM, 3 PIN; CategoryDiscrete semiconductor diode; File Size135KB，4 Pages; ManufacturerSENSITRON; Websitehttp://www.sensitron.com/

Download Datasheet Parametric Compare View All

84CNQ035SM Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 35V V(RRM), Silicon, PLASTIC, PRM2-SM, 3 PIN

84CNQ035SM Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	R-PSIP-T3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HIGH RELIABILITY, FREEWHEELING DIODE
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.44 V
JESD-30 code	R-PSIP-T3
JESD-609 code	e0
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	750 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output current	80 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	35 V
surface mount	NO
technology	SCHOTTKY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

SENSITRON

SEMICONDUCTOR

Technical Data

Data Sheet

2960,

Rev. -

•

• • !" •

•

#$%&

" '

( '" ) "" * " '" " "

' "

" "

*, "

-" * " " ' "!

* ( '" * ( "."

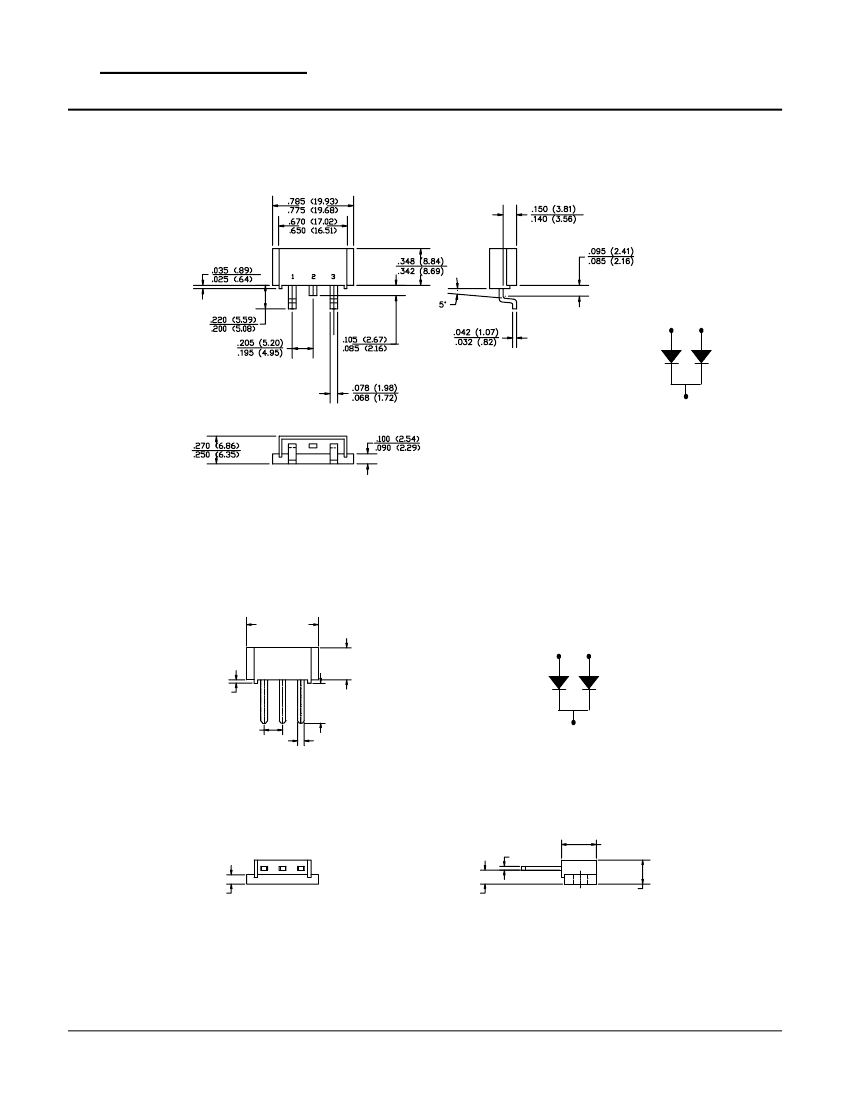

Case styles

/012

PRM2

/012

PRM2-SL

/0124

PRM2-SM

4" " ' 5 6 ''

•

!631

!"#631•

•

$ % &'%()*++,,,- %

-./•01%$"

$2 %

-./•

84CNQ035SM Related Products

	84CNQ035SM	84CNQ040SM	84CNQ045	84CNQ045SM
Description	Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 35V V(RRM), Silicon, PLASTIC, PRM2-SM, 3 PIN	Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 40V V(RRM), Silicon, PLASTIC, PRM2-SM, 3 PIN	Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 45V V(RRM), Silicon, PLASTIC, PRM2, 3 PIN	Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 45V V(RRM), Silicon, PLASTIC, PRM2-SM, 3 PIN
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
package instruction	R-PSIP-T3	R-PSIP-T3	R-PSFM-T3	R-PSIP-T3
Contacts	3	3	3	3
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	HIGH RELIABILITY, FREEWHEELING DIODE	HIGH RELIABILITY, FREEWHEELING DIODE	HIGH RELIABILITY, FREEWHEELING DIODE	HIGH RELIABILITY, FREEWHEELING DIODE
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.44 V	0.44 V	0.44 V	0.44 V
JESD-30 code	R-PSIP-T3	R-PSIP-T3	R-PSFM-T3	R-PSIP-T3
Humidity sensitivity level	1	1	1	1
Maximum non-repetitive peak forward current	750 A	750 A	750 A	750 A
Number of components	2	2	2	2
Phase	1	1	1	1
Number of terminals	3	3	3	3
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	80 A	80 A	80 A	80 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	FLANGE MOUNT	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	35 V	40 V	45 V	45 V
surface mount	NO	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1	1	1
JESD-609 code	e0	e0	-	e0
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
