Document 383-1

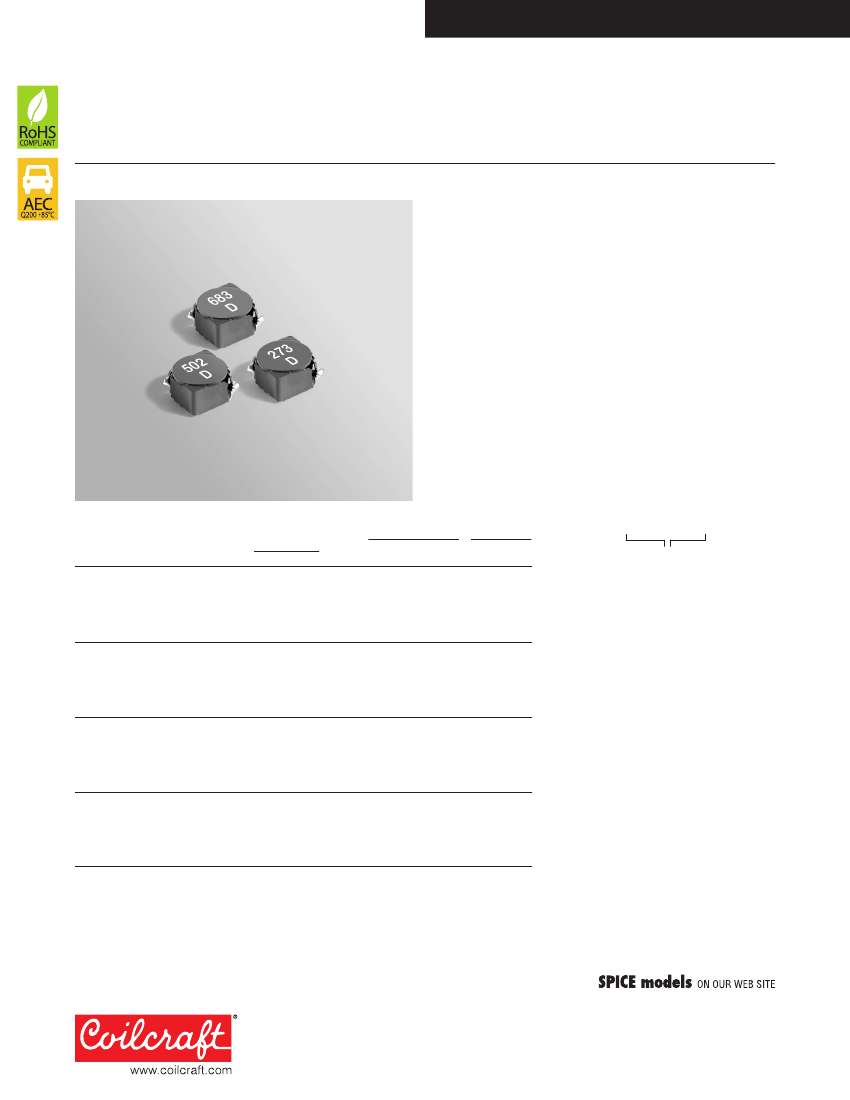

Shielded Power Inductors – MSS7341
• 6.6 × 6.6 mm footprint; 4.1 mm high shielded inductors
• Low DCR and excellent current handling
Designer’s Kit C385
contains 3 each of all values.
Core material
Ferrite
Core and winding loss
See www.coilcraft.com/coreloss
Terminations
RoHS compliant matte tin over nickel over phos
bronze (current production) or gold over nickel over phos bronze (prior
production). Other terminations available at additional cost.
Weight:
0.61 – 0.67 g
Ambient temperature
–40°C to +85°C with
Irms
current, +85°C to
+125°C with derated current
Storage temperature
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
1200/13″ reel; Plastic tape: 16 mm wide, 0.35 mm thick,
12 mm pocket spacing, 4.5 mm pocket depth
PCB washing
Tested with pure water or alcohol only. For other solvents,
see Doc787_PCB_Washing.pdf.
Part number
1
MSS7341-332NL_
MSS7341-502NL_
MSS7341-622NL_
MSS7341-742NL_
MSS7341-872NL_
MSS7341-103ML_
MSS7341-123ML_
MSS7341-153ML_
MSS7341-183ML_
MSS7341-223ML_
MSS7341-273ML_
MSS7341-333ML_
MSS7341-393ML_
MSS7341-473ML_
MSS7341-563ML_
MSS7341-683ML_
MSS7341-823ML_
MSS7341-104ML_
MSS7341-224ML_
MSS7341-474ML_
MSS7341-684KL_
Inductance
2
(µH)
3.3 ±30%
5.0 ±30%
6.2 ±30%
7.4 ±30%
8.7 ±30%
10 ±20%
12 ±20%
15 ±20%
18 ±20%
22 ±20%
27 ±20%
33 ±20%
39 ±20%
47 ±20%
56 ±20%
68 ±20%
82 ±20%
100 ±20%
220 ±20%
470 ±20%
680 ±10%
DCR
Isat
(A)
4
Irms
(A)
5
SRF
(Ohms)
typ
3
10% 20% 30% 20°C 40°C
typ
max (MHz) drop drop drop rise rise
0.014
0.018
0.024
0.027
0.029
0.032
0.040
0.047
0.065
0.074
0.091
0.104
0.115
0.127
0.174
0.236
0.257
0.286
0.660
1.21
1.85
0.018
0.023
0.027
0.031
0.034
0.038
0.050
0.055
0.075
0.082
0.109
0.124
0.130
0.155
0.202
0.250
0.290
0.310
0.710
1.45
1.98
85
49
42
35
33
32
27
26
25
22
19
17
15
14
11
9.6
8.5
7.2
5.0
3.0
2.5
2.74
2.30
2.18
1.92
1.78
1.64
1.48
1.36
1.20
1.02
1.00
0.91
0.85
0.74
0.68
0.62
0.57
0.54
0.35
0.24
0.22
3.28
2.82
2.66
2.32
2.12
1.92
1.76
1.60
1.46
1.26
1.14
1.04
1.01
0.92
0.80
0.73
0.66
0.64
0.41
0.28
0.27
3.72
3.16
2.98
2.56
2.36
2.10
1.92
1.78
1.62
1.42
1.22
1.16
1.12
1.00
0.87
0.80
0.72
0.71
0.47
0.32
0.29
3.95
3.40
3.05
2.80
2.80
2.80
2.45
2.05
1.85
1.70
1.50
1.50
1.50
1.50
1.25
1.00
1.00
0.90
0.57
0.43
0.42
5.00
4.70
4.30
4.10
3.90
3.80
3.30
3.00
2.65
2.35
2.10
1.95
1.90
1.85
1.60
1.35
1.25
1.15
0.78
0.57
0.56
1. Specify
termination
and
packaging
codes:
MSS7341-224MLD
Termination: L
= RoHS compliant matte tin
over nickel over phos bronze
(current production) or gold
over nickel over phos bronze
(prior production)
Special order:
T
= RoHS tin-silver-copper
(95.5/4/0.5) over gold over
nickel over phos bronze or
S
= non-RoHS tin-lead
(63/37) over gold over
nickel over phos bronze.
Packaging: D
= 13″ machine-ready reel.
EIA-481 embossed plastic
tape (1200 parts per full reel).
B
= Less than full reel. In tape,
but not machine ready.
To have a leader and trailer
added ($25 charge), use
code letter D instead.
2. Inductance measured at 100 kHz, 0.1 Vrms,
0 Adc using a Coilcraft SMD-A fixture in an
Agilent/HP 4263B LCR meter.
3. SRF measured using an Agilent/HP 8753D
network analyzer and a Coilcraft SMD-D test
fixture.
4. DC current at which the inductance drops the
specified amount from its value without current.
5. Current that causes the specified temperature
rise from 25°C ambient.
6. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount
Components” before soldering.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 383-1
Revised 11/04/11
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 383-2
Shielded Power Inductors – MSS7341

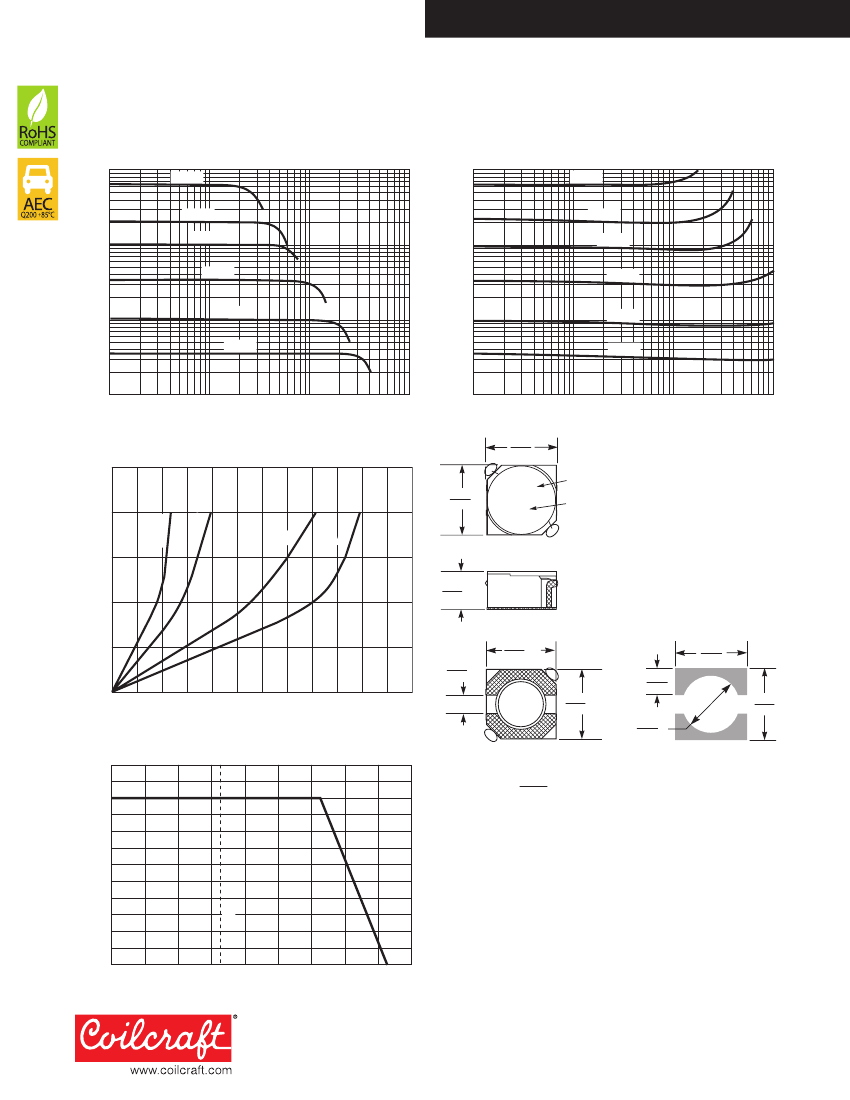

Typical L vs Current
1000
680 µH
220 µH
Typical L vs Frequency
1000
680 µH
220 µH
Inductance (µH)
100
Inductance (µH)
100 µH
33 µH
100
100 µH
33 µH
10
10 µH
3.3 µH
10
10 µH
3.3 µH
1
0.01
0.1
1
10
1
0.01
0.1
1
10
Current (A)
Frequency (MHz)
0.287
*
7,3
Typical Temperature Rise vs Current
50
Temperature rise (from 25°C)
100 µH
33 µ
H
3.3 µ
H
40
0.287
*
7,3
10
µH
123
X
Dash number
Internal code
Parts manufactured prior
to Sept. 2007 were marked
with only the dash number.
*
Dimensions are of the case not
including the termination. For
maximum overall dimensions
including the termination, add
0.02 in / 0,51 mm.
30
0.161 max
4,1
20
10
0.083 typ
2,1
0.260
typ
6,6
0.280
7,1
0.099
2,5
0.260
typ
6,6
0
0
1.0
2.0
3.0
4.0
5.0
6.0
Current (A rms)
0.280
7,1
0.222
∅
5,65
Irms Derating
120
110
100
Dimensions are in
inches
mm
Recommended
Land Pattern
Percent of rated
I
rms
90
80
70
60
50
40
30
20
10
0
-40
-20
0
20
25°C
40
60
80
100
120 140
Ambient temperature (°C)
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 383-2
Revised 11/04/11
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
