MLL14KESD5.0 thru MLL14KESD170A, e3
SURFACE MOUNT TVS
SCOTTSDALE DIVISION
DESCRIPTION
These surface mount Transient Voltage Suppressor (TVS) devices feature
the ability to clamp dangerous high voltage short-term transients such as
produced by direct or radiated electro-static discharge phenomena before
entering sensitive component regions of a circuit design. They are small
economical TVSs targeted primarily for short term transients below a few
microseconds while still achieving significant peak-pulse-power capability
as seen in Figure 1.
APPEARANCE
WWW .
Microsemi
.C
OM
DO-213AB
IMPORTANT:
For the most current data, consult
MICROSEMI’s
website:
http://www.microsemi.com
FEATURES
•
Excellent protection in clamping direct ESD level
transients in excess of 40,000 V per MIL-STD-750,
Method 1020 (approx. 150 ns exponential wave)
•
Absorbs ESD level transients of 14,000 Watts per MIL-
STD-750, Method 1020 (approximately 150 ns
exponential wave, or one microsecond transients up to
4000 watts. See Figure #1 and #2 for overall transient
Peak Pulse Power.
•
Clamps Transients in less than 100 picoseconds
•
Working Stand-off Voltage range of 5V to 170V
•
Hermetic DO-213AB package. Also available in axial-
leaded DO-41package (see separate data sheet for
14KESD5.0 series)
•
RoHS Compliant devices available by adding “e3” suffix
APPLICATIONS / BENEFITS
•
Protects Sensitive circuits from short duration fast
rise time transients such as Electrostatic Discharge
(ESD) or Electrical Fast Transients (EFT)
•
Minimal capacitance (See Figure #3)
•
Small surface-mount footprint for high density
mounting
•
Bidirectional features available by adding a “C” or
“CA” suffix to part number
MAXIMUM RATINGS
•
4000 Watts for One Microsecond Square Wave or
14,000 watts per ESD Wave form of MIL-STD-750,
method 1020.
•
See Surge Rating curve in Figures #1 and 2.
•
Operating and storage temperature –65
o
C to 175
o
C
º
•
Thermal Resistance: 40 C/W junction to end cap, or
120
º
C/W junction to ambient when mounted on FR4
PC board (1 oz Cu) with recommended footprint (see
last page)
•
Steady-State Power: 1.50 watts at T
EC
< 115
o
C, or
1.25 watts at T
A
= 25
º
C when mounted on FR4 PC
board and recommended footprint as described for
thermal resistance (also see Figure 1)
•
Derate at 22.8 W/
o
C above 25
o
C for P
PP
(1μs) and at
o
o
15 mW/ C above 75 C for dc power.
•
Forward Surge Current 500 amps for 1μs at T
L
=
25
o
C (rise time > 100 ns).
MECHANICAL AND PACKAGING
•
CASE: Hermetically sealed DO-213AB glass MELF
package
•
FINISH: End caps are tin-lead or RoHS compliant
matte-Tin plated solderable per MIL-STD-750,
method 2026
•
POLARITY: Cathode indicated by band.
•
MARKING: Cathode band only
•
TAPE & REEL optional: Standard per EIA-481-B
with 12 mm tape, 1500 per 7 inch reel or 5000 per
13 inch reel (add “TR” suffix to part number)
•
WEIGHT: 0.05 grams
•
See package dimensions on last page
MLL14KESD5.0 thru
MLL14KESD170A
Copyright
©
2006
3-29-2006 REV B
Microsemi
Scottsdale Division
8700 E. Thomas Rd. PO Box 1390, Scottsdale, AZ 85252 USA, (480) 941-6300, Fax: (480) 947-1503
Page 1
MLL14KESD5.0 thru MLL14KESD170A, e3
SURFACE MOUNT TVS
SCOTTSDALE DIVISION
TYPE NUMBER
MLL14KESD45A
MLL14KESD48
MLL14KESD48A
MLL14KESD51
MLL14KESD51A
MLL14KESD54
MLL14KESD54A
MLL14KESD58
MLL14KESD58A
MLL14KESD60
MLL14KESD60A
MLL14KESD64
MLL14KESD64A
MLL14KESD70
MLL14KESD70A
MLL14KESD75
MLL14KESD75A
MLL14KESD78
MLL14KESD78A
MLL14KESD85
MLL14KESD85A
MLL14KESD90
MLL14KESD90A
MLL14KESD100
MLL14KESD100A
MLL14KESD110
MLL14KESD110A
MLL14KESD120
MLL14KESD120A
MLL14KESD130
MLL14KESD130A
MLL14KESD150
MLL14KESD150A
MLL14KESD160
MLL14KESD160A
MLL14KESD170
MLL14KESD170A
REVERSE
STAND-OFF
VOLTAGE
V
WM
VOLTS
45
48
48
51
51
54
54
58
58
60
60
64
64
70
70
75
75
78
78
85
85
90
90
100
100
110
110
120
120
130
130
150
150
160
160
170
170
BREAKDOWN
VOLTAGE V
BR
MINIMUM
V
(BR)
VOLTS
50.0
53.3
53.3
56.7
56.7
60.0
60.0
64.4
64.4
66.7
66.7
71.1
71.1
77.8
77.8
83.3
83.3
86.7
86.7
94.4
94.4
100.0
100.0
111.0
111.0
122.0
122.0
133.0
133.0
144.0
144.0
167.0
167.0
178.0
178.0
189.0
189.0
BREAKDOWN
CURRENT
I
(BR)
mA
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
MAXIMUM
STANDBY
CURRENT
I
D
@ V
WM
μA
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
MAXIMUM
CLAMPING
VOLTAGE
V
C
@ I
PP
VOLTS
79.0
88.8
84.2
94.5
89.6
100.0
94.7
107.4
101.7
111.2
105.3
118.5
112.3
129.7
122.9
139.0
131.5
144.5
136.9
157.1
148.8
166.5
158.3
185.3
175.5
203.3
192.8
222.0
210.0
240.0
227.3
278.3
264.0
297.0
281.2
315.0
298.5
PEAK PULSE
CURRENT
I
PP
**
AMPS
50.6
45.0
47.5
42.3
44.6
40.0
42.2
37.2
39.3
36.0
38.0
33.7
35.6
30.8
32.5
28.8
30.4
27.7
29.2
25.4
26.9
24.0
25.3
21.6
22.8
19.7
20.7
18.0
19.0
16.7
17.6
14.4
15.2
13.5
14.2
12.7
13.4
WWW .
Microsemi
.C
OM
* For bidirectional, add a “C” or “CA” suffix after the part number, e.g. MLL14KESD5.0C or MLL14KESD5.0CA for the
MLL14KESD5.0 or MLL14KESD5.0A part numbers respectively. Capacitance will be one-half that shown in Figure 3 for zero volts.
** At 4000 watts 1μs square wave rating (See Figures 1 and 2).

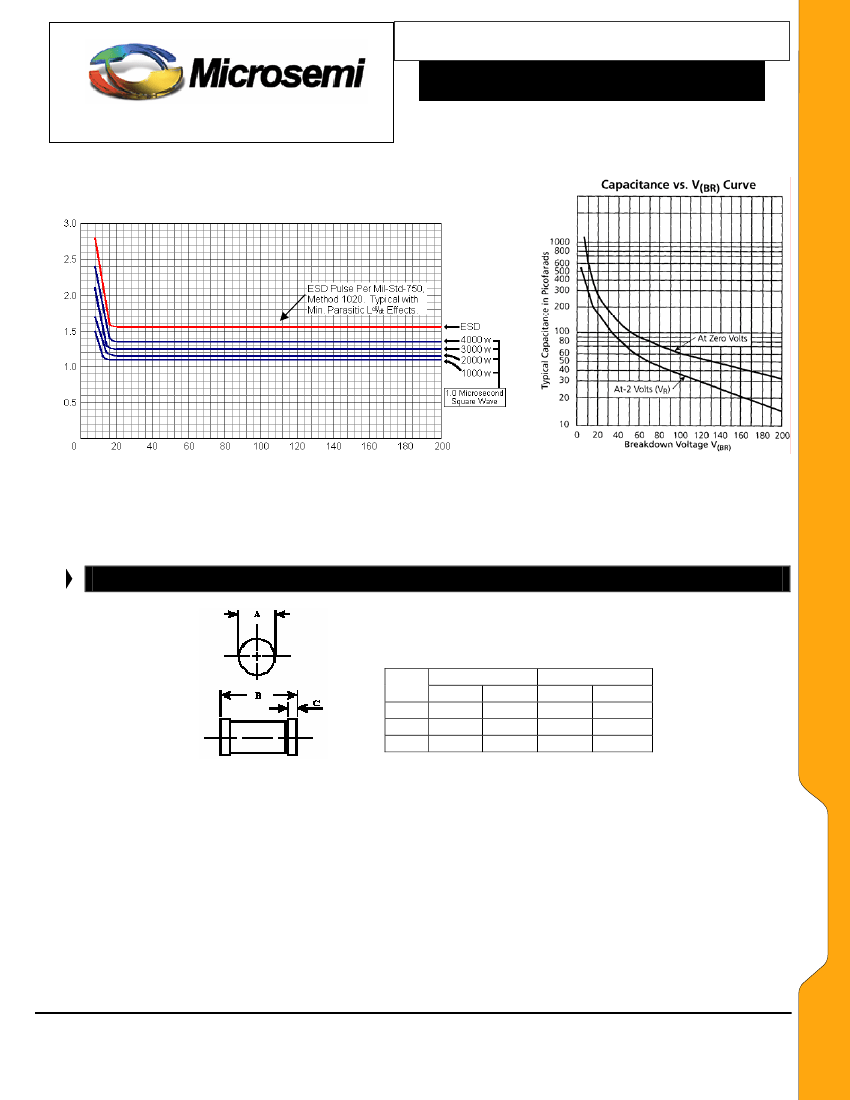

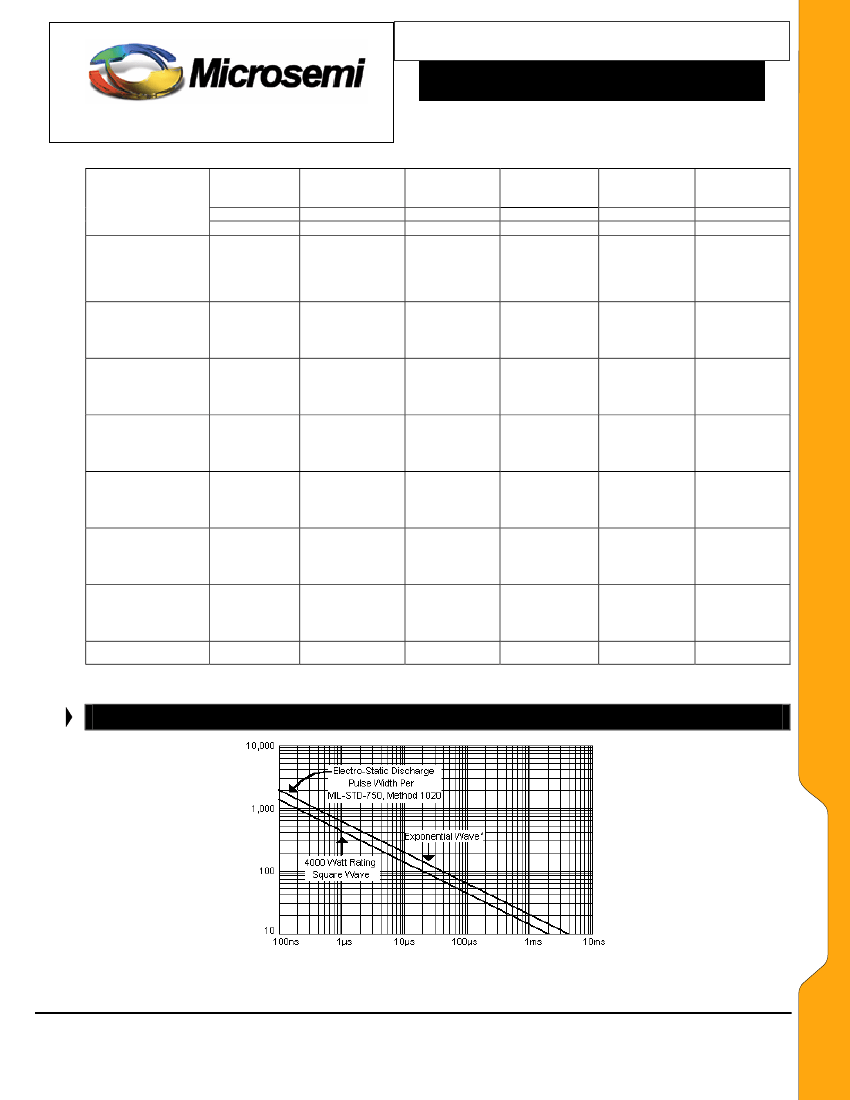

GRAPHS
P
PP
– Peak Pulse Power
MLL14KESD5.0 thru
MLL14KESD170A
tp – Pulse Time
FIGURE 1
Peak Pulse Power vs. Pulse Width
(*Exponential Wave Form Pulse Width to 50% Decay of Peak.)
Copyright
©
2006
3-29-2006 REV B
Microsemi
Scottsdale Division
8700 E. Thomas Rd. PO Box 1390, Scottsdale, AZ 85252 USA, (480) 941-6300, Fax: (480) 947-1503
