EURO
QUARTZ
FEATURES
·
·
·
·
·
Industry-standard 14 pin DIL package
Frequency Range 125MHz to 200MHz
High frequency range at low cost
Supply voltage 2.5V or 3.3Volts
Tristate function option to conserve power
HV14 Series Oscillators
14 pin DIL High Frequency HCMOS Clock Oscillator
DESCRIPTION
HV14 series oscillators are designed to provide a high quality HCMOS
output at high frequencies from 125MHz to 200MHz. Phase and RMS
period jitter are kept within low limits. An enable/disable function is
standard and the oscillator may also be specified with a power down
function.
SPECIFICATION
Frequency Range:
Output Logic:
Phase Jitter:
RMS Period Jitter:
Frequency Stability
Commercial:
Industrial:
Input Voltage:
Output Voltage
High '1':
Low '0':
Rise/Fall Time:
Current Consumption:
Load:
Start-up Time:
Duty Cycle:
Input Static
Discharge Protection:
Ageing:
125.0MHz to 200.0MHz
HCMOS
3.5ps typical
4.0ps typical
±25ppm to ±100ppm -10° to +70°C
±25ppm to ±100ppm -40° to +85°C
+2.5V to +3.3VDC ±10%
+2.97V minimum
+0.33 V maximum
0.25ns typical, 0.5ns max.
(20%Vdd to 80%Vdd)
80mA typical (Frequency dependent)
15pF
5ms typical, 10ms maximum
50% ±5% (Measured at Vdd-1.3V)
2kV maximum
±2pmm per year maximum

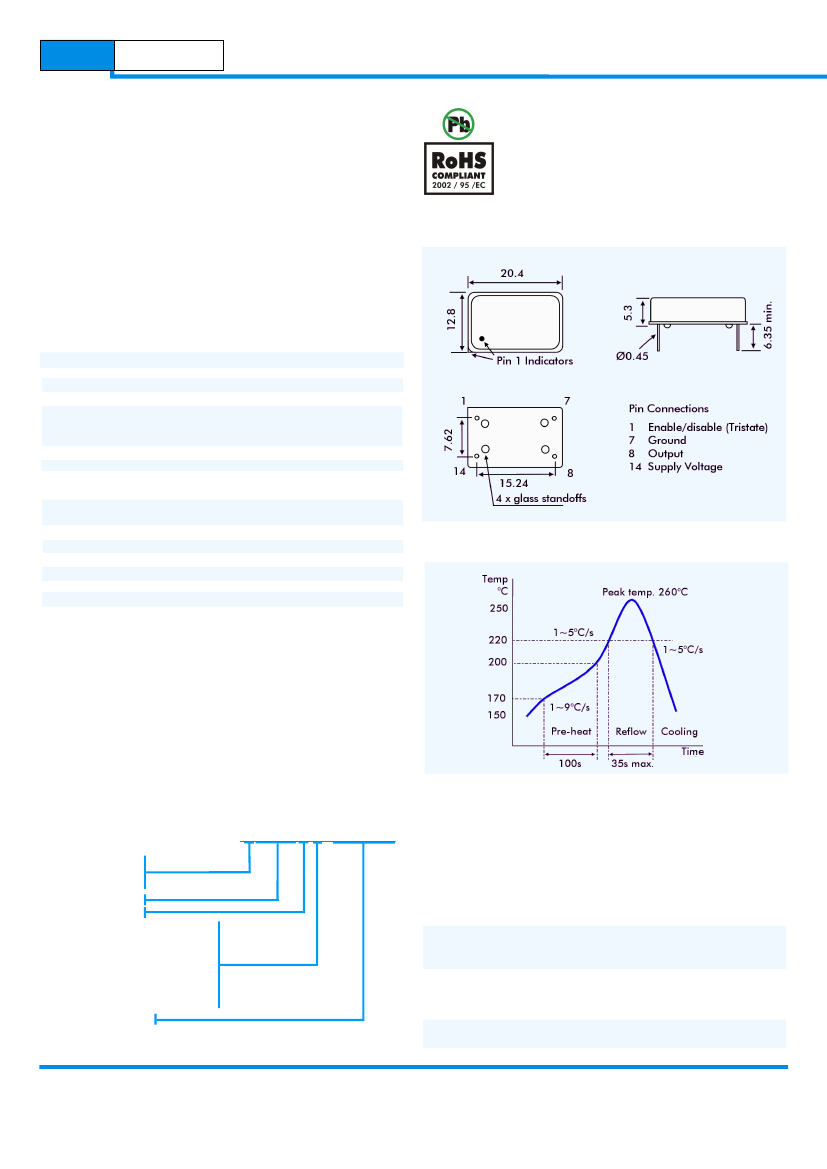

OUTLINE & DIMENSIONS
SOLDER TEMPERATURE PROFILE
ABSOLUTE MAXIMUM RATINGS
Permanent damage may occur if units are operated beyond
specified limits.
Supply Voltage:
+4.6 VDC max.
Input Voltage Vi:
Vss-0.5 min., Vdd +0.5V max.
Input Voltage Vo:
Vss-0.5 min., Vdd +0.5V max.
PART NUMBER SCHEDULE
Example:
Supply Voltage
25 = 2.5 Volts
3 = 3.3 Volts
Series Designation
RoHS Compliance
Stability Code
A = ±25ppm -10°~+70°C
B = ±50ppm -10°~+70°C
C = ±100ppm -10°~+70°C
D = ±25ppm -40°~+85°C
E = ±50ppm -40°~+85°C
F = ±100ppm -40°~+85°C
Nominal Frequency:
3HV14GC-150.000
TRISTATE
DISABLE
Output is disabled when Pin 1 is taken below
0.3 Vcc referenced to ground
Oscillator is continues to run.
Oscillator is enable when Pin 1 is taken above
0.7 Vcc referenced to ground.
Available by special request: Oscillator shuts down
when disabled.
ENABLE
POWER DOWN
