2.5mm Pitch Connector for Discrete Wire Connection
HNC Series
sFeatures

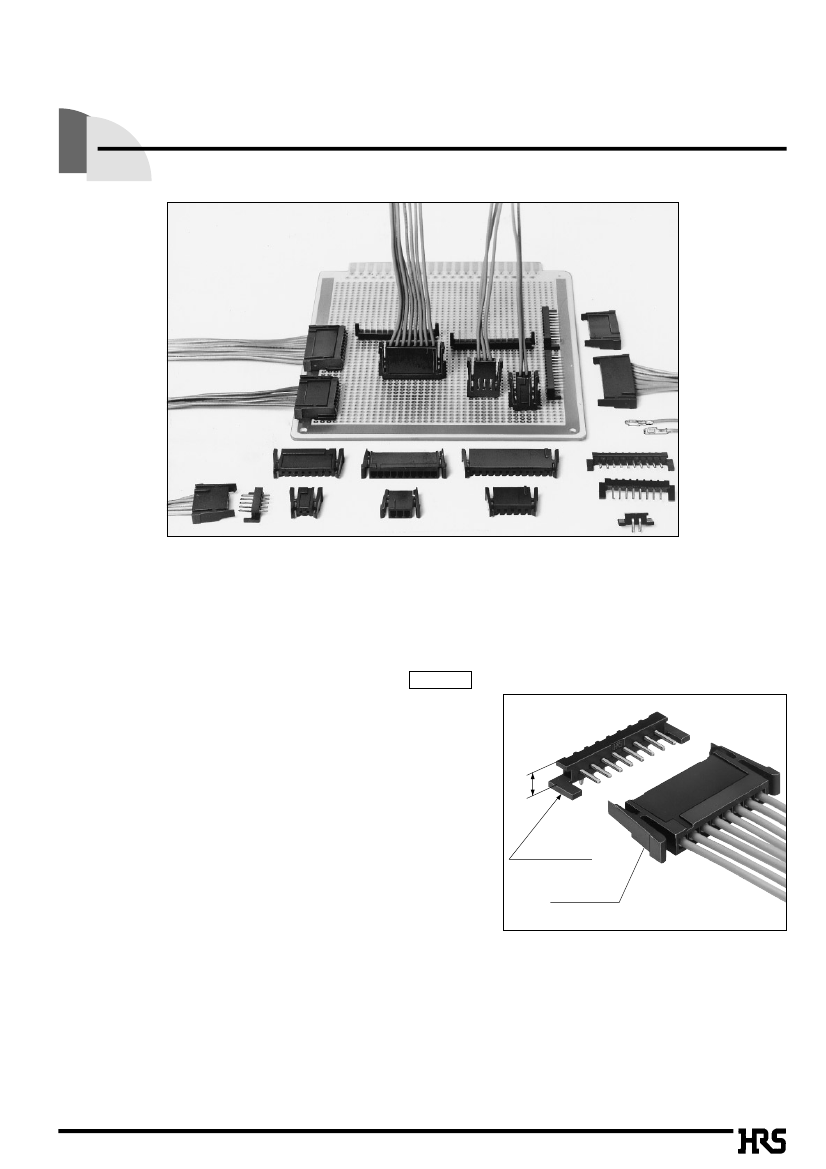

1. Full Lock Mechanism
The connector is equipped with the full lock mechanism so as not be removed, unless locks are reset on both sides. This mechanism is
activated effectively to prevent cable hooking or mis-insertion.
2. Thin Type Connector
Mounting height when the connector is used at the right angle
:
4.5mm
3. Mechanism to Prevent Mis-insertion
This thin type connector is equipped with the mechanism to prevent mis-
insertion.
Thickness
4.5mm
4. Tin Plating and Gold Plating Variation
Two kinds of tin plating and gold plating types are available, and can be
chosen according to application. The tin plating is also set to a light operating
touch.
Mechanism
to prevent
false-insertion
Full lock
mechanism
sApplications
Various business equipment, financial terminals
B139
sProduct
Specifications
AWG 22 : 3A
Current rating
Rating
(Note1)
AWG 24 : 3A
AWG 26 : 2A
AWG 28 : 1A
AWG 30 : 0.5A
Voltage rating
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
5. Vibration
1000M
ohms
min.
No flashover or insulation breakdown.
30m
ohms
Max
No electrical discontinuity of 1µs or more
250V AC
Specification
500V DC
1000V AC/1 minute
1A
Measure at the square steel pin of 0.635±0.002mm
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
(-25ç: 30 minutes
➝
5
to
35ç: 10 minutes
(-85ç:
30 minutes
➝
5
to
35ç: 10 minutes) 5 cycles
Tin plating
: 30 cycles
Gold plating : 50 cycles
Flow: 250ç for 5 seconds
Manual soldering: 300ç for 2 seconds
Operating Temperature Range
Operating Moisture Range
Storage Temperature Range
Storage Moisture Range
-25 to +85ç
(Note2)
-40
to 80%
-10 to +60ç
(Note3)
-40
to 70%
(Note3)
Condition
4. Insertor/Extraction Force 0.4N (40gf) min.,4.4N (450gf) max.
6.
Humidity (Steady state)
Contact resistance: 10m
ohms
max.Insulation resistance: 1000M
ohms
min.
96 hours at temperature of 40ç and humidity of 90% to 95%
7. Temperature Cycle
Contact resistance: 10m
ohms
max:Insulation resistance: 1000M
ohms
min.
8. Durability (Mating/un-mating) Contact resistance: 20m
ohms
max.
9. Resistance to Soldering heat
No deformation of components affecting performance.
Note 1:
The rated current will be changed according to cable sizes for use. The header rating only t is 3A.
Note 2: Includes temperature rise caused by current flow.
Note 3: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range
and Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
sMaterial
Product
Crimping Socket
Contact
Pin Header
Part
Insulator
Contact
Insulator
Contact
Material
Polyamide
Phosphor Copper
Polyamide
Brass
Finish
Black
Tin plated or gold plated
Black
Tin plated or gold plated
Remarks
UL94V-0
–––––
UL94V-0
–––––
sOrdering
Information
qCrimping
Plug
HNC 2 - 2.5 P -
*
DSL
q
q
Series Name
w
Series No.
e
Contact Pitch
r
Connector Type
S : Socket
P : Pin Header
w
: HNC
: 2, 1
: 2.5mm
e
r
t
y
t
Number of Contacts : 2
to
16, 18, 20
y
Contact Type
None : Crimping socket
DS
: Straight
DSL : Right angle
qContact
HNC2 - 2.5S - C - A
q
q
Type: 2.5mm pitch socket
w
Packaging Type
C : Reel
PC : Bag
w
e
e
Applicable cable size
A
: AWG22 to 26
B
: AWG26 to 30
B140
sCrimping
Socket

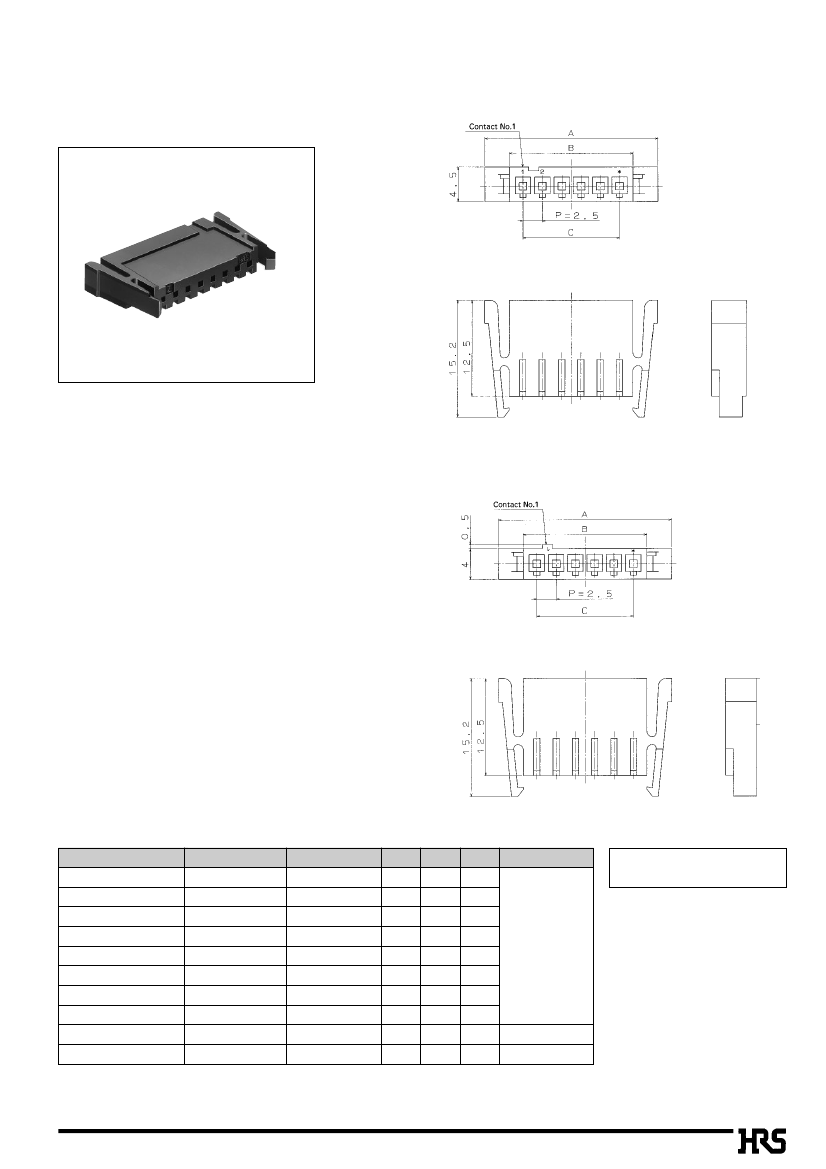

[Figure 1]
[Figure 2]
Unit: mm
Part Number
HNC2-2.5S- 2(**)
HNC2-2.5S- 3(**)
HNC2-2.5S- 4(**)
HNC2-2.5S- 5(**)
HNC2-2.5S- 6(**)
HNC2-2.5S- 7(**)
HNC2-2.5S- 8(**)
HNC2-2.5S-10(**)
HNC1-2.5S-12(**)
CL No.
218-0011-1-**
218-0022-8-**
218-0039-0-**
218-0027-1-**
218-0042-5-**
218-0030-6-**
218-0014-0-**
218-0017-8-**
218-0008-7-**
Number of Contacts
2
3
4
5
6
7
8
10
12
A
12.4
14.9
17.4
19.9
22.4
24.9
27.4
32.4
37
B
6
8.5
11
13.5
16
18.5
21
26
31
C
2.5
5
7.5
10
12.5
15
17.5
22.5
27.5
Figure 2
Figure 1
Dimensions
[Specific No.]
–
* *
,
(*
*)
Blank :Bag packaging
Figure 1
15
44.9 38.5 35
HNC2-2.5S-15(**)
218-0045-3-**
Note1: Please order a quantity multiplied by 100 pcs. (Not per bag, but per pcs.)
Note2: The series name of 12 contacts connector is HNC1, and partially will be changed in the
style.
B141
sStraight
Pin Header

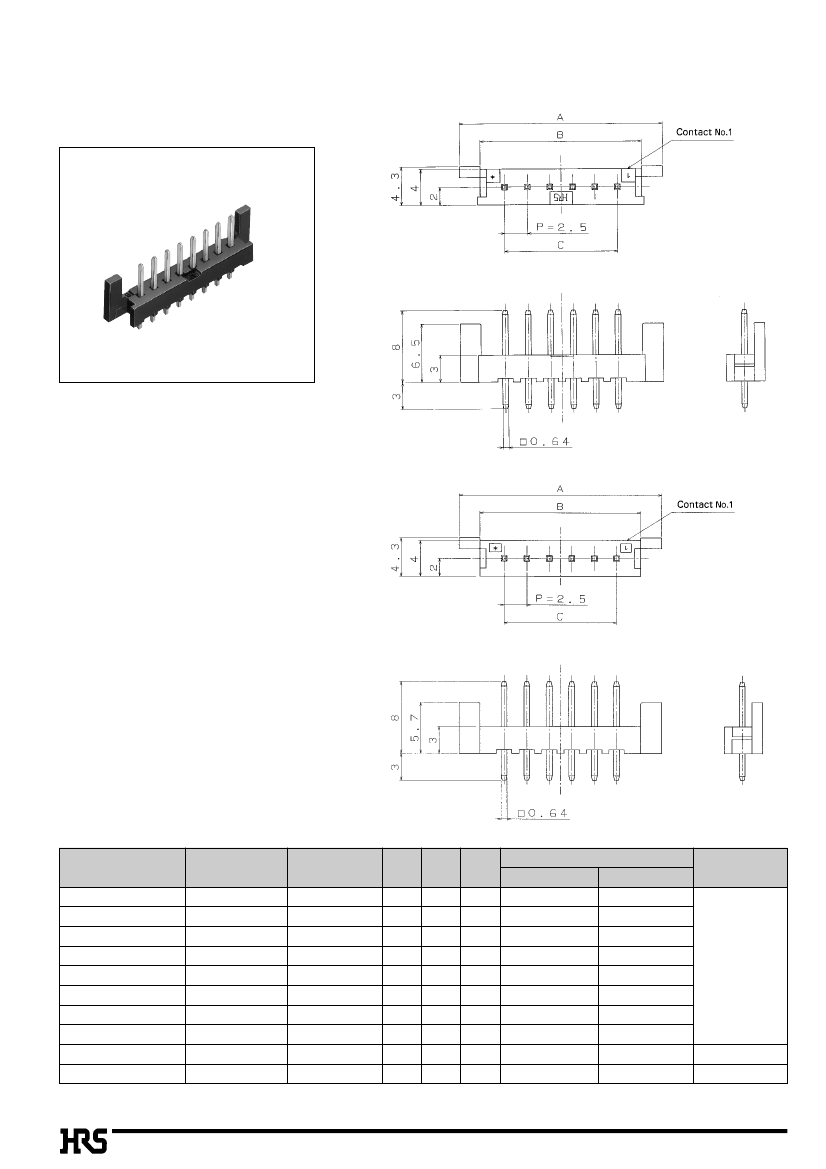

[Figure 3]
0.1
qBoard
Through-hole Diameter: ø1.1
+0
+
[Figure 4]
Unit: mm
Part Number
HNC2-2.5P- 2DS(**)
HNC2-2.5P- 3DS(**)
HNC2-2.5P- 4DS(**)
HNC2-2.5P- 5DS(**)
HNC2-2.5P- 6DS(**)
HNC2-2.5P- 7DS(**)
HNC2-2.5P- 8DS(**)
HNC2-2.5P-10DS(**)
HNC1-2.5P-12DS(**)
CL No.
218-0012-4-**
218-0023-0-**
218-0040-0-**
218-0028-4-**
218-0043-8-**
218-0031-9-**
218-0015-2-**
218-0018-0-**
218-0009-0-**
Number of Contacts
2
3
4
5
6
7
8
10
12
A
12.5
15
17.5
20
22.5
25
27.5
32.5
35.5
B
7.8
10.4
12.9
15.4
17.9
20.4
22.8
27.8
32.8
C
2.5
5
7.5
10
12.5
15
17.5
22.5
27.5
Specific No.
Tin plating
Blank
Blank
Blank
Blank
Blank
Blank
Blank
Blank
Blank
Gold plating
02
02
01
02
01
02
02
02
02
01
Figure 4
Figure 3
Figure 3
Dimensions
40.4 35
Blank
15
45
HNC2-2.5P-15DS(**) 218-0046-6-**
Note1: Please order a quantity multiplied by 100 pcs. (Not per bag, but per piece)
Note2: The series name of the 12 contacts connector is HNC1 and the style will be partially changed.
B142
sRight
Angle Pin Header

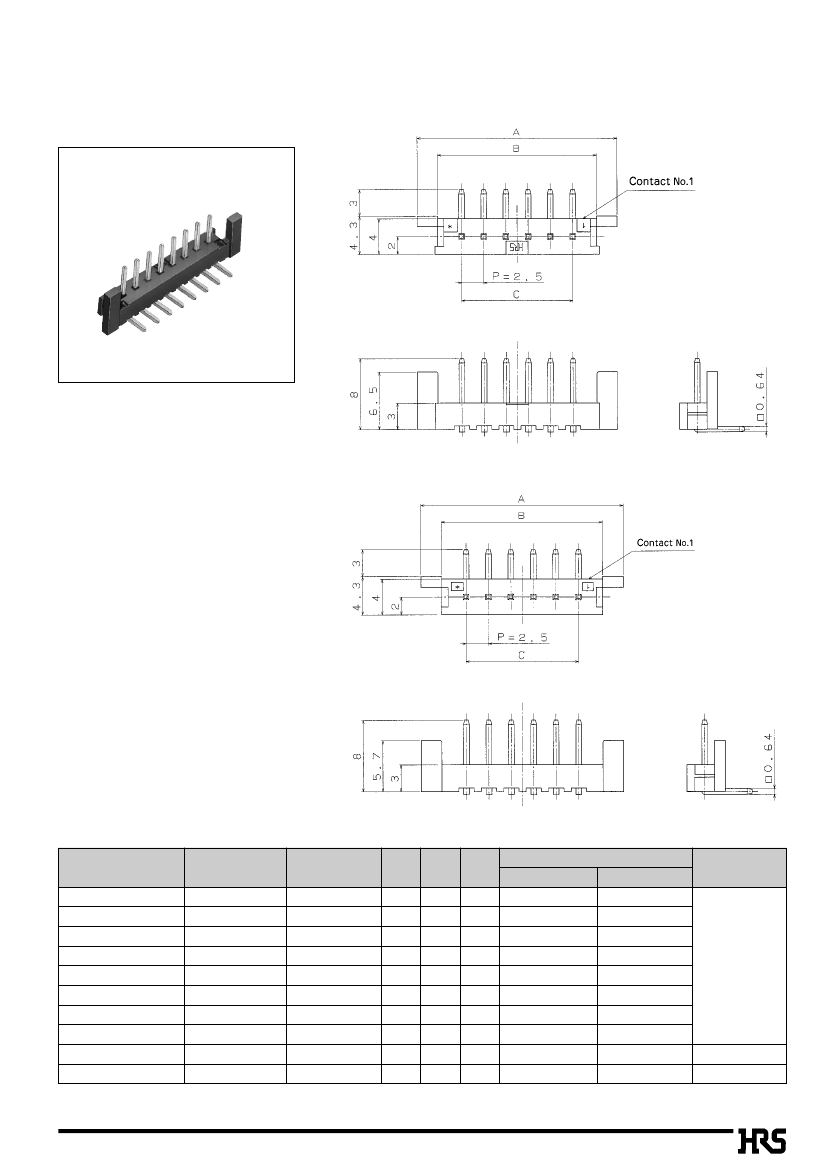

[Figure 5]
+0.1
qBoard
Through-hole Diameter: ø1.1
+0
[Figure 6]
Unit: mm
Part Number
HNC2-2.5P- 2DSL(**)
HNC2-2.5P- 3DSL(**)
HNC2-2.5P- 4DSL(**)
HNC2-2.5P- 5DSL(**)
HNC2-2.5P- 6DSL(**)
HNC2-2.5P- 7DSL(**)
HNC2-2.5P- 8DSL(**)
HNC2-2.5P-10DSL(**)
HNC1-2.5P-12DSL(**)
CL No.
218-0013-7-**
218-0024-3-**
218-0041-2-**
218-0029-7-**
218-0044-0-**
218-0032-1-**
218-0016-5-**
218-0019-3-**
218-0010-9-**
Number of Contacts
2
3
4
5
6
7
8
10
12
A
12.5
15
17.5
20
22.5
25
27.5
32.5
35.5
B
7.8
10.4
12.9
15.4
17.9
20.4
22.8
27.8
32.8
C
2.5
5
7.5
10
12.5
15
17.5
22.5
27.5
Specific No.
Tin plating
Blank
Blank
Blank
Blank
Blank
Blank
Blank
Blank
Blank
Gold plating
02
02
01
02
01
02
02
02
02
01
Figure 6
Figure 5
Figure 5
Dimensions
40.4 35
Blank
15
45
HNC2-2.5P-15DSL(**) 218-0047-9-**
Note1: Please order a quantity multiplied by 100 pcs. (Not per bag, but per piece)
Note2: The series name of the 12 contacts connector is HNC1 and the style will be partially changed.
