SMCJ1.5KE6.8(C)A
THRU
SMCJ1.5KE550(C)A
Transient
Voltage Suppressor
6.8 to 550 Volts
1500 Watt
DO-214AB
(SMC) (LEAD
FRAME)
G
Features
•
•
•
•
•
•
•
•
For surface mount applicationsin in or der to optimize
board space
Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates
Compliant. See ordering information)
Low profile package
Fast response time: typical less than 1.0ps from 0 volts to
V
BR
minimum
Halogen
free available upon request by adding suffix "-HF"
Low inductance
Excellent clamping capability
UL Recognized File # E331408
Mechanical Data
Epoxy meets UL 94 V-0 flammability rating
Moisture Sensitivity Level 1
Terminals: solderable per MIL-STD-750, Method 2026
Polarity: Color band denotesposit ive end (cathode)
except Bidirectional
Maximum soldering temperature: 260 C for 10 seconds
o
H
D
A
C
Maximum Ratings @ 25 C Unless Otherwise Specified
Peak Pulse Current on
I
PP
See Table 1 Note:
2
10/1000us waveform
Peak Pulse Power
P
PP
1500W Note:
2
3
Dissipation
Operation And Storage T
J
, T
STG
-55
o
C to
Temperature Range
+175
o
C
Typical Thermal
R
thJL
15
o
C/W
Resistance Junction
to Lead
Typical Thermal
R
thJA
75
O
C/W
Resistance Junction
to Ambient
o
E
B
F
DIMENSIONS
INCHES
MIN
.079
.108
.002
.006
.030
..305
.260
.220
MM
MIN
2.00
2.75
0.051
0.152
0.76
7.75
6.60
5.59
DIM
A
B
C
D
E
F
G
H
MAX
.103
.128
.008
.012
.060
.320
.280
.245
MAX
2.62
3.25
0.203
0.305
1.52
8.13
7.11
6.22
NOTE
SUGGESTED SOLDER
PAD LAYOUT
0.190
0.125”
NOTES:
1.
High Temperature Solder Exemptions Applied, see EU Directive Annex 7.
0.070”
2.
3.
Non-repetitive current pulse, per Fig.3 and derated above
o
T
A
=25 C per Fig.2.
2
Mounted on 8.0mm copper pads to each terminal.
www.mccsemi.com
Revision:
F
1 of 5
2014/03/07
SMCJ1.5KE6.8(C)A THRU SMCJ1.5KE550(C)A
ELECTRICAL CHARACTERISTICS @25°C
MCC
PART NUMBER
REVERSE
STAND-OFF
VOLTAGE
V
WM
(VOLTS)
5.80
6.40
7.02
7.78
8.55
9.40
10.20
11.10
12.80
13.60
15.30
17.10
18.80
20.50
23.10
25.60
28.20
30.80
33.30
36.80
40.20
43.60
47.80
53.00
58.10
64.10
70.10
77.80
85.50
94.00
102.00
111.00
128.00
136.00
145.00
154.00
171.00
185.00
214.00
256.00
300.00
342.00
376.00
408.00
434.00
477.00
459.00
495.00
BREAKDOWN VOLTAGE
V
(BR)
@ I
T
(VOLTS)
MAXIMUM
CLAMPING
VOLTAGE @
I
PP
(VOLTS)
10.5
11.3
12.1
13.4
14.5
15.6
16.7
18.2
21.2
22.5
25.5
27.7
30.6
33.2
37.5
41.4
45.7
49.9
53.9
59.3
64.8
70.1
77.0
85.0
92.0
103.0
113.0
125.0
137.0
152.0
165.0
179.0
207.0
219.0
234.0
246.0
274.0
328.0
344.0
414.0
482.0
548.0
602.0
658.0
698.0
725.0
740.0
760.0
PEAK PULSE
CURRENT
I
PP
(AMPS)
144.8
134.5
125.6
113.4
104.8
97.4
91.0
83.5
71.7
67.6
60.3
54.9
49.7
45.8
40.5
36.7
33.3
30.5
28.2
25.6
23.5
21.7
19.7
17.9
16.5
14.8
13.5
12.2
11.1
10.0
9.2
8.5
7.3
6.9
6.5
6.2
5.5
4.6
4.4
3.7
3.2
2.8
2.5
2.3
2.1
2.1
2.0
2.0
MCC
TM
Micro Commercial Components
SMCJ1.5KE6.8A
SMCJ1.5KE7.5A
SMCJ1.5KE8.2A
SMCJ1.5KE9.1A
SMCJ1.5KE10A
SMCJ1.5KE11A
SMCJ1.5KE12A
SMCJ1.5KE13A
SMCJ1.5KE15A
SMCJ1.5KE16A
SMCJ1.5KE18A
SMCJ1.5KE20A
SMCJ1.5KE22A
SMCJ1.5KE24A
SMCJ1.5KE27A
SMCJ1.5KE30A
SMCJ1.5KE33A
SMCJ1.5KE36A
SMCJ1.5KE39A
SMCJ1.5KE43A
SMCJ1.5KE47A
SMCJ1.5KE51A
SMCJ1.5KE56A
SMCJ1.5KE62A
SMCJ1.5KE68A
SMCJ1.5KE75A
SMCJ1.5KE82A
SMCJ1.5KE91A
SMCJ1.5KE100A
SMCJ1.5KE110A
SMCJ1.5KE120A
SMCJ1.5KE130A
SMCJ1.5KE150A
SMCJ1.5KE160A
SMCJ1.5KE170A
SMCJ1.5KE180A
SMCJ1.5KE200A
SMCJ1.5KE220A
SMCJ1.5KE250A
SMCJ1.5KE300A
SMCJ1.5KE350A
SMCJ1.5KE400A
SMCJ1.5KE440A
SMCJ1.5KE480A
SMCJ1.5KE510A
SMCJ1.5KE530A
SMCJ1.5KE540A
SMCJ1.5KE550A
MIN
6.45
7.13
7.79
8.65
9.50
10.50
11.40
12.40
14.30
15.20
17.10
19.00
20.90
22.80
25.70
28.50
31.40
34.20
37.10
40.90
44.70
48.50
53.20
58.90
64.60
71.30
77.90
86.50
95.00
105.00
114.00
124.00
143.00
152.00
162.00
171.00
190.00
209.00
237.00
285.00
332.00
380.00
418.00
456.00
485.00
503.50
513.00
522.50
MAX
7.14
7.88
8.61
9.55
10.50
11.60
12.60
13.70
15.80
16.80
18.90
21.00
23.10
25.20
28.40
31.50
34.70
37.80
41.00
45.20
49.40
53.60
58.80
65.10
71.40
78.80
86.10
95.50
105.00
116.00
126.00
137.00
158.00
168.00
179.00
189.00
210.00
231.00
263.00
315.00
368.00
420.00
462.00
504.00
535.00
556.50
567.00
577.50
I
T
(mA)
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
MAXIMUM
REVERSE
LEAKAGE
@V
WM
I
D
(µA)
1000
500
200
50
10
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
MARKING
CODE
6V8A
7V5A
8V2A
9V1A
10A
11A
12A
13A
15A
16A
18A
20A
22A
24A
27A
30A
33A
36A
39A
43A
47A
51A
56A
62A
68A
75A
82A
91A
100A
110A
120A
130A
150A
160A
170A
180A
200A
220A
250A
300A
350A
400A
440A
480A
510A
530A
540A
550A
For bi-directional type having V
rwm
of 10 volts and less, the I
R
limit is double.
The available parts are “A” type only, the parts without A (V
BR
is
f10%)
is not available.
www.mccsemi.com
Revision: F
2 of 5
2014/03/07
SMCJ1.5KE6.8(C)A THRU SMCJ1.5KE550(C)A
ELECTRICAL CHARACTERISTICS @25°C
MCC
PART NUMBER
REVERSE
STAND-OFF
VOLTAGE
V
WM
(VOLTS)
5.80
6.40
7.02
7.78
8.55
9.40
10.20
11.10
12.80
13.60
15.30
17.10
18.80
20.50
23.10
25.60
28.20
30.80
33.30
36.80
40.20
43.60
47.80
53.00
58.10
64.10
70.10
77.80
85.50
94.00
102.00
111.00
128.00
136.00
145.00
154.00
171.00
185.00
214.00
256.00
300.00
342.00
376.00
408.00
434.00
477.00
459.00
495.00
BREAKDOWN VOLTAGE
V
(BR)
@ I
T
(VOLTS)
MAXIMUM
CLAMPING
VOLTAGE @
I
PP
(VOLTS)
10.5
11.3
12.1
13.4
14.5
15.6
16.7
18.2
21.2
22.5
25.5
27.7
30.6
33.2
37.5
41.4
45.7
49.9
53.9
59.3
64.8
70.1
77.0
85.0
92.0
103.0
113.0
125.0
137.0
152.0
165.0
179.0
207.0
219.0
234.0
246.0
274.0
328.0
344.0
414.0
482.0
548.0
602.0
658.0
698.0
725.0
740.0
760.0
PEAK PULSE
CURRENT
I
PP
(AMPS)
144.8
134.5
125.6
113.4
104.8
97.4
91.0
83.5
71.7
67.6
60.3
54.9
49.7
45.8
40.5
36.7
33.3
30.5
28.2
25.6
23.5
21.7
19.7
17.9
16.5
14.8
13.5
12.2
11.1
10.0
9.2
8.5
7.3
6.9
6.5
6.2
5.5
4.6
4.4
3.7
3.2
2.8
2.5
2.3
2.1
2.1
2.0
2.0
MCC
TM
Micro Commercial Components
SMCJ1.5KE6.8CA
SMCJ1.5KE7.5CA
SMCJ1.5KE8.2CA
SMCJ1.5KE9.1CA
SMCJ1.5KE10CA
SMCJ1.5KE11CA
SMCJ1.5KE12CA
SMCJ1.5KE13CA
SMCJ1.5KE15CA
SMCJ1.5KE16CA
SMCJ1.5KE18CA
SMCJ1.5KE20CA
SMCJ1.5KE22CA
SMCJ1.5KE24CA
SMCJ1.5KE27CA
SMCJ1.5KE30CA
SMCJ1.5KE33CA
SMCJ1.5KE36CA
SMCJ1.5KE39CA
SMCJ1.5KE43CA
SMCJ1.5KE47CA
SMCJ1.5KE51CA
SMCJ1.5KE56CA
SMCJ1.5KE62CA
SMCJ1.5KE68CA
SMCJ1.5KE75CA
SMCJ1.5KE82CA
SMCJ1.5KE91CA
SMCJ1.5KE100CA
SMCJ1.5KE110CA
SMCJ1.5KE120CA
SMCJ1.5KE130CA
SMCJ1.5KE150CA
SMCJ1.5KE160CA
SMCJ1.5KE170CA
SMCJ1.5KE180CA
SMCJ1.5KE200CA
SMCJ1.5KE220CA
SMCJ1.5KE250CA
SMCJ1.5KE300CA
SMCJ1.5KE350CA
SMCJ1.5KE400CA
SMCJ1.5KE440CA
SMCJ1.5KE480CA
SMCJ1.5KE510CA
SMCJ1.5KE530CA
SMCJ1.5KE540CA
SMCJ1.5KE550CA
MIN
6.45
7.13
7.79
8.65
9.50
10.50
11.40
12.40
14.30
15.20
17.10
19.00
20.90
22.80
25.70
28.50
31.40
34.20
37.10
40.90
44.70
48.50
53.20
58.90
64.60
71.30
77.90
86.50
95.00
105.00
114.00
124.00
143.00
152.00
162.00
171.00
190.00
209.00
237.00
285.00
332.00
380.00
418.00
456.00
485.00
503.50
513.00
522.50
MAX
7.14
7.88
8.61
9.55
10.50
11.60
12.60
13.70
15.80
16.80
18.90
21.00
23.10
25.20
28.40
31.50
34.70
37.80
41.00
45.20
49.40
53.60
58.80
65.10
71.40
78.80
86.10
95.50
105.00
116.00
126.00
137.00
158.00
168.00
179.00
189.00
210.00
231.00
263.00
315.00
368.00
420.00
462.00
504.00
535.00
556.50
567.00
577.50
I
T
(mA)
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
MAXIMUM
REVERSE
LEAKAGE
@V
WM
I
D
(µA)
1000
500
200
50
10
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
MARKING
CODE
6V8C
7V5C
8V2C
9V1C
10C
11C
12C
13C
15C
16C
18C
20C
22C
24C
27C
30C
33C
36C
39C
43C
47C
51C
56C
62C
68C
75C
82C
91C
100C
110C
120C
130C
150C
160C
170C
180C
200C
220C
250C
300C
350C
400C
440C
480C
510C
530C
540C
550C
For bi-directional type having V
rwm
of 10 volts and less, the I
R
limit is double.
The available parts are “A” type only, the parts without A (V
BR
is
f10%)
is not available.
www.mccsemi.com
Revision: F
3 of 5
2014/03/07
SMCJ1.5KE6.8(C)A THRU SMCJ1.5KE550(C)A
Ratings and
Characteristic Curves
(T
A
= 25°C unless otherwise noted)

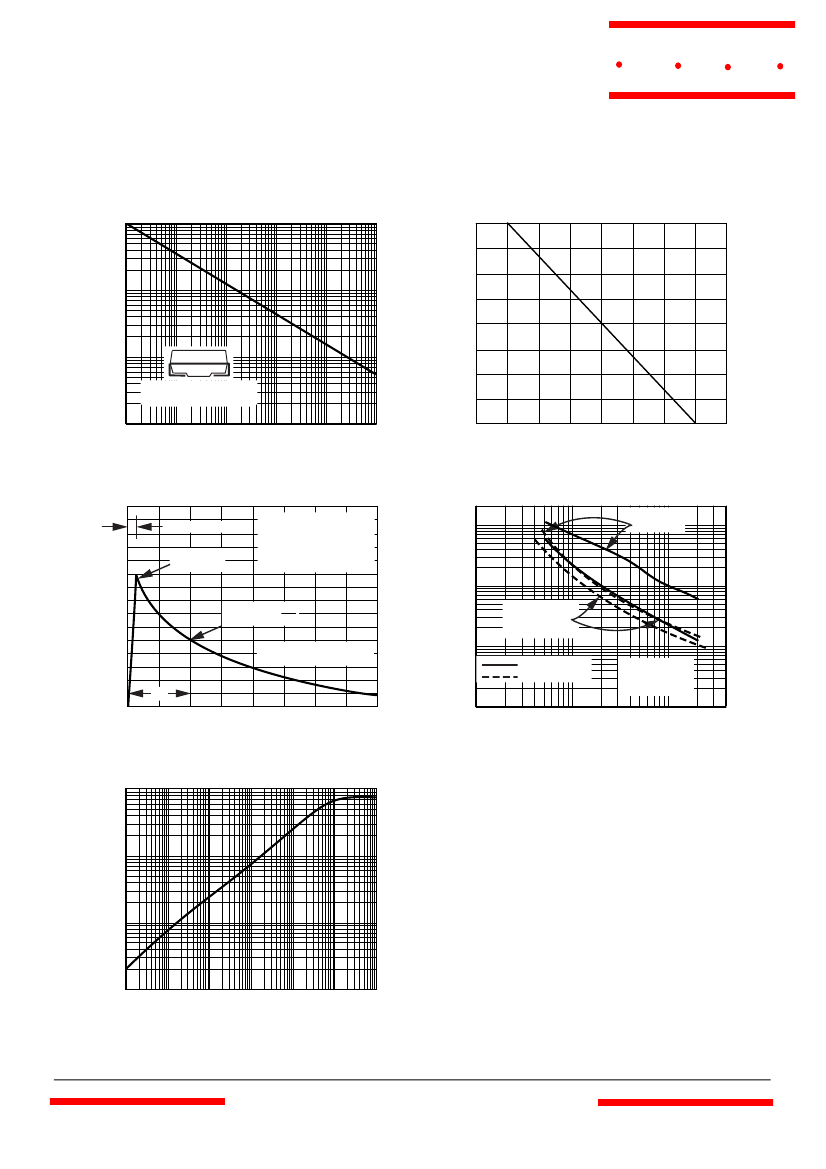

Fig. 1 – Peak Pulse Power Rating Curve
Peak Pulse Power (P
PP
) or Current (I
PP
)
Derating in Percentage, %
100
100
MCC
Micro Commercial Components
TM
Fig. 2 – Pulse Derating Curve
P
PPM
— Peak Pulse Power (kW)
75
10
50
1
0.31 x 0.31" (8.0 x 8.0mm)
Copper Pad Areas
0.1
0.1µs
1.0µs
10µs
100µs
1.0ms
10ms
25
0
0
25
50
75
100
125
150
175
200
t
d
— Pulse Width (sec.)
T
A
— Ambient Temperature (°C)
Fig. 3 – Pulse Waveform
150
20,000
Fig. 4 – Typical Junction Capacitance
Uni-Directional
C
J
— Junction Capacitance (pF)
10,000
Measured at
Zero Bias
I
PPM
— Peak Pulse Current, % I
RSM
tr = 10µsec.
Peak Value
I
PPM
100
T
J
= 25°C
Pulse Width (td)
is defined as the point
where the peak current
decays to 50% of I
PPM
1,000
V
R
, Measured at
Stand-Off
Voltage, V
WM
100
Uni-Directional
Bi-Directional
10
T
J
= 25°C
f = 1.0MHz
Vsig = 50mVp-p
100
400
Half Value — IPP
2
I
PPM
50
10/1000µsec. Waveform
as defined by R.E.A.
td
0
0
1.0
2.0
3.0
4.0
1
10
t — Time (ms)
V
WM
— Reverse Stand-Off Voltage (V)
Fig. 5 – Typical Transient Thermal
Impedance
100
Transient Thermal Impedance (°C/W)
10
1.0
0.1
0.001
0.01
0.1
1
10
100
1000
t
p
— Pulse Duration (sec)
www.mccsemi.com
Revision: F
4 of 5
2014/03/07
MCC
Micro Commercial Components
TM
Ordering Information :
Device
Part Number-TP
Note : Adding "-HF" suffix for halogen free, eg. Part Number-TP-HF
Packing
Tape&Reel:
3Kpcs/Reel
***IMPORTANT NOTICE***
Micro Commercial Components Corp.
reserves the right to make changes without further notice to any product herein to
make corrections, modifications , enhancements , improvements , or other changes .
Micro Commercial Components
Corp .
does not assume any liability arising out of the application or use of any product described herein; neither does it
convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all
risks of such use and will agree to hold
Micro Commercial Components Corp .
and all the companies whose products are
represented on our website, harmless against all damages.
***LIFE SUPPORT***
MCC's products are not authorized for use as critical components in life support devices or systems without the express written
approval of Micro Commercial Components Corporation.
***CUSTOMER AWARENESS***
Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking
strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages
customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on
our web page cited
below.
Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine
parts, have full traceability, meet MCC's quality standards for handling and storage.
MCC will not provide any warranty
coverage or other assistance for parts bought from Unauthorized Sources.
MCC is committed to combat this global
problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized
distributors.
www.mccsemi.com
Revision: F
5 of 5
2014/03/07
京公网安备 11010802033920号
EEWORLD
